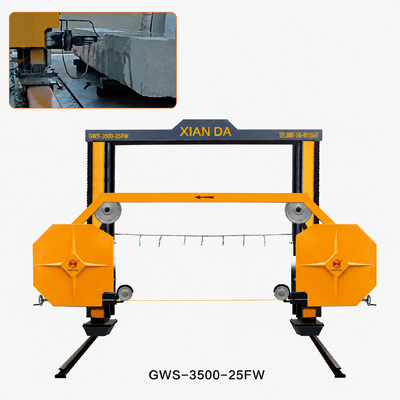

GWS-3500-25FW Movable CNC Diamond Wire Saw Machine for High Precision Stone Cutting and Processing
XIANDA Movable CNC Diamond Wire Saw Machine for High Precision Stone Cutting and Processing. The CNC Diamond Wire Saw Machine is a high-precision stone cutting solution designed for granite, marble, and special-shaped stone processing. Featuring a movable structure, hydraulic wire tension control, four-axis CNC linkage, DXF automatic programming, and intelligent wire protection, it delivers accurate, efficient, and reliable cutting performance for modern stone fabrication industries.
Electric Cabinet & Operation Panel
Technical Specifications
| Model Number |
CGWS-3500-21 |
GWS-3500-21 |
GWS-3500-25FW |
| Control System |
CNC |
PLC |
PLC |
| Certifications |
API, CCC, SONCAP, GOST, ISO, CE, SGS |
API, CCC, SONCAP, GOST, ISO, CE, SGS |
API, CCC, SONCAP, GOST, ISO, CE, SGS |
| Main Motor |
15KW |
15KW |
15KW |
| Gross Weight |
10500kg |
10500kg |
10500kg |
| Outline Dimension |
9800*5900*5600mm |
9800*5900*5600mm |
9600*5900*6500mm |
| Max Processing Size |
3500*2500*2100mm |
3500*2500*2100mm |
3500*2500*2500mm |
| Water Consumption |
4m³/h |
4m³/h |
4m³/h |
| Table Bearing Weight |
NO WORKTABLE(OPTIONAL) |
NO WORKTABLE(OPTIONAL) |
NO WORKTABLE(OPTIONAL) |
| Wire Speed |
20-40m/s |
20-40m/s |
20-40m/s |
| Production Capacity |
1000 Sets/Year |
1000 Sets/Year |
1000 Sets/Year |
| Origin |
Fujian, China |
Fujian, China |
Fujian, China |
Applications
This CNC diamond wire saw machine is designed for processing granite, marble, quartz, artificial stone, and other hard stone materials with high precision and efficiency.
CNC Diamond Wire Saw Machine Features
Movable Machine Structure for Flexible Stone Processing
The CNC Diamond Wire Saw Machine adopts an innovative movable body design, eliminating the need for an additional trolley system. This structure allows the machine to move smoothly during cutting operations, providing greater flexibility, easier installation, and better space utilization.
Robust Heavy-Duty Frame with Hydraulic Wire Tension Control
Built with a high-strength industrial structure featuring reinforced top beam, dual vertical columns, rigid square frame components, hydraulic power unit, wire tensioning system, and large-diameter flywheels. The hydraulic system automatically adjusts diamond wire tension for consistent cutting performance.
High-Precision Four-Axis CNC Linkage System
Equipped with an advanced four-axis CNC control system that achieves precise multi-axis coordination for complex stone cutting applications. Vertical lifting movement and guide wheel rotation are controlled by high-precision servo/stepper motor systems.
Intelligent CNC Programming with DXF File Import
The integrated CNC control system provides a user-friendly operation interface and supports direct DXF file import through USB, automatically converting AutoCAD drawings into cutting programs for customized stone projects.
Automatic Diamond Wire Break Detection & Safety Protection
Equipped with an intelligent diamond wire break monitoring system that continuously detects wire operation status and automatically stops the machine during abnormal conditions to protect equipment and improve operator safety.
Key Features
- Heavy load bearing structure with four orbits on each upright column
- Synchronized lifting with increased accuracy via lead screw and double nuts
- Cantilever part with CNC-controlled guide wheel distance and rotation angle
- Movable Machine Body Design
- Automatic wire break alarm system
- 2200mm aluminum wheel diameter with oil pump controlled rope tension
- Four-spindle linkage for precise cutting operations
Factory Strength
- 40+ years manufacturing experience in stone cutting machinery
- Export to 60+ countries worldwide
- Professional R&D team for CNC cutting equipment
- Full OEM/ODM customization support
- Complete production line & strict quality inspection
- After-sales service & technical support globally
Support & Services
We offer comprehensive technical support and service including on-site support, maintenance, troubleshooting, and repair services. Our experienced technicians are available to ensure optimal machine performance.
Packaging & Shipping
Securely packed in specialized packaging material with bubble wrap or foam protection. Shipping options include ground, air, and international shipping. All shipments are tracked and insured for safe delivery.
Frequently Asked Questions
What materials can the four-spindle diamond wire saw machine cut?
It can cut granite, marble, quartz, artificial stone, and other hard stones.
What is the cutting precision of this CNC diamond wire saw?
High cutting precision up to ≤0.01mm, ensuring smooth and accurate cutting.
Do you support customized size and parameters?
Yes, we provide full OEM/ODM customization for table size, power, voltage and functions.
Can you export to Europe, USA, Middle East and Southeast Asia?
Yes, we have rich export experience and provide safe packaging and fast delivery.
What is the advantage of four-spindle linkage?
It improves cutting efficiency, stability and multi-angle processing capacity.
