Industrial Diamond Wire Saw Machine for Granite Block Cutting and Stone Squaring

1
MOQ
USD50000-55000
Price
Industrial Diamond Wire Saw Machine for Granite Block Cutting and Stone Squaring
Features Gallery Product Description Request A Quote
Features
Specifications
Cutting Precision: High
Automation: Automatic
Gross Motor: 11kw
Rope Length: 20.6m
Water Consumption: 4m3/H
Wire Diameter: 7.2mm To 11mm
Main Motor: 15kw
Transport Package: Plastic Package, Suitable For Sea Transportation
Max Processing Size: 3500*3500*2100mm
Table Bearing Weight: No Table
Control Type: CNC
Model NO.: GWS-3500-21
Name: Diamond Wire Saw Machine
Warranty Time: One Year
Wire Speed: 0-40m/S2
Advantage: Multi Function With Good Quality And Price
Control System: PLC SYSTEM
Highlight:

Industrial diamond wire saw machine

,

Granite block cutting saw machine

,

Stone squaring diamond wire saw
Basic Infomation
Place of Origin: Jinjiang, Fujian, China
Brand Name: Xianda Machinery
Certification: API, CCC, SONCAP, GOST, ISO, CE, SGS;IAF
Model Number: CGWS-3500-21
Payment & Shipping Terms
Packaging Details: Plastic Package, Suitable for Sea Transportation
Delivery Time: 15-30days
Payment Terms: L/C,D/A,D/P,T/T
Supply Ability: 1000 Sets/Year
Product Description

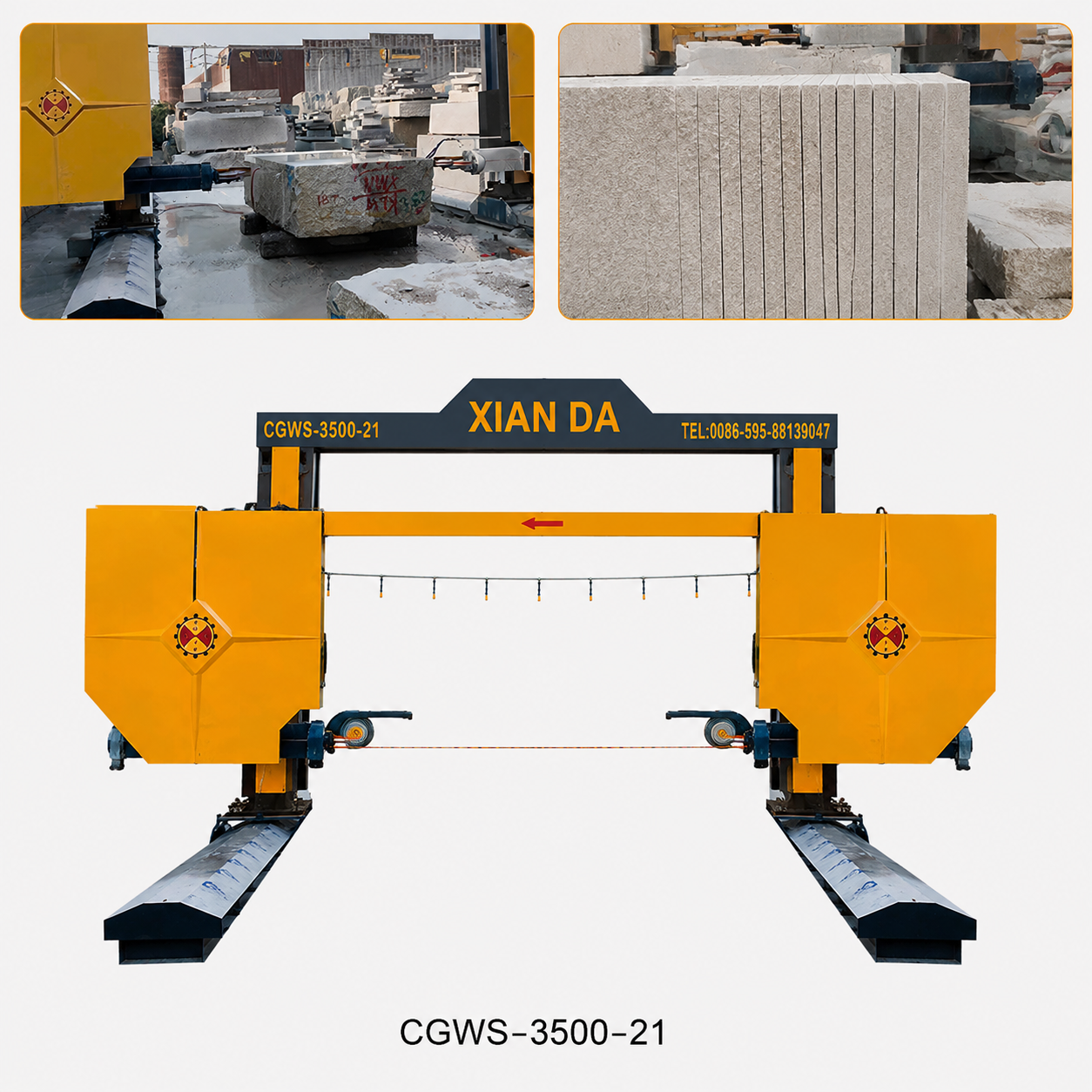

Industrial Diamond Wire Saw Machine for Granite Block Cutting and Stone Squaring
XIANDA Industrial Diamond Wire Saw Machine for Granite Block Cutting and Stone Squaring. The CNC Diamond Wire Saw Machine is a high-precision stone cutting solution designed for granite, marble, and special-shaped stone processing. Featuring a movable structure, hydraulic wire tension control, four-axis CNC linkage, DXF automatic programming, and intelligent wire protection, it delivers accurate, efficient, and reliable cutting performance for modern stone fabrication industries.
Industrial Diamond Wire Saw Machine
Electric Cabinet & Operation Panel
Electric Cabinet and Operation Panel
Technical Specifications
Model Number CGWS-3500-21 GWS-3500-21
Control System CNC PLC
Certifications API, CCC, SONCAP, GOST, ISO, CE, SGS API, CCC, SONCAP, GOST, ISO, CE, SGS
Main Motor 15KW 15KW
Gross Weight 10500kg 10500kg
Outline Dimension 9000*5800*5600mm 9000*5800*5600mm
Max Processing Size 3500*2500*2100mm 3500*2500*2100mm
Water Consumption 4m³/h 4m³/h
Table Bearing Weight NO WORKTABLE(OPTIONAL) NO WORKTABLE(OPTIONAL)
Wire Speed 20-40m/s 20-40m/s
Production Capacity 1000 Sets/Year 1000 Sets/Year
Origin Fujian, China Fujian, China
CNC Diamond Wire Saw Machine Features
Movable Machine Structure for Flexible Stone Processing
The CNC Diamond Wire Saw Machine adopts an innovative movable body design, eliminating the need for an additional trolley system. This structure allows the machine to move smoothly during cutting operations, providing greater flexibility, easier installation, and better space utilization. The optimized design improves working efficiency while making the equipment suitable for various stone processing environments, including granite, marble, and other natural stone applications.
Robust Heavy-Duty Frame with Hydraulic Wire Tension Control
Built with a high-strength industrial structure, the machine consists of a reinforced top beam, dual vertical columns, rigid square frame components, hydraulic power unit, wire tensioning system, and large-diameter flywheels. The hydraulic system automatically adjusts diamond wire tension and maintains stable pressure during cutting, ensuring consistent cutting performance and extending wire service life.
High-Precision Four-Axis CNC Linkage System
Equipped with an advanced four-axis CNC control system, the machine achieves precise multi-axis coordination for complex stone cutting applications. The vertical lifting movement and guide wheel rotation are controlled by high-precision servo/stepper motor systems, ensuring accurate positioning, smooth movement, and stable cutting results.
Intelligent CNC Programming with DXF File Import Function
The integrated CNC control system provides a user-friendly operation interface, allowing operators to easily set cutting parameters, adjust processing paths, and manage cutting programs. For customized and complex stone shapes, designs can be created using AutoCAD and exported as DXF files. The CNC system supports direct DXF file import through USB, automatically converting drawings into cutting programs.
Automatic Diamond Wire Break Detection & Safety Protection
The machine is equipped with an intelligent diamond wire break monitoring system that continuously detects wire operation status during cutting. When abnormal conditions such as wire breakage or unexpected operation occur, the system automatically stops the machine to protect equipment components and improve operator safety.
Key Features
  • Heavy load bearing structure with four orbits on each upright column
  • Synchronized lifting with increased accuracy via lead screw and double nuts
  • Cantilever part with CNC-controlled guide wheel distance and rotation angle
  • Movable Machine Body Design
  • Automatic wire break alarm system
  • 2200mm aluminum wheel diameter with oil pump controlled rope tension
  • Four-spindle linkage for precise cutting operations
Factory Strength
Modern factory manufacturing facility with stone cutting machinery
  • 40+ years manufacturing experience in stone cutting machinery
  • Export to 60+ countries worldwide
  • Professional R&D team for CNC cutting equipment
  • Full OEM/ODM customization support
  • Complete production line & strict quality inspection
  • After-sales service & technical support globally
Support & Services
Professional engineering team members Technical team working on machinery
We offer comprehensive technical support and service including on-site support, maintenance, troubleshooting, and repair services. Our experienced technicians are available to ensure optimal machine performance.
Packaging & Shipping
Secure packaging for machinery shipment Packaged machinery ready for shipping
Securely packed in specialized packaging material with bubble wrap or foam protection. Shipping options include ground, air, and international shipping. All shipments are tracked and insured for safe delivery.
Frequently Asked Questions
What materials can the four-spindle diamond wire saw machine cut?
It can cut granite, marble, quartz, artificial stone, and other hard stones.
What is the cutting precision of this CNC diamond wire saw?
High cutting precision up to ≤0.01mm, ensuring smooth and accurate cutting.
Do you support customized size and parameters?
Yes, we provide full OEM/ODM customization for table size, power, voltage and functions.
Can you export to Europe, USA, Middle East and Southeast Asia?
Yes, we have rich export experience and provide safe packaging and fast delivery.
What is the advantage of four-spindle linkage?
It improves cutting efficiency, stability and multi-angle processing capacity.
