Convinient CNC Circular Slab Stone Cutting Machine For Marble Granite Processing

1 UNIT
MOQ
22000 USD/SET
Price
Convinient CNC Circular Slab Stone Cutting Machine For Marble Granite Processing
Features Gallery Product Description Request A Quote
Features
Specifications
Table Bearing Weight: 20T/35T
Certification: CE, ISO9001
Name: CNC Circular Slab Stone Cutting Machine
Main Motor: 12.5kw
Warranty: 12 Months For Parts
Water Consumption: 4m³/h
Highlight:

CNC circular slab stone cutting machine

,

marble granite cutting machine

,

diamond wire saw for stone processing

Basic Infomation
Place of Origin: Quanzhou City, Fujian Province
Brand Name: Xianda
Certification: CE, ISO 9001
Model Number: CHJJ-1500A/B
Payment & Shipping Terms
Delivery Time: 45 days
Payment Terms: T/T
Supply Ability: 10 SETS 2 MONTHS
Product Description

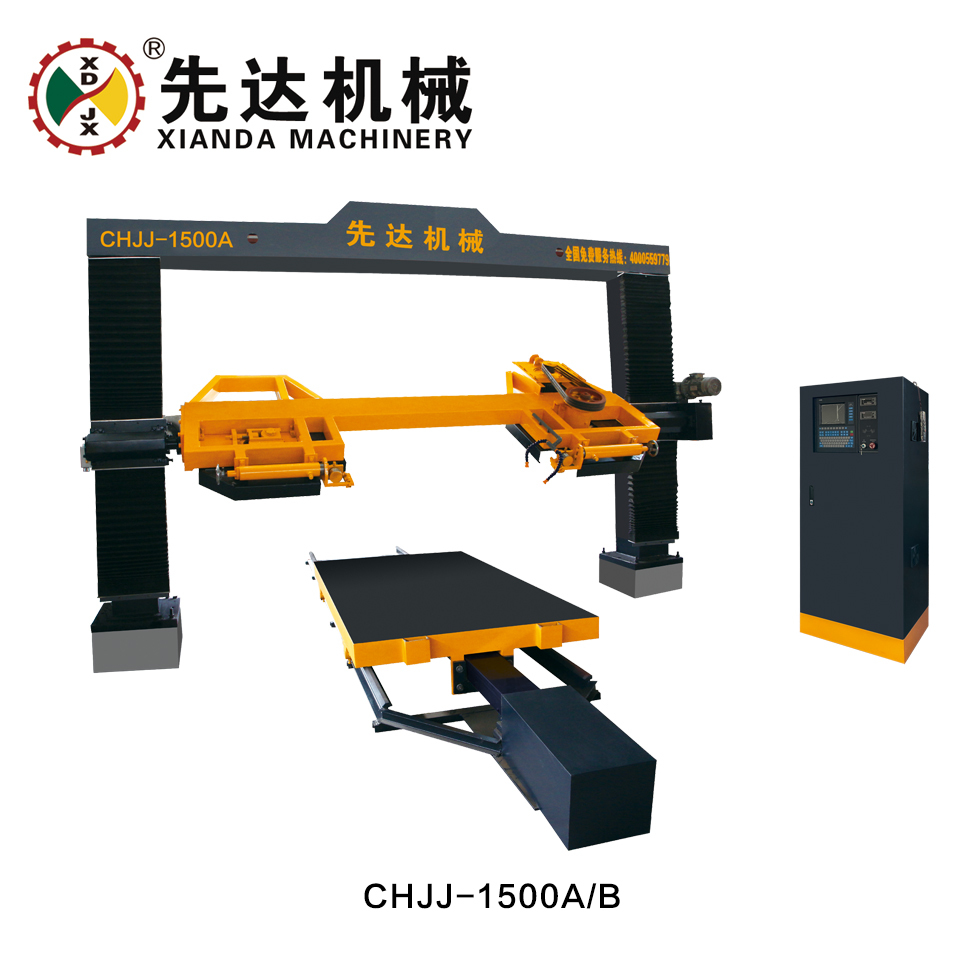

CNC Circular Slab Stone Cutting Machine
Product Overview

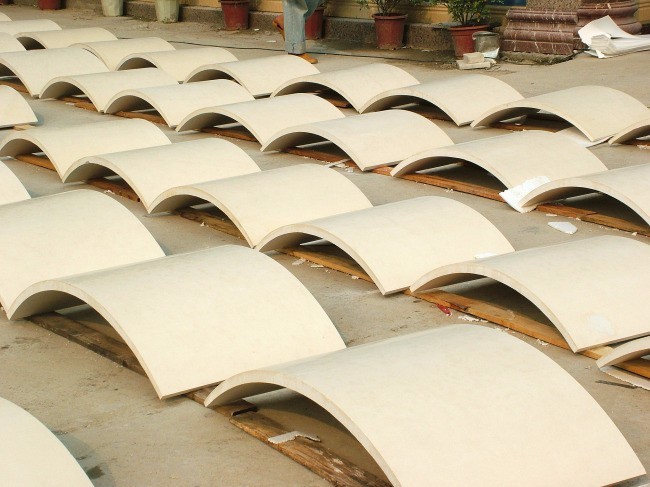

Circular slab stone cutting machine adopts CNC system control, the band saw which operates around the central axis, slicing blocks is controlled by the worktable automatic feeding. It has the features of lower energy consumption and small saw kerfs(3mm saw kerts), saving blocks, simple operation, high precision and high efficiency. Processing diameter range is bigger than φ600mm(including 600mm), which is the ideal choice for processing marble block to circular arc slab.

Key Features
  • CNC control system
  • Versatile processing capabilities for various stone shapes
  • High-quality construction with exceptional processing precision
  • Robust design for industrial stone processing applications

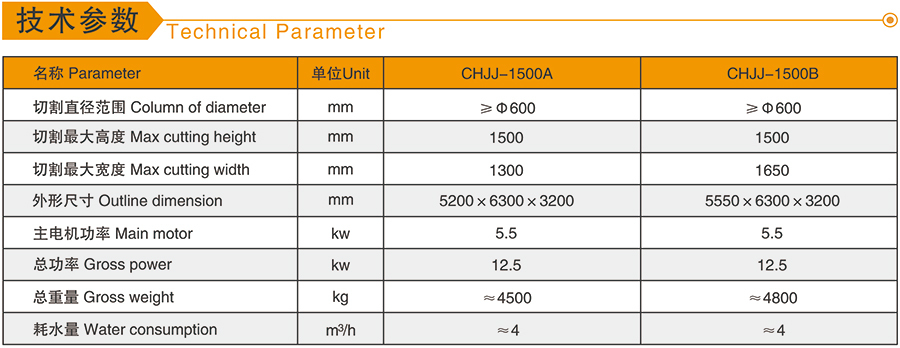

Technical Specifications
Specification CHJJ-1500A/B
Column of diameter ≥φ600mm
Max cutting height 1500mm
Max cutting width 1300mm
Outline dimension 5200 x 6300 x 3200
Main motor 5.5kw
Gross power 12.5kw
Gross weight 4500KG
Water Consumption 4m³/h
Product Gallery

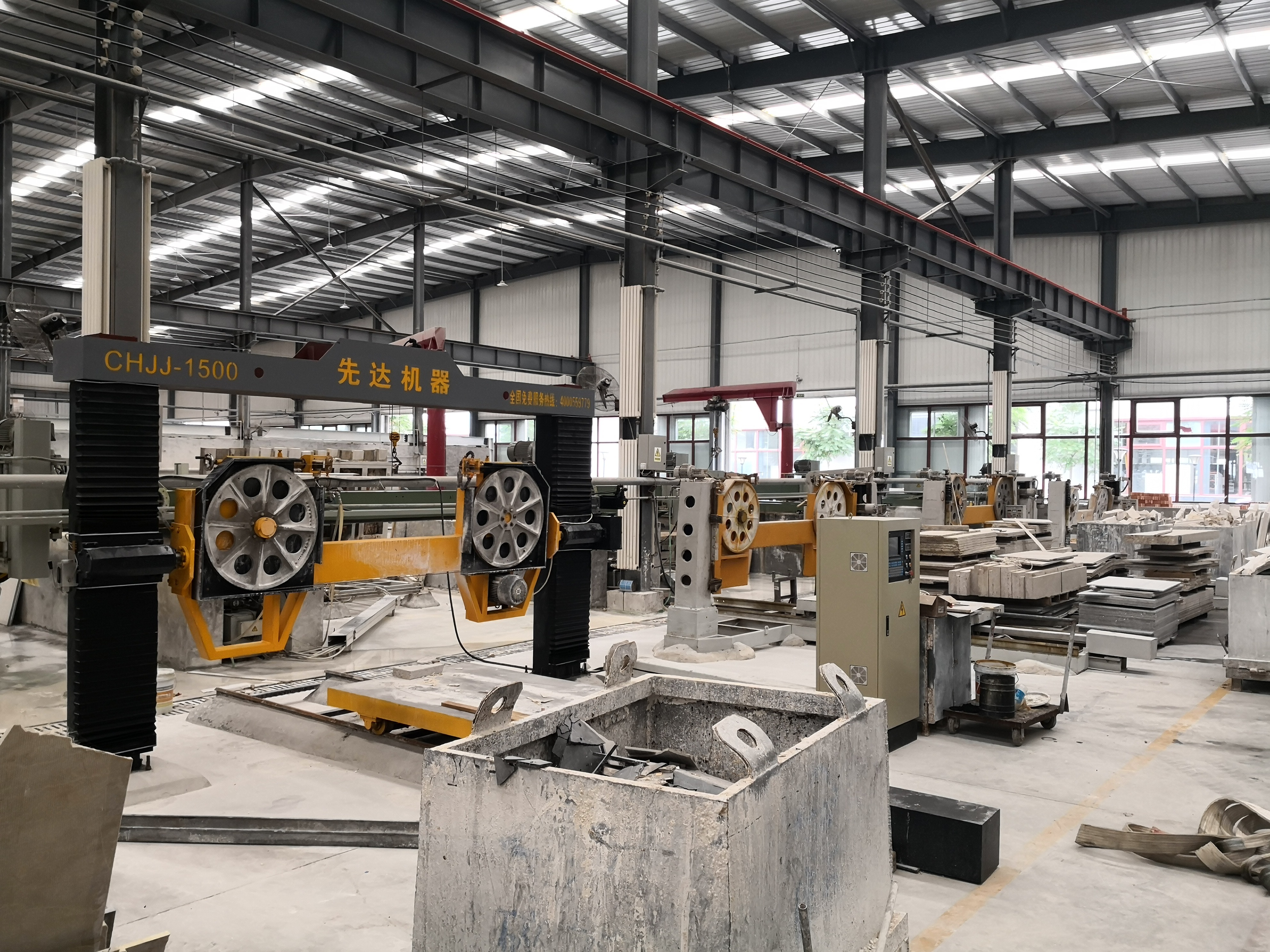

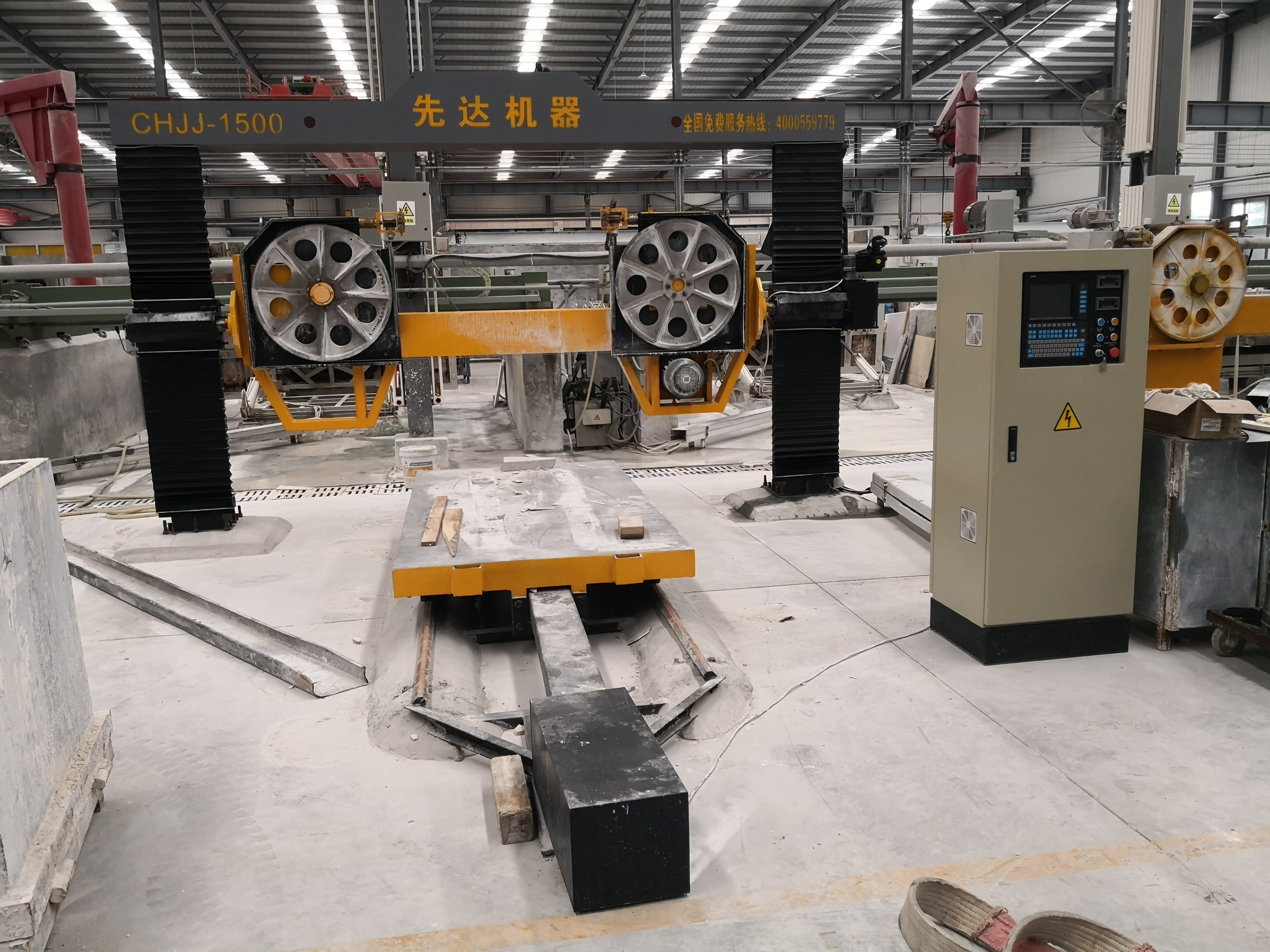

Factory Overview
Certifications
ISO and CE certification documents for stone machinery
Our Services
  • Machine testing videos and thorough inspection before shipping
  • 32 years of manufacturing experience with over 70% market share in China for special shape stone cutting machines
  • Top 5 stone cutting machine manufacturer with ISO & CE certification
  • Global reach with products sold to more than 20 countries
  • Use of top brands to ensure high quality components
  • Competitive pricing and volume discounts available
  • Strong supply capacity with over 1000 sets produced annually
  • 24/7 online after-sales service and technical support
  • Professional installation guidance and operator training
  • Complaint resolution and quality assurance services
Frequently Asked Questions
How to place order to your company?
1. Inquiry - Professional quotation
2. Confirm price, lead time, logo, payment terms
3. Xianda sales sends Proforma Invoice with seal
4. Customer makes deposit payment and sends bank receipt
5. Sales confirms receipt and arranges production with estimated timeline
How is After-sales Service Provided?
Engineer can be dispatched for machinery assembly and technical support.
Are you Manufacture Factory?
Yes, we are the stone machinery factory established since 1985, with 41 years of manufacturing experience.
What about the warranty time of the machine?
We provide one year parts warranty service.
What can this machine be used for?
This machine is designed to cut lines on stone including columns, big arc shaped slabs, and special stone shapes.
