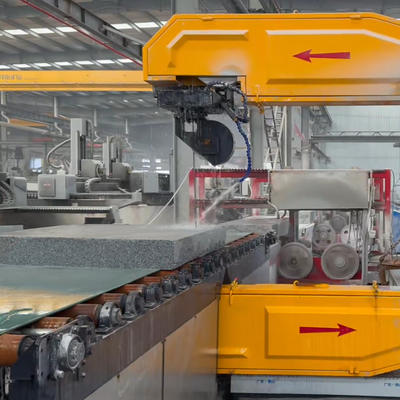

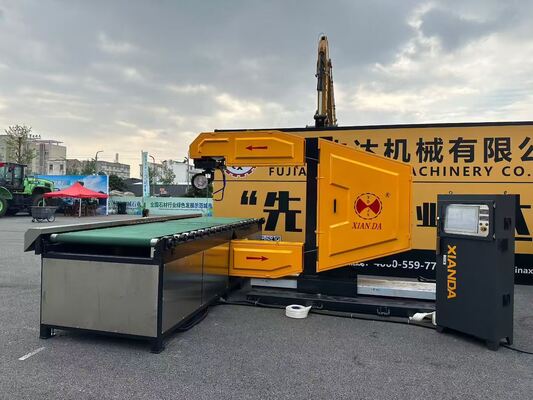

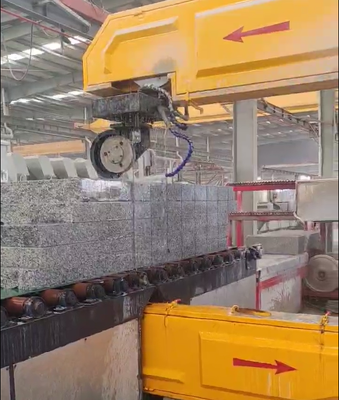

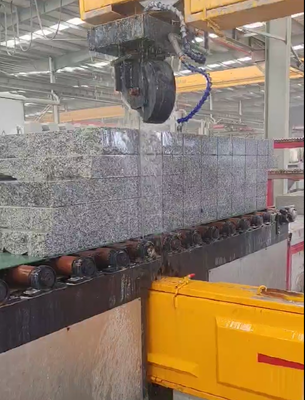

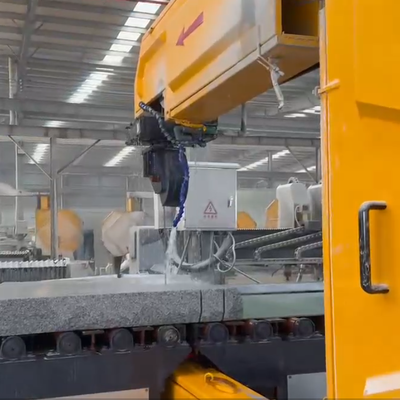

360° Rotatable A-Axis Vertical CNC Diamond Wire Saw Machine with Permanent-Magnet Main Motor for 2300mm Stone Cutting

1 Set
MOQ
To Be Negotiable
Price
360° Rotatable A-Axis Vertical CNC Diamond Wire Saw Machine with Permanent-Magnet Main Motor for 2300mm Stone Cutting
Features Gallery Product Description Request A Quote
Features
Specifications
Main Motor: 7.5kw
Power: 22KW
Cutting Length: 2300mm
Rated Power: 5.5kw
Rotation Degree: 360°（Optional）
Max Processing Size: 2300 * 800 * 300 Mm
Basic Infomation
Place of Origin: Jinjiang, Fujian, China
Brand Name: Xianda Machinery
Certification: API, CCC, SONCAP, GOST, ISO, CE, SGS;IAF
Model Number: VCWS-800-03
Payment & Shipping Terms
Packaging Details: Wire rope lashing,Suitable for sea/air/land/rail transportation.
Delivery Time: 30 Days
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Supply Ability: 1000 Sets/Year
Product Description
360° Rotatable A-Axis Vertical CNC Diamond Wire Saw Machine for Marble Granite Processing
Product Overview

Model: VCWS-800-03 Vertical CNC Diamond Wire Saw Machine

The VCWS-800-03 vertical CNC diamond wire saw machine is high-end automatic stone processing equipment independently developed by Xianda Machinery. Equipped with permanent-magnet main motor and 0-360° free-rotatable A-axis, it supports Manual/Auto/Program three working modes. The machine adopts heavy-duty welded steel structure with stable running performance. It is widely used for cutting and profiling granite, marble and all kinds of natural stone to make complex curved and special-shape stone workpieces.

Core Features
0-360° A-axis arbitrary rotation for flexible processing of complex curved profiles
Permanent-magnet main motor, 7.5-6 kw with speed-control function, energy-saving and stable
Three working modes: Manual, Auto, Program to satisfy different operation requirements
Max processing dimension: 2300×800×300 mm; workbench load capacity up to 3+3 Ton
Adjustable cutting-line speed: 20-40 m/s to adapt to different stone hardness
Heavy-duty welded steel frame, strong rigidity, low failure rate, long service life
Application Scenarios
  • Complex special-shape stone profiling & curved cutting
  • Roman column, arc stone, stone vase, decorative artistic stone processing
  • Tombstone & monument special-shape contour cutting
  • Granite, marble and other natural stone custom-shape fabrication
  • Stone factory high-precision special-shape mass-production
Technical Specifications
Parameter Unit VCWS-800-03
Max processing size mm 2300 × 800 × 300
Trolley size mm 2200 × 970 × 2
Cutting line speed m/s 20-40
A-axis rotation angle ° 0-360° (Rotate at any angle)
Workbench load capacity T 3+3
Main motor power kw 7.5-6 (Permanent magnet motor)
Main motor speed control function kw 11
Total power kw 16
Outline dimension mm 4350 × 4750 × 2350
Company Credentials

Xianda Machinery has been focusing on stone-processing machinery since 1985.

  • Complete in-house production workshop for R&D, machining, assembly and testing
  • Main-stream machines passed CE certification, meet European safety requirements
  • Strict raw-material inspection and full-machine running test before delivery
  • Mature after-sales technical support system
  • Our machines are exported to Europe, South America, Middle East, Southeast Asia and other global markets
Payment & Shipping
  • Accepted Payment: T/T. 30% deposit for production, 70% balance before shipment
  • Lead Time: 20-30 working days after receiving deposit
  • Packing: Fumigated solid wooden export case
  • Freight: Freight cost is not included in unit price. We provide accurate freight quotation according to your destination port
SEND YOUR INQUIRY NOW! Get Factory Best Price & Complete Technical Documents. Place Your Order Immediately to Reserve Production Slot.
Warranty & Support

12-month full-machine warranty (consumable parts such as diamond wire are excluded)

  • Lifelong free online technical guidance
  • Consumable & spare-parts supplied at factory cost after warranty expires
  • English operation manual and operation-teaching video provided
  • Remote video troubleshooting support
Frequently Asked Questions
Q1: What is MOQ?
A: MOQ is 1 set. Single-unit order is supported.
Q2: Can I customize the machine?
A: Minor customization is available, for example local-standard motor voltage. Please inform us your working condition before quotation.
Q3: Does this machine support complex graphic program cutting?
A: Yes, Program mode supports graphic import for automatic profiling cutting; Manual and Auto modes are available for simple operation.
Q4: Can you provide on-site installation and training overseas?
A: Overseas on-site service can be arranged with extra charge. Standard delivery includes remote video guidance for installation and training.
Q5: What materials can this machine process?
A: Granite, marble and most natural stone for curved and special-shape profiling cutting.
