Name: Gantry Movable CNC PLC Wire Saw Machine for Large Stone Block Cutting
Brand: Fujian Xianda Machinery co.,ltd
SKU: GWS-3500-21
Price: 259.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Product Name: Diamond Wire Saw Machine

Machine Type: Gantry Movable CNC Diamond Wire Saw Machine

Machine Models: GWS-3500-22FW / CGWS-3500-22FW

Control System: PLC Or CNC Automatic Control

Cutting Capacity Max.: 3500 × 3500 × 2200 Mm

Wire Speed: 20–40 M/s Adjustable

Main Motor: 15 KW High-Efficiency Motor

Machine Weight Approx.: 10,300–10,500 Kg

Application Materials: Granite, Marble, Quartz, Limestone, Sandstone & Natural Stone

Basic Infomation

Place of Origin: Jinjiang, Fujian, China

Brand Name: Xianda Machinery

Certification: CE/ISO9001

Model Number: GWS-3500-21

Payment & Shipping Terms

Packaging Details: Suitable for sea transport

Delivery Time: 25-35 working days after deposit

Payment Terms: L/C,D/A,D/P,T/T

Supply Ability: 1000 Sets/Year

Gallery

Gantry Movable CNC PLC Wire Saw Machine for Large Stone Block Cutting

Product Description

Gantry Movable CNC PLC Wire Saw Machine for Large Stone Block Cutting

CNC/Gantry Wire Saw Machine for Large Stone Block Cutting

Product Introduction

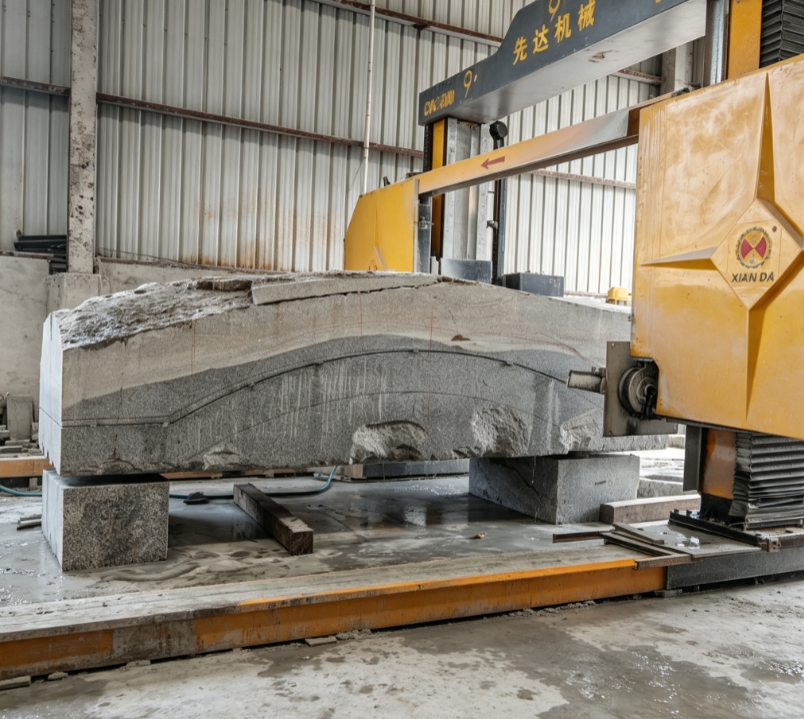

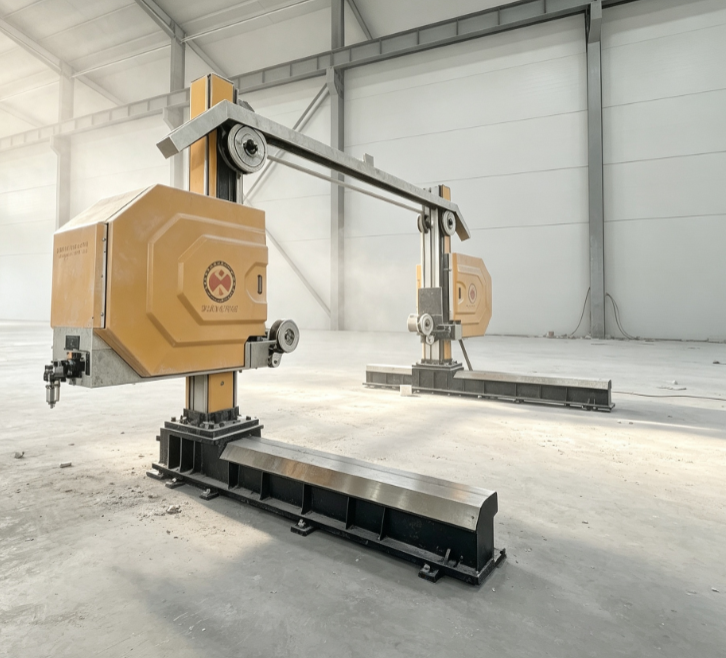

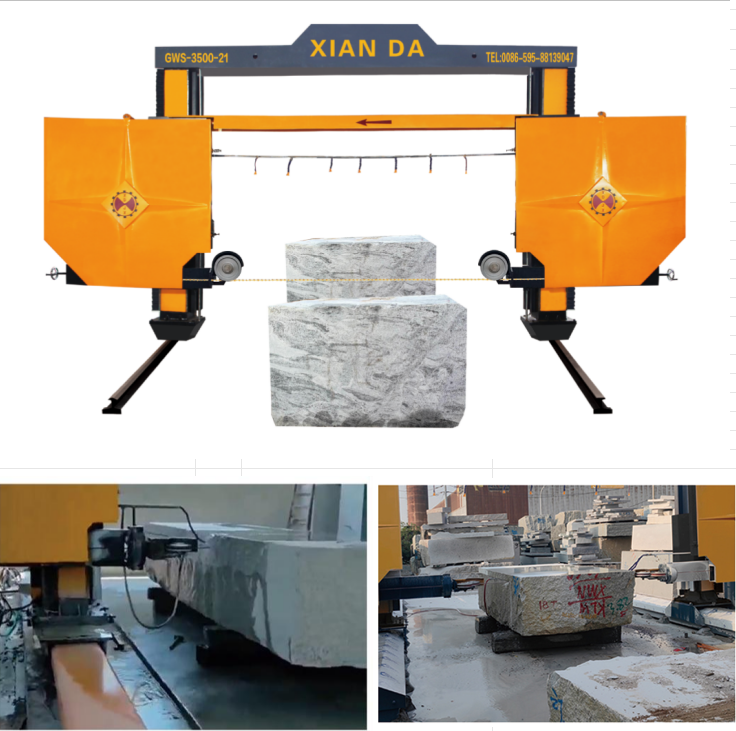

This stone wire saw machine adopts a gantry-type moving structure. Raw stone blocks can be placed directly on the ground for processing, which eliminates the need for transport trolleys and lowers maintenance costs.

The lifting assembly adopts sixteen-sided guide rails with 28 sets of roller units. Intermediate transmission enables synchronous vertical movement. Featuring high stability, high cutting efficiency and excellent precision, the machine is specially developed for processing large-size natural stone materials.

Main Technical Parameters

Parameter	Unit	GWS-3500-21	CGWS-3500-21	GWS-3500-25FW
Control system	/	PLC	CNC	PLC
Max processing dimension	mm	3500×3500×2100	3500×3500×2100	3500×3500×2500
Wire speed	m/s	20~40	20~40	20~40
Main motor power	kW	15	15	15
Overall dimension	mm	9800×5900×5600	9800×5900×5600	9600×5900×6500
Water consumption	m³/h	≈4	≈4	≈4

Key Advantages

Ground placement processing design, save trolley investment and maintenance work
16-sided guide rail + 28 roller groups, stable synchronized lifting
Two control options: PLC automatic control and CNC programmable control
Stable wire movement, high precision for curved & special-shaped large stone
Suitable for granite, marble, engineered stone large block profiling, arch stone processing

Application

Ideal for stone factories processing large stone blocks, arch components, curved slabs, special-shaped monument and architectural stone.

Xianda Family

Workshop

FAQ - Gantry Stone Wire Saw Machine

1. What materials can this gantry wire saw process?

It cuts granite, marble and engineered stone. Perfect for arch stone, curved profiles and custom special-shaped stone products.

2. Can stone blocks be placed directly on the ground?

Yes. The gantry moving design requires no transport trolley, lowering extra investment and maintenance expenses.

3. What is the difference between PLC and CNC models?

PLC version suits regular cutting jobs with simple operation. CNC model supports program input for complex curved stone processing.

4. What are the maximum processing dimensions?

3500×3500×2100 mm (GWS-3500-21 / CGWS-3500-21)
3500×3500×2500 mm (GWS-3500-25FW)

5. Is the lifting structure stable during operation?

Equipped with a 16-sided guide rail and 28 roller groups. Synchronized lifting ensures stable running and high cutting precision.

6. What is the wire speed range?

Adjustable wire speed: 20 ~ 40 m/s.

7. How powerful is the main motor?

All models adopt a 15 kW main motor.

8. What is the hourly water consumption?

Approximately 4 m³/h for cooling.

9. What after-sales support can you provide?

We supply English operation manuals and tutorial videos. Overseas on-site technical service can be arranged as requested.

10. Is this machine suitable for large stone processing plants?

Absolutely. This machine is specially engineered for large-size raw stone block processing.
