Home /Products/Diamond Wire Saw Machine/Gantry Movable CNC single wire saw machine for Spain market

Gantry Movable CNC single wire saw machine for Spain market

1
MOQ
USD50000-55000
Price
Gantry Movable CNC single wire saw machine for Spain market
Features Gallery Product Description Request A Quote
Features
Specifications
Cutting Precision: High
Automation: Automatic
Rated Power: 2.2kw
Gross Motor: 11kw
Cutting Length: 20-60m
Water Consumption: 4m3/H
Diameter: 8.5mm To 11.5mm
Trolley Size: 1400*2500mm
Main Motor: 15kw
Wire Length: 10m
Transport Package: Plastic Package, Suitable For Sea Transportation
Max Processing Size: 3500*3500*2100mm
Adjustment Distance: 450mm
Table Bearing Weight: 15T
Control Type: CNC
Control: CNC
Model NO.: CNC-2000/2500/3000
Name: Diamond Wire Saw Machine
Warranty Time: One Year
Wire Speed: 0-40m/S
Advantage: Multi Function With Good Quality And Price
Wire Diameter: 7.2-11mm
Spindle: 15KW
Control System: PLC SYSTEM
Basic Infomation
Place of Origin: Jinjiang, Fujian, China
Brand Name: Xianda Machinery
Certification: API, CCC, SONCAP, GOST, ISO, CE, SGS;IAF
Model Number: CGWS-3500-21
Payment & Shipping Terms
Packaging Details: Plastic Package, Suitable for Sea Transportation
Delivery Time: 15-30days
Payment Terms: L/C， T/T， D/P， Western Union ，Paypal ，Money Gram， Others
Supply Ability: 1000 Sets/Year
Product Description

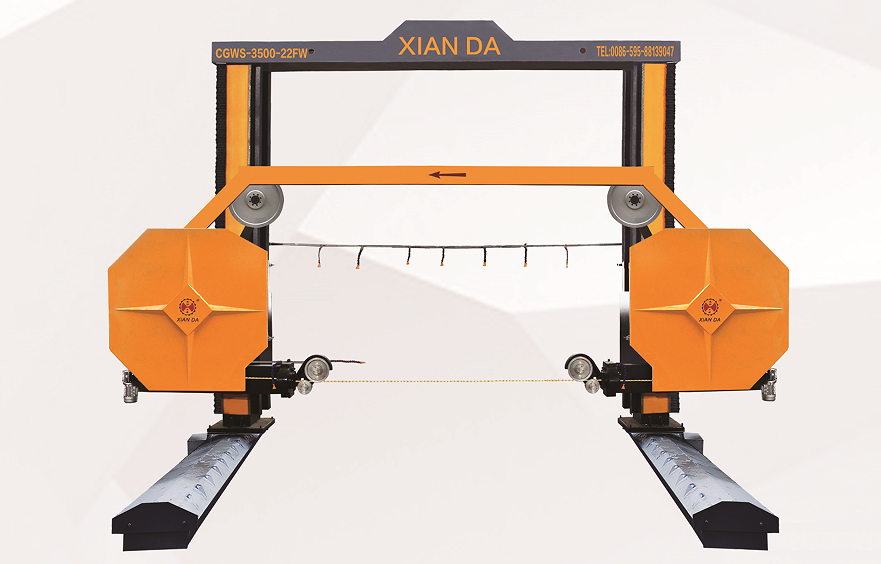

Gantry Movable CNC Single Wire Saw Machine for Spain Market
CNC Control Diamond Wire Saw Machine with High Cutting Precision and Four-Spindle Linkage for Stone Cutting. Diamond Wire Saw Machine is an advanced and reliable cutting solution for special shape stone. Designed with four-spindle linkage and diamond wire saw for accurate cutting with high precision and quality. Equipped with CNC control system for easy operation.
Gantry Movable CNC Single Wire Saw Machine
Electric Cabinet & Operation Panel
Electric Cabinet and Operation Panel
Technical Specifications
Model Number CGWS-3500-21 GWS-3500-21
Control System CNC PLC
Certifications API, CCC, SONCAP, GOST, ISO, CE, SGS API, CCC, SONCAP, GOST, ISO, CE, SGS
Main Motor 15KW 15KW
Gross Weight 10500kg 10500kg
Outline Dimension 9000*5800*5600mm 9000*5800*5600mm
Max Processing Size 3500*2500*2100mm 3500*2500*2100mm
Water Consumption 4m³/h 4m³/h
Table Bearing Weight NO WORKTABLE(OPTIONAL) NO WORKTABLE(OPTIONAL)
Wire Speed 20-40m/s 20-40m/s
Production Capacity 1000 Sets/Year 1000 Sets/Year
Origin Fujian, China Fujian, China
CNC Diamond Wire Saw Machine Features
Movable Machine Body Design
The machine body is designed with a movable structure and does not require a trolley system, providing flexible operation and saving installation space.
Stable and Heavy-Duty Machine Structure
The machine features a strong and stable structure, consisting of a top beam, two vertical columns, square box structure, hydraulic station, wire tensioning unit, and two large flywheels.
The left side is equipped with a driven flywheel and hydraulic wire tensioning system. The hydraulic tensioning device precisely controls the diamond wire tension and release while maintaining constant cutting pressure during operation.
The right side is equipped with a driving flywheel and main motor. The inverter controls the diamond wire speed from 0-40 m/s, allowing the machine to cut various types of stone materials, including granite, marble, and other hard stones.
Four-Axis CNC Control System
The machine adopts a high-precision four-axis CNC linkage control system. The lifting movement and guide wheel rotation are controlled by a stepper motor system, ensuring accurate positioning and smooth cutting performance.
Automatic CNC Programming with DXF File Support
Operators can easily set cutting parameters and create cutting programs directly through the CNC control panel.
For complex cutting shapes, users can design drawings with AutoCAD and save them in DXF format. The CNC system can automatically read DXF files through the USB interface and generate cutting programs, improving efficiency and reducing manual programming time.
Automatic Wire Break Protection System
The machine is equipped with an intelligent wire break detection system.
Key Features
  • Heavy load bearing structure with four orbits on each upright column
  • Synchronized lifting with increased accuracy via lead screw and double nuts
  • Cantilever part with CNC-controlled guide wheel distance and rotation angle
  • Movable Machine Body Design
  • Automatic wire break alarm system
  • 2200mm aluminum wheel diameter with oil pump controlled rope tension
  • Four-spindle linkage for precise cutting operations
Factory Strength
Modern factory manufacturing facility with stone cutting machinery
  • 40+ years manufacturing experience in stone cutting machinery
  • Export to 60+ countries worldwide
  • Professional R&D team for CNC cutting equipment
  • Full OEM/ODM customization support
  • Complete production line & strict quality inspection
  • After-sales service & technical support globally
Support & Services
Professional engineering team members Technical team working on machinery
We offer comprehensive technical support and service including on-site support, maintenance, troubleshooting, and repair services. Our experienced technicians are available to ensure optimal machine performance.
Packaging & Shipping
Secure packaging for machinery shipment Packaged machinery ready for shipping
Securely packed in specialized packaging material with bubble wrap or foam protection. Shipping options include ground, air, and international shipping. All shipments are tracked and insured for safe delivery.
Frequently Asked Questions
What materials can the four-spindle diamond wire saw machine cut?
It can cut granite, marble, quartz, artificial stone, and other hard stones.
What is the cutting precision of this CNC diamond wire saw?
High cutting precision up to ≤0.01mm, ensuring smooth and accurate cutting.
Do you support customized size and parameters?
Yes, we provide full OEM/ODM customization for table size, power, voltage and functions.
Can you export to Europe, USA, Middle East and Southeast Asia?
Yes, we have rich export experience and provide safe packaging and fast delivery.
What is the advantage of four-spindle linkage?
It improves cutting efficiency, stability and multi-angle processing capacity.
