Vertical CNC Diamond Wire Saw Machine with 360° Rotation for Granite Marble Curve Cutting | 7.5-15 kW Motor Power & 3+3 Ton Workbench Load

1
MOQ
Negotiable
Price
Vertical CNC Diamond Wire Saw Machine with 360° Rotation for Granite Marble Curve Cutting | 7.5-15 kW Motor Power & 3+3 Ton Workbench Load
Features Gallery Product Description Request A Quote
Features
Specifications
Water Consumption: 4m3/H
Wire Length: 20-50 M
Dimensions: 9500*6800*4700mm
Cutting Height: 1800/2100/2200mm
Motor Power: 7.5-15 KW
Weight: 5500kg
Workbench Load: 3+3 Ton
Application: Granite, Marble Stone Profiling & Column Cutting
Basic Infomation
Place of Origin: Fujian
Brand Name: Xianda Machinery
Certification: CE/ISO9001
Model Number: VCWS-900-04
Payment & Shipping Terms
Packaging Details: Suitable for sea transport
Delivery Time: 30 days
Payment Terms: L/C,D/A,D/P,T/T
Supply Ability: 1000set/year
Product Description
VCWS-800-03 Vertical CNC Diamond Wire Saw Machine | 360° Rotation Stone Profiling Cutter For Granite Marble Curve Cutting

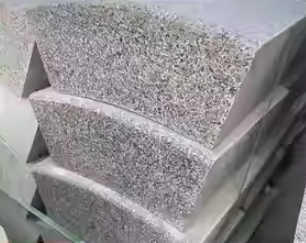

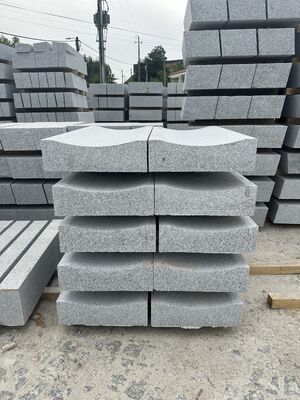

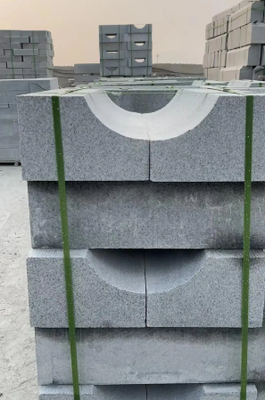

Vertical CNC Wire Saw Machine For Curved Curbstone
Elevate Your Stone Processing Efficiency & Precision

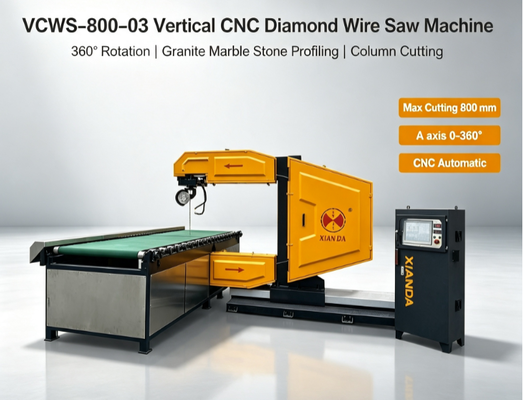

Vertical CNC Wire Saw Machine front view showing industrial control panel and cutting mechanismClose-up view of wire tensioning system and precision componentsOperational view showing curved curbstone cutting process
Global Applications
  • USA: Stone Fabrication & Countertop Production Lines
  • UAE: Luxury Hotel & Villa Stone Construction Projects
  • Europe: Marble & Granite Processing Factories & paving stone & curbstone
  • Southeast Asia: Commercial Stone Cutting & Quarry Operations
  • Australia: Building & Interior Decoration Stone Processing
Factory Strength
  • 40+ years manufacturing experience in stone machinery
  • Export to 60+ countries including USA, UAE, Europe, Southeast Asia
  • Full OEM/ODM customization for wire saw machines
  • Advanced CNC production & testing lines
  • Professional after-sales service & technical support worldwide
Advanced CNC Control System
CNC Brain Built for Stone, Not for Show
Industrial Touch-Screen Interface
15-inch industrial touch-screen running Windows-based CNC (upgradable OTA for life)
Multi-Axis Interpolation
3-axis interpolation (X1, X2, Y, A) enables cutting straight, curved, concave, convex or full 360° radial profiles without repositioning
AI Speed Optimization
AI speed optimizer reads stone density in real time and auto-tunes wire speed 20-40 m/s--eliminating human guesswork, reducing wire wear by 12%
Resume Functionality
Resume-from-breakpoint functionality: restart after power outage without material waste
Precision Engineering Features
  • Closed-loop hydraulic wire tensioning with ±1 N accuracy--eliminates "hour-glass" cuts
  • A-axis rotary with sealed IP65 gearbox--no water ingress, no maintenance journals
  • Dual 45# heavy-duty linear rails with oil-bath lubrication--10-year wear warranty
  • Whole machine steel: 6-month natural aging + tempering + sand-blast + anti-rust treatment--prevents micro-cracks and seasonal re-alignment
Energy Efficient Operation
11 kW permanent-magnet main motor paired with a 15 kW VEICHI vector inverter draws only 17.5 kW total--less than a household heat-pump. Save USD 1,200/year in electricity compared to older 22 kW models.
Export-Ready Packaging
One 20-foot container accommodates the fully assembled unit--no disassembly, no re-calibration on arrival. Ship Friday, install Monday.
Technical Specifications
SpecificationValue
Max work-piece2,300 * 800 * 300 mm
Trolley size2200*970*2 mm
Cutting line speed20~40m/s
Wire wheel7.5-6(permanent magnet motor)
Main motor speed control function11kw
Total power16kw
Warranty12 months
Factory Overview
Factory facility overviewManufacturing workshopProduction line equipmentQuality control areaAssembly departmentTesting facilityWarehouse storageTechnical team at workResearch and development areaExport packaging processFinal inspection station
Frequently Asked Questions
What is the water consumption of your vertical CNC wire saw machine?
Our machine uses 4m³/H water consumption for efficient stone cutting and cooling.
What is the diamond wire length for this stone cutting machine?
The standard diamond wire length ranges from 20m to 50m, customizable per request.
Do you use PLC control system for the vertical wire saw?
Yes, it adopts stable PLC control for high precision, automatic operation and easy parameter setting.
Can you customize the stone cutting wire saw for USA/UAE/Europe markets?
Yes, we provide full OEM/ODM service and export to USA, UAE, Europe, Southeast Asia and more.
What materials can this CNC wire saw machine cut?
It is widely used for cutting marble, granite, quartz, artificial stone and other solid stone materials.
Pricing & Terms
  • EXW/FOB/CIF/DDU/DDP
  • 30% deposit, 70% before loading
Contact Information
Email: group@chinaxianda.com
Phone: +86 130 5567 3306
Cut smarter, ship faster, brand bolder--with the VCWS-800-03
