Home /Products/Diamond Wire Saw Machine/CNC Control GANTRY Mobile Diamond Wire Saw Stone Cutting Machine With CE Certificate For European Market

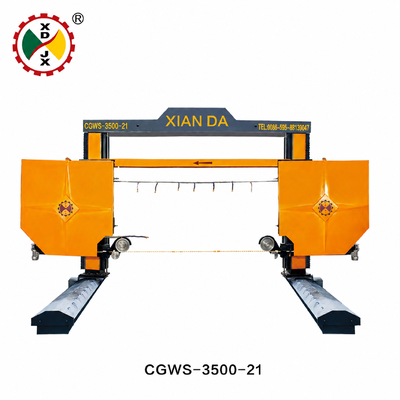

CNC Control GANTRY Mobile Diamond Wire Saw Stone Cutting Machine With CE Certificate For European Market

1
MOQ
USD50000-55000
Price
CNC Control GANTRY Mobile Diamond Wire Saw Stone Cutting Machine With CE Certificate For European Market
Features Gallery Product Description Request A Quote
Features
Specifications
Advantage: Multi Function With Good Quality And Price
Cutting Precision: High
Wire Speed: 0-40m/S
Model NO.: CNC-2000/2500/3000
Max Processing Size: 3500*3500*2100mm
Diameter: 8.5mm To 11.5mm
Gross Motor: 11kw
Main Motor: 15kw
Adjustment Distance: 450mm
Warranty Time: One Year
Wire Length: 10m
Cutting Length: 20-60m
Trolley Size: 1400*2500mm
Transport Package: Plastic Package, Suitable For Sea Transportation
Water Consumption: 4m3/H
Table Bearing Weight: 15T
Automation: Automatic
Wire Diameter: 7.2-11mm
Control Type: CNC
Name: Diamond Wire Saw Machine
Control: CNC
Spindle: 15KW
Control System: PLC SYSTEM
Rated Power: 2.2kw
Basic Infomation
Place of Origin: Jinjiang, Fujian, China
Brand Name: Xianda Machinery
Certification: API, CCC, SONCAP, GOST, ISO, CE, SGS;IAF
Model Number: CGWS-3500-21
Payment & Shipping Terms
Packaging Details: Plastic Package, Suitable for Sea Transportation
Delivery Time: 15-30days
Payment Terms: L/C， T/T， D/P， Western Union ，Paypal ，Money Gram， Others
Supply Ability: 1000 Sets/Year
Product Description
CNC Control GANTRY Mobile Diamond Wire Saw Stone Cutting Machine With CE Certificate
CNC Control Diamond Wire Saw Machine with High Cutting Precision and Four-Spindle Linkage for Stone Cutting. Diamond Wire Saw Machine is an advanced and reliable cutting solution for special shape stone. Designed with four-spindle linkage and diamond wire saw for accurate cutting with high precision and quality. Equipped with CNC control system for easy operation.
CNC Control GANTRY Mobile Diamond Wire Saw Stone Cutting Machine
Electric Cabinet & Operation Panel
Electric Cabinet and Operation Panel of Diamond Wire Saw Machine
Technical Specifications
Model Number CGWS-3500-21 GWS-3500-21
Control System CNC PLC
Certifications API, CCC, SONCAP, GOST, ISO, CE, SGS API, CCC, SONCAP, GOST, ISO, CE, SGS
Main Motor 15KW 15KW
Gross Weight 10500kg 10500kg
Outline Dimension 9000*5800*5600mm 9000*5800*5600mm
Max Processing Size 3500*2500*2100mm 3500*2500*2100mm
Water Consumption 4m³/h 4m³/h
Table Bearing Weight NO WORKTABLE(OPTIONAL) NO WORKTABLE(OPTIONAL)
Wire Speed 20-40m/s 20-40m/s
Production Capacity 1000 Sets/Year 1000 Sets/Year
Origin Fujian, China Fujian, China
CNC Diamond Wire Saw Machine Features
Movable Machine Body Design
The machine body is designed with a movable structure and does not require a trolley system, providing flexible operation and saving installation space.
Stable and Heavy-Duty Machine Structure
The machine features a strong and stable structure with top beam, vertical columns, square box structure, hydraulic station, wire tensioning unit, and large flywheels. Hydraulic tensioning device precisely controls diamond wire tension and maintains constant cutting pressure.
Four-Axis CNC Control System
High-precision four-axis CNC linkage control system with stepper motor control for lifting movement and guide wheel rotation, ensuring accurate positioning and smooth cutting performance.
Automatic CNC Programming with DXF Support
Operators can set cutting parameters and create programs through CNC control panel. Supports AutoCAD DXF files via USB interface for automatic program generation.
Automatic Wire Break Protection System
Equipped with intelligent wire break detection system for enhanced safety and operational reliability.
Key Features
  • Heavy load bearing structure with four orbits on each upright column
  • Synchronized lifting with increased accuracy via lead screw and double nuts
  • Cantilever part with CNC-controlled guide wheel distance and rotation angle
  • Movable Machine Body Design
  • Automatic wire break alarm system
  • 2200mm aluminum wheel diameter with oil pump controlled rope tension
  • Four-spindle linkage for precise cutting operations
Factory Strength
Modern factory manufacturing facility with stone cutting machinery
  • 40+ years manufacturing experience in stone cutting machinery
  • Export to 60+ countries worldwide
  • Professional R&D team for CNC cutting equipment
  • Full OEM/ODM customization support
  • Complete production line & strict quality inspection
  • After-sales service & technical support globally
Support & Services
Professional engineering team members Technical team working on machinery
We offer comprehensive technical support and service including on-site support, maintenance, troubleshooting, and repair services. Our experienced technicians are available to ensure optimal machine performance.
Packaging & Shipping
Secure packaging for machinery shipment Packaged machinery ready for shipping
Securely packed in specialized packaging material with bubble wrap or foam protection. Shipping options include ground, air, and international shipping. All shipments are tracked and insured for safe delivery.
Frequently Asked Questions
What materials can the four-spindle diamond wire saw machine cut?
It can cut granite, marble, quartz, artificial stone, and other hard stones.
What is the cutting precision of this CNC diamond wire saw?
High cutting precision up to ≤0.01mm, ensuring smooth and accurate cutting.
Do you support customized size and parameters?
Yes, we provide full OEM/ODM customization for table size, power, voltage and functions.
Can you export to Europe, USA, Middle East and Southeast Asia?
Yes, we have rich export experience and provide safe packaging and fast delivery.
What is the advantage of four-spindle linkage?
It improves cutting efficiency, stability and multi-angle processing capacity.
