XIANDA Marble Basalt CNC Diamond Bead Wire Saw Stone Cutting Profiling Machine

1
MOQ
To Be Negotiable
Price
XIANDA Marble Basalt CNC Diamond Bead Wire Saw Stone Cutting Profiling Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Advantage: Multi Function With Good Quality And Price
Cutting Precision: High
Wire Speed: 0-40m/S
Model NO.: CNC-2000/2500/3000
Max Processing Size: 3000*3000*1500mm
Diameter: 7.2mm To 11mm
Gross Motor: 11kw
Main Motor: 15kw
Adjustment Distance: 450mm
Warranty Time: One Year
Wire Length: 10m
Trolley Size: 1500*2500mm
Transport Package: Plastic Package, Suitable For Sea Transportation
Water Consumption: 4m3/H
Table Bearing Weight: 20T
Automation: Automatic
Wire Diameter: 7.2-11mm
Control Type: CNC
Name: Diamond Wire Saw Machine
Control: CNC
Spindle: 15KW
Basic Infomation
Place of Origin: Jinjiang, Fujian, China
Brand Name: Xianda Machinery
Certification: API, CCC, SONCAP, GOST, ISO, CE, SGS;IAF
Model Number: DTWS-1500
Payment & Shipping Terms
Packaging Details: Plastic Package, Suitable for Sea Transportation
Delivery Time: 15-30days
Payment Terms: L/C， T/T， D/P， Western Union ，Paypal ，Money Gram， Others
Supply Ability: 1000 Sets/Year
Product Description
XIANDA Marble Basalt CNC Diamond Bead Wire Saw Stone Cutting Profiling Machine
CNC Control Diamond Wire Saw Machine with High Cutting Precision and Four-Spindle Linkage for Stone Cutting. Diamond Wire Saw Machine is an advanced and reliable cutting solution for special shape stone. Designed with four-spindle linkage and diamond wire saw for accurate cutting with high precision and quality. Equipped with CNC control system for easy operation.

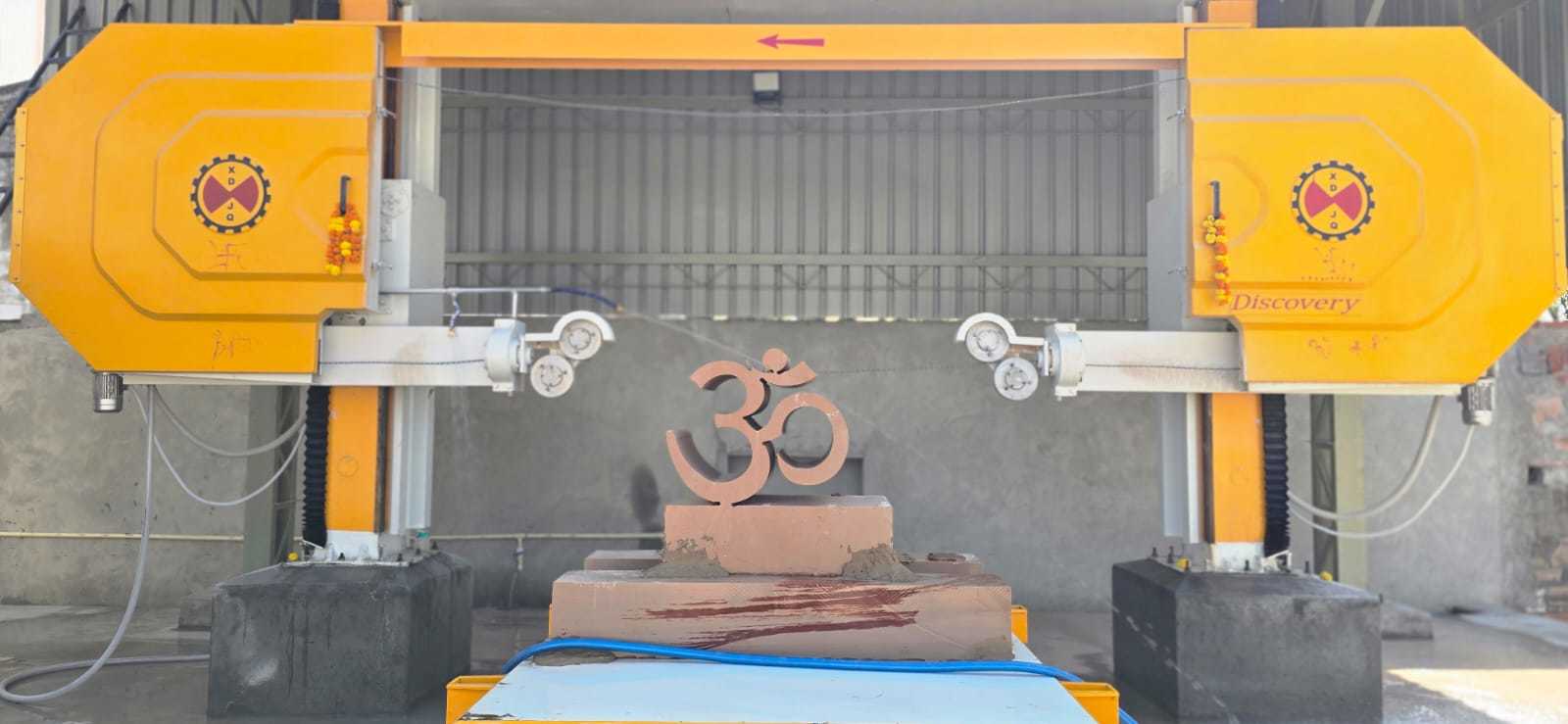

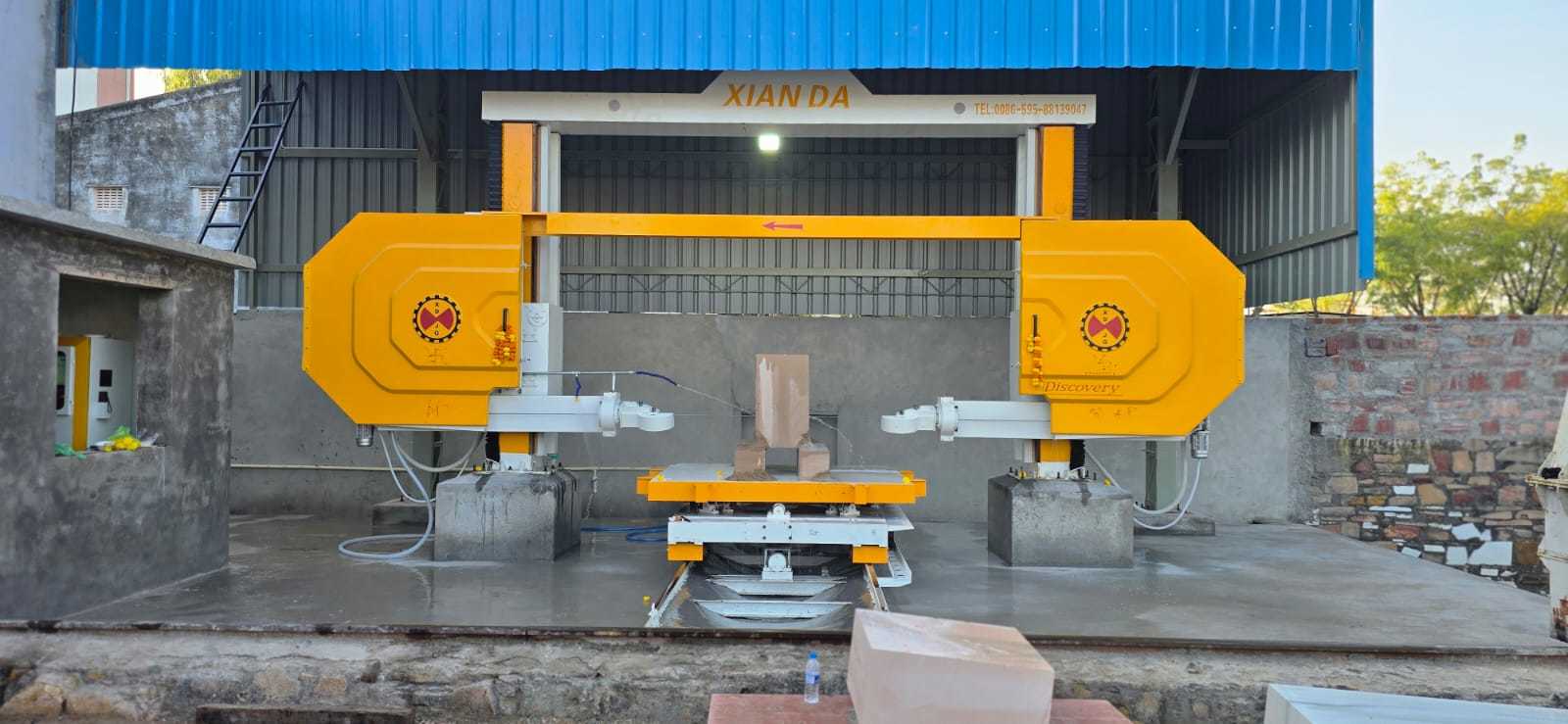

XIANDA CNC Diamond Bead Wire Saw Machine in operation
Technical Specifications
Model Number DISCOVERY 4-2000 DISCOVERY 4-2500 DISCOVERY 4-3000 DISCOVERY 4-2500S DISCOVERY 4-3000S
Control System CNC CNC CNC CNC CNC
Certifications API, CCC, SONCAP, GOST, ISO, CE, SGS API, CCC, SONCAP, GOST, ISO, CE, SGS API, CCC, SONCAP, GOST, ISO, CE, SGS API, CCC, SONCAP, GOST, ISO, CE, SGS API, CCC, SONCAP, GOST, ISO, CE, SGS
Trolly size 1500*2500mm 1500*2500mm 1500*2000mm 1500*2000 1500*2000
Gross Weight 7500kg 8000kg 8500kg 8000kg 8500kg
Outline Dimension 6800*6300*3800mm 7800*6300*3800mm 8800*6300*3800mm 7800*6800*4300mm 8800*6800*4300mm
Max Processing Size 2000*3000*1200mm 2500*3000*1200mm 3000*3000*1200mm 2500*3000*1500 3000*3000*1500
Water Consumption 3m³/h 3m³/h 3m³/h 3m³/h 3m³/h
Main Motor 15KW PM MOTOR 15KW PM MOTOR 15KW PM MOTOR 15KW PM MOTOR 15KW PM MOTOR
Table Bearing Weight 20T 20T 20T 20T 20T
Wire Speed 20-40m/s 20-40m/s 20-40m/s 20-40m/s 20-40m/s
Production Capacity 1000 Sets/Year 1000 Sets/Year 1000 Sets/Year 1000 Sets/Year 1000 Sets/Year
Origin Fujian, China Fujian, China Fujian, China Fujian, China Fujian, China
Applications
DISCOVERY4-2000/2500/2500/2000S/2500S. CNC Diamond wire cutting machine (rope saw) has function: Cutting column slabs, semi circular slabs, English letters, and other diversified complicated special shapes. Materials include marble, granite, natural stone, etc.
Key Features
  • Heavy load bearing structure with four orbits on each upright column, adjusted balance by rollers, with less friction and higher precision
  • Left and right frame achieve synchronized lifting by steering equipment on upper frame with increased accuracy via lead screw and double nuts
  • Cantilever part with lead screw and pole adjusting guide wheel distance, CNC-controlled guide wheel rotation angle
  • Worktable running by lead screw and railway
  • Automatic wire break alarm system
Factory Strength

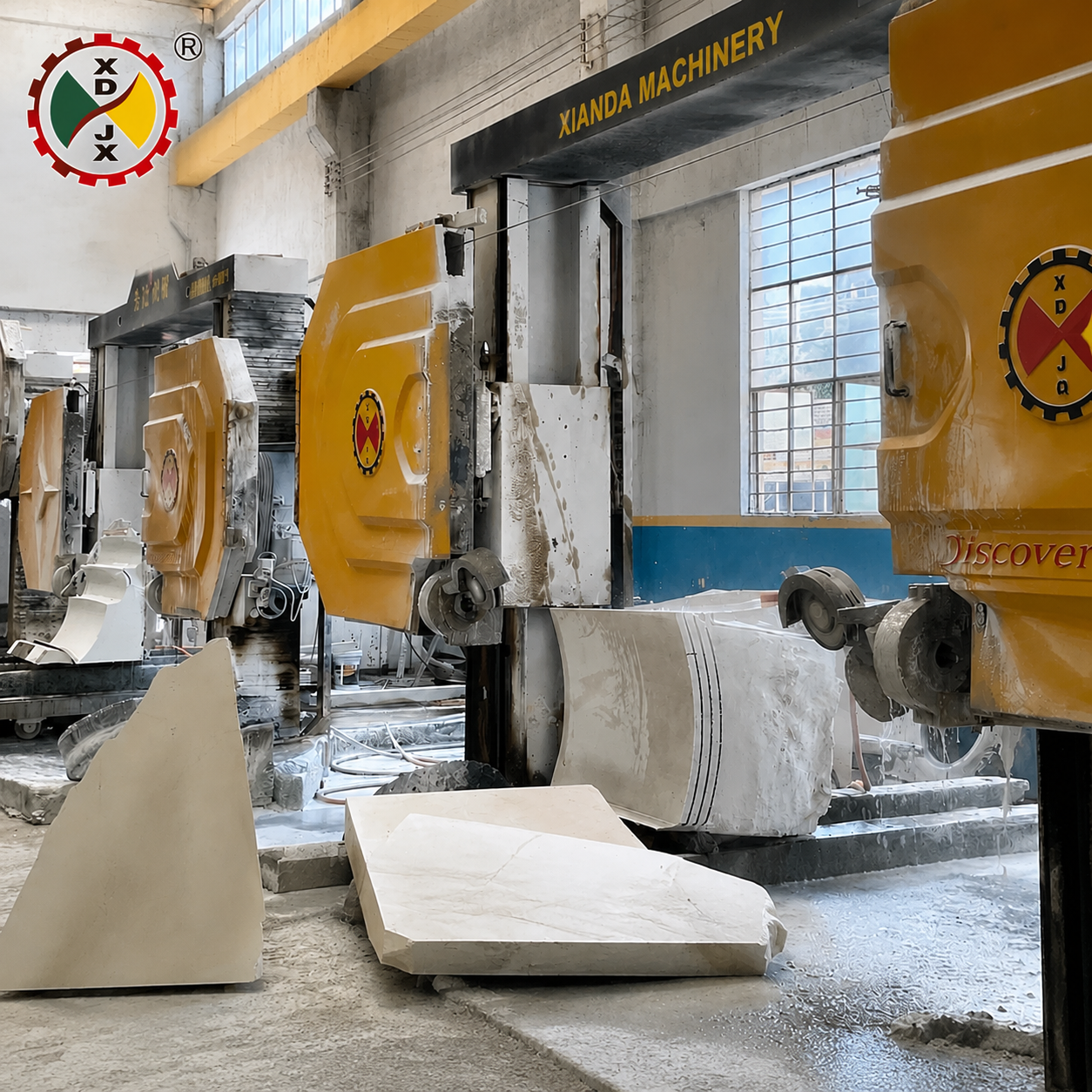

Modern factory manufacturing facility with stone cutting machinery
  • 40+ years manufacturing experience in stone cutting machinery
  • Export to 60+ countries worldwide
  • Professional R&D team for CNC cutting equipment
  • Full OEM/ODM customization support
  • Complete production line & strict quality inspection
  • After-sales service & technical support globally
Our Team
Professional engineering team members Technical team working on machinery
Packaging & Shipping
Securely packed in specialized packaging material with bubble wrap or foam protection. Shipping options include ground, air, and international shipping. All shipments are tracked and insured for safe delivery.
Secure packaging for machinery shipment Packaged machinery ready for shipping
Frequently Asked Questions
What materials can the four-spindle diamond wire saw machine cut?
It can cut granite, marble, quartz, artificial stone, and other hard stones.
What is the cutting precision of this CNC diamond wire saw?
High cutting precision up to ≤0.01mm, ensuring smooth and accurate cutting.
Do you support customized size and parameters?
Yes, we provide full OEM/ODM customization for table size, power, voltage and functions.
Can you export to Europe, USA, Middle East and Southeast Asia?
Yes, we have rich export experience and provide safe packaging and fast delivery.
What is the advantage of four-spindle linkage?
It improves cutting efficiency, stability and multi-angle processing capacity.
