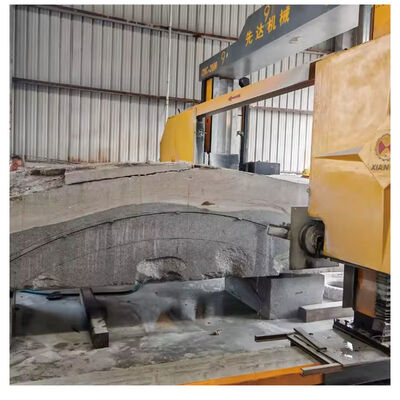

Gantry Movable CNC Diamond Wire Saw Machine Stone Block Cutting Equipment for Granite Marble Quarry Processing

The Gantry Movable CNC Wire Saw Machine is a high-efficiency, fully automatic stone cutting solution engineered for quarry operations and stone processing plants. Designed with a bridge-type gantry structure, the machine moves along precision rails and utilizes a diamond-impregnated wire driven by a CNC-controlled servo motor system to achieve exceptionally smooth, straight cuts through the hardest natural stones—including granite, marble, limestone, quartzite, and engineered stone slabs.

Unlike traditional circular saws or manual wire saws, this CNC wire saw delivers minimal kerf loss, superior surface finish, and the flexibility to cut irregular shapes and oversized blocks. It is the go-to choice for modern stone factories seeking to maximize yield and reduce downstream polishing costs.

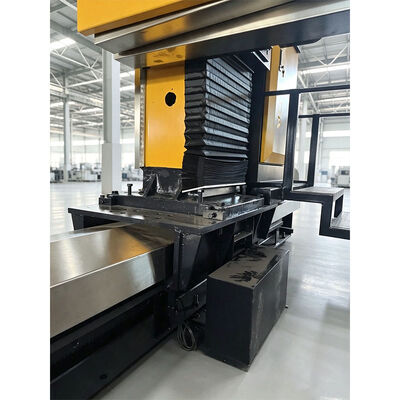

• Gantry Movable Frame: Bridge-type design with heavy-duty cast iron base ensures vibration-free operation and long-term geometric stability.

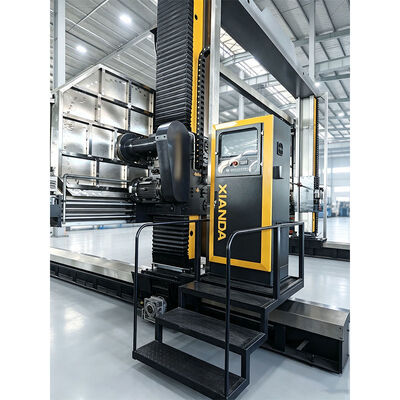

• CNC Intelligent Control: Programmable cutting paths with PLC + touch-screen HMI; supports automatic multi-block queuing, angle cutting, and memory of 100+ cutting profiles.
• Variable Speed Wire Drive: 20-40 m/s infinitely variable wire speed—adapts to different stone hardness and thickness on the fly.
• Automatic Tension Control: Hydraulic/pneumatic constant-tension system maintains optimal wire tension, extending diamond wire lifespan by up to 30%.
• Dual-Mode Operation: Supports both horizontal slab splitting and vertical block squaring in one setup.
• Water-Cooled Cutting System: Integrated water circulation and filtration minimizes dust, cools the wire, and improves cut quality.
• Energy Efficient: Servo-driven main motor reduces power consumption by 20-35% compared to conventional hydraulic feed systems.

• 40+ years of stone machinery manufacturing expertise
• 20,000+ m² ISO 9001:2015 certified production facility
• 25+ R&D engineers specializing in diamond wire technology and CNC automation
• Products exported to 50+ countries across Europe, Americas, Middle East, and Southeast Asia
• Overseas service centers in 8 countries with local technical support
• CE, EAC, SGS certified—full international compliance
• 500+ units annual capacity with 25-35 working days lead time
• 12-month warranty + lifetime technical support
