PLC Control High Efficiency Block Dressing Machine with 360° Rotating Worktable for Marble Granite

1 UNIT
MOQ
30000 USD/SET
Price
PLC Control High Efficiency Block Dressing Machine with 360° Rotating Worktable for Marble Granite
Features Gallery Product Description Request A Quote
Features
Specifications
Water Consumption: 3m³/h
Table Bearing Weight: 20T/35T/50T
Dimension Of Worktable: 2000x1600mm
Warranty: 12 Months For Parts
Wheel Diameter: 1600mm
Usage: It Can Dress Four Surface Of Block As Worktable With 360° Rotating. It's The Ideal Equipment For Block Cutting To Slice And Block Dressing.
Certification: CE, ISO9001
Name: PLC Block Dressing Machine
Basic Infomation
Place of Origin: Quanzhou City, Fujian Province
Brand Name: Xianda
Certification: CE, ISO 9001
Model Number: BWT-3000-15A/B BWT-3000-18A/B BWT-3000-21A/B
Payment & Shipping Terms
Delivery Time: 45 days
Payment Terms: T/T
Supply Ability: 10 SETS 2 MONTHS
Product Description
PLC Control High Efficiency Block Dressing Machine For Marble Granite Dressing Edges
Product Overview

BWT-3000-15A/B BWT-3000-18A/B BWT-3000-21A/B

BWT-3500 block dressing machine adopts PLC control, lifting structure uses 16 surfaces slideway with 28pcs rolling wheels structure. Synchronous lifting through intermediate drive ensures stable cutting and high efficiency. The machine can dress four surfaces of blocks as the worktable rotates 360°. It's the ideal equipment for block cutting to slice and block dressing.

Key Features
  • PLC control system
  • Versatile processing capabilities for various stone shapes
  • High-quality construction with exceptional processing precision
  • Robust design for industrial stone processing applications

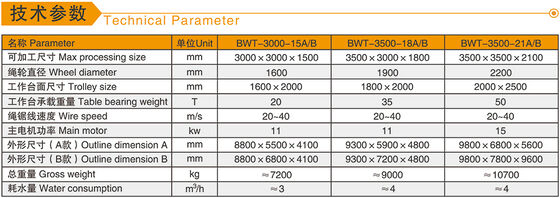

Technical Specifications
Specification BWT-3000-15A/B BWT-3500-18A/B BWT-3500-21A/B
Max Processing Size 3000 * 3000 * 1500 3500 * 3000 * 1800 -
Wheel Diameter 1600 1900 2200
Trolley Size 1600 * 2000 1800 * 2000 2000 * 2500
Table Bearing Weight 20T 35T 50T
Main Motor 11kw 11kw 15kw
Wire Speed 20-40m/s 20-40m/s 20-40m/s
Outline Dimension (A type) 8800 * 5500 * 4100 9300 * 5900 * 4800 9800 * 6800 * 5600
Outline Dimension (B type) 8800 * 6800 * 4100 9300 * 7200 * 4800 9800 * 7800 * 5600
Gross Weight 7200KG 9000KG 10700KG
Water Consumption 3m³/h 4m³/h 4m³/h
Product Gallery

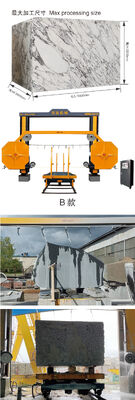

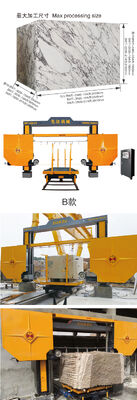

Xianda CNC Block Dividing Machine operational view Block dressing machine technical diagram
Factory Overview
Xianda manufacturing facility interior Stone machinery production line Quality control station in factory Assembly area of manufacturing plant
Certifications
ISO and CE certification documents
Our Services

We provide comprehensive support including:

  • Machine testing videos and thorough inspection before shipping
  • 32 years of manufacturing experience with over 70% market share in China for special shape stone cutting machines
  • Top 5 stone cutting machine manufacturer with ISO & CE certification
  • Global reach with products sold to more than 20 countries
  • Use of top brands to ensure high quality components
  • Competitive pricing and volume discounts available
  • Strong supply capacity with over 1000 sets produced annually
  • 24/7 online after-sales service and technical support
  • Professional installation guidance and operator training
  • Complaint resolution and quality assurance services
Frequently Asked Questions
How to place order to your company?
  1. Inquiry - Professional quotation
  2. Confirm price, lead time, logo, payment terms
  3. Xianda sales sends Proforma Invoice with seal
  4. Customer makes deposit payment and sends bank receipt
  5. Sales confirms receipt and arranges production with estimated timeline
How is After-sales Service Provided?

Engineer can be dispatched for machinery assembly and technical support.

Are you Manufacture Factory?

Yes, we are the stone machinery factory established since 1985, with 41 years of manufacturing experience.

What about the warranty time of the machine?

We provide one year parts warranty service.

What can this machine be used for?

This machine is designed to cut lines on stone including columns, big arc shaped slabs, and special stone shapes.
