Name: 4 Axis High Efficiency CNC Block Dividing Machine with 3000mm Max Processing Size for Stone Cutting
Brand: Fujian Xianda Machinery co.,ltd
SKU: CRM-3500-18/21 CRM-3500-22FW
Price: 259.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Name: CNC Block Dividing Machine

Water Consumption: 3m³/h

Certification: CE, ISO9001

Warranty: 12 Months For Parts

Table Bearing Weight: 20T/35T/50T

Wheel Diameter: 1600mm

Dimension Of Worktable: 2500x1300mm

Usage: Processing The Circular Stone Slab, Column, Numeral, Letter,Chinese Characters And Other Shapes For The Stone

Highlight:

4 axis CNC block dividing machine

3000mm stone cutting machine

high efficiency diamond wire saw

Basic Infomation

Place of Origin: Quanzhou City, Fujian Province

Brand Name: Xianda

Certification: CE, ISO 9001

Model Number: CRM-3500-18/21 CRM-3500-22FW

Payment & Shipping Terms

Delivery Time: 45 days

Payment Terms: T/T

Supply Ability: 10 SETS 2 MONTHS

Gallery

4 Axis High Efficiency CNC Block Dividing Machine with 3000mm Max Processing Size for Stone Cutting

Product Description

4 Axis Xianda Brand High Efficiency CNC Block Dividing Machine for Marble Granite Quartz Block Processing

Product Overview

CRM-3500-18/21 CRM-3500-22FW Block Dividing Machine

This machine is controlled by computer numerical control with four-axis linkage. The lifting system utilizes 16 guide rails and 28 sets of roller structure, achieving synchronous lifting through intermediate transmission. It offers stable processing with high efficiency, suitable for cutting operations and capable of processing various complex shapes of marble and granite including arc plates, cylinders, numbers, letters, and Chinese characters.

Key Features

CNC control system with four-spindle linkage
Versatile processing capabilities for various stone shapes
High-quality construction with exceptional processing precision
Robust design for industrial stone processing applications

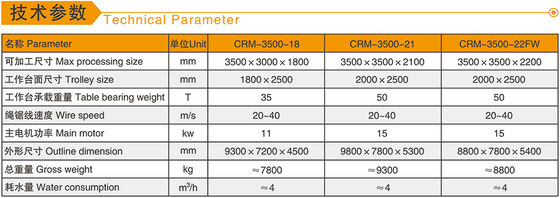

Technical Specifications

Specification	Value
Max Processing Size	3000mm * 3000mm * 1500mm/1800mm/2100mm
Wheel Diameter	1600mm/1900mm/2200mm
Trolley Size	1600mm/1800mm/2000mm * 2500mm
Table Bearing Weight	20T/35T/50T
Main Motor	11kW
Wire Speed	20-40m/s
Outline Dimension	8800mm * 5500mm * 3800mm
Gross Weight	6000kg/7500kg/9000kg
Water Consumption	3m³/h

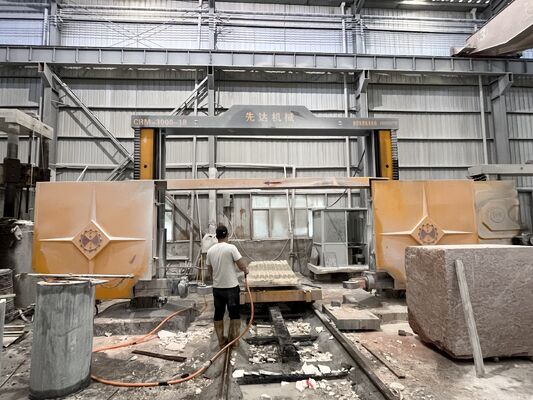

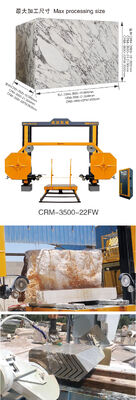

Product Gallery

Factory Overview

Certifications

Our Services

We provide comprehensive support including:

Machine testing videos and thorough inspection before shipping
32 years of manufacturing experience with over 70% market share in China for special shape stone cutting machines
Top 5 stone cutting machine manufacturer with ISO & CE certification
Global reach with products sold to more than 20 countries
Use of top brands to ensure high quality components
Competitive pricing and volume discounts available
Strong supply capacity with over 1000 sets produced annually
24/7 online after-sales service and technical support
Professional installation guidance and operator training
Complaint resolution and quality assurance services

Frequently Asked Questions

How to place order to your company?

1. Inquiry - Professional quotation
2. Confirm price, lead time, logo, payment terms
3. Xianda sales sends Proforma Invoice with seal
4. Customer makes deposit payment and sends bank receipt
5. Sales confirms receipt and arranges production with estimated timeline

How is After-sales Service Provided?

Engineer can be dispatched for machinery assembly and technical support.

Are you Manufacture Factory?

Yes, we are the stone machinery factory established since 1985, with 41 years of manufacturing experience.

What about the warranty time of the machine?

We provide one year parts warranty service.

What can this machine be used for?

This machine is designed to cut lines on stone including columns, big arc shaped slabs, and special stone shapes.
