Home /Products/Diamond Wire Saw Machine/Xianda Brand CNC Diamond Wire Saw Machine with Rotating Worktable for Marble Granite Quartz Processing

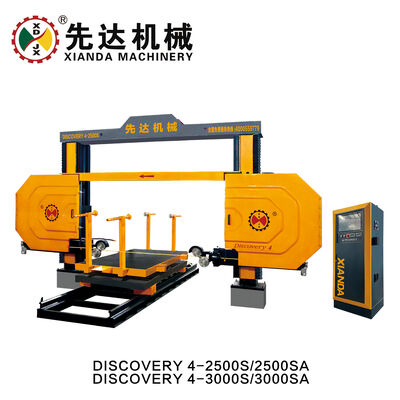

Xianda Brand CNC Diamond Wire Saw Machine with Rotating Worktable for Marble Granite Quartz Processing

1 UNIT
MOQ
33000USD/SET
Price
Xianda Brand CNC Diamond Wire Saw Machine with Rotating Worktable for Marble Granite Quartz Processing
Features Gallery Product Description Request A Quote
Features
Specifications
Water Consumption: 3m³/h
Certification: CE, ISO9001
Trolley Size: 1400mm*2500mm
Max Processing Size: 3000x2000x1500mm
Warranty: 12 Months For Parts
Table Bearing Weight: 20T
Name: CNC Diamond Wire Saw Machine (Pioneering Model)
Wheel Diameter: 1600mm
Dimension Of Worktable: 2500x1300mm
Usage: Processing The Circular Stone Slab, Column, Numeral, Letter,Chinese Characters And Other Shapes For The Stone
Highlight:

CNC diamond wire saw machine with rotating worktable

,

diamond wire saw machine for marble granite quartz

,

rotating worktable diamond wire saw machine
Basic Infomation
Place of Origin: Quanzhou City, Fujian Province
Brand Name: Xianda
Certification: CE, ISO 9001
Model Number: Discovery 4-2500S/2500SA/3000S/3000SA
Payment & Shipping Terms
Delivery Time: 45 days
Payment Terms: T/T
Supply Ability: 10 SETS 2 MONTHS
Product Description
Discovery 4-2500S/2500SA/3000S/3000SA
Discovery 4 CNC diamond wire saw machine ultimate
Product Overview

Discovery 4 is our Ultimate version in CNC Diamond Wire Saw Machine. Lifting structure adopt 16 surtace slideway, 28pcs rolling wheels structure. Trolley using double nut structure, the track using steel frame-type reinforcement structure; Cantilever gearbox use S-type channel waterproof structure, Main motor have variable frequency speed control function, wth more advantages during processing. like culting more precision, precision more durable, cutting more stable, more efficiency, etc. Meanwhile this machine adopts CNC contro, four-spindle linkage, which can process the circular stone slab, column, numeral, leter, Chinese characters and other shapes for the stone.

Key Features
  • CNC control system with four-spindle linkage
  • Versatile processing capabilities for various stone shapes
  • High-quality construction with exceptional processing precision
  • Robust design for industrial stone processing applications
Technical Specifications
Specification Value
Max Processing Size 2000mm × 3000mm × 1500mm
Wheel Diameter 1600mm
Trolley Size 1400mm × 2000mm
Table Bearing Weight 20T
Main Motor 11kW
Table Rotation angle 0-360°
Table rotation control mode

S: Ordinary motor drive

SA: Servo motor drive
Wire Speed 20-40m/s
Outline Dimension 6800mm × 6300mm × 3950mm
Gross Weight 6000kg
Water Consumption 3m³/h
