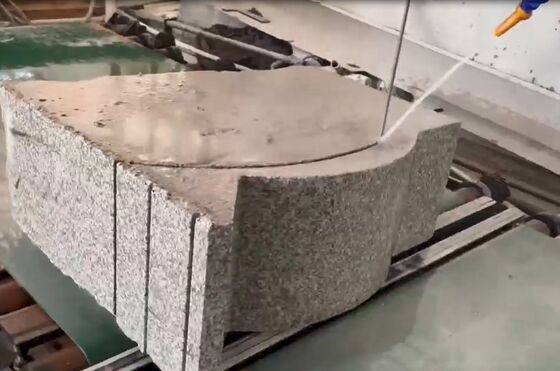

Vertical CNC Wire Saw Machine For Curved Curbstone
Elevate Your Stone Processing Efficiency & Precision
Applications of Vertical CNC Wire Saw Machine Worldwide
- USA: Stone Fabrication & Countertop Production Lines
- UAE: Luxury Hotel & Villa Stone Construction Projects
- Europe: Marble & Granite Processing Factories
- Southeast Asia: Commercial Stone Cutting & Quarry Operations
- Australia: Building & Interior Decoration Stone Processing
Factory Strength
- 40+ years manufacturing experience in stone machinery
- Export to 60+ countries including USA, UAE, Europe, Southeast Asia
- Full OEM/ODM customization for wire saw machines
- Advanced CNC production & testing lines
- Professional after-sales service & technical support worldwide
Advanced CNC Control System
CNC Brain Built for Stone, Not for Show
- 15-inch industrial touch-screen running Windows-based CNC (upgradable OTA for life)
- 3-axis interpolation (X1, X2, Y, A) enables cutting straight, curved, concave, convex or full 360° radial profiles without repositioning
- AI speed optimizer reads stone density in real time and auto-tunes wire speed 20–40 m/s—eliminating human guesswork, reducing wire wear by 12%
- Resume-from-breakpoint functionality: restart after power outage without material waste
Twin-Table Production System
While table-1 finishes a cut, table-2 is already loading the next block. Separate 3-ton payloads, separate servo drives, one program. Result: 28% higher daily output on the same footprint.
Precision Engineering Features
- Closed-loop hydraulic wire tensioning with ±1 N accuracy—eliminates "hour-glass" cuts
- A-axis rotary with sealed IP65 gearbox—no water ingress, no maintenance journals
- Dual 45# heavy-duty linear rails with oil-bath lubrication—10-year wear warranty
- Whole machine steel: 6-month natural aging + tempering + sand-blast + anti-rust treatment—prevents micro-cracks and seasonal re-alignment
Energy Efficient Operation
11 kW permanent-magnet main motor paired with a 15 kW VEICHI vector inverter draws only 17.5 kW total—less than a household heat-pump. Save USD 1,200/year in electricity compared to older 22 kW models.
Export-Ready Packaging
One 20-foot container accommodates the fully assembled unit—no disassembly, no re-calibration on arrival. Ship Friday, install Monday.
Technical Specifications
| Max work-piece |
2,300 * 900 * 400 mm |
| Wire diameter |
6.3 – 9.2 mm (closed-loop) |
| Wire length |
7.4 m |
| Wire wheel |
Φ1,000 mm, dynamically balanced to G2.5 |
| Footprint |
4,350 * 4,750 * 2,350 mm |
| Water consumption |
4 m³/h (recyclable) |
| Warranty |
12 months, global parts network |
FAQ
Q1: What is the water consumption of your vertical CNC wire saw machine?
A: Our machine uses 4m³/H water consumption for efficient stone cutting and cooling.
Q2: What is the diamond wire length for this stone cutting machine?
A: The standard diamond wire length ranges from 20m to 50m, customizable per request.
Q3: Do you use PLC control system for the vertical wire saw?
A: Yes, it adopts stable PLC control for high precision, automatic operation and easy parameter setting.
Q4: Can you customize the stone cutting wire saw for USA/UAE/Europe markets?
A: Yes, we provide full OEM/ODM service and export to USA, UAE, Europe, Southeast Asia and more.
Q5: What materials can this CNC wire saw machine cut?
A: It is widely used for cutting marble, granite, quartz, artificial stone and other solid stone materials.
Pricing & Terms
Valid 90 days from 11 Dec 2025
- Ex-works, China—no tax, no freight
- 30% deposit, 70% before loading
- Price locked unless specs change—written guarantee supplied
Production slots for Q1 are 70% booked
Cut smarter, ship faster, brand bolder—with the VCWS-900-04
