Gantry Movable Diamond Wire Saw Machine with 3500*3500*2200mm Max Processing Size and CNC/PLC Control for High Precision Stone Cutting

1
MOQ
To Be Negotiable
Price
Gantry Movable Diamond Wire Saw Machine with 3500*3500*2200mm Max Processing Size and CNC/PLC Control for High Precision Stone Cutting
Features Gallery Product Description Request A Quote
Features
Specifications
Wire Length: 19.1m
Highlight:

CNC diamond wire saw machine

,

PLC control stone cutting machine

,

large size diamond wire saw
Basic Infomation
Place of Origin: Jinjiang, Fujian, China
Brand Name: Xianda Machinery
Certification: API, CCC, SONCAP, GOST, ISO, CE, SGS;IAF
Model Number: GWS-3500/CGWS-3500
Payment & Shipping Terms
Packaging Details: Plastic Package, Suitable for Sea Transportation
Delivery Time: 1 month
Payment Terms: L/C， T/T， D/P， Western Union ，Paypal ，Money Gram， Others
Supply Ability: 1000 Sets/Year
Product Description
Gantry Movable Heavy Duty Diamond Wire Saw Machine
Ideal for cutting large blocks of stone with 3500×3500×2200mm maximum processing size and CNC/PLC control for high precision stone cutting.
Key Specifications
Attribute Value
Wire Length 19.1m
Gross Weight 10500kg
Max Processing Size 3500×3500×2200mm
Wire Speed 20-40m/s
Model Number GWS-3500/CGWS-3500
Water Consumption 4m³/H
Control CNC/PLC
Wire Diameter 0.6-1.8mm
Automation Automatic
Cutting Precision High
Spindle 15KW
Control System PLC SYSTEM
Technical Specifications
Parameter Unit GWS-3500 CGWS-3500
Control System Type / PLC CNC
Max Processing Size mm 3500×3500×2200 3500×3500×2200mm
Wire Speed m/s 20-40 20-40
Main Motor kw 15 15
Outline Dimension mm 9000×5800×5600 9000×5800×5600
Gross Weight kg 10300 10500
Water Consumption m³/h 4 4

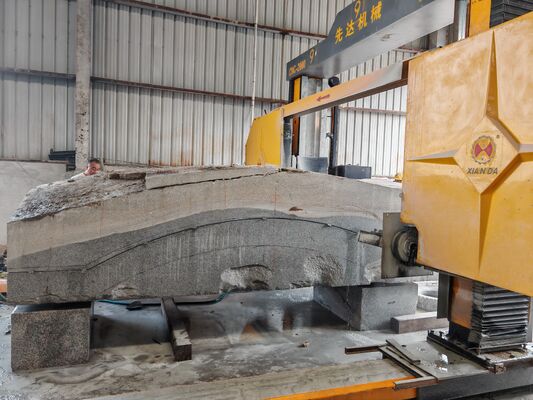

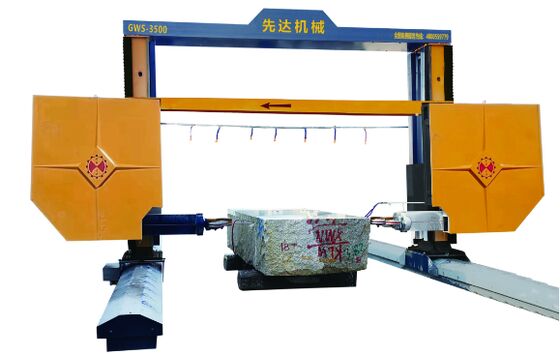

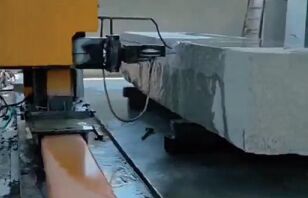

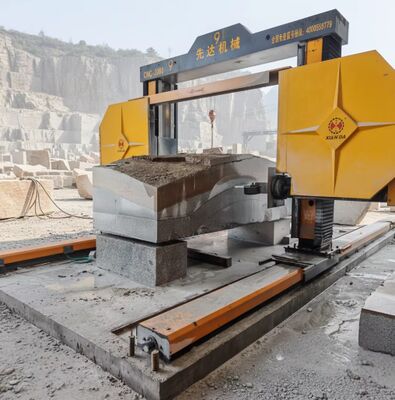

Product Gallery
Gantry Movable Diamond Wire Saw Machine with 3500*3500*2200mm Max Processing Size and CNC/PLC Control for High Precision Stone Cutting 0 Gantry Movable Diamond Wire Saw Machine with 3500*3500*2200mm Max Processing Size and CNC/PLC Control for High Precision Stone Cutting 1
Machine Design & Operation
This machine adopts a gantry-type moving structure, allowing raw materials to be placed directly on the ground for processing, thereby saving on trolley and maintenance costs. The lifting mechanism uses a sixteen-sided guide rail and twenty-eight sets of roller structures, with synchronized lifting achieved through intermediate transmission. This design offers advantages such as high stability, high efficiency, and high precision, making it suitable for the processing of large-scale stone materials.
Ideal Applications
  • Mining operations cutting raw stone blocks directly at the quarry
  • Stone processing plants producing large granite/marble slabs for flooring, wall cladding, and countertops
  • Construction projects requiring on-site cutting of oversized stone elements
  • Custom stone workshops creating sculptures, curved facades, and special-shaped decorations
It seamlessly handles various hard materials, including granite, marble, sandstone, and basalt, making it a versatile asset for businesses aiming to expand their service range.
Performance Advantages
Traditional stone cutting machines often suffer from low efficiency, high material waste, and limited mobility. This gantry movable diamond wire saw machine addresses these issues head-on:
  • Diamond wire cutting technology reduces material loss by up to 30% compared to blade cutting
  • Automated feeding and slicing functions reduce labor costs and human error, ensuring consistent quality across batches
