4-Axis CNC Diamond Wire Saw Machine with 360° Servo-Rotary Table, 16-Surface Slideway, and 28 Rolling-Wheel Lift for Precision Stone Cutting

Discovery 4 (Plus) – Ultimate 4-Axis CNC Diamond Wire Saw Machine

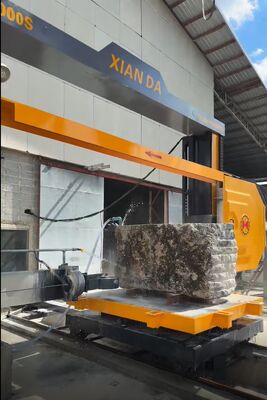

The Discovery 4-2500SA/3000SA represents the flagship model in CNC diamond wire saw technology. This four-axis, fully digital cutting center features a 360° servo-rotary table, 16-surface slideways, and 28 rolling-wheel synchronous lifts that enable precision cutting of arcs, columns, letters, Chinese characters, and tombstones up to 3m * 3m * 1.5m in a single program, delivering mirror-quality surfaces.

Key Advantages

• 360° Servo-Rotary Table: Cuts 360° cylinders, four-side dressing, and 3D reliefs without repositioning
• 16-Surface Slideway + 28 Rollers: Zero backlash, 20-ton load capacity, vibration-free wire guidance
• S-Type Waterproof Gearbox: Sealed against sludge, triple the gearbox lifespan
• 15 kW Permanent-Magnet Motor: Constant torque at 20-40 m/s, 15% energy savings
• Plus Frame Reinforcement: Absorbs 20-ton loads for superior stability

Machine Overview

Machine Overview

360° Servo-Rotary Table

16-Surface Slideway

28-Wheel Lift System

Waterproof Gearbox

15 kW PM Motor

Frame Reinforcement

Model Specifications

Both models feature 20-40 m/s wire speed, 15 kW permanent-magnet motor, and 3 m³/h water system.

Four-Axis Motion System

• X-axis – Table longitudinal (block length)
• Y-axis – Cross beam transverse (block width)
• Z-axis – Vertical head lift (block height)
• C-axis – Servo-driven 360° rotation (continuous cylinder or four-face dressing)

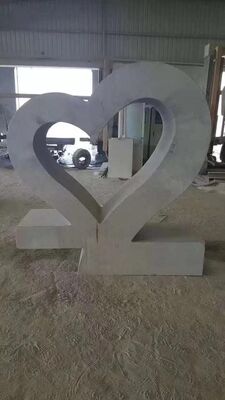

This configuration enables true 3D sculpture, 360° columns, four-sided squaring, or curved façade panels without repositioning.

Application Capabilities

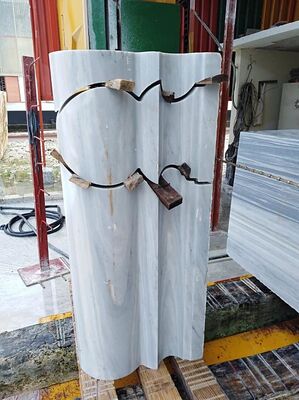

• 360° columns – Ø300-2200 mm, full or barrel

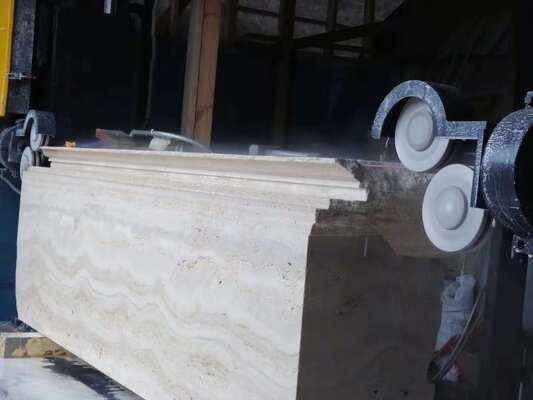

• Arc slabs – curved wall cladding, column façades

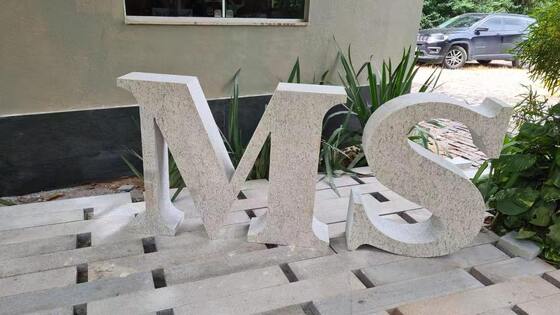

• Numerals & letters – 3D signage, address stones
• Chinese characters – artistic monuments
• Tombstones – shaped headstones, curved borders
• Four-side dressing – squaring 20-ton blocks

Compatible materials: granite, marble, quartzite, basalt, engineered stone.
