4-Axis CNC Diamond Wire Saw Machine With 360° Servo-Rotary Table 16-Surface Slideway And 28 Rolling-Wheel Lift For Marble Granite

1 Set
MOQ
To Be Negotiable
Price
4-Axis CNC Diamond Wire Saw Machine With 360° Servo-Rotary Table 16-Surface Slideway And 28 Rolling-Wheel Lift For Marble Granite
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Diamond Wire Saw Machine
Hs Code: 84641090
Wheel Diameter: 1600mm
Specification: 7800*6800*4250mm/8800*6800*4250mm
Source Voltage: 380V
Origin: Fujian, China
Transport Package: Load In A 20 Feet Container
Delivery Details: Negotiable
Highlight:

360° Servo-Rotary Table CNC Diamond Wire Saw Machine

,

16-Surface Slideway Diamond Wire Cutting Machine

,

28 Rolling-Wheel Lift 4-Axis Diamond Wire Saw
Basic Infomation
Place of Origin: Jinjiang, Fujian, China
Brand Name: Xianda Machinery
Certification: API, CCC, SONCAP, GOST, ISO, CE, SGS;IAF
Model Number: Discovery-2500SA/3000SA
Payment & Shipping Terms
Packaging Details: Wire rope lashing,Suitable for sea/air/land/rail transportation.
Delivery Time: 1 Month
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 1000 Sets/Year
Product Description
Discovery 4 (Plus) – Ultimate 4-Axis CNC Diamond Wire Saw Machine
The Discovery 4-2500SA/3000SA represents the flagship model in CNC diamond wire saw technology. This four-axis, fully digital cutting center features a 360° servo-rotary table, 16-surface slideways, and 28 rolling-wheel synchronous lifts that enable precision cutting of arcs, columns, letters, Chinese characters, and tombstones up to 3m * 3m * 1.5m in a single program, delivering mirror-quality surfaces.
Key Advantages
4-Axis CNC Diamond Wire Saw Machine With 360° Servo-Rotary Table 16-Surface Slideway And 28 Rolling-Wheel Lift For Marble Granite 0

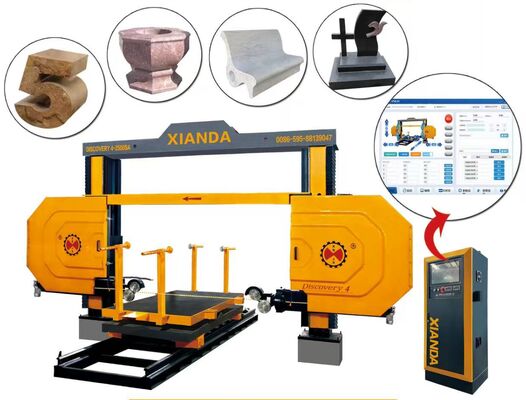

Machine Overview
4-Axis CNC Diamond Wire Saw Machine With 360° Servo-Rotary Table 16-Surface Slideway And 28 Rolling-Wheel Lift For Marble Granite 1
360° Servo-Rotary Table
4-Axis CNC Diamond Wire Saw Machine With 360° Servo-Rotary Table 16-Surface Slideway And 28 Rolling-Wheel Lift For Marble Granite 2
16-Surface Slideway
4-Axis CNC Diamond Wire Saw Machine With 360° Servo-Rotary Table 16-Surface Slideway And 28 Rolling-Wheel Lift For Marble Granite 3
28-Wheel Lift System
4-Axis CNC Diamond Wire Saw Machine With 360° Servo-Rotary Table 16-Surface Slideway And 28 Rolling-Wheel Lift For Marble Granite 4
Waterproof Gearbox
4-Axis CNC Diamond Wire Saw Machine With 360° Servo-Rotary Table 16-Surface Slideway And 28 Rolling-Wheel Lift For Marble Granite 5
15 kW PM Motor
4-Axis CNC Diamond Wire Saw Machine With 360° Servo-Rotary Table 16-Surface Slideway And 28 Rolling-Wheel Lift For Marble Granite 6
Frame Reinforcement
  • 360° Servo-Rotary Table: Cuts 360° cylinders, four-side dressing, and 3D reliefs without repositioning
  • 16-Surface Slideway + 28 Rollers: Zero backlash, 20-ton load capacity, vibration-free wire guidance
  • S-Type Waterproof Gearbox: Sealed against sludge, triple the gearbox lifespan
  • 15 kW Permanent-Magnet Motor: Constant torque at 20-40 m/s, 15% energy savings
  • Plus Frame Reinforcement: Absorbs 20-ton loads for superior stability
Model Specifications
Model Max Block Table Size Footprint Weight Wire Wheel
Discovery 4-2500SA 2.5 * 3 * 1.5 m 1.4 * 2 m 7.8 * 6.8 * 4.25 m 8.25 t Ø1600 mm
Discovery 4-3000SA 3 * 3 * 1.5 m 1.6 * 2 m 8.8 * 6.8 * 4.25 m 8.75 t Ø1600 mm
Both models feature 20-40 m/s wire speed, 15 kW permanent-magnet motor, and 3 m³/h water system.
Four-Axis Motion System
  • X-axis – Table longitudinal (block length)
  • Y-axis – Cross beam transverse (block width)
  • Z-axis – Vertical head lift (block height)
  • C-axis – Servo-driven 360° rotation (continuous cylinder or four-face dressing)
This configuration enables true 3D sculpture, 360° columns, four-sided squaring, or curved façade panels without repositioning.
Application Capabilities
  • 360° columns – Ø300-2200 mm, full or barrel
  • Arc slabs – curved wall cladding, column façades

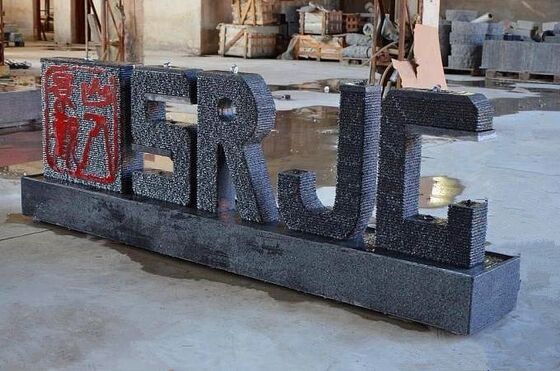

  • Numerals & letters – 3D signage, address stones
  • Chinese characters – artistic monuments
  • Tombstones – shaped headstones, curved borders
  • Four-side dressing – squaring 20-ton blocks
Compatible materials: granite, marble, quartzite, basalt, engineered stone.
Ordering & Shipping Information
  • Minimum Order Quantity: 1 machine
  • Shipping: Sea freight to nearest port included
  • Incoterms: FOB, CIF, DDP optional
  • Lead Time: 35 days stock / 45 days custom
  • Payment Terms: T/T 30% deposit, 70% before shipment; L/C at sight accepted
