6-Axis CNC Robot Stone Cutting Machine with Interpolated Control and Optional 7th Axis Rotary Table for Precision Carving

1 set
MOQ
To Be Negotiable
Price
6-Axis CNC Robot Stone Cutting Machine with Interpolated Control and Optional 7th Axis Rotary Table for Precision Carving
Features Gallery Product Description Request A Quote
Features
Specifications
Number Of Axes: 6-Axis Interpolated Control (Optional 7th Axis Rotary Table)
Max Working Radius: Reach Up To 2700mm - 3100mm (Customizable For Large-scale Sculptures)
Max Payload: 275kg
Rated Load: 210kg
Position Repeatability: ±0.05mm
Max Working Range: 2701mm
Spindle Type: BT40
Spindle Power: 15KW
Spindle Speed: 18000rpm
Protection Grade: IP65/IP67
Total Power: 35KW
Highlight:

6-Axis Interpolated Control CNC Stone Cutting Machine

,

Optional 7th Axis Rotary Table Diamond Wire Saw Machine

,

Stone Carving 6-Axis CNC Robot
Basic Infomation
Place of Origin: China
Brand Name: Xianda Machinery
Certification: API, CCC, SONCAP, GOST, ISO, CE, SGS;IAF
Model Number: KR210
Payment & Shipping Terms
Packaging Details: Plastic Package, Suitable For Sea Transportation
Delivery Time: 1 Month
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Supply Ability: 1000 Sets/Year
Product Description
6-Axis CNC Robot Stone Cutting Machine for Carving

Advanced 6-axis CNC robotic system designed specifically for precision stone cutting and intricate carving applications. This industrial-grade machine combines robotic flexibility with CNC precision for complex three-dimensional stone processing.

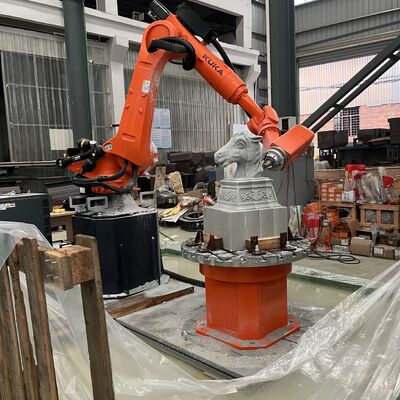

6-Axis CNC Robot Stone Cutting Machine with Interpolated Control and Optional 7th Axis Rotary Table for Precision Carving 0

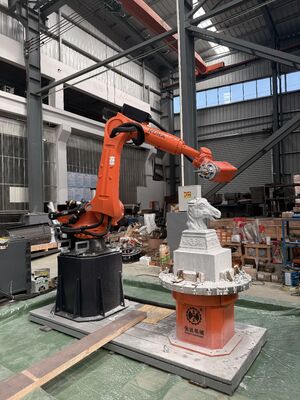

6-Axis CNC Robot Stone Cutting Machine with Interpolated Control and Optional 7th Axis Rotary Table for Precision Carving 1

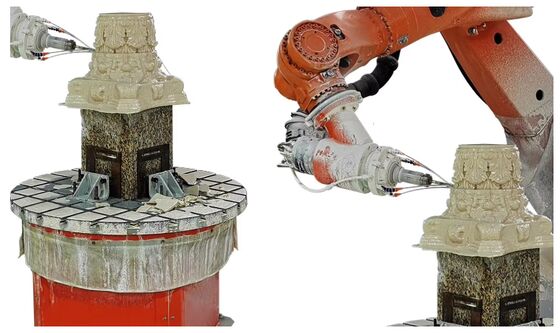

6-Axis CNC Robot Stone Cutting Machine with Interpolated Control and Optional 7th Axis Rotary Table for Precision Carving 2

6-Axis CNC Robot Stone Cutting Machine with Interpolated Control and Optional 7th Axis Rotary Table for Precision Carving 3

Parameter Specification
Spindle Type BT40
Spindle Power 15 kW
Spindle Speed 18000 rpm
Pneumatic Tool Changer Supported
Spindle Slot Positioning Yes
Automatic Tool Water Spraying Yes
BT40 Tool Magazine (20 Tools) Optional
Tool Setting Gauge Measurement Optional
Compatible Tools Saw blade, rough carving tool, 1/2G tool, forming tool
Saw Blade Diameter 300-400 mm
Key Features
  • Full 6-axis robotic articulation for complex 3D carving
  • High-precision CNC control system
  • Designed specifically for stone materials including marble, granite, and engineered stone
  • Advanced cutting head with multiple tool compatibility
  • Industrial-grade construction for heavy-duty operation
  • User-friendly programming interface
  • High-speed processing capabilities
  • Integrated dust collection and cooling systems
Technical Specifications
Axis Configuration 6-axis robotic arm
Working Range Customizable based on application requirements
Control System Advanced CNC controller with robotic integration
Material Compatibility Marble, Granite, Limestone, Engineered Stone
Positioning Accuracy High precision with repeatable results
Power Requirements Industrial 3-phase power supply
Parameter Specification
Max Working Range 2701 mm
Max Payload 275 kg
Rated Load 210 kg
Rated Additional Load (Rotary Mechanism/Boom/Arm) 0 kg / 0 kg / 50 kg
Position Repeatability (ISO 9283) ±0.05 mm
Number of Axes 7
Installation Position Floor
Floor Space 3000 mm * 1200 mm
Approx. Weight 2330 kg
Total Power 35 kW
Parameter Specification
Rotary Worktable Machining Size 1000*1000*2500 mm
Rotary Worktable Repeatability 1 arc/min
Flat Cutting Worktable Optional
Flat Worktable Machining Size 2500*1500*80 mm
Axis No. Motion Range Motion Speed
A1 ±185° 120 °/s
A2 -140° / -5° 115 °/s
A3 -120° / 168° 112 °/s
A4 ±350° 179 °/s
A5 ±125° 172 °/s
A6 ±350° 220 °/s
A7 Unlimited rotation angle 118 °/s
Parameter Specification
Operating Temperature 0 ℃ ~ 55 ℃ (273 K ~ 328 K)
Protection Grade (IEC 60529) IP65
Manipulator Protection Grade (IEC 60529) IP65 / IP67
