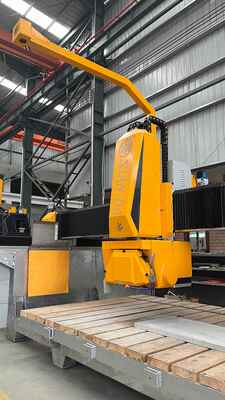

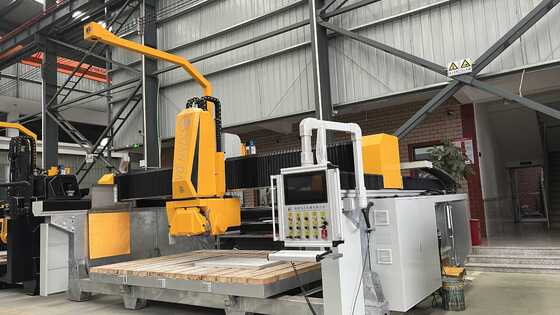

4-Axis Intelligent Bridge Stone Cutting Machine
Expand 600H/HL – 4 Axis Bridge Cutting Machine (Pioneer Edition)
Product Overview

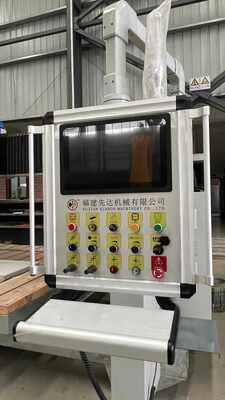

This 4-axis bridge cutting machine adopts four-axis linkage CNC system control with bus absolute value servo (featuring power-off memory function). It incorporates high-precision linear guides, ball screw drive, and oil-immersed track structure, offering multi-function capability, high precision, and strong stability for granite and marble slab processing.
Technical Specifications
| Parameter |
Unit |
Expand 600HL |
Expand 600H |
| Control system type |
/ |
4 axis system |
4 axis system |
| Worktable size |
mm |
3400×2000 |
3400×2000 |
| Max processing size |
mm |
3400×2000×180 |
3200×2000×180 |
| Worktable tilting degree |
° |
0-85° |
0-85° |
| Cutting head rotation degree |
° |
0-360° |
0-360° |
| Cutting head rotation control mode |
/ |
Servo motor control |
Servo motor control |
| Cutting head chamfer rotating degree |
° |
0-60° Hydraulic control |
/ |
| Main motor |
kw |
22 (Permanent magnet motor) |
22 (Permanent magnet motor) |
| Water consumption |
m³/h |
2 |
2 |
| Outline dimension |
mm |
5800×3600×3350 |
5800×3600×3350 |
Manufacturer Profile
Fujian Xianda Machinery Co., Ltd is a leading company for stone cutting machines and tools in China, established in 1985 and covering 20,000m³ area. Located in Jinjiang Wuli Industrial area near the world's longest and oldest stone bridge "Wuli Bridge" and adjacent to the world's biggest stone market in Shuitou.
With more than 34 years of experience specializing in developing and producing diamond wire saw machines, column processing machines, bridge cutting machines, carving machines, profiling linear machines, and baluster machines, we occupy around 80% of the Chinese market for column processing machines and serve over 30 overseas countries.
Since its foundation in 1985, we maintain "Top Technology and Superior Quality" as our standard for all machines and hold CE, ISO Quality Gold Award certifications. The company has received "China Recommend Building Manufacture Enterprise" and "3A Enterprise Credit Evaluation" honors.
Our Advantages
- Training for machine installation and operation
- Engineers available for overseas machinery service
- 24-hour online after-sales service
- Top 10 stone cutting machine manufacturer with ISO & CE certification since 1985
- 70% China market share in special shape stone cutting machines
- Specialized in producing stone machines for export markets
Quality Assurance
We maintain experienced quality control teams, conduct strict machine inspections, and provide testing videos for each machine before shipping upon customer request.
Delivery & Warranty
Delivery time: Based on order quantity, normally three weeks against payment.
Warranty: All machines include one-year comprehensive warranty.
After Sales Service
Our marketing team responds to your questions within 24 hours.
Technical support is available at any time.
Free replacement provided once failure is confirmed to be caused by product quality issues.
Frequently Asked Questions
How to place order to your company?
1. Inquiry-Professional quotation
2. Confirm price, lead time, logo, payment terms
3. Xianda sales sends Proforma Invoice with seal
4. Customer makes deposit payment and sends bank receipt
5. Sales confirms receipt and arranges production with estimated timeline
How is After-sales Service Provided?
Engineers can be dispatched for machinery assembly and technical support.
Are you Manufacture Factory?
Yes, we are a stone machinery factory with over 30 years of manufacturing experience.
What about the warranty time of the machine?
We provide one-year parts warranty service for all our machines.
