CNC Diamond Wire-Saw Dressing Machine With 360° Rotary Table For 1.5M/1.8M/2.1M/2.2M/3.5M Big Blocks

1 set
MOQ
To Be Negotiable
Price
CNC Diamond Wire-Saw Dressing Machine With 360° Rotary Table For 1.5M/1.8M/2.1M/2.2M/3.5M Big Blocks
Features Gallery Product Description Request A Quote
Features
Specifications
Key Words: Stone Machine
Advantage: High Efficiency Long Life Time
Voltage: 220V/380V
Water Consumption: 4m3/H
Power: 11/15kW
Cutting Height: 1800/2100/2200mm
Cutting Length: 3500mm
Trolley Size: 1800*2000mm 2000*2500mm
Highlight:

Big Blocks CNC Diamond Wire-Saw

,

1.5M CNC Diamond Wire-Saw

,

CNC Diamond Wire-Saw Dressing Machine
Basic Infomation
Place of Origin: Jinjiang, Fujian, China
Brand Name: Xianda Machinery
Certification: API, CCC, SONCAP, GOST, ISO, CE, SGS;IAF
Model Number: CTS-3500-18/21/22FW
Payment & Shipping Terms
Packaging Details: Wire rope lashing,Suitable for sea/air/land/rail transportation.
Delivery Time: 1 Month
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 1000 Sets/Year
Product Description
CTS-3500 Series CNC Diamond Wire-Saw Dressing Machine
The CTS-3500-18/21/22FW is a four-axis, CNC-controlled diamond wire-saw dressing centre engineered for high-precision shaping of large stone blocks. With 16-surface slideways, 28 rolling-wheel synchronous lift and a 360° rotary table, it dresses four faces without repositioning and sculpts arcs, columns, numerals, letters or Chinese characters up to 3.5 m long * 3.5 m wide * 2.2 m high – all in a single program.
Technical Specifications
Parameter Unit CTS-3500-18 CTS-3500-21 CTS-3500-22FW
Max processing size mm 3500*3000*1800 3500*3500*2100 3500*3500*2200
Trolley size mm 1800*2000 2000*2500 2000*2500
Table bearing weight T 35 50 50
Wire speed m/s 20-40 20-40 20-40
Main motor kW 11 15 15
Outline dimension mm 9300*7200*4800 9800*7800*5600 8800*7800*5750
Gross weight kg 10200 12000 11500
Water consumption m³/h 4 4 4

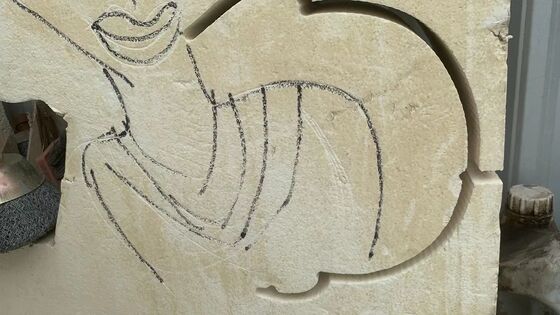

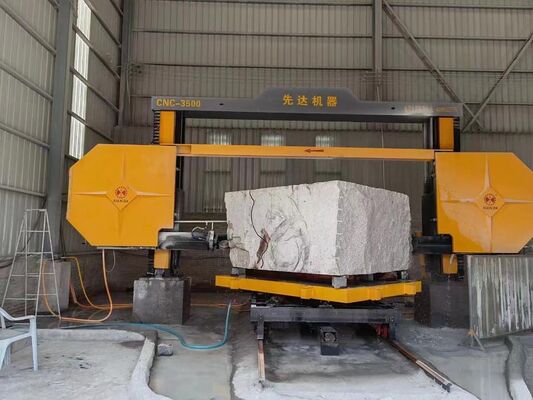

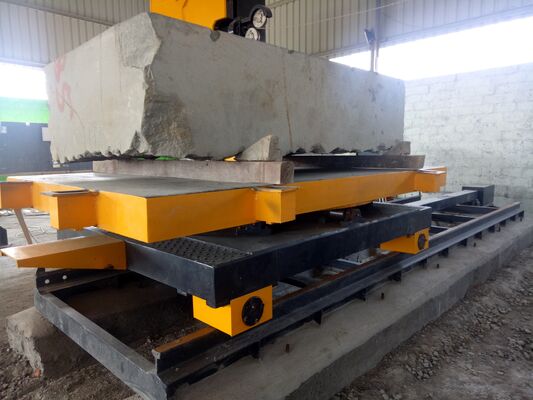

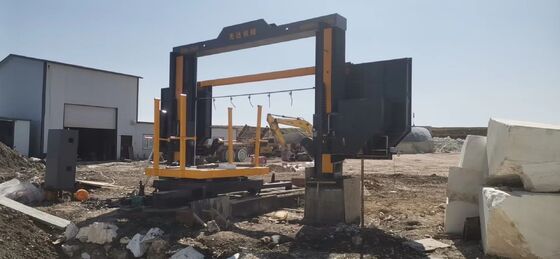

CNC Diamond Wire Saw Machine in operation showing precision cutting Close-up view of diamond wire saw cutting mechanism Stone block being processed on wire saw machine Detailed view of wire saw cutting head Machine control panel and interface Finished stone product from wire saw processing Machine structural components and frame Wire saw machine in factory setting Technical details of wire saw mechanism
Four-Axis Motion & Functions
  • X-axis – table longitudinal (block length)
  • Y-axis – cross beam transverse (block width)
  • Z-axis – vertical head lift (block height)
  • C-axis – table 360° rotation (continuous cylinder or four-face dressing)
Result: true 3-D sculpture, 360° column, four-side dressing or curved façade panel without repositioning.
Application Gallery
  • 360° columns
  • Arc slabs – curved wall cladding, column façades
  • Numerals & letters – 3-D signage, address stones
  • Chinese characters – artistic monuments
  • Four-side dressing – monument block squaring
  • Curved kerbs – radius road edges
Materials: granite, marble, quartzite, basalt, engineered stone.
Workflow (1 Operator)
  1. Load block onto rotary table (forklift or vacuum lifter)
  2. Import CAD file (.dxf, .stp) or use on-screen wizard
  3. Select wire speed & passes – click START
  4. Machine auto-cuts – table rotates or head moves as programmed
  5. Unload finished piece – ready for polishing or direct install
Package, Delivery & Warranty
  • Export crate: wire rope lashing, suitable for sea/air/land/rail transportation
  • Delivery: 30 days (stock) / 40 days (custom colour)
  • Warranty: 12 months for parts
  • Installation: video-guide + remote support; on-site service optional
  • Spare parts: 48 h dispatch from regional warehouse
