4-Axis CNC Diamond Wire Saw Machine with 360° Servo-Rotary Table

1 Set
MOQ
To Be Negotiable
Price
4-Axis CNC Diamond Wire Saw Machine with 360° Servo-Rotary Table
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Diamond Wire Saw Machine
Hs Code: 84641090
Wheel Diameter: 1600mm
Specification: 7800*6800*4250mm/8800*6800*4250mm
Source Voltage: 380V
Origin: Fujian, China
Transport Package: Load In A 20 Feet Container
Delivery Details: Negotiable
Highlight:

4-Axis Diamond Wire Saw Machine

,

CNC Diamond Wire Saw Machine
Basic Infomation
Place of Origin: Jinjiang, Fujian, China
Brand Name: Xianda Machinery
Certification: API, CCC, SONCAP, GOST, ISO, CE, SGS;IAF
Model Number: Discovery-2500SA/3000SA
Payment & Shipping Terms
Packaging Details: Wire rope lashing,Suitable for sea/air/land/rail transportation.
Delivery Time: 1 Month
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 1000 Sets/Year
Product Description
4-Axis CNC Diamond Wire Saw Machine with 360° Servo-Rotary Table

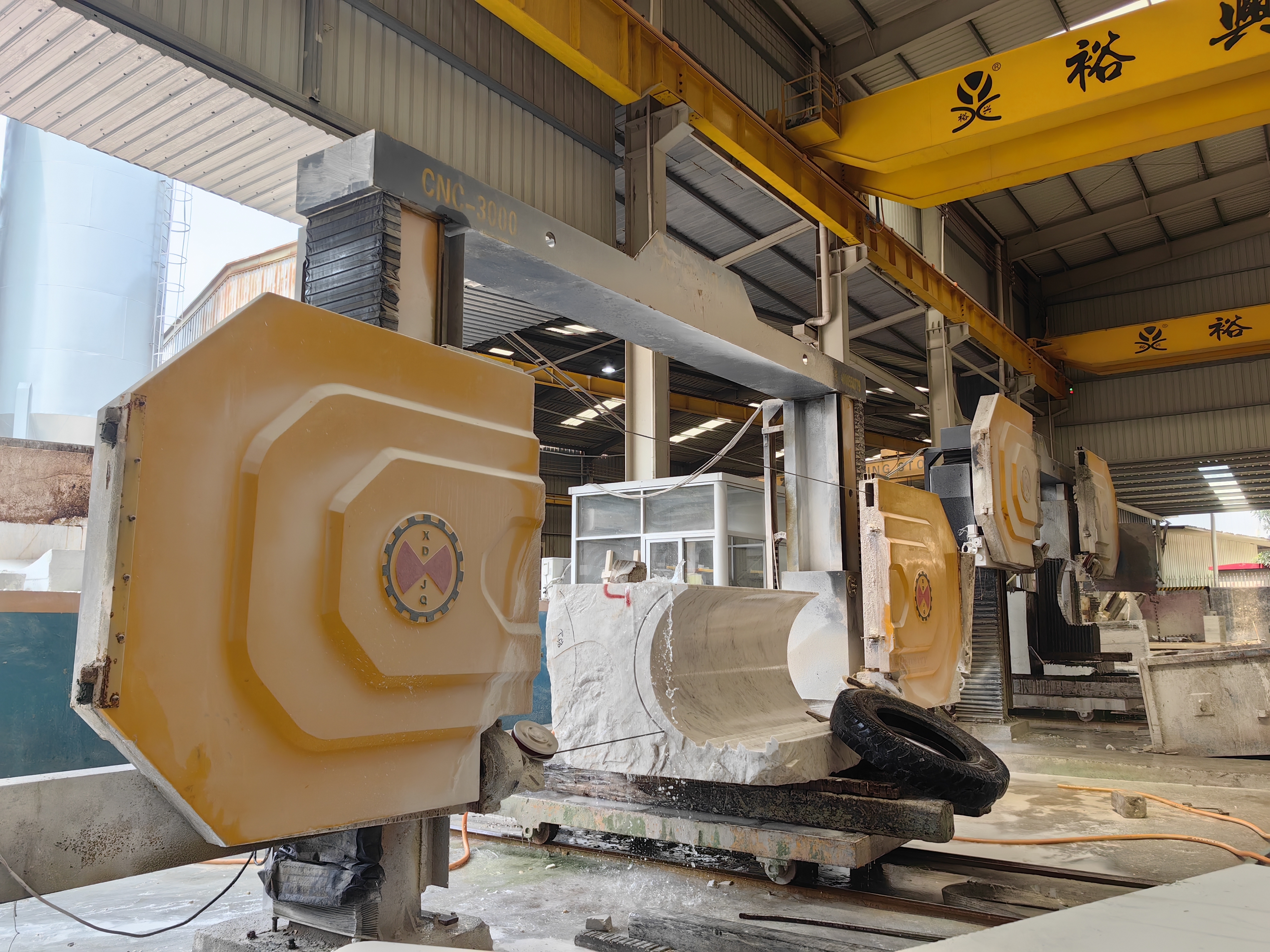

Discovery 4 (Plus) — Ultimate 4-Axis CNC Diamond Wire Saw Machine
The Discovery 4 (Plus) represents the flagship model in CNC diamond wire saw technology. This four-axis, fully digital cutting center features a 360° servo-rotary table, 16-surface slideways, and 28 rolling-wheel synchronous lifts. It expertly sculpts arcs, columns, letters, Chinese characters, and tombstones up to 3m * 3m * 1.5m in a single program, delivering mirror-quality surfaces.
Key Features & Benefits
360° Servo-Rotary Table
Enables cutting of 360° cylinders, four-side dressing, and 3D reliefs without repositioning
16-Surface Slideway + 28 Rollers
Provides zero backlash, handles 20-ton loads, and ensures vibration-free wire guidance
S-Type Waterproof Gearbox
Sealed against sludge with triple the standard gearbox lifespan
15 kW Permanent-Magnet Motor
Delivers constant torque at 20-40 m/s with 15% energy savings
Plus Frame Reinforcement
Engineered to absorb 20-ton loads for maximum stability
4-Axis CNC Diamond Wire Saw Machine with 360° Servo-Rotary Table 0 4-Axis CNC Diamond Wire Saw Machine with 360° Servo-Rotary Table 1 4-Axis CNC Diamond Wire Saw Machine with 360° Servo-Rotary Table 2 4-Axis CNC Diamond Wire Saw Machine with 360° Servo-Rotary Table 3 4-Axis CNC Diamond Wire Saw Machine with 360° Servo-Rotary Table 4 4-Axis CNC Diamond Wire Saw Machine with 360° Servo-Rotary Table 5 4-Axis CNC Diamond Wire Saw Machine with 360° Servo-Rotary Table 6
Model Specifications
Model Max Block Table Size Footprint Weight Wire Wheel
Discovery 4-2500SA 2.5 * 3 * 1.5 m 1.4 * 2 m 7.8 * 6.8 * 4.25 m 8.25 t Ø1600 mm
Discovery 4-3000SA 3 * 3 * 1.5 m 1.6 * 2 m 8.8 * 6.8 * 4.25 m 8.75 t Ø1600 mm
Both models feature 20-40 m/s wire speed, 15 kW permanent-magnet motor, and 3 m³/h water system.
Four-Axis Motion System
  • X-axis - Table longitudinal (block length)
  • Y-axis - Cross beam transverse (block width)
  • Z-axis - Vertical head lift (block height)
  • C-axis - Servo-driven 360° rotation (continuous cylinder or four-face dressing)
This comprehensive motion system enables true 3D sculpture, 360° column cutting, four-sided squaring, and curved façade panel creation without repositioning.
Applications

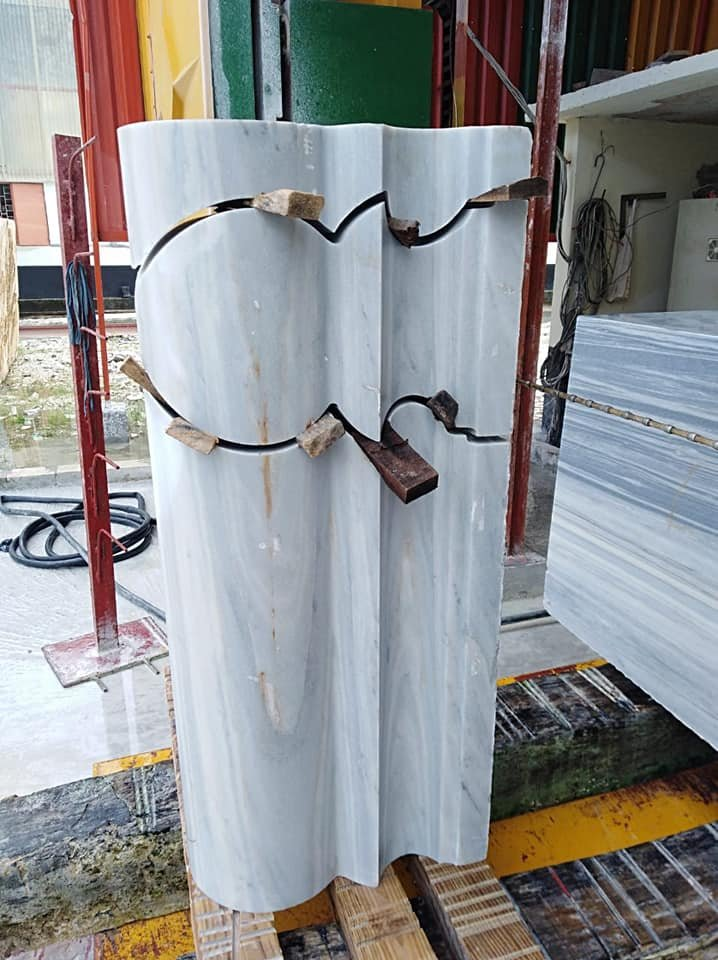

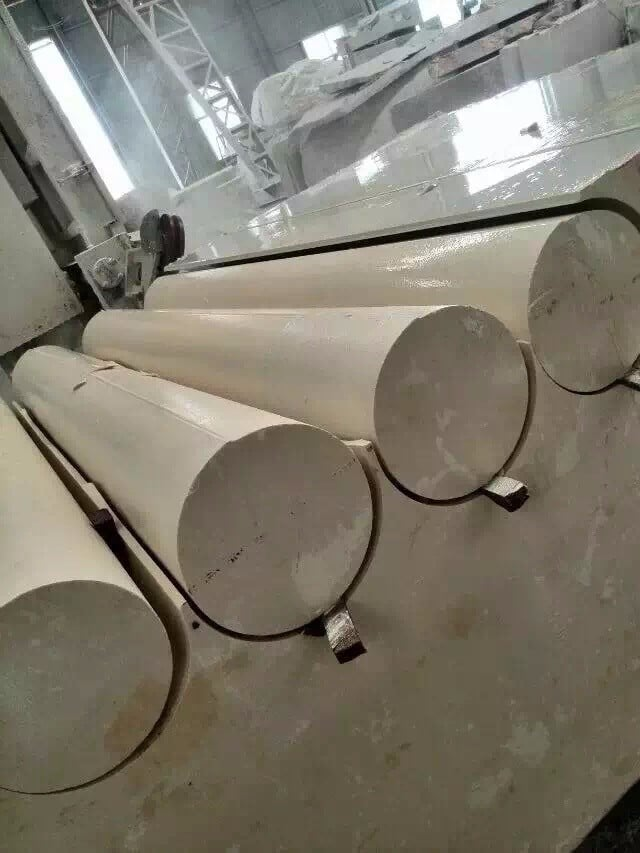

  • 360° columns - Ø300-2200 mm, full or barrel

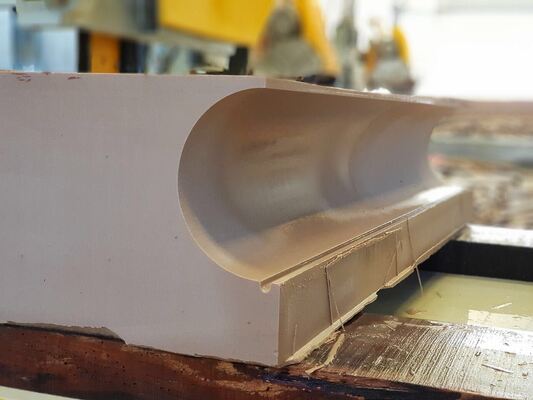

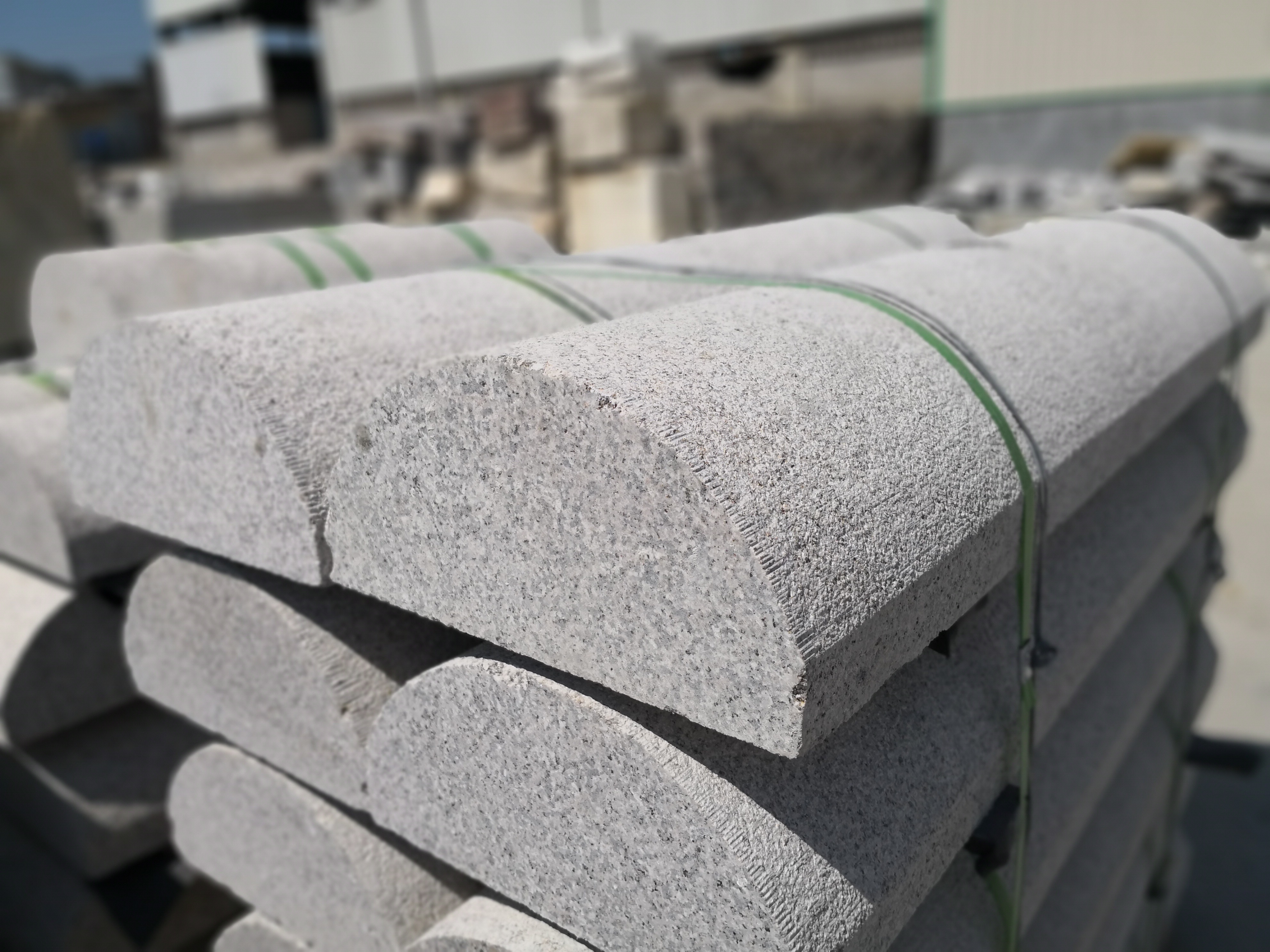

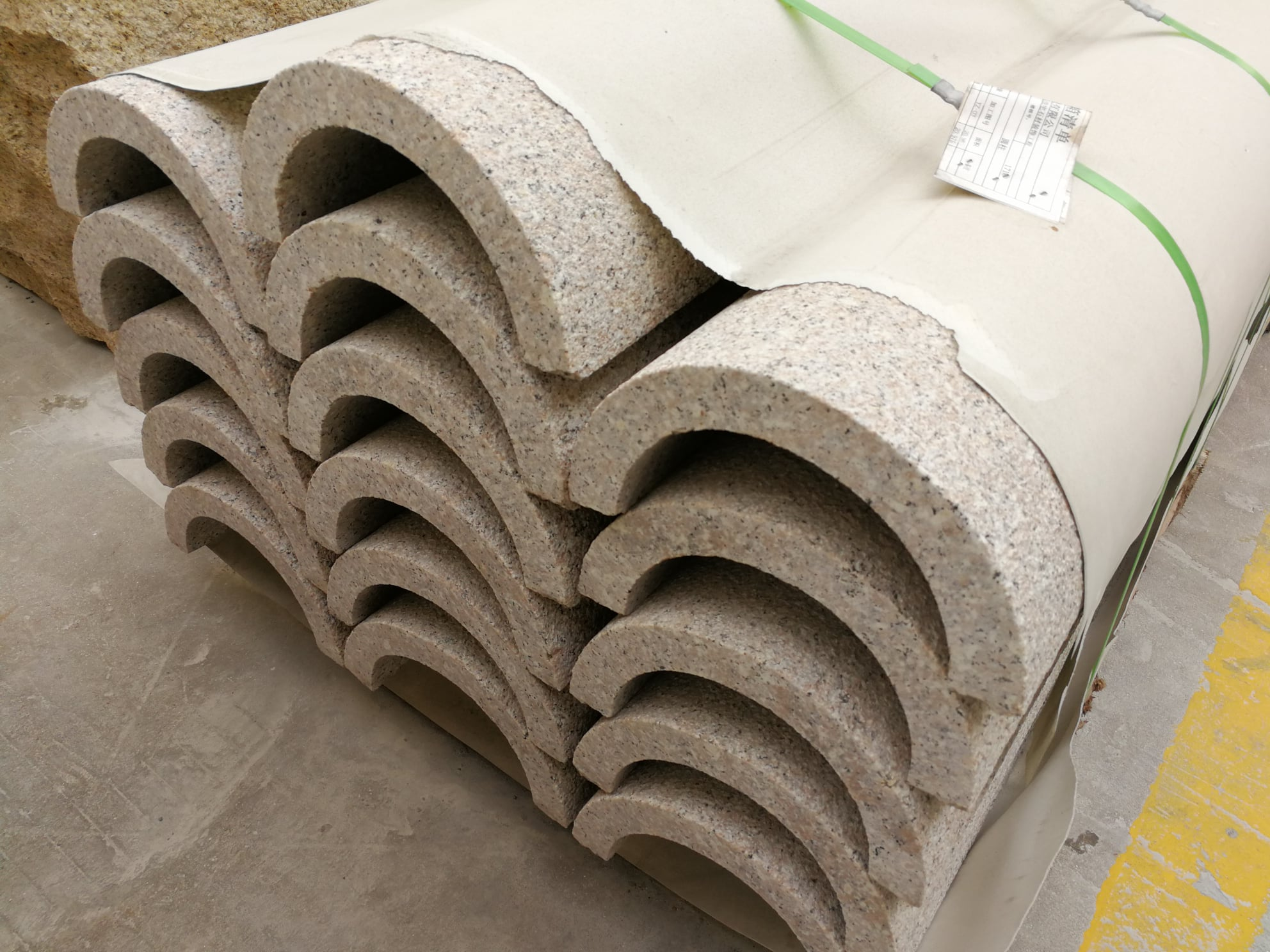

  • Arc slabs - curved wall cladding, column façades
  • Numerals & letters - 3D signage, address stones
  • Chinese characters - artistic monuments
  • Tombstones - shaped headstones, curved borders
  • Four-side dressing - squaring 20-ton blocks
Compatible materials include granite, marble, quartzite, basalt, and engineered stone.
Ordering & Shipping Information
Item Detail
MOQ 1 (one) machine
Shipping Sea freight to nearest port included
Incoterms FOB, CIF, DDP optional
Lead time 35 days stock / 45 days custom
Payment T/T 30% deposit, 70% before shipment; L/C at sight accepted
