4-Axis CNC Diamond Wire Saw Machine with 360° Servo-Rotary Table, 16-Surface Slideway, and 28 Rolling-Wheel Lift

1 Set
MOQ
To Be Negotiable
Price
4-Axis CNC Diamond Wire Saw Machine with 360° Servo-Rotary Table, 16-Surface Slideway, and 28 Rolling-Wheel Lift
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Diamond Wire Saw Machine
Hs Code: 84641090
Wheel Diameter: 1600mm
Specification: 7800*6800*4250mm/8800*6800*4250mm
Source Voltage: 380V
Origin: Fujian, China
Transport Package: Load In A 20 Feet Container
Delivery Details: Negotiable
Highlight:

4-Axis Diamond Wire Saw Machine

,

CNC Diamond Wire Saw Machine
Basic Infomation
Place of Origin: Jinjiang, Fujian, China
Brand Name: Xianda Machinery
Certification: API, CCC, SONCAP, GOST, ISO, CE, SGS;IAF
Model Number: Discovery-2500SA/3000SA
Payment & Shipping Terms
Packaging Details: Wire rope lashing,Suitable for sea/air/land/rail transportation.
Delivery Time: 1 Month
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 1000 Sets/Year
Product Description
Discovery 4 (Plus) – Ultimate 4-Axis CNC Diamond Wire Saw Machine
The Discovery 4-2500SA/3000SA represents the flagship model in CNC diamond wire saw technology. This four-axis, fully digital cutting center features a 360° servo-rotary table, 16-surface slideways, and 28 rolling-wheel synchronous lifts that enable precision cutting of arcs, columns, letters, Chinese characters, and tombstones up to 3m × 3m × 1.5m in a single program, delivering mirror-quality surfaces.
Key Advantages
360° Servo-Rotary Table
Cuts 360° cylinders, four-side dressing, and 3D reliefs without repositioning
16-Surface Slideway + 28 Rollers
Zero backlash, 20-ton load capacity, vibration-free wire guidance
S-Type Waterproof Gearbox
Sealed against sludge, triple the gearbox lifespan
15 kW Permanent-Magnet Motor
Constant torque at 20-40 m/s, 15% energy savings
Plus Frame Reinforcement
Absorbs 20-ton loads for superior stability
4-Axis CNC Diamond Wire Saw Machine with 360° Servo-Rotary Table, 16-Surface Slideway, and 28 Rolling-Wheel Lift 0

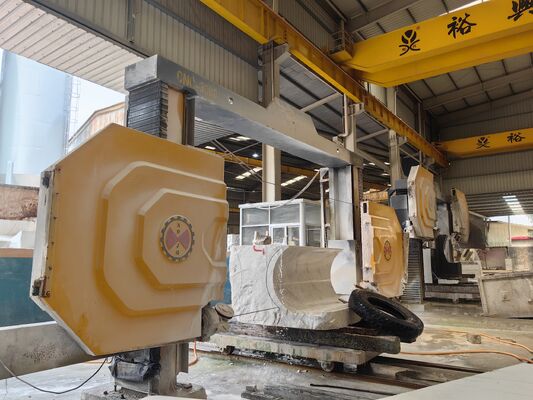

Machine Overview
Close-up of 360° servo-rotary table mechanism
360° Servo-Rotary Table
4-Axis CNC Diamond Wire Saw Machine with 360° Servo-Rotary Table, 16-Surface Slideway, and 28 Rolling-Wheel Lift 2
16-Surface Slideway
4-Axis CNC Diamond Wire Saw Machine with 360° Servo-Rotary Table, 16-Surface Slideway, and 28 Rolling-Wheel Lift 3
28-Wheel Lift System
4-Axis CNC Diamond Wire Saw Machine with 360° Servo-Rotary Table, 16-Surface Slideway, and 28 Rolling-Wheel Lift 4
Waterproof Gearbox
4-Axis CNC Diamond Wire Saw Machine with 360° Servo-Rotary Table, 16-Surface Slideway, and 28 Rolling-Wheel Lift 5
15 kW PM Motor
4-Axis CNC Diamond Wire Saw Machine with 360° Servo-Rotary Table, 16-Surface Slideway, and 28 Rolling-Wheel Lift 6
Frame Reinforcement
Model Specifications
Model Max Block Table Size Footprint Weight Wire Wheel
Discovery 4-2500SA 2.5 × 3 × 1.5 m 1.4 × 2 m 7.8 × 6.8 × 4.25 m 8.25 t Ø1600 mm
Discovery 4-3000SA 3 × 3 × 1.5 m 1.6 × 2 m 8.8 × 6.8 × 4.25 m 8.75 t Ø1600 mm
Both models feature 20-40 m/s wire speed, 15 kW permanent-magnet motor, and 3 m³/h water system.
Four-Axis Motion System
  • X-axis – Table longitudinal (block length)
  • Y-axis – Cross beam transverse (block width)
  • Z-axis – Vertical head lift (block height)
  • C-axis – Servo-driven 360° rotation (continuous cylinder or four-face dressing)
This configuration enables true 3D sculpture, 360° columns, four-sided squaring, or curved façade panels without repositioning.
Application Capabilities

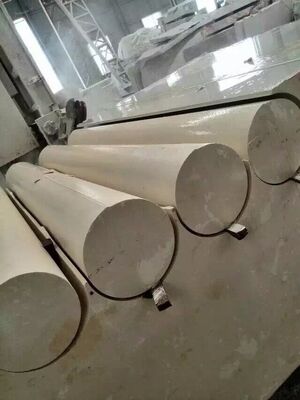

  • 360° columns – Ø300-2200 mm, full or barrel

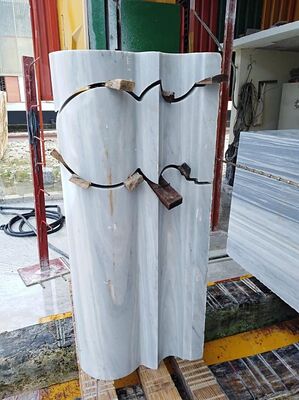

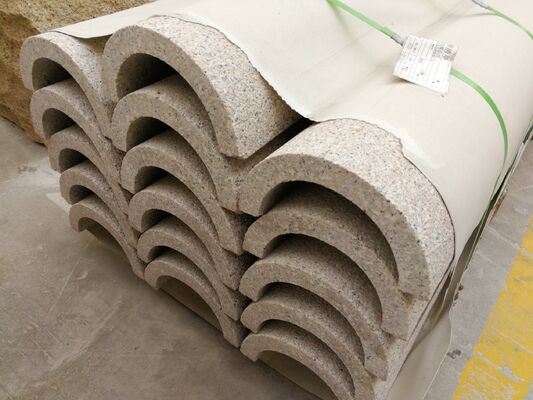

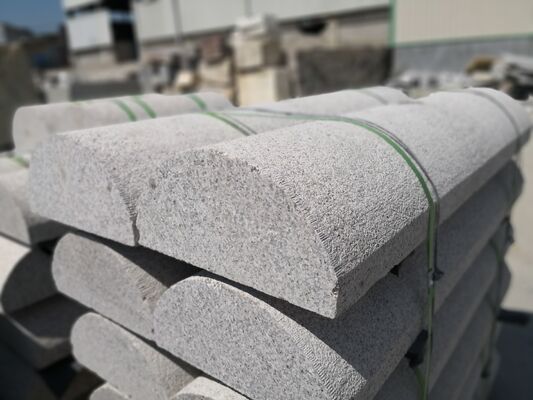

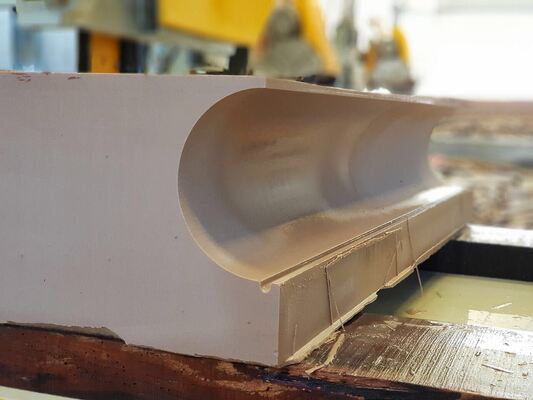

  • Arc slabs – curved wall cladding, column façades
  • Numerals & letters – 3D signage, address stones
  • Chinese characters – artistic monuments
  • Tombstones – shaped headstones, curved borders
  • Four-side dressing – squaring 20-ton blocks
Compatible materials: granite, marble, quartzite, basalt, engineered stone.
Ordering & Shipping Information
Minimum Order Quantity
1 machine
Shipping
Sea freight to nearest port included
Incoterms
FOB, CIF, DDP optional
Lead Time
35 days stock / 45 days custom
Payment Terms
T/T 30% deposit, 70% before shipment; L/C at sight accepted
