Home /Products/Diamond Wire Saw Machine/CTS-3500 Series CNC Diamond Wire-Saw Dressing Machine with 360° Rotary Table 220V/380V and 4m3/H Water Consumption

CTS-3500 Series CNC Diamond Wire-Saw Dressing Machine with 360° Rotary Table 220V/380V and 4m3/H Water Consumption

1 set
MOQ
To Be Negotiable
Price
CTS-3500 Series CNC Diamond Wire-Saw Dressing Machine with 360° Rotary Table 220V/380V and 4m3/H Water Consumption
Features Gallery Product Description Request A Quote
Features
Specifications
Key Words: Stone Machine
Advantage: High Efficiency Long Life Time
Voltage: 220V/380V
Water Consumption: 4m3/H
Power: 11/15kW
Cutting Height: 1800/2100/2200mm
Cutting Length: 3500mm
Trolley Size: 1800*2000mm 2000*2500mm
Highlight:

360° Rotary Table Diamond Wire Saw Machine

,

220V/380V CNC Diamond Wire-Saw Dressing Machine

,

4m3/H Water Consumption Stone Cutting Machine
Basic Infomation
Place of Origin: Jinjiang, Fujian, China
Brand Name: Xianda Machinery
Certification: API, CCC, SONCAP, GOST, ISO, CE, SGS;IAF
Model Number: CTS-3500-18/21/22FW
Payment & Shipping Terms
Packaging Details: Wire rope lashing,Suitable for sea/air/land/rail transportation.
Delivery Time: 1 Month
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 1000 Sets/Year
Product Description
CTS-3500 Series CNC Diamond Wire-Saw Dressing Machine
Machine Overview

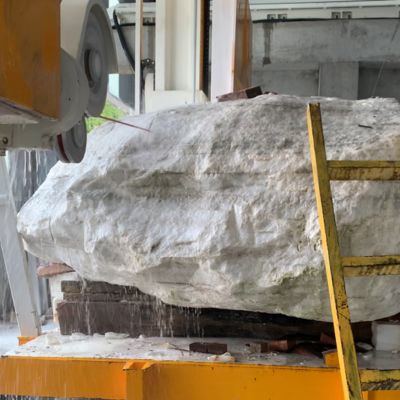

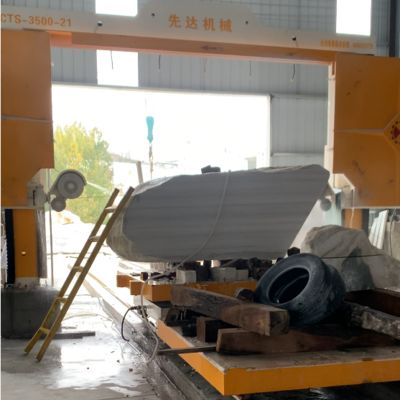

The CTS-3500-18/21/22FW is a four-axis, CNC-controlled diamond wire-saw dressing centre engineered for high-precision shaping of large stone blocks. With 16-surface slideways, 28 rolling-wheel synchronous lift and a 360° rotary table, it dresses four faces without repositioning and sculpts arcs, columns, numerals, letters or Chinese characters up to 3.5 m long × 3.5 m wide × 2.2 m high - all in a single program.
Technical Specifications
Parameter Unit CTS-3500-18 CTS-3500-21 CTS-3500-22FW
Max processing size mm 3500×3000×1800 3500×3500×2100 3500×3500×2200
Trolley size mm 1800×2000 2000×2500 2000×2500
Table bearing weight T 35 50 50
Wire speed m/s 20-40 20-40 20-40
Main motor kW 11 15 15
Outline dimension mm 9300×7200×4800 9800×7800×5600 8800×7800×5750
Gross weight kg 10200 12000 11500
Water consumption m³/h 4 4 4
CTS-3500 Series CNC Diamond Wire-Saw Dressing Machine with 360° Rotary Table 220V/380V and 4m3/H Water Consumption 0 CTS-3500 Series CNC Diamond Wire-Saw Dressing Machine with 360° Rotary Table 220V/380V and 4m3/H Water Consumption 1 CTS-3500 Series CNC Diamond Wire-Saw Dressing Machine with 360° Rotary Table 220V/380V and 4m3/H Water Consumption 2 CTS-3500 Series CNC Diamond Wire-Saw Dressing Machine with 360° Rotary Table 220V/380V and 4m3/H Water Consumption 3 CTS-3500 Series CNC Diamond Wire-Saw Dressing Machine with 360° Rotary Table 220V/380V and 4m3/H Water Consumption 4 CTS-3500 Series CNC Diamond Wire-Saw Dressing Machine with 360° Rotary Table 220V/380V and 4m3/H Water Consumption 5 CTS-3500 Series CNC Diamond Wire-Saw Dressing Machine with 360° Rotary Table 220V/380V and 4m3/H Water Consumption 6 CTS-3500 Series CNC Diamond Wire-Saw Dressing Machine with 360° Rotary Table 220V/380V and 4m3/H Water Consumption 7 CTS-3500 Series CNC Diamond Wire-Saw Dressing Machine with 360° Rotary Table 220V/380V and 4m3/H Water Consumption 8
Four-Axis Motion & Functions
  • X-axis - table longitudinal (block length)
  • Y-axis - cross beam transverse (block width)
  • Z-axis - vertical head lift (block height)
  • C-axis - table 360° rotation (continuous cylinder or four-face dressing)
Result: true 3-D sculpture, 360° column, four-side dressing or curved façade panel without repositioning.
Application Gallery
  • 360° columns
  • Arc slabs - curved wall cladding, column façades
  • Numerals & letters - 3-D signage, address stones
  • Chinese characters - artistic monuments
  • Four-side dressing - monument block squaring
  • Curved kerbs - radius road edges
Materials: granite, marble, quartzite, basalt, engineered stone.
Workflow (1 Operator)
  1. Load block onto rotary table (forklift or vacuum lifter)
  2. Import CAD file (.dxf, .stp) or use on-screen wizard
  3. Select wire speed & passes - click START
  4. Machine auto-cuts - table rotates or head moves as programmed
  5. Unload finished piece - ready for polishing or direct install
Package, Delivery & Warranty
  • Export crate: wire rope lashing, suitable for sea/air/land/rail transportation
  • Delivery: 30 days (stock) / 40 days (custom colour)
  • Warranty: 12 months for parts
  • Installation: video-guide + remote support; on-site service optional
  • Spare parts: 48 h dispatch from regional warehouse
