11kw CNC Diamond Wire Saw Profile Router Stone Profiling Machine Cutting Granite
Basic Information
Model NO.: CNC-2000/2500/3000
Application: Machinery & Hardware, Art & Craft, Chemical, Construction, Mineral Industry, Stone Industry, Stone Machinery
Source Voltage: 380V
Automation: Automatic
Cutting Ability: High Speed
Control: CNC
Certification: CCC, SONCAP, GOST, ISO, CE, SGS
Function: Cutting Marble, Granite, Slate, Nature Stone, etc
Max Processing Size: 3000*2000*1500mm
Main Motor: 7.5kw
Gross Motor: 11kw
Outline Dimension: 6500*6300*3800mm
Gross Weight: 5000kg
Water Consumption: 4m3/H
Control Type: CNC
Certificates: CE, SGS, ISO9001
Transport Package: Load in a 20 Feet Container
Trademark: Xianda
Origin: Jinjiang, Fujian, China
Production Capacity: 1000 Sets/Year
Product Description

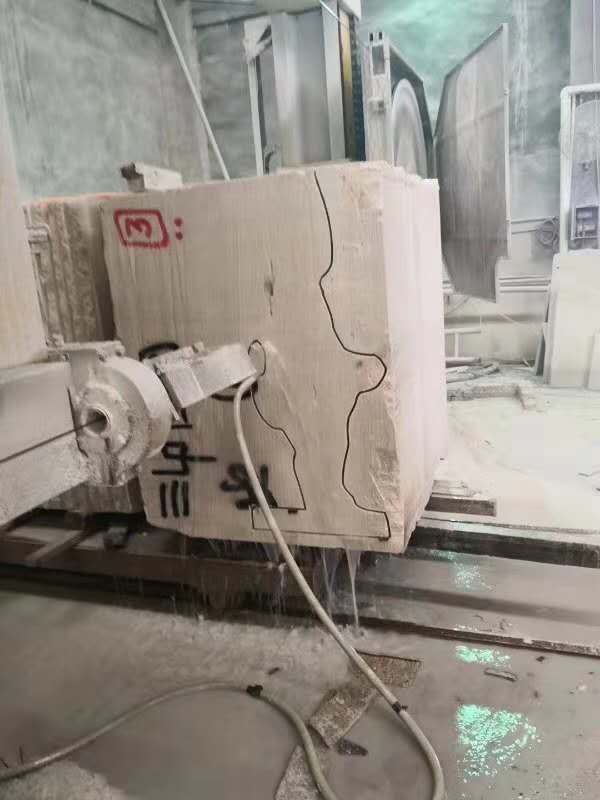

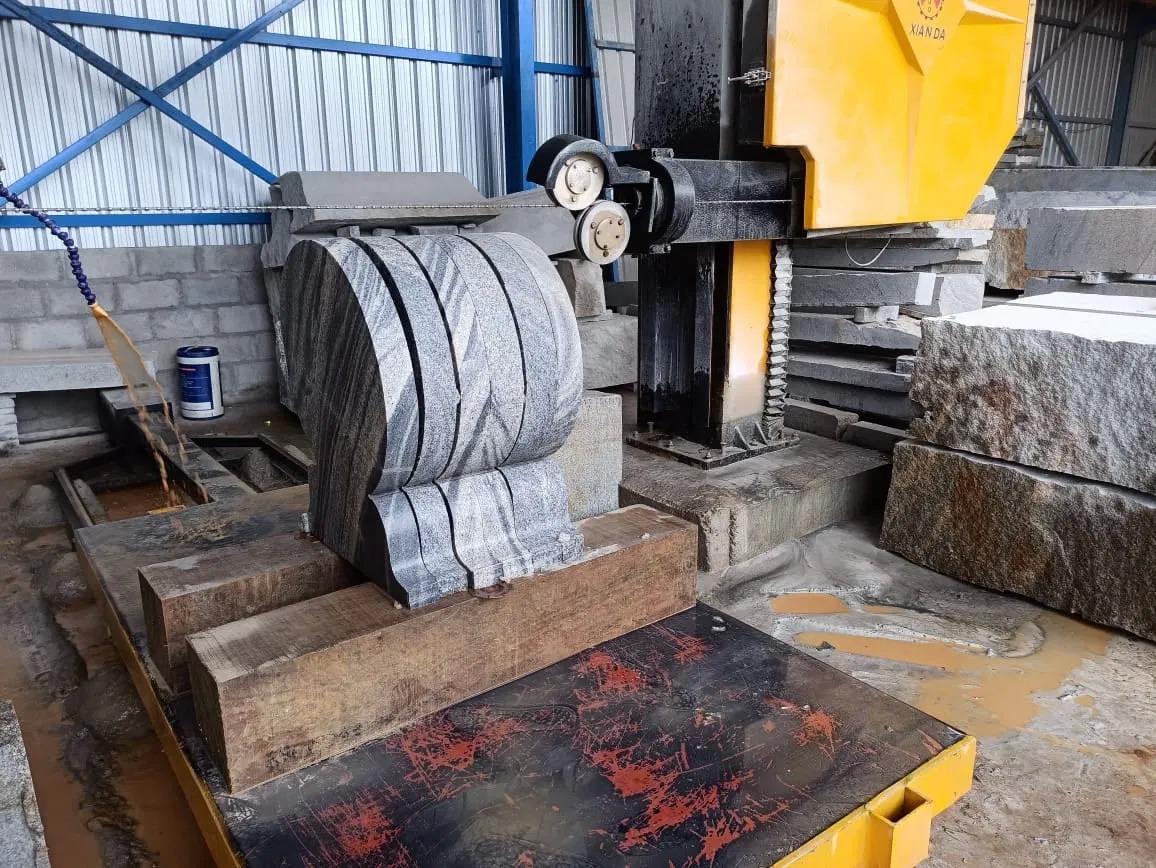

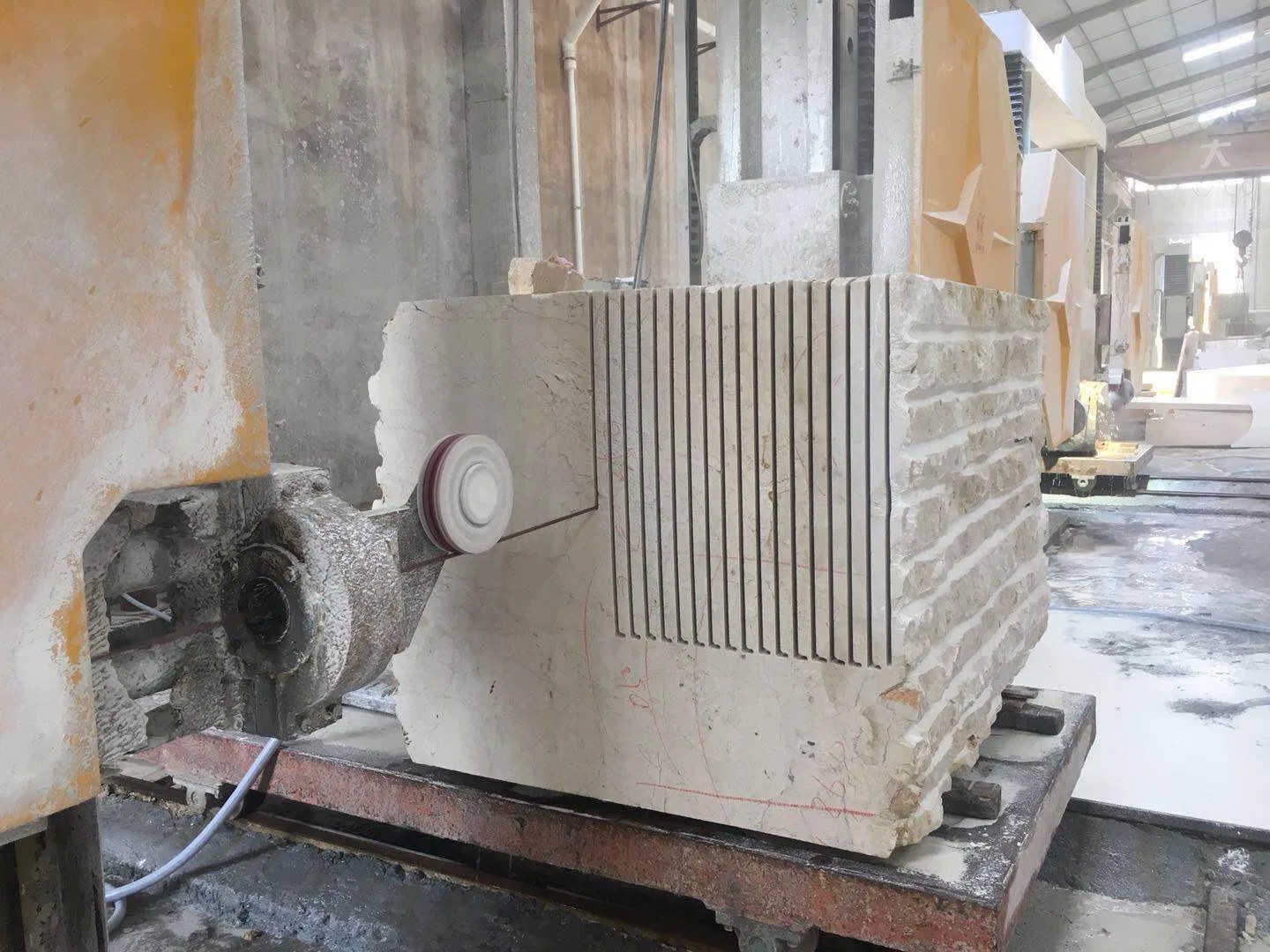

CNC-2000/2500/3000 Mono wire cutting machine (rope saw) function: Cutting column slabs, semi circular slabs, English letters, and other diversified complicated special shapes. Materials the wire saw machine can cut include marble, granite, natural stone etc.
Detailed Features
- Heavy load bearing structure with four orbits on each upright column for balance adjustment
- Synchronized lifting system with increased accuracy through lead screw and double nuts
- Cantilever part with CNC-controlled guide wheel for precise cutting direction
- Worktable runs on lead screw and railway system
- Automatic wire break alarm system
- 1600mm diameter aluminum wheel with oil pump controlled rope tension
Product Parameters
| Parameter |
Unit |
CNC-2000 |
CNC-2500 |
CNC-3000 |
| Max processing size (L*W*H) |
mm |
3000*2000*1500 |
3000*2500*1500 |
3000*3000*1500 |
| Dimension of worktable |
mm |
2500*1300 |
2500*1300 |
2500*1300 |
| Main motor |
Kw |
7.5 |
7.5 |
7.5 |
| Gross motor |
Kw |
11 |
11 |
11 |
| Outline dimension(L*W*H) |
mm |
6500*6300*3800 |
7000*6300*3800 |
7500*6300*3800 |
| Gross weight |
Kg |
5000 |
5500 |
6000 |
| Water consumption |
M3/h |
4 |
4 |
4 |
Company Profile
Fujian Xianda Machinery Co. Ltd was established in 1985 and has been dedicated to the development and production of column making machines, wire saw stone cutting machines, block trimming machines, bridge saw cutting machines, and profiling stone cutting machines.
With ISO9001 certification, CE marking, and multiple industry awards, we maintain "Advanced Technology and High Quality" as our aim, developing a range of 'Xianda' Brand special stone shape processing machines.
Frequently Asked Questions
Manufacturer Profiles
We are a Top 10 stone cutting machine manufacturer with ISO & CE certification since 1985, holding 70% of China's market share for special shape stone cutting machines.
Quality Control
All machines undergo strict inspection, with testing videos available before shipping upon customer request.
Delivery Time
Standard delivery is approximately three weeks after payment confirmation, depending on order quantity.
Warranty
All machines come with a one-year warranty.
After-Sales Service
Our team responds within 24 hours, with technical support available anytime. Free replacements are provided for confirmed quality-related failures.
