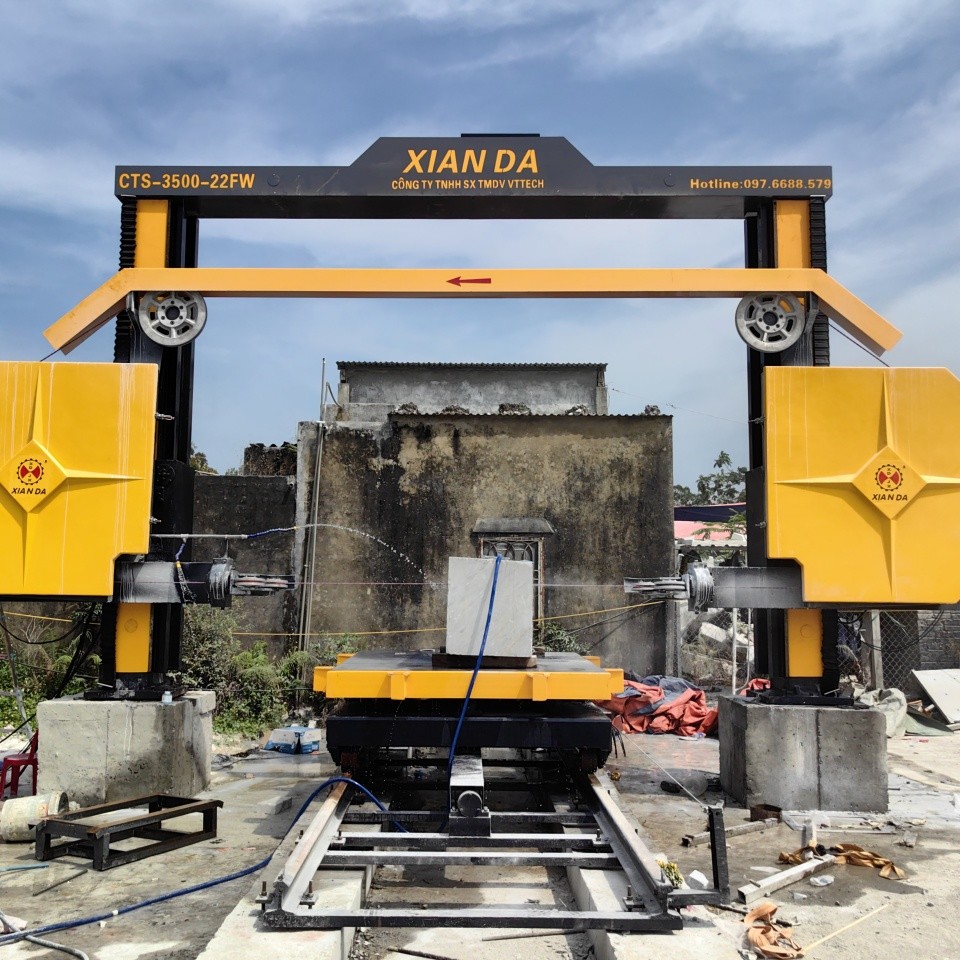

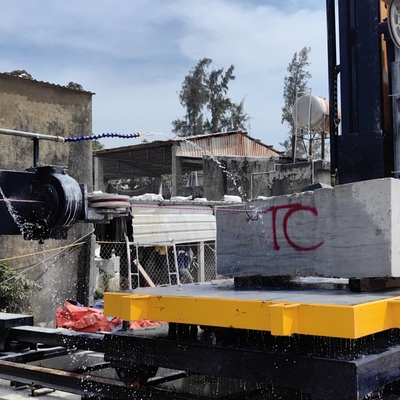

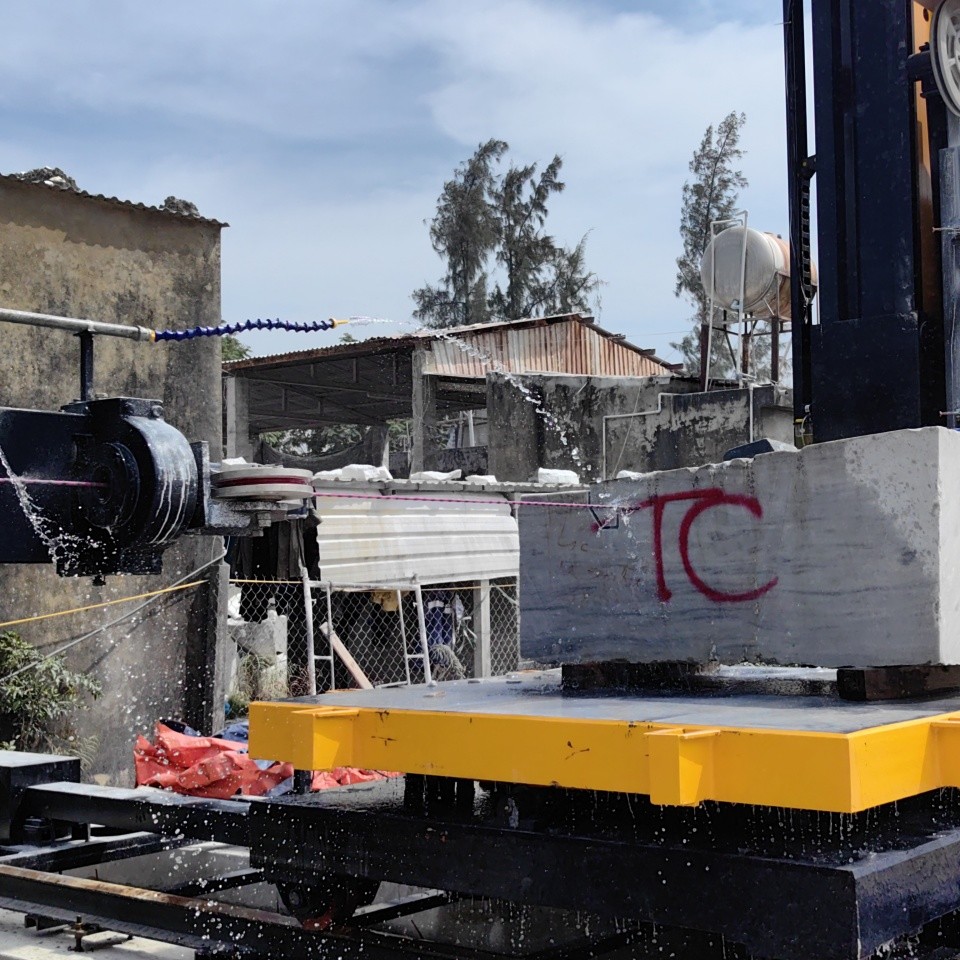

360° Rotation Degree CNC Diamond Wire Saw Machine Production Efficiency
1.High-Efficiency Cutting
Diamond wire technology ensures fast, clean cuts with minimal material waste.
Stable operation reduces downtime and maximizes productivity.
2. Versatile Applications
Process granite, marble, quartz, and other natural/engineered stones.
Create intricate designs for architectural decor, memorials, signage, and artistic installations.
Technical Parameter
Parameter | Unit | CTS-3500-18 | CTS-3500-21 | CTS-3500-22FW |
Max processing size | mm | 3500*3000*1800 | 3500*3500*2100 | 3500*3500*2200 |
Trolley size | mm | 1800x2000 | 2000x2500 | 2000x2500 |
Table bearing weight | T | 35 | 50 | 50 |
Wire speed | m/s | 0~40 | 0~40 | 0-40 |
Main motor | kw | 11 | 15 | 15 |
Outline dimension | mm | 9300x7200x4800 | 9800x7800x5600 | 8800x7800x5750 |
Gross weight | kg | 9300 | 11000 | 10500 |
Water consumption | m³/h | 4 | 4 | 4 |
Support and Services
- Installation guidance and setup assistance for the machine.
- Troubleshooting support for any technical issues that may arise.
- Training sessions for operators on how to use the machine efficiently.
- Regular maintenance services to ensure optimal performance and longevity of the equipment.
Packing and Shipping
Product Packaging
The Machine is carefully packed in a sturdy wooden crate to ensure safe transportation. The machine is securely fixed within the crate to prevent any damage during shipping.
Shipping
We ship the Machine worldwide using trusted shipping services. The machine is shipped in a protective wooden crate to safeguard it from any potential damage during transit. Customers will receive tracking information once the order is shipped to monitor the delivery status.
