4 Axis CNC Single Diamond Wire Saw for Accurate Profiling Cutting Ability

1 SET
MOQ
To Be Negotiable
Price
4 Axis CNC Single Diamond Wire Saw for Accurate Profiling Cutting Ability
Features Gallery Product Description Request A Quote
Features
Specifications
Cutting Precision: High
Transport Package: Load In A 20 Feet Container
Source Voltage: 220V
Wire Diameter: 0.6-1.8mm
Power: 5.5-37kw
Hs Code: 84641090
Gross Weight: 10700kg
Cutting Ability: High Speed
Max Processing Size: 3000*2500*1500mm
Automation: Automatic
Wire Length: 10m
Water Consumption: 6m3/H
Control Type: CNC
Cutting Length: 20-60m
Diameter: 8.5mm To 11.5mm
Spindle: 15KW
Trolley Size: 1400*2500mm
Adjustment Distance: 450mm
Gross Motor: 11kw
Control System: PLC SYSTEM
Rated Power: 2.2kw
Highlight:

Accurate Profiling Diamond Wire Saw

,

4 Axis Diamond Wire Saw

,

Single Diamond Wire Saw
Basic Infomation
Place of Origin: Jinjiang，China
Brand Name: XIANDA MACHINERY
Certification: API, CCC, SONCAP, GOST, ISO, CE, SGS;IAF
Model Number: DISCOVERY 4-2000/2500/3000
Payment & Shipping Terms
Packaging Details: Plastic Package, Suitable For Sea Transportation
Delivery Time: 1 Month
Payment Terms: L/C， T/T， D/P， Western Union ，Paypal ，Money Gram， Others
Supply Ability: 1000 Sets/Year
Product Description

Xianda 4 Axis CNC Single Diamond Wire Saw for Accurate Profiling Cutting Ability

Product Description:


Discovery 4 is our Ultimate version in CNc Diamond Wire Saw Machine. Lifting structure adopt 16 surface slideway, 28pcsrollng wheels structure. Troley using double nut structure, the track using steel frame-lype reinforcement structure; Cantlevelgearbox use S-type channel waterproof structure, Main motor have variable frequency speed control function, with more advantag-es during processing, ike cutting more precision, precision more durable, cutting more stable, more eficiency, etc. Meanwhile thismachine adopts CNC control, four-spindle linkage, which can process the circular stone slab, column, numeral, letter, Chinesecharacters and other shapes for the stone.



Parameter Max processing size Wheel diameter Trolley size Table bearing weight Wire speed

Main motor

 Outline dimension Gross weight Water consumption Max processing size(with rotary worktable) Rotary trolley size(with rotary worktable) Outline dimension(with rotary worktable)
Discovery 4-2000 2000*3000*1500mm 1600mm 1400*2500mm 20T 0-40m/s 11kw

6800*6300*3950mm

6000kg

 4m³/h No option No option No option
Discovery 4-2500 2500*3000*1500mm 1600mm 1400*2500mm 20T 0-40m/s 11kw 7800*6300*3950mm 6250kg 4m³/h 2500*3000*1500mm 1400*2000mm 7800*6800*4250mm
Discovery 4-3000 3000*3000*1500mm 1600mm 1400*2500mm 20T 0-40m/s 11kw 8800*6300*3950mm 6500kg 4m³/h 3000*3000*1500mm 1600*2000mm 8800*6800*4250mm

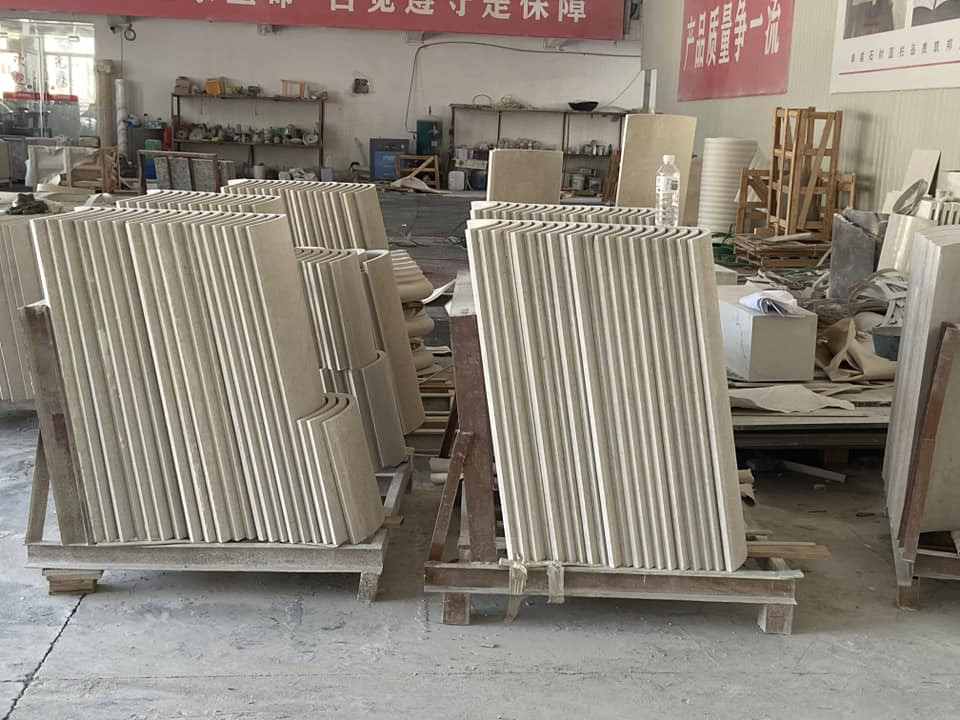

4 Axis CNC Single Diamond Wire Saw for Accurate Profiling Cutting Ability 0

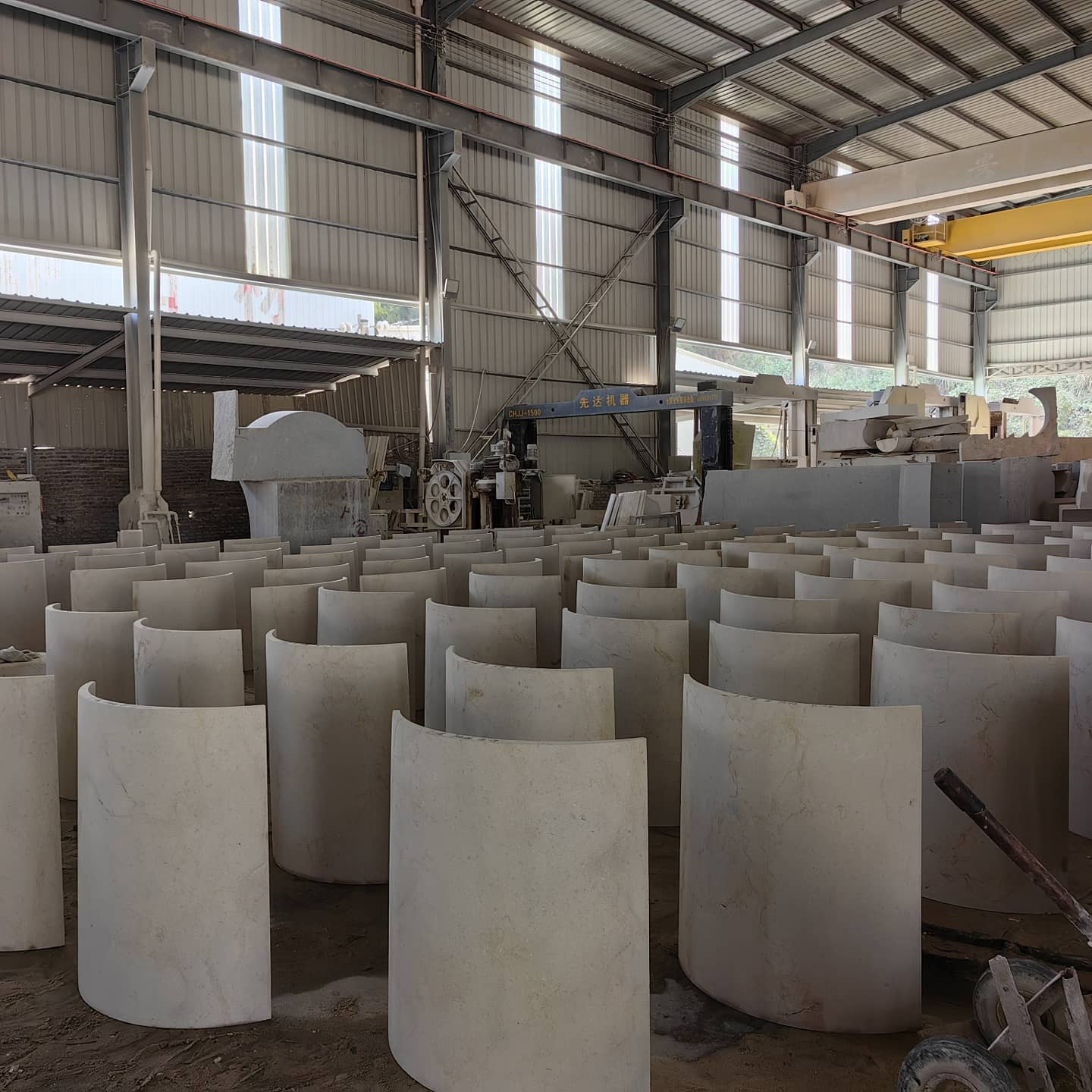

4 Axis CNC Single Diamond Wire Saw for Accurate Profiling Cutting Ability 1

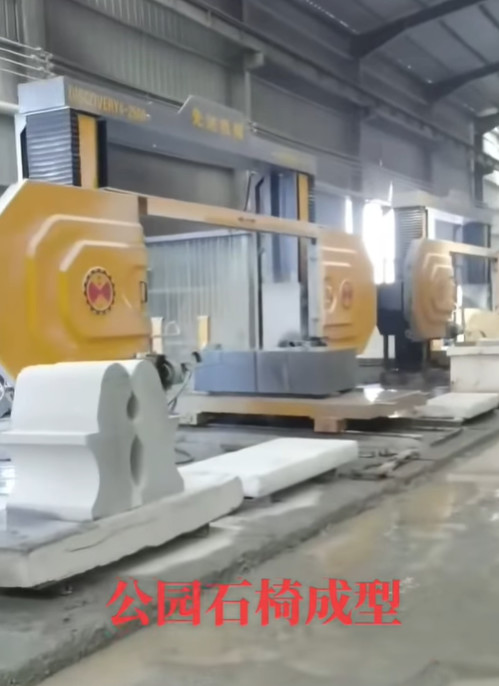

4 Axis CNC Single Diamond Wire Saw for Accurate Profiling Cutting Ability 2


Main Features

1) Equipped with CNC system, which makes touch screen interface easy and flexible.

2) Aluminum wheels tension has a stable, constant stretch mode to enhance cutting accuracy.

3) Diverse, complex, 2D/3D surfaces can be processed

4) Cutting speed is adjustable according to different requirements.

5) High efficiency, the slates it processed are of exact size, and the margin is flattened and sleek.

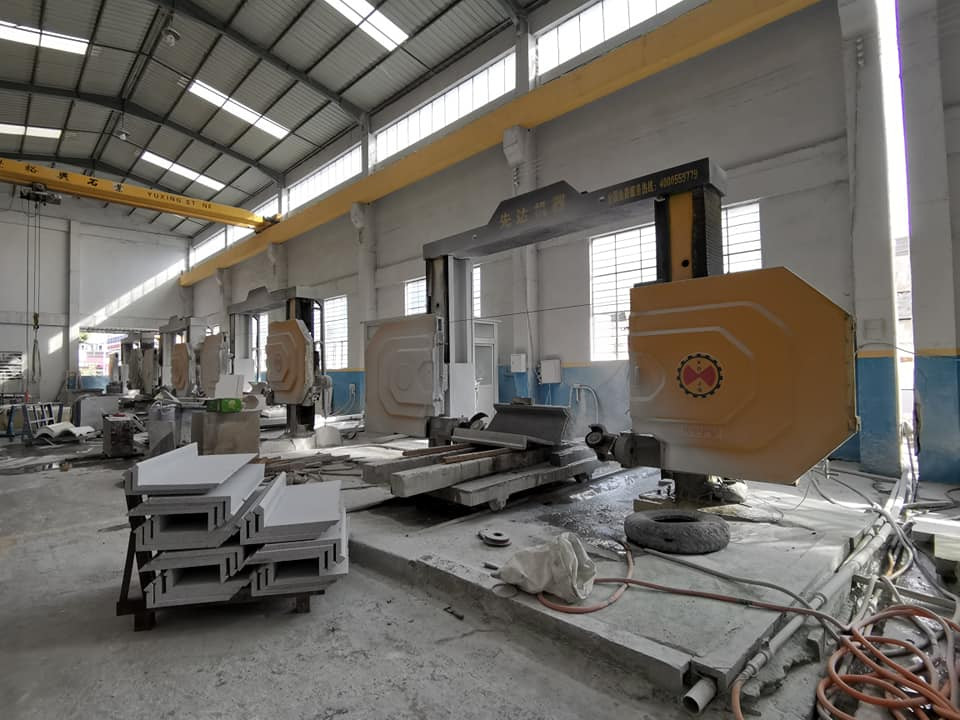

4 Axis CNC Single Diamond Wire Saw for Accurate Profiling Cutting Ability 3

4 Axis CNC Single Diamond Wire Saw for Accurate Profiling Cutting Ability 4

4 Axis CNC Single Diamond Wire Saw for Accurate Profiling Cutting Ability 5

4 Axis CNC Single Diamond Wire Saw for Accurate Profiling Cutting Ability 6

Support and Services:

The Diamond Wire Saw Machine product comes with comprehensive Product Technical Support and Services to ensure smooth operation and maintenance. Our technical support team is available to assist with any inquiries regarding the machine's functionalities, troubleshooting, and performance optimization. Additionally, we offer training services to help users maximize the potential of the Diamond Wire Saw Machine and achieve efficient and precise cutting results.


Packing and Shipping:

Package Size
8800mm * 6300mm * 3950mm
Package Gross Weight
6500kg
