Home /Products/Diamond Wire Saw Machine/4m3/H Water Consumption CNC Machine For Environmentally Friendly Production

4m3/H Water Consumption CNC Machine For Environmentally Friendly Production

1
MOQ
To Be Negotiable
Price
4m3/H Water Consumption CNC Machine For Environmentally Friendly Production
Features Gallery Product Description Request A Quote
Features
Specifications
Certification: API, CCC, SONCAP, GOST, ISO, CE, SGS;IAF
Key Words: Stone Machine
Control: CNC
Wheel Diameter: 1600mm
Warranty Time: One Year
Wire Speed: 0-40m/s
Model NO.: CNC-2000/2500/3000
Wire Length: 16.7m
Max Processing Size: 3000*2500*1500mm
Wire Diameter: 0.6-1.8mm
Automation: Automatic
Wire Length: 10m
Water Consumption: 6m3/H
Control Type: CNC
Cutting Length: 20-60m
Diameter: 8.5mm To 11.5mm
Cutting Precision: High
Spindle: 15KW
Trolley Size: 1400*2500mm
Adjustment Distance: 450mm
Gross Motor: 11kw
Control System: PLC SYSTEM
Rated Power: 2.2kw
Highlight:

4m3/H Water Consumption CNC Machine

,

Environmentally Friendly CNC Machine

,

4m3/H CNC Machine
Basic Infomation
Place of Origin: Jinjiang, Fujian, China
Brand Name: Xianda Machinery
Certification: API, CCC, SONCAP, GOST, ISO, CE, SGS;IAF
Model Number: CNC-2000/2500/3000
Payment & Shipping Terms
Packaging Details: Plastic Package, Suitable for Sea Transportation
Delivery Time: 1 month
Payment Terms: L/C， T/T， D/P， Western Union ，Paypal ，Money Gram， Others
Supply Ability: 1000 Sets/Year
Product Description
4m³/H Water Consumption CNC Machine For Environmentally Friendly Production
Product Specifications
Attribute Value
Certification API, CCC, SONCAP, GOST, ISO, CE, SGS;IAF
Key Words Stone Machine
Control CNC
Wheel diameter 1600mm
Warranty Time One Year
Wire Speed 0-40m/s
Model NO. CNC-2000/2500/3000
Wire Length 16.7m
Max Processing Size 3000*2500*1500mm
Wire Diameter 0.6-1.8mm
Automation Automatic
Control Type CNC
Cutting Length 20-60m
Diameter 8.5mm to 11.5mm
Cutting Precision High
Spindle 15KW
Trolley Size 1400*2500mm
Adjustment Distance 450mm
Gross Motor 11kw
Control System PLC SYSTEM
Rated Power 2.2kw
Product Description

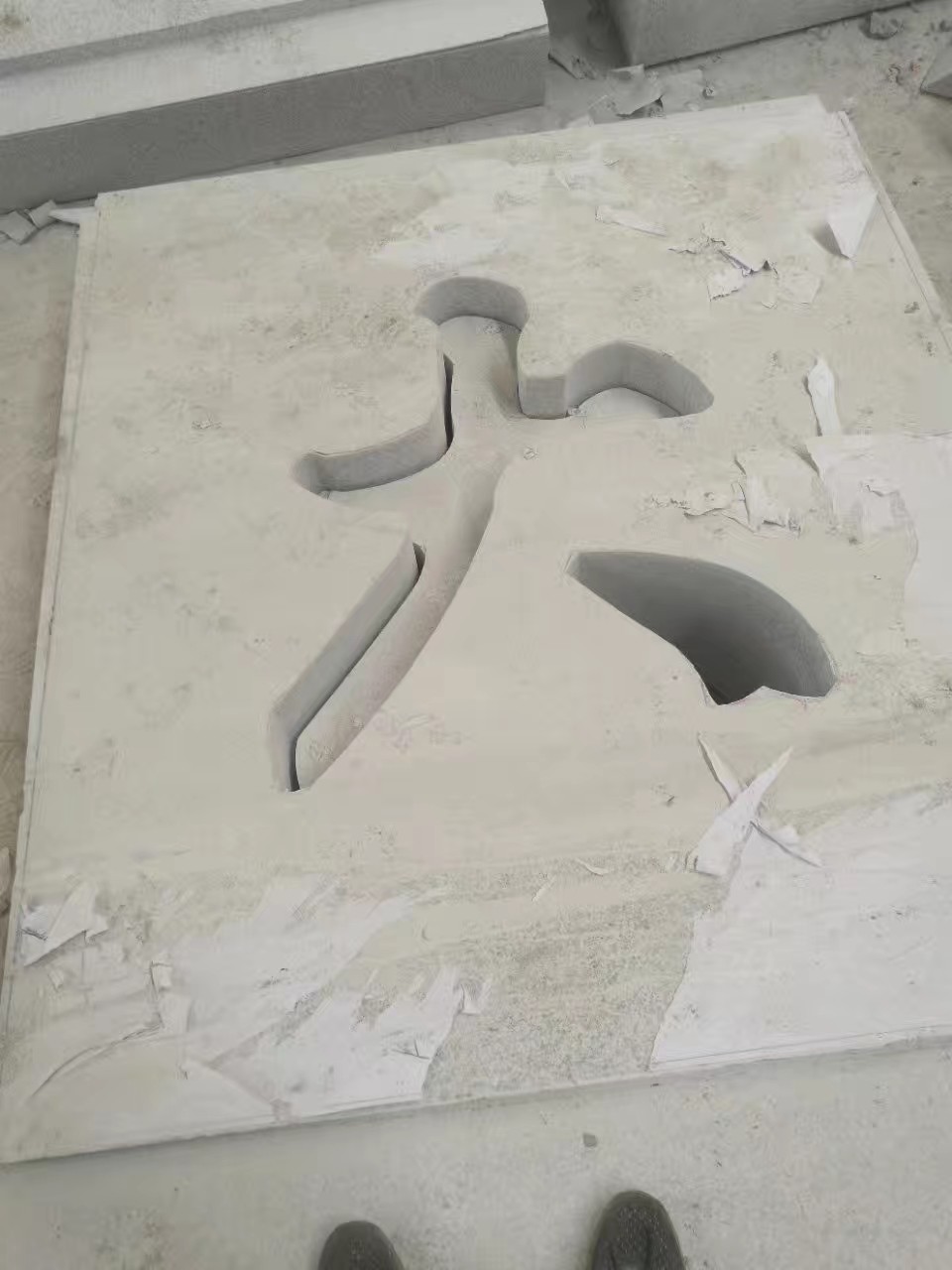

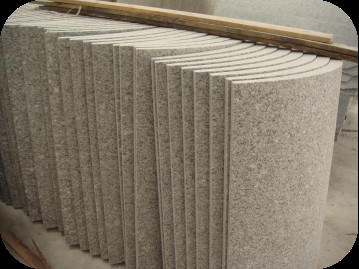

This machine adopts CNC control, four-spindle linkage, which can process the circular stone slab, column, numeral, letter, Chinese characters and other shapes for the stone. This machine is good quality with high processing precision.
Applications

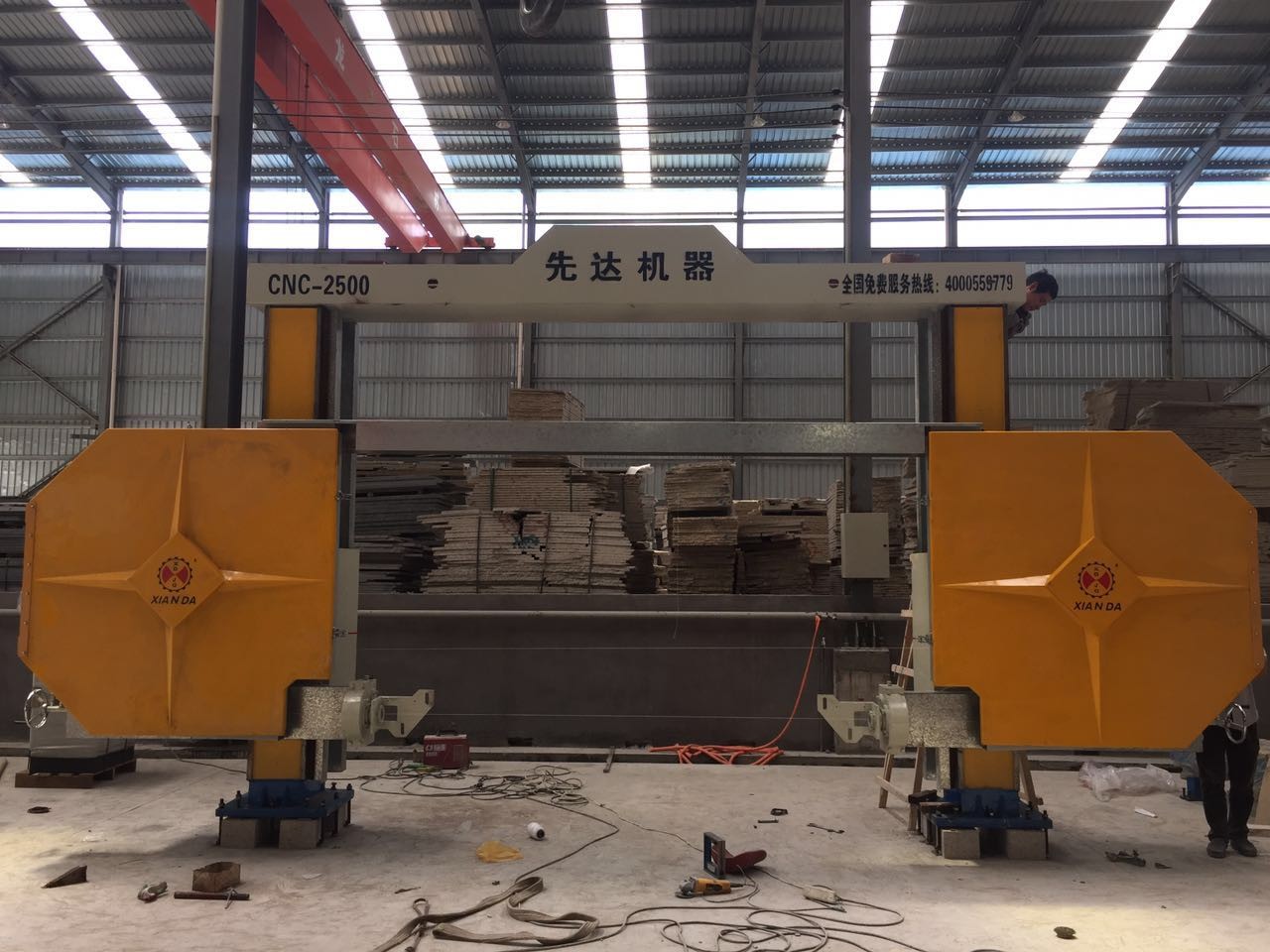

Perfect for cutting marble and special shape stones, this diamond wire saw machine is versatile and can be used in a variety of applications. From countertop fabrication to sculpture work, the CNC-2000/2500/3000 is the perfect tool for the job.
Customization
Customize the machine according to your needs.
Technical Parameters
Parameter Unit CNC-2000 CNC-2500 CNC-3000
Max processing size mm 2000*3000*1500 2500*3000*1500 3000*3000*1500
Wheel diameter mm 1600 1600 1600
Trolley size mm 1300*2500 1300*2500 1300*2500
Table bearing weight T 15 15 15
Main motor kw 11 11 11
Wire speed m/s 0-40 0-40 0-40
Outline dimension mm 6800*6300*3800 7800*6300*3800 8800*6300*3800
Gross weight kg 5500 5750 6000
Water consumption m³/h 4 4 4
Product Gallery
4m3/H Water Consumption CNC Machine For Environmentally Friendly Production 0 4m3/H Water Consumption CNC Machine For Environmentally Friendly Production 1 4m3/H Water Consumption CNC Machine For Environmentally Friendly Production 2
Tag:

Diamond Wire Saw Machine Granite

7.5kw Diamond Wire Saw Machine

11kw Diamond Wire Saw Machine
