High Precison CNC diamond wire saw machine CNC-2000/2500/300

1 SET
MOQ
To be negotiable
Price
High Precison CNC diamond wire saw machine CNC-2000/2500/300
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Diamond Wire Saw Machine
Model NO.: CNC-2000/2500/3000
Max Processing Size: 2000*3000*1500mm
Wheel Diameter: 1600mm
Gross Weight: 5500kg
Key Words: Stone Machine
Wire Length: 16.7m
Water Consumption: 4m3/H
Max Processing Size: 3000*2500*1500mm
Wire Diameter: 0.6-1.8mm
Automation: Automatic
Wire Length: 10m
Water Consumption: 6m3/H
Control Type: CNC
Cutting Length: 20-60m
Diameter: 8.5mm To 11.5mm
Cutting Precision: High
Spindle: 15KW
Trolley Size: 1400*2500mm
Adjustment Distance: 450mm
Gross Motor: 11kw
Control System: PLC SYSTEM
Rated Power: 2.2kw
Highlight:

CNC diamond wire saw machine

Basic Infomation
Place of Origin: Jinjiang, Fujian, China
Brand Name: XIANDA MACHINERY
Certification: API, CCC, SONCAP, GOST, ISO, CE, SGS;IAF
Model Number: CNC-2000/2500/3000
Payment & Shipping Terms
Packaging Details: Plastic Package, Suitable for Sea Transportation
Delivery Time: 1 month
Payment Terms: L/C, T/T, D/P, Western Union ,Paypal ,Money Gram, Others
Supply Ability: 1000 Sets/Year
Product Description

Product Description:

Parameter Unit CNC-2000 CNC-2500 CNC-3000
Max processing size mm 2000*3000*1500 2500*3000*1500 3000*3000*1500
Wheel diameter mm 1600 1600 1600
Trolley size mm 1300*2500 1300*2500 1300*2500
Table bearing weight T 15 15 15
Main motor kw 11 11 11
Wire speed m/s 0-40 0-40 0-40
Outline dimension mm 6800*6300*3800 7800*6300*3800 8800*6300*3800
Gross weight kg 5500 5750 6000
Water consumption m³/h 4 4 4
Max procseeing size(with rotary wrktable) mm No option 2500*3000*1500 3000*3000*1500
Rotary trolley size(with rotary wrktable) mm No option 1400*2000 1600*2000
Outline dimension(with rotary wrktable) mm No option 7800*6800*4100 8800*6800*4100



High Precison CNC diamond wire saw machine CNC-2000/2500/300 0High Precison CNC diamond wire saw machine CNC-2000/2500/300 1High Precison CNC diamond wire saw machine CNC-2000/2500/300 2

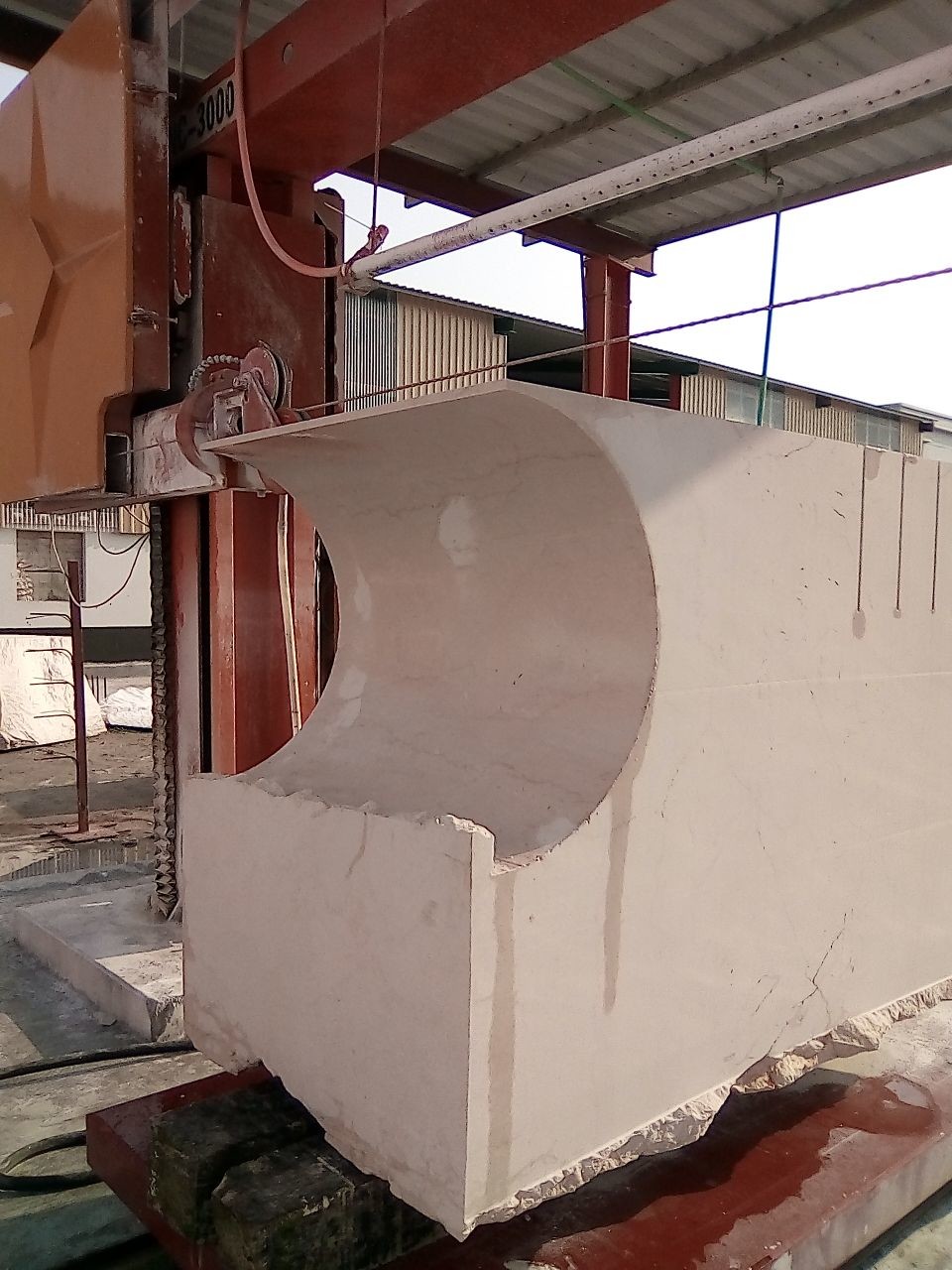

The Diamond Wire Saw Machine is a cutting machine designed for special shape stones. It is equipped with a powerful 11kw main motor and a 1600mm wheel diameter, providing high cutting precision and efficiency. With its durable construction and wide application, it is a reliable tool for any stone cutting needs.



The Diamond Wire Saw Machine is a top-of-the-line cutting machine that offers high cutting precision, efficiency, durability, and wide application. With its powerful motor and advanced technology, it is a must-have tool for any stone cutting needs.



Applications:



The Diamond Wire Saw Machine is suitable for cutting various materials such as marble, granite, limestone, sandstone, and other natural and artificial stones. It is widely used in the construction, mining, and stone processing industries for cutting blocks, slabs, and other large stone pieces into desired sizes and shapes.

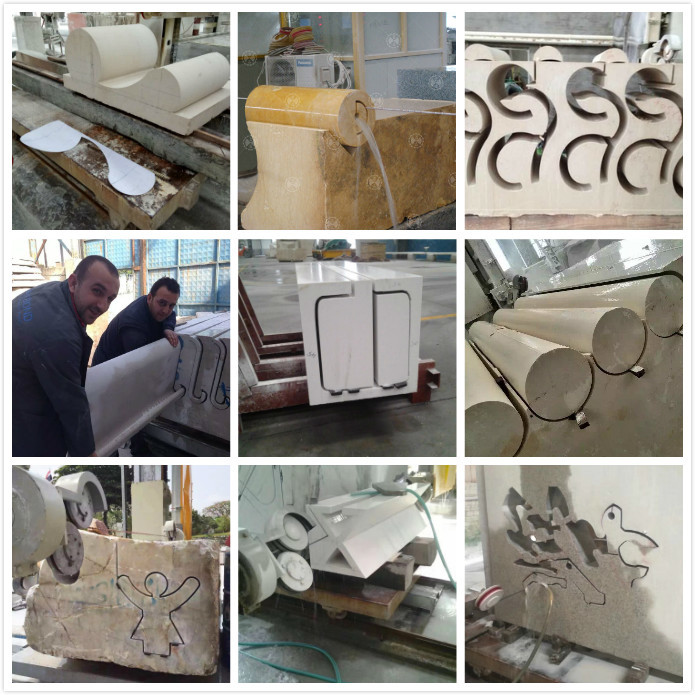

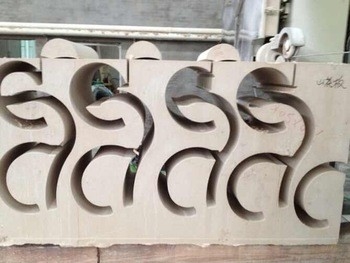

Moreover, it can also be used for cutting special shape stones for decoration purposes, such as pillars, columns, sculptures, and other artistic designs. Its advanced technology and high cutting precision make it the perfect choice for creating intricate and delicate stone pieces.

In conclusion, the Diamond Wire Saw Machine is a top-of-the-line cutting machine that offers high efficiency, precision, and versatility. Its user-friendly design, long service life, and environmental-friendly features make it a valuable tool for various industries. With its advanced technology and exceptional performance, it is a must-have for any stone cutting operation.



Customization:

  • Customizable model numbers: Choose from our CNC-2000, CNC-2500, or CNC-3000 models to suit your specific cutting needs.
  • Advanced technology: Our Diamond Wire Saw Machine is equipped with state-of-the-art CNC technology for precise and efficient cutting.
  • Customizable wheel diameter: Our machine comes with a standard wheel diameter of 1600mm, but we can customize it to your desired size.
  • Customizable trolley size: Our machine's trolley size can be adjusted to fit the size of your materials, with options ranging from 1300*2500mm.
  • Certification: Our machine is certified by API, CCC, SONCAP, GOST, ISO, CE, SGS;IAF, ensuring its quality and reliability.
  • Flexible payment terms: We offer a variety of payment options including L/C, T/T, D/P, Western Union, Paypal, Money Gram, and others.
  • On-time delivery: With a production capacity of 1000 sets per year, we guarantee on-time delivery of your customized Diamond Wire Saw Machine.
  • Minimum order quantity: We have a minimum order quantity of 1 set, making it easy for you to order a customized machine.

Don't settle for a standard cutting machine, choose our Diamond Wire Saw Machine for high precision, high efficiency, and advanced customization options. Contact us now to learn more about our custom services and get a quote for your customized machine.



Packing and Shipping:

We offer various shipping options to meet the needs of our customers. For domestic orders, we use reputable courier services to ensure timely delivery. For international orders, we work with reliable freight companies to ensure safe and efficient shipping. Customers can also arrange their own shipping if preferred.

Once the Diamond Wire Saw Machine is shipped, customers will receive a tracking number to monitor the progress of their delivery. We take great care in packaging and shipping our products to ensure they arrive in perfect condition and ready to use upon arrival.

For any questions or concerns regarding the packaging and shipping of our Diamond Wire Saw Machine, please don't hesitate to contact us. We are committed to providing excellent customer service and ensuring a smooth delivery process for our customers.



FAQ:

  • Q: What is the brand name of this product?
    A: The brand name of this product is XIANDA MACHINERY.
  • Q: What are the models available for this product?
    A: The available models for this product are CNC-2000, CNC-2500, and CNC-3000.
  • Q: Where is this product manufactured?
    A: This product is manufactured in Jinjiang, Fujian, China.
  • Q: What certifications does this product have?
    A: This product is certified by API, CCC, SONCAP, GOST, ISO, CE, SGS, and IAF.
  • Q: What is the minimum order quantity for this product?
    A: The minimum order quantity for this product is 1 set.
  • Q: Is the price of this product negotiable?
    A: Yes, the price of this product is negotiable.
  • Q: How is this product packaged for transportation?
    A: This product is packaged in plastic material suitable for sea transportation.
  • Q: What is the estimated delivery time for this product?
    A: The estimated delivery time for this product is 1 month.
  • Q: What are the accepted payment terms for this product?
    A: The accepted payment terms for this product are L/C, T/T, D/P, Western Union, Paypal, Money Gram, and others.
  • Q: What is the supply ability for this product?
    A: The supply ability for this product is 1000 sets per year.
