Home /Products/Diamond Wire Saw Machine/CNC Diamond Wire Saw Cutting Machine For Marble Granite

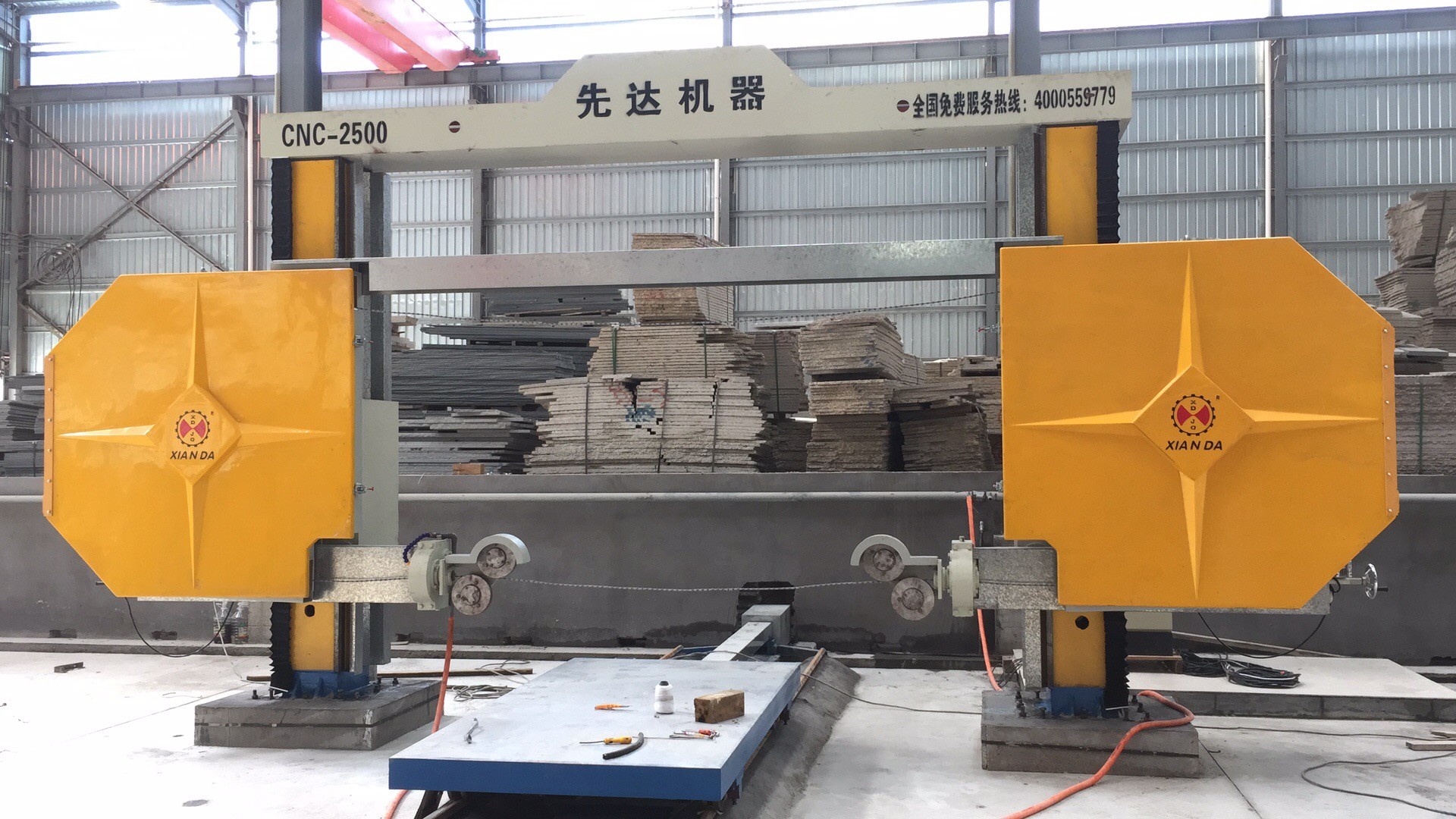

CNC Diamond Wire Saw Cutting Machine For Marble Granite

1 SET
MOQ
To be negotiable
Price
CNC Diamond Wire Saw Cutting Machine For Marble Granite
Features Gallery Product Description Request A Quote
Features
Specifications
Model NO.: CNC-2000/2500/3000
Wheel Diameter: 1600mm
Gross Weight: 5500kg
Main Motor: 11kw
Name: Diamond Wire Saw Machine
Warranty Time: One Year
Wire Length: 16.7m
Max Processing Size: 2000*3000*1500mm
Max Processing Size: 3000*2500*1500mm
Wire Diameter: 0.6-1.8mm
Automation: Automatic
Wire Length: 10m
Water Consumption: 6m3/H
Control Type: CNC
Cutting Length: 20-60m
Diameter: 8.5mm To 11.5mm
Cutting Precision: High
Spindle: 15KW
Trolley Size: 1400*2500mm
Adjustment Distance: 450mm
Gross Motor: 11kw
Control System: PLC SYSTEM
Rated Power: 2.2kw
Highlight:

Granite Wire Saw Cutting Machine

,

1600mm Diamond Wire Saw Machine

,

11kw CNC Wire Saw Machine
Basic Infomation
Place of Origin: Jinjiang, Fujian, China
Brand Name: XIANDA MACHINERY
Certification: API, CCC, SONCAP, GOST, ISO, CE, SGS;IAF
Model Number: CNC-2000/2500/3000
Payment & Shipping Terms
Packaging Details: Plastic Package, Suitable for Sea Transportation
Delivery Time: 1 month
Payment Terms: L/C， T/T， D/P， Western Union ，Paypal ，Money Gram， Others
Supply Ability: 1000 Sets/Year
Product Description
CNC Diamond Wire Saw Cutting Machine For Marble Granite
Product Specifications
Attribute Value
Model NO. CNC-2000/2500/3000
Wheel diameter 1600mm
Gross weight 5500kg
Main Motor 11kw
Warranty Time One Year
Wire Length 16.7m
Max processing size 2000*3000*1500mm
Wire Diameter 0.6-1.8mm
Automation Automatic
Water Consumption 6m3/H
Control Type CNC
Cutting Precision High
Control System PLC SYSTEM
Detailed Technical Parameters
Parameter CNC-2000 CNC-2500 CNC-3000
Max processing size 2000*3000*1500mm 2500*3000*1500mm 3000*3000*1500mm
Wheel diameter 1600mm 1600mm 1600mm
Trolley size 1300*2500mm 1300*2500mm 1300*2500mm
Main motor 11KW 11KW 11KW
Gross weight 5500kg 5750kg 6000kg
Water consumption 4m³/h 4m³/h 4m³/h
CNC Diamond Wire Saw Cutting Machine For Marble Granite 0 CNC Diamond Wire Saw Cutting Machine For Marble Granite 1 CNC Diamond Wire Saw Cutting Machine For Marble Granite 2
Product Overview

The Diamond Wire Saw Machine is an advanced CNC-controlled cutting system specifically designed for marble and stone processing. This automatic machine delivers high efficiency and durable performance with a water consumption of 4m³/H. Capable of handling materials up to 2000*3000*1500mm in size, it ensures high-accuracy cutting for professional stone fabrication.

Certifications: API, CCC, SONCAP, GOST, ISO, CE, SGS, IAF
Applications

This advanced cutting tool is designed for processing granite, marble, sandstone, limestone, and other natural stones. The four-spindle linkage system enables high-precision cutting, while the 1600mm wheel diameter and large processing capacity make it ideal for industrial-scale projects.

Customization Options

Manufactured in Jinjiang, Fujian, China, this machine is available in three models (CNC-2000/2500/3000) with flexible order quantities starting from 1 set. Custom packaging solutions are available for sea transportation.

Support and Services
  • Installation: On-site installation services available
  • Operation: Comprehensive technical support for operational issues
  • Maintenance: Regular maintenance services to ensure optimal performance
Packing and Shipping

The machine is carefully packaged with protective materials and shipped via reliable carriers with tracking information provided.

Frequently Asked Questions
What is the minimum order quantity?

Minimum order quantity is 1 set.

What is the delivery time?

Standard delivery time is 1 month.

What payment methods are accepted?

We accept L/C, T/T, D/P, Western Union, Paypal, Money Gram, and other payment methods.
