Home /Products/Diamond Wire Saw Machine/Diamond Wire Saw Block Dividing Machine Rsm-3500-18/21

Diamond Wire Saw Block Dividing Machine Rsm-3500-18/21

1
MOQ
To Be Negotiable
Price
Diamond Wire Saw Block Dividing Machine Rsm-3500-18/21
Features Gallery Product Description Request A Quote
Features
Specifications
Transport Package: Plastic Package, Suitable For Sea Transportation
Max Processing Size: 3500*3500*2100
Dimension Of Worktable: 2000*2500
Water Consumption: 6m3/H
Main Motor: 15kw
Outline Dimension: 9600*6800*4500
Warranty Time: One Year
Name: Diamond Wire Saw Machine
Gross Weight: 9000kg
Wire Speed: 40m/s
Max Processing Size: 3000*2500*1500mm
Wire Diameter: 0.6-1.8mm
Automation: Automatic
Wire Length: 10m
Control Type: CNC
Cutting Length: 20-60m
Diameter: 8.5mm To 11.5mm
Cutting Precision: High
Spindle: 15KW
Trolley Size: 1400*2500mm
Adjustment Distance: 450mm
Gross Motor: 11kw
Control System: PLC SYSTEM
Rated Power: 2.2kw
Highlight:

Diamond Block Dividing Machine

,

6m3/H Block Dividing Machine

,

Block Dividing Wire Saw Machine
Basic Infomation
Place of Origin: Jinjiang, Fujian, China
Brand Name: Xianda Machinery
Certification: API, CCC, SONCAP, GOST, ISO, CE, SGS;IAF
Model Number: RSM-3500-18/21
Payment & Shipping Terms
Packaging Details: Plastic Package, Suitable for Sea Transportation
Payment Terms: L/C， T/T， D/P， Western Union ，Paypal ，Money Gram， Others
Supply Ability: 1000 Sets/Year
Product Description
Diamond Wire Saw Block Dividing Machine RSM-3500-18/21
Key Specifications
Attribute Value
Transport Package Plastic Package, Suitable For Sea Transportation
Max Processing Size 3500*3500*2100 mm
Dimension of Worktable 2000*2500 mm
Water Consumption 6m³/H
Main Motor 15kw
Outline Dimension 9600*6800*4500 mm
Warranty Time One Year
Gross Weight 9000kg
Wire Speed 40m/s
Wire Diameter 0.6-1.8mm
Automation Automatic
Control Type CNC
Cutting Precision High
Control System PLC SYSTEM
Technical Specifications
Parameter Unit RSM-3500-18/21 CNC-3500
Max processing size mm 3500x3500x2100 3500x3500x2100
Dimension of worktable mm 2500x2000 2500x2000
Main motor kw 15 15
Gross motor kw 24 23
Outline dimension mm 9500x6800x4700 9500x6800x4700
Gross weight kg 8000 8000
Water consumption kw 4 4
Product Overview
The RSM-3500-18/21 diamond wire-saw trimming machine adopts PLC control with synchronous screw drive transmission structure for lifting. It provides stable cutting and high efficiency during processing, making it the ideal equipment for marble and granite slicing. This machine offers excellent quality with high processing precision.

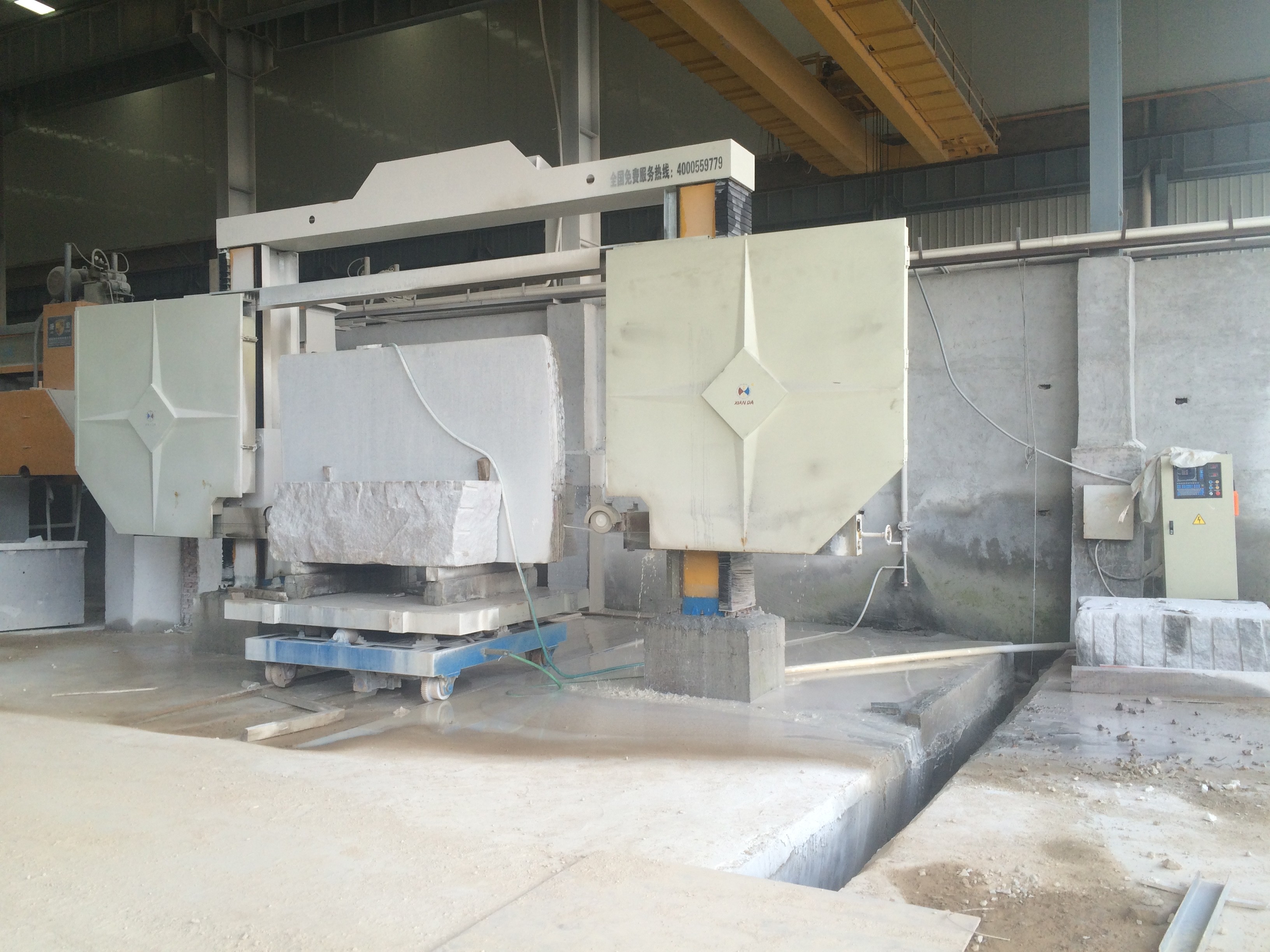

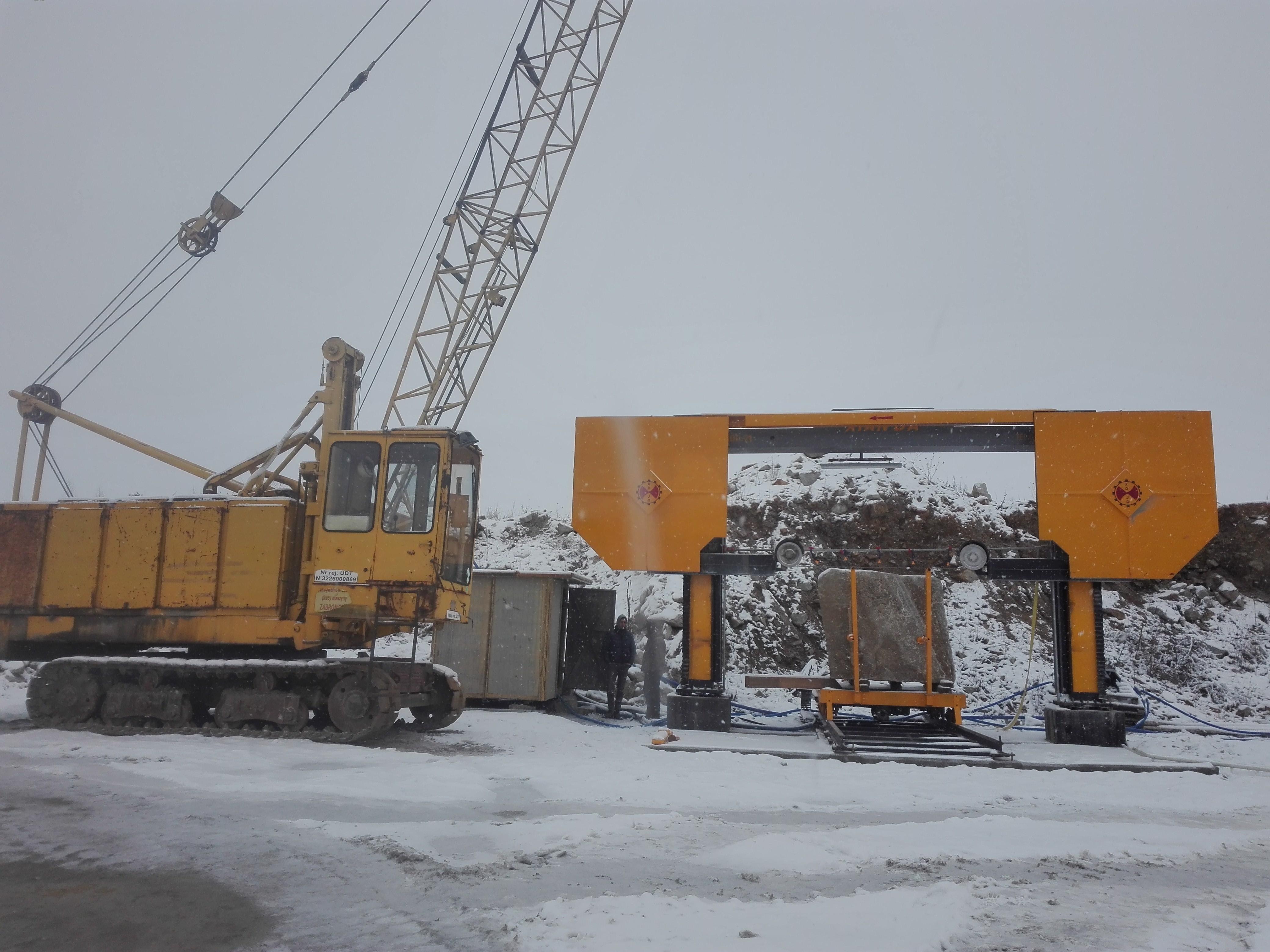

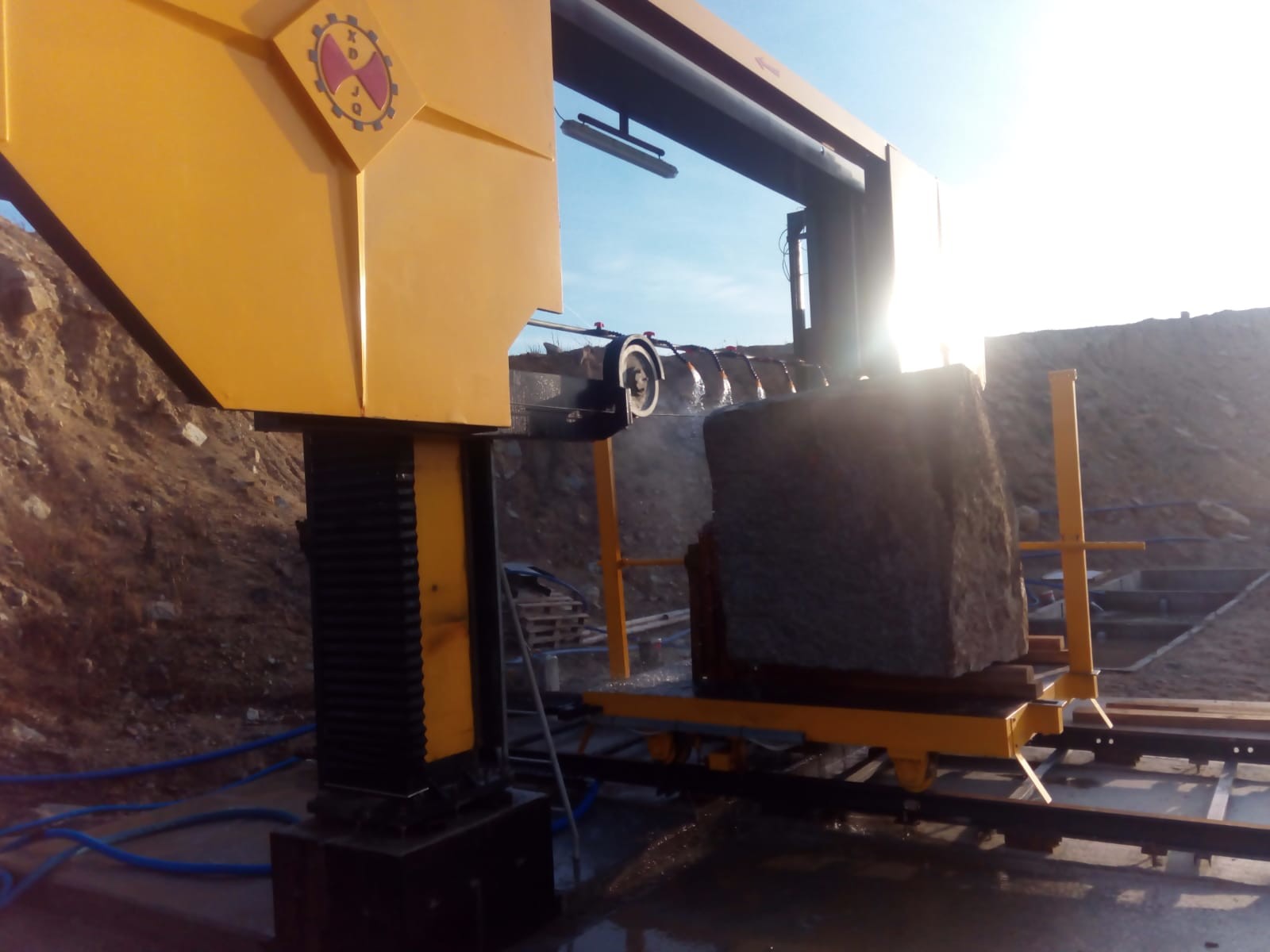

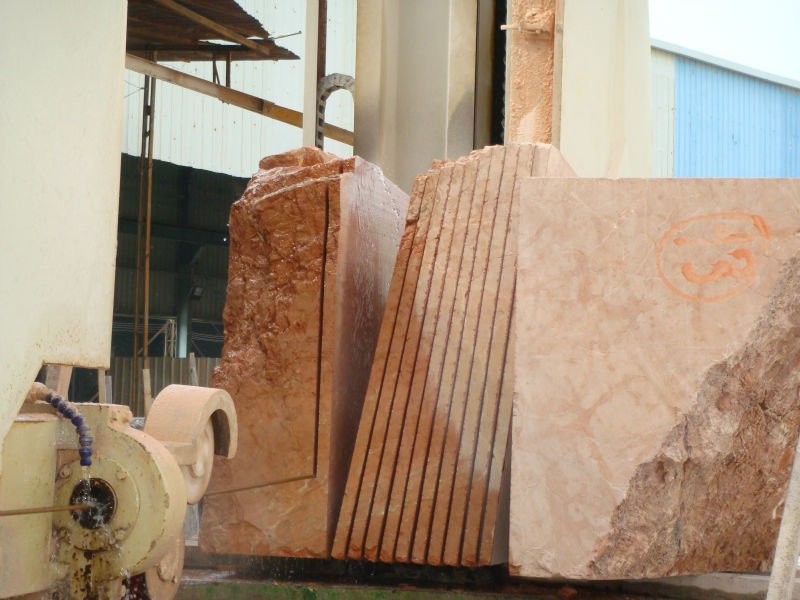

Diamond Wire Saw Block Dividing Machine Rsm-3500-18/21 0 Diamond Wire Saw Block Dividing Machine Rsm-3500-18/21 1 Diamond Wire Saw Block Dividing Machine Rsm-3500-18/21 2
Applications
XIANDA MACHINERY's Diamond Wire Saw Machine RSM-3500-18/21 is designed for cutting marble, granite, and stone quarry materials. This CNC machine can bear weights up to 20 tons, with an adjustable table for various angles and shapes.
  • Versatile cutting for different materials and shapes
  • Adjustable cutting speed and diamond wire feed rate
  • Advanced safety features for operator protection
  • Durable construction for long-term performance
Certifications
API CCC SONCAP GOST ISO CE SGS IAF
Customization Options
Brand Name: XIANDA MACHINERY
Model Number: RSM-3500-18/21
Place of Origin: Jinjiang, Fujian, China
Minimum Order Quantity: 1 SET
Payment Terms: L/C, T/T, D/P, Western Union, Paypal, Money Gram
Supply Ability: 1000 Sets/Year
Support and Services
Our technical support team provides comprehensive assistance with installation, operation, and maintenance. We offer:
  • Online support portal for technical queries
  • One-year warranty coverage
  • Machine testing video before shipping
  • 32 years of manufacturing experience
  • 24/7 after-sales service
  • Professional installation guidance and operator training
Packing and Shipping
The machine is securely packaged in plastic suitable for sea transportation, including all accessories and manuals. Each package is carefully sealed in reinforced corrugated cardboard boxes with clear labeling. Shipping options include freight or air transport depending on destination.
Frequently Asked Questions
Q: What is the brand name of this Diamond Wire Saw Machine?
A: The brand name is XIANDA MACHINERY.
Q: What certifications does this machine have?
A: It is certified with API, CCC, SONCAP, GOST, ISO, CE, SGS, and IAF.
Q: What is the minimum order quantity?
A: The minimum order quantity is 1 SET.
