15T CNC Diamond Wire Saw Machine for Fast Cutting

1 SET
MOQ
To be negotiable
Price
15T CNC Diamond Wire Saw Machine for Fast Cutting
Features Gallery Product Description Request A Quote
Features
Specifications
Main Motor: 15kw
Advantage: Multi Function With Good Quality And Price
Model NO.: CNC-2000/2500/3000
Wire Speed: 0~40m/S
Control: CNC
Warranty Time: One Year
Cutting Quality: High
Cutting Precision: High
Max Processing Size: 3000*2500*1500mm
Wire Diameter: 0.6-1.8mm
Automation: Automatic
Wire Length: 10m
Water Consumption: 6m3/H
Control Type: CNC
Cutting Length: 20-60m
Diameter: 8.5mm To 11.5mm
Spindle: 15KW
Trolley Size: 1400*2500mm
Adjustment Distance: 450mm
Gross Motor: 11kw
Control System: PLC SYSTEM
Rated Power: 2.2kw
Highlight:

15T Diamond Wire Saw

,

11kw Wire Saw Machine

,

CNC Diamond Saw Machine

Basic Infomation
Place of Origin: Jinjiang, Fujian, China
Brand Name: XIANDA MACHINERY
Certification: API, CCC, SONCAP, GOST, ISO, CE, SGS;IAF
Model Number: CNC-2000/2500/3000
Payment & Shipping Terms
Packaging Details: Plastic Package, Suitable for Sea Transportation
Payment Terms: L/C, T/T, D/P, Western Union ,Paypal ,Money Gram, Others
Supply Ability: 1000 Sets/Year
Product Description

15T High Quality Diamond Wire Saw Machine for Fast Cutting

Product Description:

Basic Info.

Model NO.
CNC-2000
Control
CNC
Certification
API, CCC, SONCAP, GOST, ISO, CE, SGS
Gross Weight
5000kg
Outline Dimension
6500*6300*3800mm
Control Type
CNC
Certificates
Ce, SGS, ISO9001
Water Consumption
4m3/H
Max Processing Size
3000*2000*1500mm
Gross Motor
11kw
Main Motor
7.5kw
Name
Stone Cutting Machine (Diamond Wire Saw Machine)
Function
Cutting Marble, Granite, Slate, Nature Stone, etc
Transport Package
Load in a 20 Feet Container
Specification
6500*6300*3800mm
Trademark
Xianda
Origin
Jinjiang, Fujian, China
HS Code
84641090
Production Capacity
1000 Sets/Year

Diamond Wire Saw Machine is a multi-function machine that provides excellent cutting performance for a wide variety of marble and other materials. With its CNC control, it offers excellent accuracy and speed, while its 15T table bearing weight ensures a robust and reliable operation. The machine is also equipped with a one-year warranty, providing customers with peace of mind. In addition, the machine is certified with API, CCC, SONCAP, GOST, ISO, CE, SGS; IAF, guaranteeing its quality and providing customers with confidence. The Diamond Wire Saw Machine is also superior in terms of cost and performance, making it the perfect choice for marble cutting.

CNC-3500 Diamond wire saw stone cutting machine FOR QUARING BLOCK

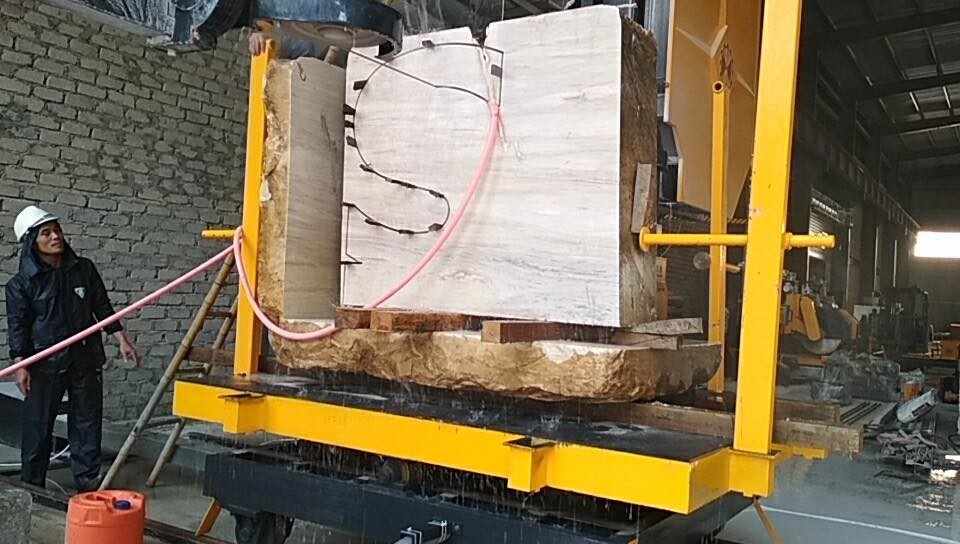

15T CNC Diamond Wire Saw Machine for Fast Cutting 0


CNC -2000 diamond wire saw stone cutting machine is a good choice for irregular stone processing. Easy to operate, it can cut many special shape.

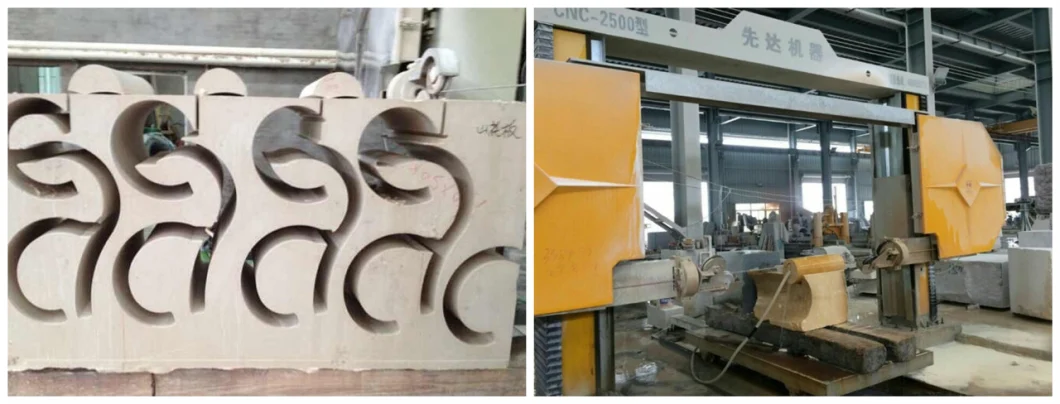

15T CNC Diamond Wire Saw Machine for Fast Cutting 1

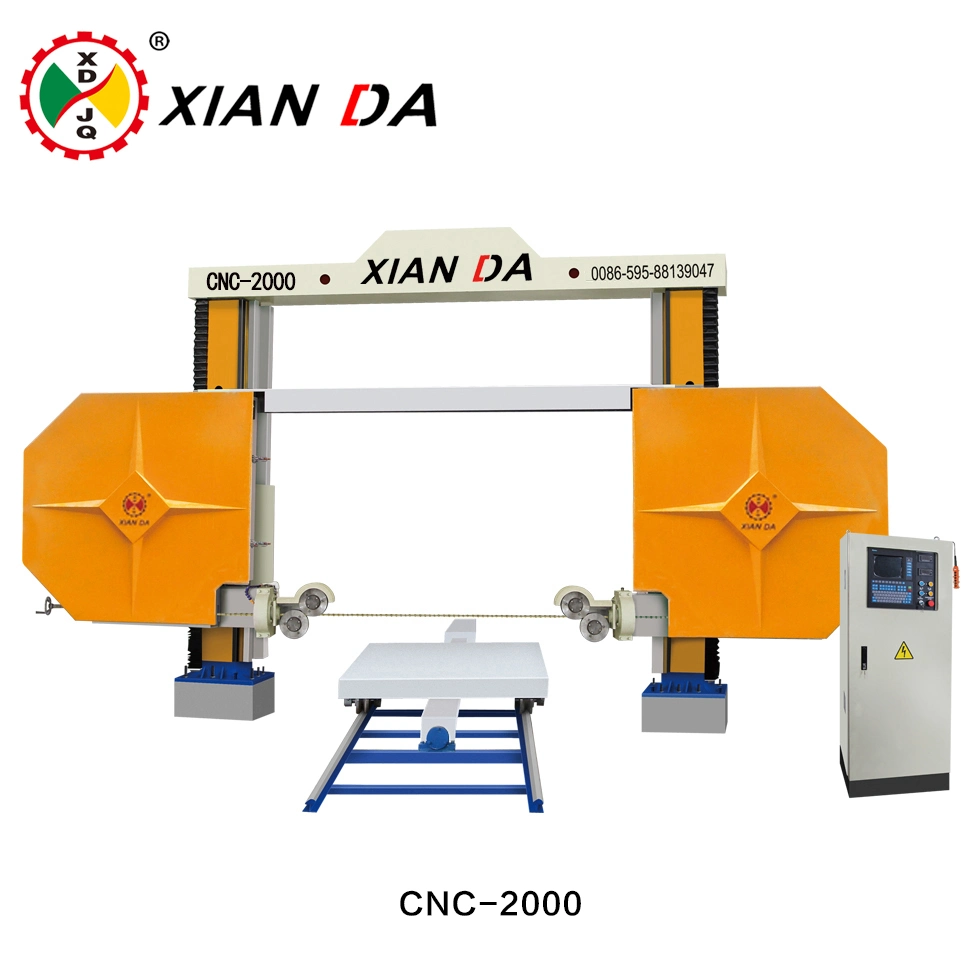

15T CNC Diamond Wire Saw Machine for Fast Cutting 2

CNC - 3000 Diamond wire saw stone profiling cutting machine . Four-Axis linkage, which can process the circular stone slab, roman column, numeral, letter, Chinese characters and other designed shapes.
1. It has heavy load bearing structure, four orbits on each upright column, adjusted the balance by the rollers, with less friction and higher precision.
2. The left and right frame achieve synchronized lifting by steering equipment on the upper frame. The lifting accuracy increased by the conbine of lead screw and double nuts.
3. Cantilever part, firstly the lead screw and pole adjust the distance of guide wheel,guide wheel is controlled by CNC. Secondly in order to make the diamond wire rope cutting direction coincidence, reducer control the guide wheel rotating angle.
4. Worktable is running by lead screw and railway.
5. There has automatic alarm if wire broken.
6. Aluminum wheel diameter is 1600mm.One fly wheel slide through sheave, oil pump control rope tension.




Xianda machinery

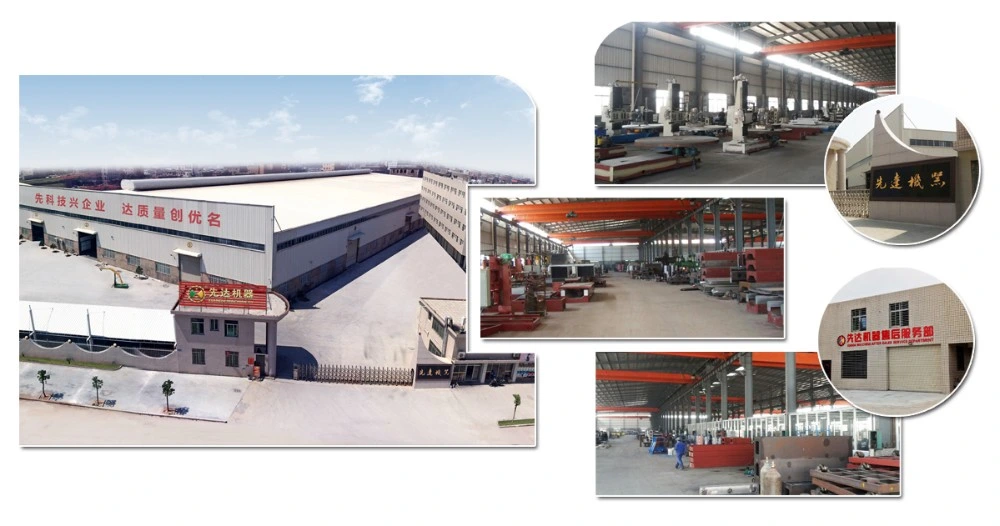

15T CNC Diamond Wire Saw Machine for Fast Cutting 3

Fujian Jinjiang Xianda Machinery Co.Ltd was established in 1985 and have been dedicated to the development and producing of a serious of column making machine,wire saw stone cutting machine,block trimming machine, bridge saw cutting machine, profiling stone cutting machine etc.
With the rapid development of company ,we have passed the ISO9001 verifing, CE, and won many honory tiles include International Gold Plant Quality Award etc. We keep " Advanced Tecnology and High Quality" as our aim. We have developed a range of 'Xianda' Brand special stone shape processing machines.

Applications:

XIANDA MACHINERY CNC-2000/2500/3000 Diamond Wire Saw Machine

XIANDA MACHINERY CNC-2000/2500/3000 Diamond Wire Saw Machine is designed for quick and accurate cutting of stones and other materials, providing high performance and excellent cutting quality. It is widely used in the construction, stone, mining and other industries. The machine is equipped with a 15kw main motor, and its cutting speed is adjustable from 0 to 40 m/s. It can achieve high cutting quality and speed with its advanced cutting technology and reliable automatic control system. It is certified by API, CCC, SONCAP, GOST, ISO, CE, SGS; IAF, and comes with a one-year warranty. The minimum order quantity is 1 SET and the price is negotiable. The packaging is suitable for sea transportation. The payment methods include L/C, T/T, D/P, Western Union, Paypal, Money Gram and others.



Customization:

Diamond Wire Saw Machine
  • Brand Name: XIANDA MACHINERY
  • Model Number: CNC-2000/2500/3000
  • Place of Origin: Jinjiang, Fujian, China
  • Certification: API, CCC, SONCAP, GOST, ISO, CE, SGS;IAF
  • Minimum Order Quantity: 1 SET
  • Price: To be negotiable
  • Packaging Details: Plastic Package, Suitable for Sea Transportation
  • Payment Terms: L/C, T/T, D/P, Western Union ,Paypal ,Money Gram, Others
  • Supply Ability: 1000 Sets/Year
  • Main Motor: 15kw
  • Transport Package: Plastic Package, Suitable For Sea Transportation
  • Cutting Width: High
  • Control: CNC
  • Warranty Time: One Year
  • Features: Diamond Wire Saw is designed for special shape stone processing, such as stone columns, stone balustrades and stone window frames. It is widely used for stone cutting, especially for hard stone materials, like granite and marble.


Support and Services:

Diamond Wire Saw Machine Technical Support and Service

We offer comprehensive technical support and service for all of our diamond wire saw machines. Our experienced technical team is available to help you solve any issues or questions you may have regarding the operation of your machine. We provide installation, troubleshooting, preventive maintenance and repair services. We also provide spare parts and consumables for all of our machines.

We also offer remote support services, so you can get help even if you are not in the same physical location as our technicians. We also provide technical training sessions to help you get the most out of your diamond wire saw machine.

Our goal is to provide our customers with the best possible service and support to ensure their diamond wire sawing needs are met. We are committed to providing the highest level of customer satisfaction.



Packing and Shipping:

Packaging and Shipping

The Diamond Wire Saw Machine is packaged in a wooden crate and carefully secured for shipment. We use reliable carriers to ensure that the product is delivered safely and on-time.



FAQ:

Q1: What is the brand name of the Diamond Wire Saw Machine?

A1: The brand name of the Diamond Wire Saw Machine is XIANDA MACHINERY.

Q2: What are the available model numbers of the Diamond Wire Saw Machine?

A2: The available model numbers of the Diamond Wire Saw Machine are CNC-2000/2500/3000.

Q3: Where is the Diamond Wire Saw Machine produced?

A3: The Diamond Wire Saw Machine is produced in Jinjiang, Fujian, China.

Q4: What certifications does the Diamond Wire Saw Machine have?

A4: The Diamond Wire Saw Machine has API, CCC, SONCAP, GOST, ISO, CE, SGS and IAF certifications.

Q5: What is the minimum order quantity for the Diamond Wire Saw Machine?

A5: The minimum order quantity for the Diamond Wire Saw Machine is 1 SET.
