CNC Control System Four Spindle Linkage Granite Marble Slab Diamond Wire Saw

1 set
MOQ
To Be Negotiated
Price
CNC Control System Four Spindle Linkage Granite Marble Slab Diamond Wire Saw
Features Gallery Product Description Request A Quote
Features
Specifications
Wheel Diameter: 1600mm
Type: Diamond Wire Saw Machine
Application: Marble,Granite,concrete,stones
Main Motor: 11kw
Wire Speed: 0-40m/s
Trolley Size: 1400*2500mm
Water Consumption: 4m³/h
Max Processing Size: 3000*2500*1500mm
Wire Diameter: 0.6-1.8mm
Automation: Automatic
Wire Length: 10m
Water Consumption: 6m3/H
Control Type: CNC
Cutting Length: 20-60m
Diameter: 8.5mm To 11.5mm
Cutting Precision: High
Spindle: 15KW
Adjustment Distance: 450mm
Gross Motor: 11kw
Control System: PLC SYSTEM
Rated Power: 2.2kw
Highlight:

Diamond Saw Blades 400mm

,

3.0mm 14 inch diamond concrete saw blade

,

450mm Diamond Saw Blades
Basic Infomation
Place of Origin: China
Brand Name: Xianda Machinery
Certification: API, CCC, UL, SONCAP, GOST, ISO, CE, SGS;IAF
Model Number: Discovery 4-2000/2500/3000
Payment & Shipping Terms
Packaging Details: plastic，Suitable for sea transport
Delivery Time: 30 days
Payment Terms: D/A, L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000/year
Product Description

CNC Control System Four Spindle Linkage Granite Marble Slab Diamond Wire Saw



Basic Info.

Parameter Max processing size Wheel diameter Trolley size Table bearing weight Wire speed Main motor Outline dimension Gross weight Water consumption Max processing size(with rotary worktable) Rotary trolley size(with rotary worktable) Outline diamension(with rotary worktable)
Discovery4-2000 2000*3000*1500mm 1600mm 1400*2500mm 20T 0-40m/s 11kw 6800*6300*3950mm 6000kg 4m³/h No option No option No option
Discovery4-2500 2500*3000*1500mm 1600mm 1400*2500mm 20T 0-40m/s 11kw 7800*6300*3950mm 6250kg 4m³/h 2500*3000*1500mm 1400*2000mm 7800*6800*4250mm
Discovery4-3000 3000*3000*1500mm 1600mm 1400*2500mm 20T 0-40m/s 11kw 8800*6300*3950mm 6500kg 4m³/h 3000*3000*1500mm 1600*2000mm 8800*6800*4250mm





Product Description

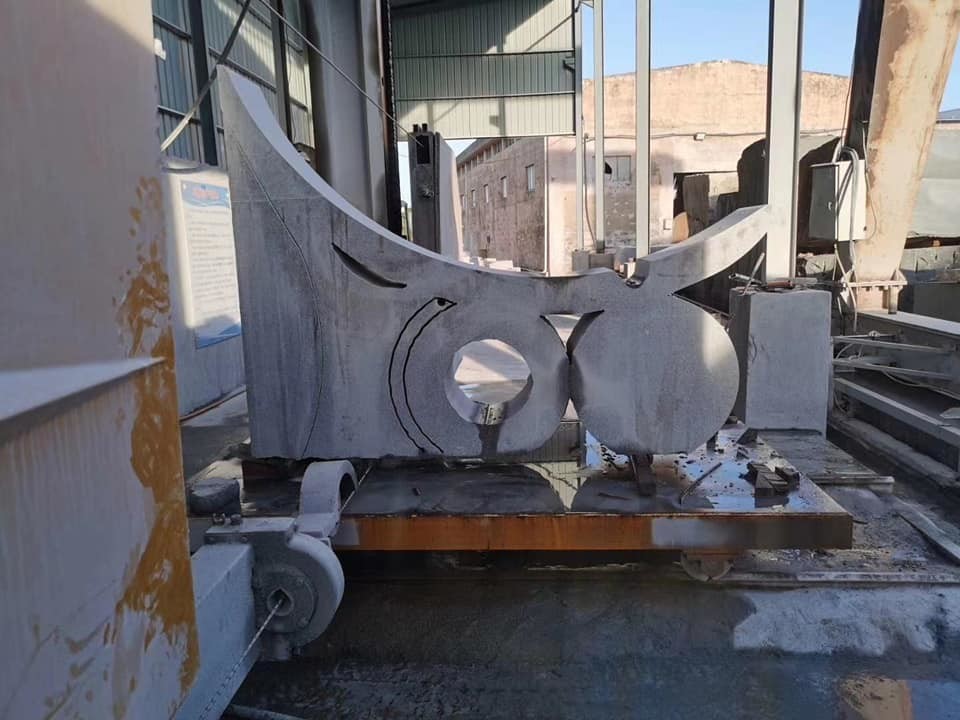

Discovery 4 is our Ultimate version in CNc Diamond Wire Saw Machine, ifting struclure adopt 16 surface slideway, 28pcsrolling wheels structure, Trolley using double nut struclure, the track using steel frame-lype reinforcement structure; Cantileveigearbox use S-type channel waterproof structure, Main motor have variable frequency speed control function, with more advantag-es during processing, like cutting more precision, precision more durable, cutting more stable, more efficiency, etc. Meanwhile thismachine adopts CNC control, four-spindle linkage, which can process the circular stone slab, column, numeral, letter, Chinesecharacters and other shapes for the stone.


Packing and Shipping

The Diamond Wire Saw Machine will be packaged and shipped with the following steps:

  • The Diamond Wire Saw Machine will be carefully inspected and tested before packaging.
  • It will then be placed in a custom-made box to ensure that it is protected from possible damages while in transit.
  • The box will be sealed and then placed in a larger box for extra protection.
  • The larger box will be marked with the customer's name and address.
  • The package will then be shipped with a reputable and reliable shipping company.



CNC Control System Four Spindle Linkage Granite Marble Slab Diamond Wire Saw 0

CNC Control System Four Spindle Linkage Granite Marble Slab Diamond Wire Saw 1CNC Control System Four Spindle Linkage Granite Marble Slab Diamond Wire Saw 2
