Home /Products/Diamond Wire Saw Machine/CNC Diamond Wire Saw Machine For Dressing and Profiling

CNC Diamond Wire Saw Machine For Dressing and Profiling

1 set
MOQ
To Be Negotiated
Price
CNC Diamond Wire Saw Machine For Dressing and Profiling
Features Gallery Product Description Request A Quote
Features
Specifications
Blade Material: Diamond
Wheel Diameter: 1900mm/2200mm
Max Processing Size: 3500*3000*1800mm/3500*3500*2100mm
Trolley Size: 1800*2000mm/2000*2500mm
Application: Granite,stones,marble
Gross Weight: 11000kg
Advantage: Heat Resistance,Fast Cutting Speed,High Sharpness,durable
Max Processing Size: 3000*2500*1500mm
Wire Diameter: 0.6-1.8mm
Automation: Automatic
Wire Length: 10m
Water Consumption: 6m3/H
Control Type: CNC
Cutting Length: 20-60m
Diameter: 8.5mm To 11.5mm
Cutting Precision: High
Spindle: 15KW
Trolley Size: 1400*2500mm
Adjustment Distance: 450mm
Gross Motor: 11kw
Control System: PLC SYSTEM
Rated Power: 2.2kw
Highlight:

350mm large diamond saw blades

,

7 inch diamond tile saw blade

,

large diamond saw blades 7mm
Basic Infomation
Place of Origin: Jinjiang, Fujian, China
Brand Name: Xianda Machinery
Certification: CE
Model Number: CTS-3500-18/CTS-3500-21
Payment & Shipping Terms
Packaging Details: Plastic Package, Suitable for Sea Transportation.
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 1000/year
Product Description

4 Axis CNC Diamond Wire Saw Machine For Dressing and Profiling

Basic Info.

Model NO.
CTS-3500-18/21
Table bearing weight
35/50T
Max processing size
3500*3000*1800MM/3500*3500*2100MM
Wire speed
0-40m/s
Wheel diameter
1900/2200mm
Main motor
11/15kw
Trolley size
1800*2000/2000*2500mm
Outline dimension
9300*6800*4800/9800*7400*5600mm
Transport Package
Plastic Package, Suitable for Sea Transportation.
Water consumption
6m³/h
Trademark
Xianda
Origin
China
HS Code
8202391000
Production Capacity
2000/Year

Product Description

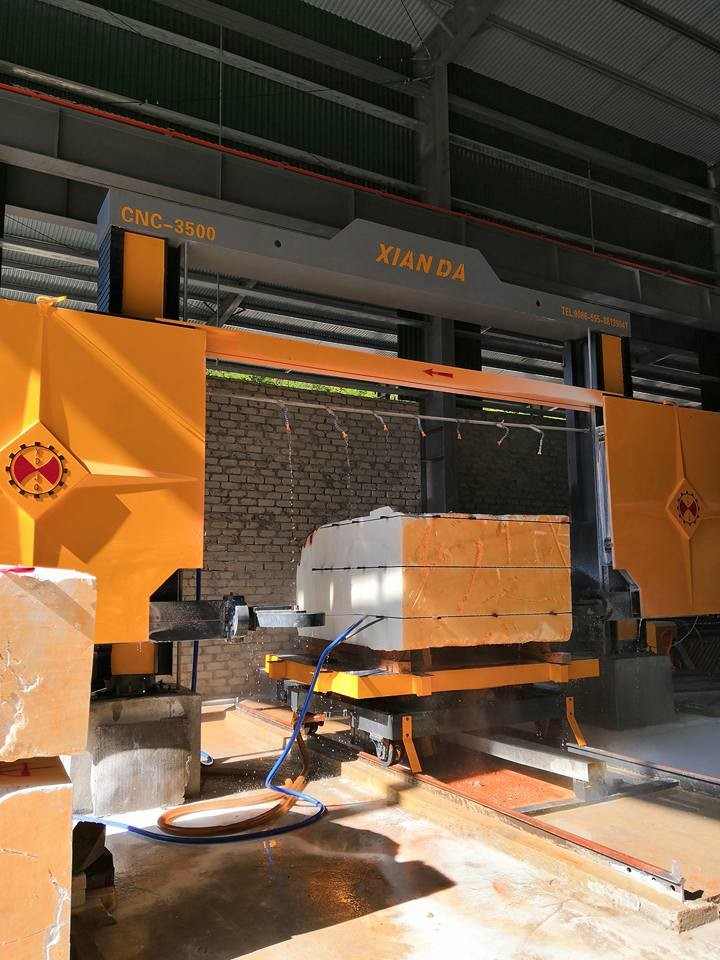

CNC-3500 adopts CNC system, four linkage, use 16 surfaces slideway, 28pcs roling wheels structure. And synchronous lifting through intermediate drive, with 360 rotary trolley, cutting stable and with high efficiency, it can dress 4 surfaces.Moreoveras it's with CNC system, it can process the column slab, pilar, numeral,letter, Chinese characters and other shapes for the stone.

Technical Data:

Parameter Unit CTS-3500-18 CTS-3500-21
Max processing size mm 3500*3000*1800mm 3500*3500*2100
Wheel diameter mm 1900 2200
Trolley size mm 1800*2000 2000*2500
Table bearing weight T 35 50
Wire speed m/s 0-40 0-40
Main motor kw 11 15
Outline dimension mm 9300*6800*4800 9800*7400*5600
Gross weight kg 9300 11000
Water consumption m³/h 6 6



CNC Diamond Wire Saw Machine For Dressing and Profiling 0

CNC Diamond Wire Saw Machine For Dressing and Profiling 1

CNC Diamond Wire Saw Machine For Dressing and Profiling 2
