Diamond Wire Saw Stone Profiling Cutting Machine 11kw

1set
MOQ
US $32,000-36,500 / Set
Price
Diamond Wire Saw Stone Profiling Cutting Machine 11kw
Features Gallery Product Description Request A Quote
Features
Specifications
Model NO.: CNC-3000
Control: CNC
Max Processing Size: 3000*3000*1500mm
Dimension Of Worktable: 2500*1300mm
Main Motor: 7.5kw
Gross Motor: 11kw
Outline Dimension: 7500*6300*3800mm
Gross Weight: 6000kg
Water Consumption: 4m3/H
Advantage: Multi Function With Good Quality And Price
Key Words: Stone Machine
Warranty Time: One Year
Transport Package: Plastic Package, Suitable For Sea Transportation
Specification: 6500*6300*3800mm
Trademark: UNIQUE
Origin: Jinjiang, Fujian, China
HS Code: 84641090
Supply Ability: 1000 Sets/Year
Type: CNC Cutting Machine
Usage: Granite
Application: Machinery & Hardware
Source Voltage: 380V
Automation: Automatic
Cutting Ability: High Speed
Customization: Available | Customized Request
Max Processing Size: 3000*2500*1500mm
Max Processing Size: 3000*2500*1500mm
Wire Diameter: 0.6-1.8mm
Wire Diameter: 0.6-1.8mm
Wire Length: 10m
Wire Length: 10m
Water Consumption: 6m3/H
Water Consumption: 6m3/H
Control Type: CNC
Control Type: CNC
Cutting Length: 20-60m
Cutting Length: 20-60m
Diameter: 8.5mm To 11.5mm
Cutting Precision: High
Spindle: 15KW
Trolley Size: 1400*2500mm
Adjustment Distance: 450mm
Control System: PLC SYSTEM
Rated Power: 2.2kw
Highlight:

Wire Saw Stone Profiling Cutting Machine

,

diamond wire cutting machine 6000kg

,

Stone Profiling Cutting Machine 11kw
Basic Infomation
Place of Origin: China
Brand Name: Unique
Certification: API
Model Number: CNC-3000
Payment & Shipping Terms
Packaging Details: Load in a 20 Feet Container
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000 Sets Per Year
Product Description

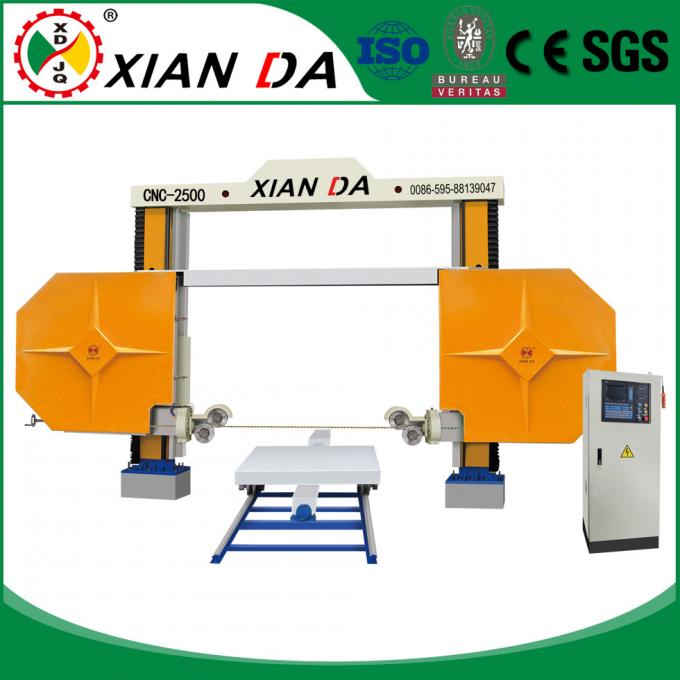

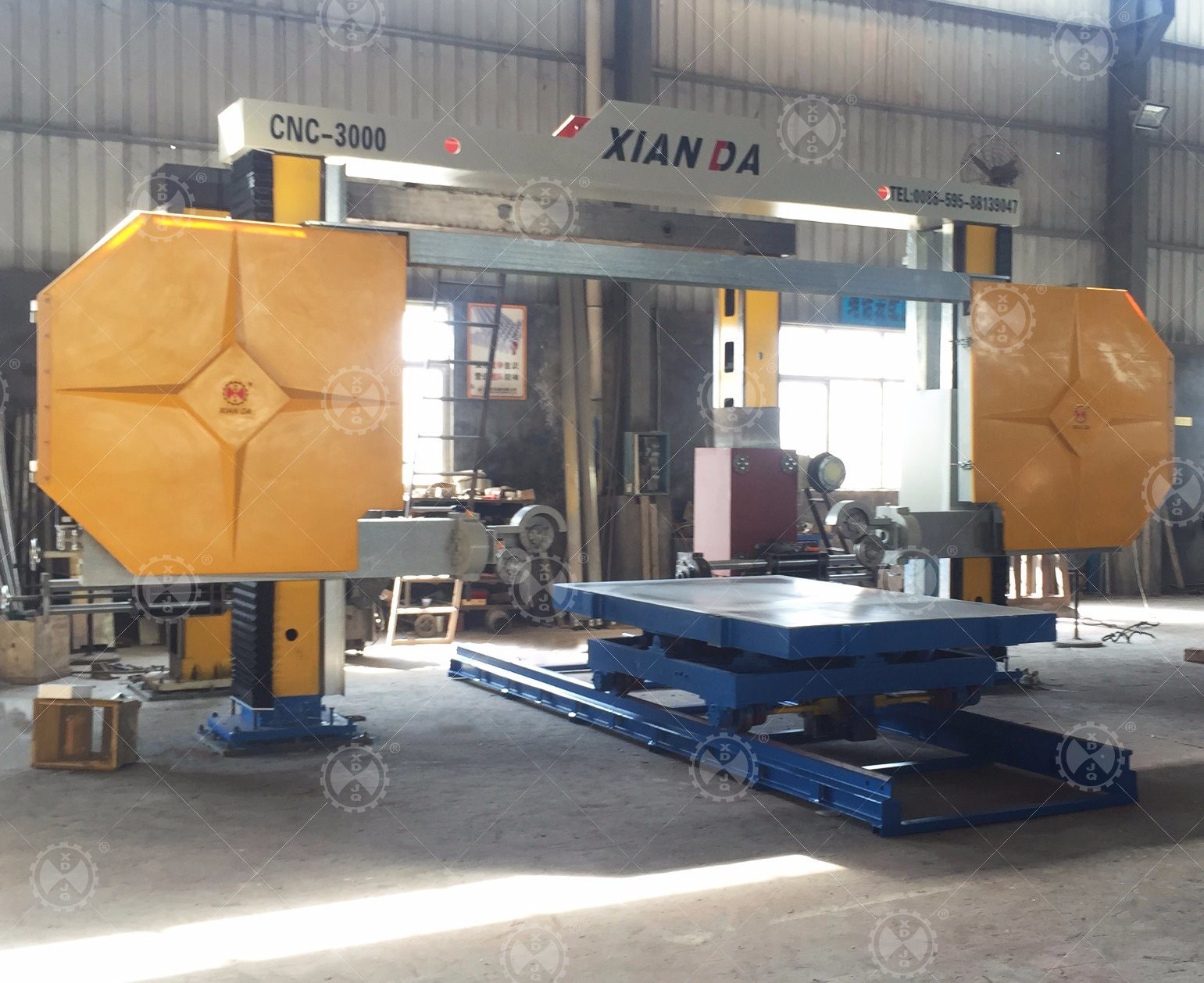

CNC - 3000 Diamond wire saw stone profiling cutting machine

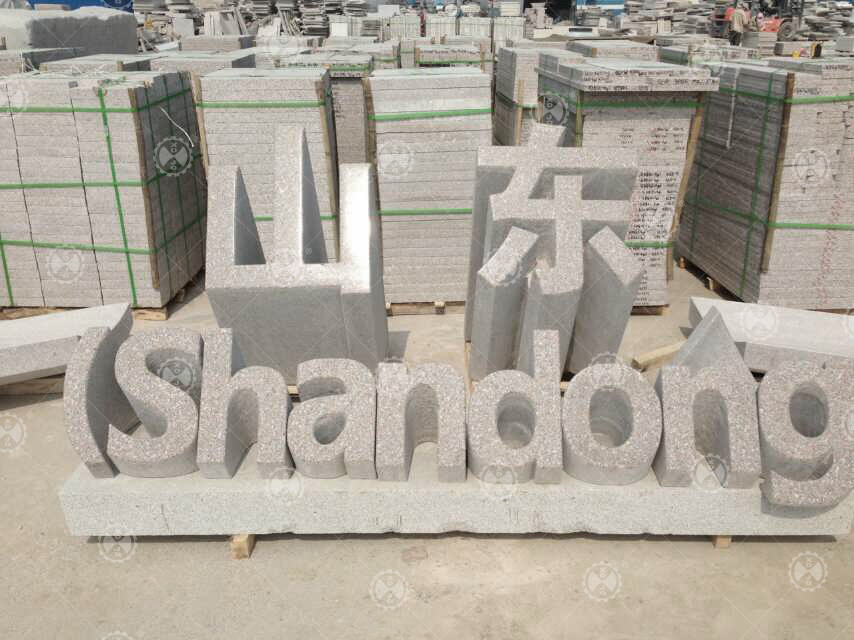

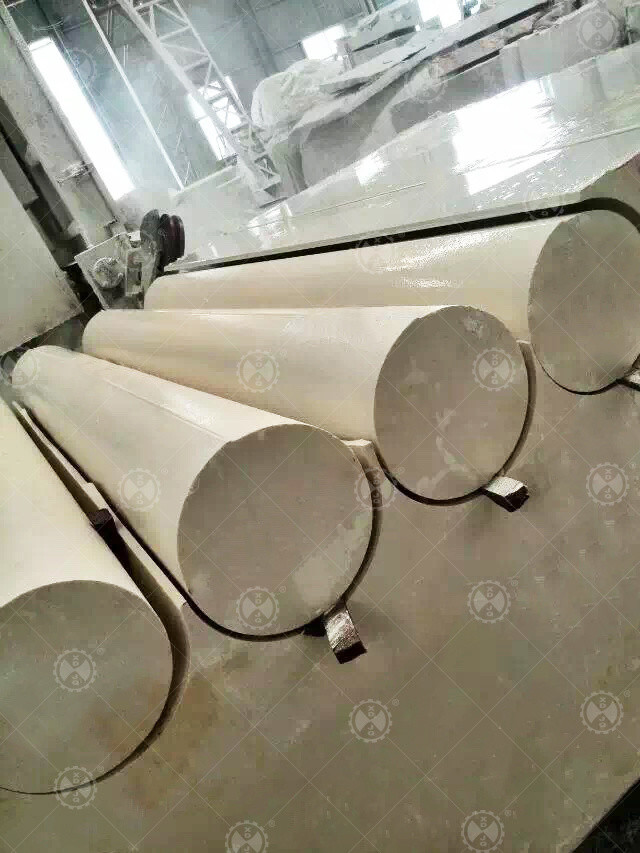

CNC - 3000 Diamond wire saw stone profiling cutting machine . Four-Axis linkage, which can process the circular stone slab, roman column, numeral, letter, Chinese characters and other designed shapes.
1. It has heavy load bearing structure, four orbits on each upright column, adjusted the balance by the rollers, with less friction and higher precision.
2. The left and right frame achieve synchronized lifting by steering equipment on the upper frame. The lifting accuracy increased by the conbine of lead screw and double nuts.
3. Cantilever part, firstly the lead screw and pole adjust the distance of guide wheel,guide wheel is controlled by CNC. Secondly in order to make the diamond wire rope cutting direction coincidence, reducer control the guide wheel rotating angle.
4. Worktable is running by lead screw and railway.
5. There has automatic alarm if wire broken.
6. Aluminum wheel diameter is 1600mm.One fly wheel slide through sheave, oil pump control rope tension.

Technical Parameter

Parameter Unit CNC-2000 CNC-2500 CNC-3000
Max processing size mm 3000*2000*1500 3000*2500*1500 3000*3000*1500
Dimension of worktable mm 2500*1300 2500*1300 2500*1300
Main motor kw 7.5 7.5 7.5
Gross motor kw 11 11 11
Outline dimension mm 6500*6300*3800 7000*6300*3800 7500*6300*3800
Gross weight kg 5000 5500 6000
Water consumption m3/h 4 4 4



Diamond Wire Saw Stone Profiling Cutting Machine 11kw 0

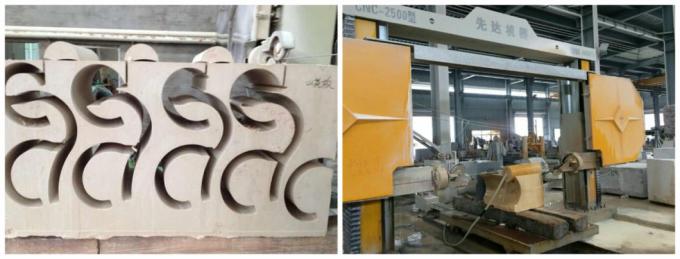

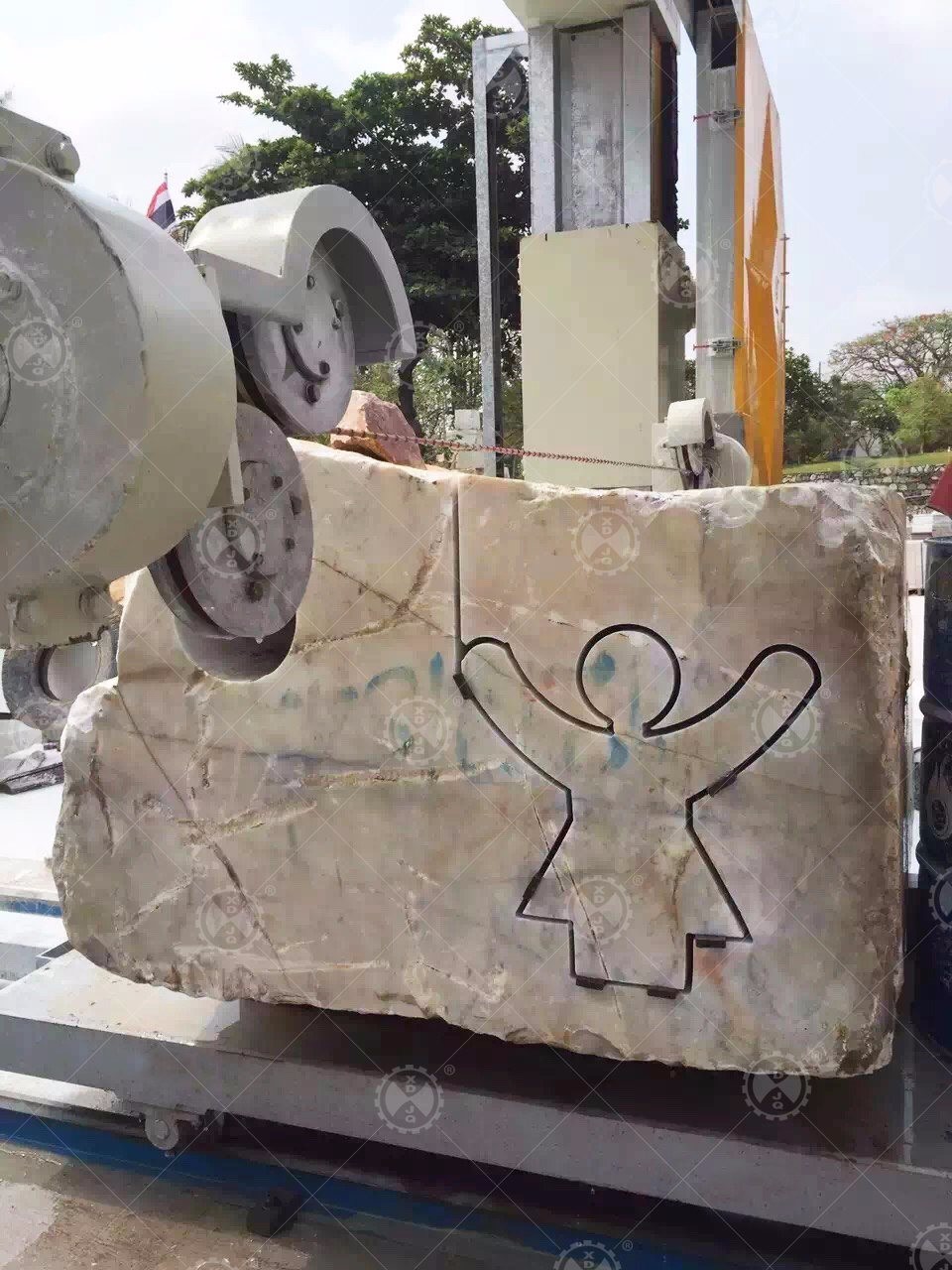

CNC -2000 diamond wire saw stone cutting machine is a good choice for irregular stone processing. Easy to operate, it can cut many special shape.
Diamond Wire Saw Stone Profiling Cutting Machine 11kw 1
Diamond Wire Saw Stone Profiling Cutting Machine 11kw 2

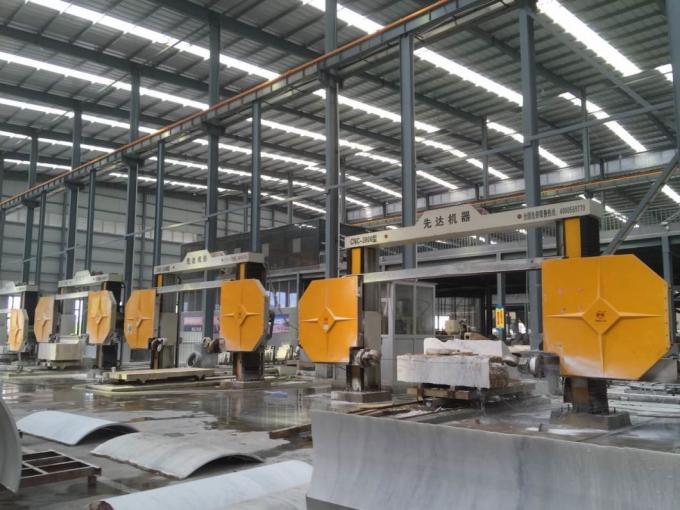

Xianda machinery

Diamond Wire Saw Stone Profiling Cutting Machine 11kw 3

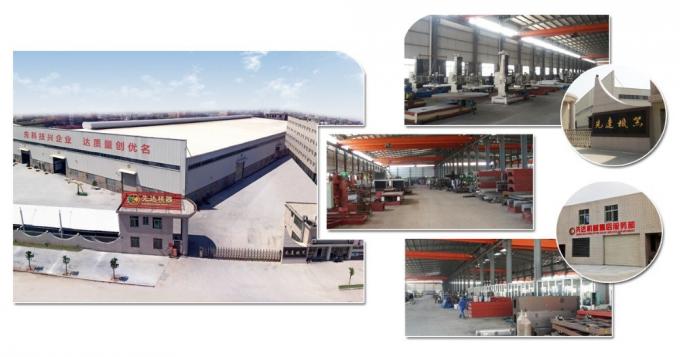

Fujian Jinjiang Xianda Machinery Co.Ltd was established in 1985 and have been dedicated to the development and producing of a serious of column making machine,wire saw stone cutting machine,block trimming machine, bridge saw cutting machine, profiling stone cutting machine etc.
With the rapid development of company ,we have passed the ISO9001 verifing, CE, and won many honory tiles include International Gold Plant Quality Award etc. We keep " Advanced Tecnology and High Quality" as our aim. We have developed a range of 'Xianda' Brand special stone shape processing machines.

Exhibition
Diamond Wire Saw Stone Profiling Cutting Machine 11kw 4
Our Service
Diamond Wire Saw Stone Profiling Cutting Machine 11kw 5

* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* After-sales service 24 hour on line.
If you have any problem,just conact our sales department,customer service department,etc at any time.

Key words: stone machine, wire saw machine, stone profiling.
