40m/S Diamond Rope Cutting Machine For Marble Granite Block

1
MOQ
To Be Negotiable
Price
40m/S Diamond Rope Cutting Machine For Marble Granite Block
Features Gallery Product Description Request A Quote
Features
Specifications
Model NO.: CNC-2000
Control: CNC
Max Processing Size: 3000*2500*1500mm
Dimension Of Worktable: 2500*1300mm
Main Motor: 11kw
Outline Dimension: 6500*6300*3800mm
Gross Weight: 5000kg
Water Consumption: 4m3/H
Color: White And Yellow
Wire Speed: 0-40m/S
Warranty Time: One Year
Transport Package: Load In A 20 Feet Container
Specification: 6500*6300*3800mm
Trademark: Xianda
Origin: Jinjiang, Fujian, China
HS Code: 84641090
Supply Ability: 1000 Sets/Year
Type: CNC Cutting Machine
Usage: Granite
Application: Machinery & Hardware
Source Voltage: 380V
Automation: Automatic
Cutting Ability: High Speed
Customization: Available | Customized Request
Wire Diameter: 0.6-1.8mm
Wire Length: 10m
Water Consumption: 6m3/H
Control Type: CNC
Cutting Length: 20-60m
Diameter: 8.5mm To 11.5mm
Cutting Precision: High
Spindle: 15KW
Trolley Size: 1400*2500mm
Adjustment Distance: 450mm
Gross Motor: 11kw
Control System: PLC SYSTEM
Rated Power: 2.2kw
Highlight:

40m S diamond rope cutting machine

,

cnc profile cutting machine 5000kg

,

11kw diamond wire rock cutting machine
Basic Infomation
Place of Origin: Jinjiang, Fujian, China
Brand Name: Xianda Machinery
Certification: API
Model Number: CNC-2000
Payment & Shipping Terms
Packaging Details: Load in a 20 Feet Container
Supply Ability: 1000 Sets/Year
Product Description
40m/S Diamond Rope Cutting Machine For Marble Granite Block
Product Specifications
Attribute Value
Model NO. CNC-2000
Control CNC
Max Processing Size 3000*2500*1500mm
Dimension of Worktable 2500*1300mm
Main Motor 11kw
Outline Dimension 6500*6300*3800mm
Gross Weight 5000kg
Water Consumption 4m3/H
Wire Speed 0-40m/S
Warranty Time One Year
Type CNC Cutting Machine
Cutting Ability High Speed
Cutting Precision High
Control System PLC SYSTEM
Product Description

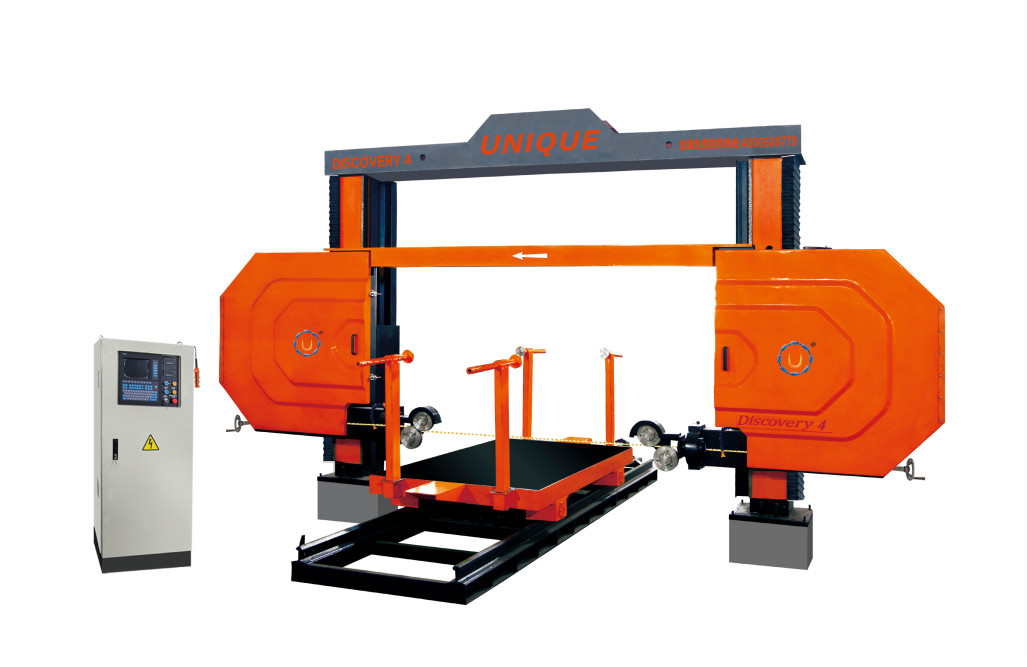

Easy Operation Diamond Wire Saw machine for Marble Granite Block

The CNC-2000/2500/3000 adopts CNC system with Four-Axis linkage, capable of processing circular stone slabs, roman columns, numerals, letters, Chinese characters, and other designed shapes.

  • Heavy load bearing structure with four orbits on each upright column, adjusted by rollers for less friction and higher precision
  • Synchronized lifting of left and right frames achieved through steering equipment, with enhanced accuracy via lead screw and double nuts combination
  • Cantilever section features adjustable guide wheel distance controlled by CNC, with reducer-controlled rotation for precise diamond wire rope cutting
  • Worktable operates via lead screw and railway system
  • Automatic wire breakage alarm system
  • 1600mm diameter aluminum wheel with oil pump controlled rope tension
Technical Parameters
Parameter Unit CNC-2000 CNC-2500 CNC-3000
Max processing size mm 2000*3000*1500 2500*3000*1500 3000*3000*1500
Dimension of worktable mm 2500*1300 2500*1300 2500*1300
Main motor kw 7.5 7.5 7.5
Gross motor kw 11 11 11
Outline dimension mm 6800*6200*3800 7800*6200*3800 8800*6200*3800
Gross weight kg 5000 5500 6000
Water consumption m3/h 4 4 4
Our Service
  • Training for machine installation and operation
  • Engineers available for overseas machinery service
  • 24-hour online after-sales service

For any inquiries, please contact our sales or customer service departments at any time.

Frequently Asked Questions
Does this product support customization?

Yes, customized requests are available for this product.

How do you ship the products?

The machine is shipped in a 20-foot container.

What is the warranty for the product?

The product comes with a one-year warranty.
