CNC Stone Diamond Wire Saw Machine 6500x6300x3800mm

1set
MOQ
To Be Negotiated
Price
CNC Stone Diamond Wire Saw Machine 6500x6300x3800mm
Features Gallery Product Description Request A Quote
Features
Specifications
Model NO.: CNC-2500
Control: CNC
Max Processing Size: 3000*2000*1500mm
Dimension Of Worktable: 2500*1300mm
Main Motor: 7.5kw
Gross Motor: 11kw
Outline Dimension: 6500*6300*3800mm
Gross Weight: 5000kg
Water Consumption: 4m3/H
Color: Blue And Yellow
Transport Package: Load In A 20 Feet Container
Specification: 6500*6300*3800mm
Trademark: Xianda
Origin: Jinjiang, Fujian, China
HS Code: 84641090
Supply Ability: 1000 Sets/Year
Type: CNC Cutting Machine
Usage: Granite
Application: Machinery & Hardware
Source Voltage: 380V
Automation: Automatic
Cutting Ability: High Speed
Customization: Available | Customized Request
Material: Diamond
Max Processing Size: 3000*2500*1500mm
Wire Diameter: 0.6-1.8mm
Wire Length: 10m
Water Consumption: 6m3/H
Control Type: CNC
Cutting Length: 20-60m
Diameter: 8.5mm To 11.5mm
Cutting Precision: High
Spindle: 15KW
Trolley Size: 1400*2500mm
Adjustment Distance: 450mm
Control System: PLC SYSTEM
Rated Power: 2.2kw
Highlight:

CNC Stone Diamond Wire Saw Machine

,

CNC Cutting Machine 7.5kw

,

11kw Diamond Wire Saw Machine
Basic Infomation
Certification: API
Payment & Shipping Terms
Packaging Details: Plastic Package, Suitable for Sea Transportation.
Payment Terms: L/C, T/T
Supply Ability: 1000 Sets Per Year
Product Description

Product Description

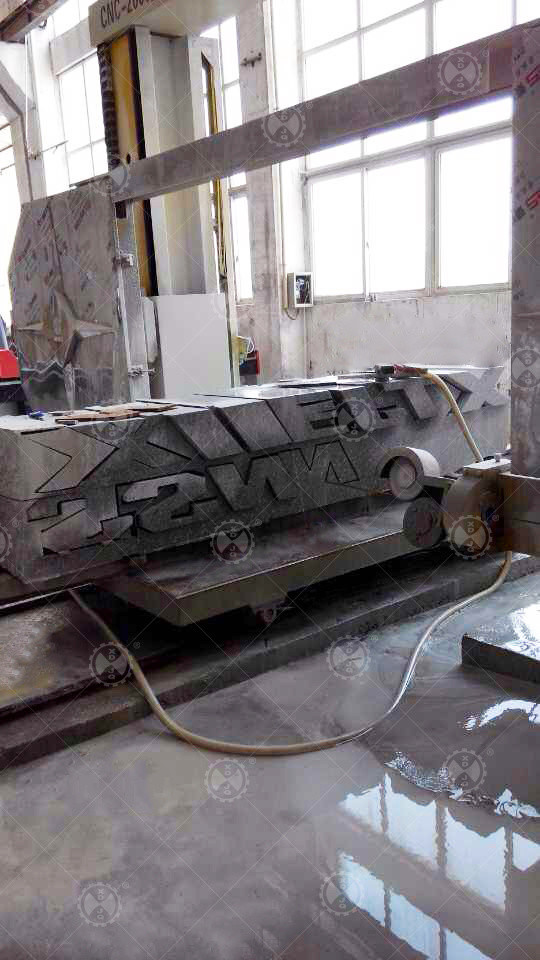

CNC Stone Diamond wire saw machine

Good quality multi functional cnc control mono rope saw cutting machine

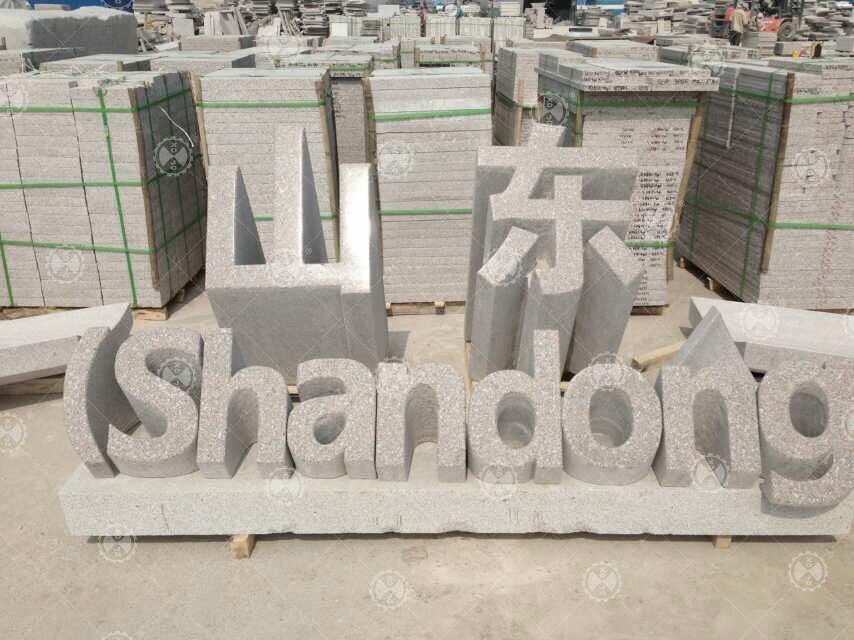

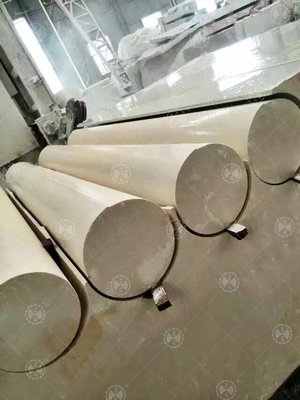

CNC-2000/2500/3000 adopts CNC systerm, Four-Axis linkage, which can process the circular stone slab, roman column, numeral, letter, Chinese characters and other designed shapes.
1. It has heavy load bearing structure, four orbits on each upright column, adjusted the balance by the rollers, with less friction and higher precision.
2. The left and right frame achieve synchronized lifting by steering equipment on the upper frame. The lifting accuracy increased by the conbine of lead screw and double nuts.
3. Cantilever part, firstly the lead screw and pole adjust the distance of guide wheel,guide wheel is controlled by CNC. Secondly in order to make the diamond wire rope cutting direction coincidence, reducer control the guide wheel rotating angle.
4. Worktable is running by lead screw and railway.
5. There has automatic alarm if wire broken.
6. Aluminum wheel diameter is 1600mm.One fly wheel slide through sheave, oil pump control rope tension.

Technical Parameter

Parameter Unit CNC-2000 CNC-2500 CNC-3000
Max processing size mm 3000*2000*1500 3000*2500*1500 3000*3000*1500
Dimension of worktable mm 2500*1300 2500*1300 2500*1300
Main motor kw 7.5 7.5 7.5
Gross motor kw 11 11 11
Outline dimension mm 6500*6300*3800 7000*6300*3800 7500*6300*3800
Gross weight kg 5000 5500 6000
Water consumption m3/h 4 4 4


Fujian UNIQUE Machinery Co.Ltd was established in 1985 and have been dedicated to the development and producing of a serious of column making machine,wire saw stone cutting machine,block trimming machine, bridge saw cutting machine, profiling stone cutting machine etc.
With the rapid development of company ,we have passed the ISO9001 verifing, CE, and won many honory tiles include International Gold Plant Quality Award etc. We keep " Advanced Tecnology and High Quality" as our aim. We have developed a range of 'UNIQUE' Brand special stone shape processing machines.

Our Service

* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* After-sales service 24 hour on line.
If you have any problem,just conact our sales department,customer service department,etc at any time.
