Features

Specifications

Model NO.: CNC-3500

Control: CNC

Max Processing Size: 3500*3500*2100mm

Dimension Of Worktable: 2500*2000mm

Main Motor: 15kw

Gross Motor: 18kw

Outline Dimension: 9800*7500*4500mm

Gross Weight: 10500kg

Water Consumption: 6m3/H

Wire Speed: 0 -35m /S

Name: Stone Cutting Machine ( Block Trimming Machine )

Production Ability: 50 Sets / Month

Transport Package: Plastic Package, Suitable For Sea Transportation

Specification: 6500*6300*3800mm

Trademark: Xianda

Origin: Jinjiang, Fujian, China

HS Code: 84641090

Supply Ability: 1000 Sets/Year

Type: CNC Cutting Machine

Usage: Granite

Application: Machinery & Hardware

Source Voltage: 380V

Automation: Automatic

Cutting Ability: High Speed

Customization: Available | Customized Request

Max Processing Size: 3000*2500*1500mm

Wire Diameter: 0.6-1.8mm

Wire Length: 10m

Control Type: CNC

Cutting Length: 20-60m

Diameter: 8.5mm To 11.5mm

Cutting Precision: High

Spindle: 15KW

Trolley Size: 1400*2500mm

Adjustment Distance: 450mm

Gross Motor: 11kw

Control System: PLC SYSTEM

Rated Power: 2.2kw

Highlight:

Multi Function Diamond Wire Saw Machine

CNC Wire Stone Cutting Machine

Diamond Wire Saw Machine Granite

Basic Infomation

Certification: API

Payment & Shipping Terms

Packaging Details: Plastic Package, Suitable for Sea Transportation.

Payment Terms: L/C, T/T

Supply Ability: 1000 Sets Per Year

Gallery

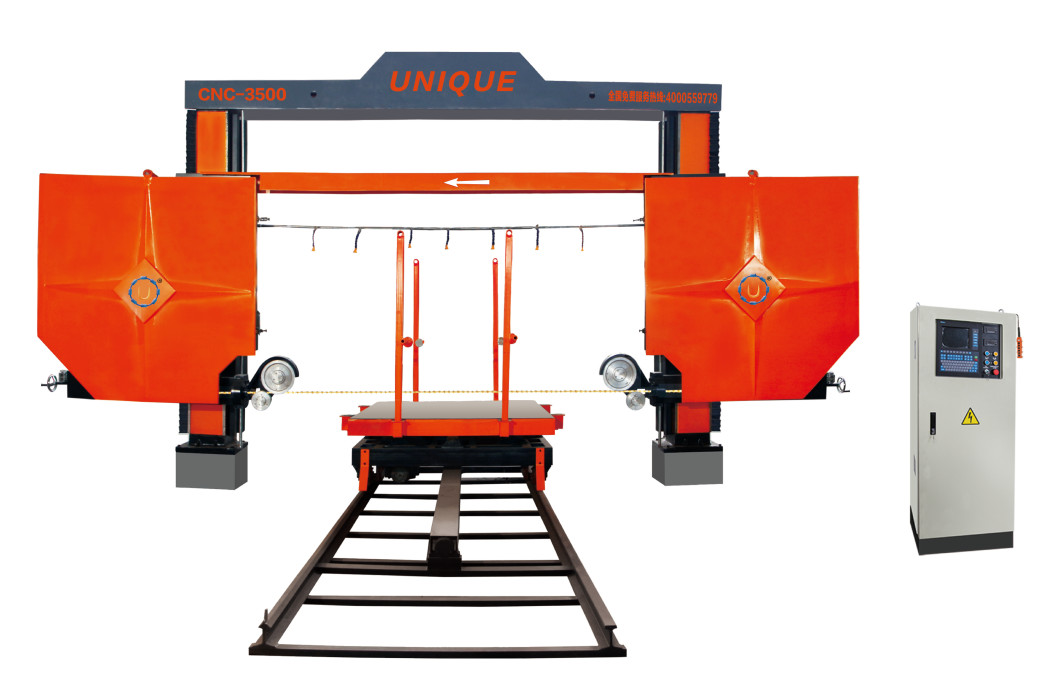

Multi Function CNC Diamond Wire Saw Machine For Granite

Product Description

Multi-Function CNC Wire Stone Cutting Machine for Granite

Product Description

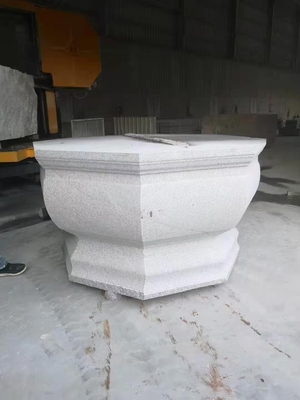

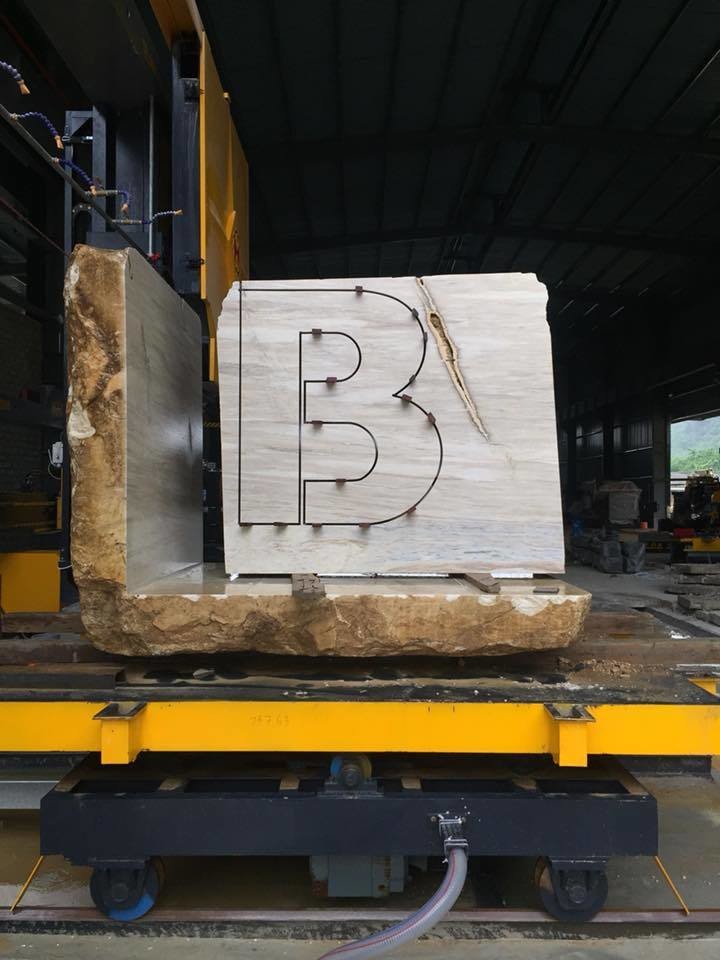

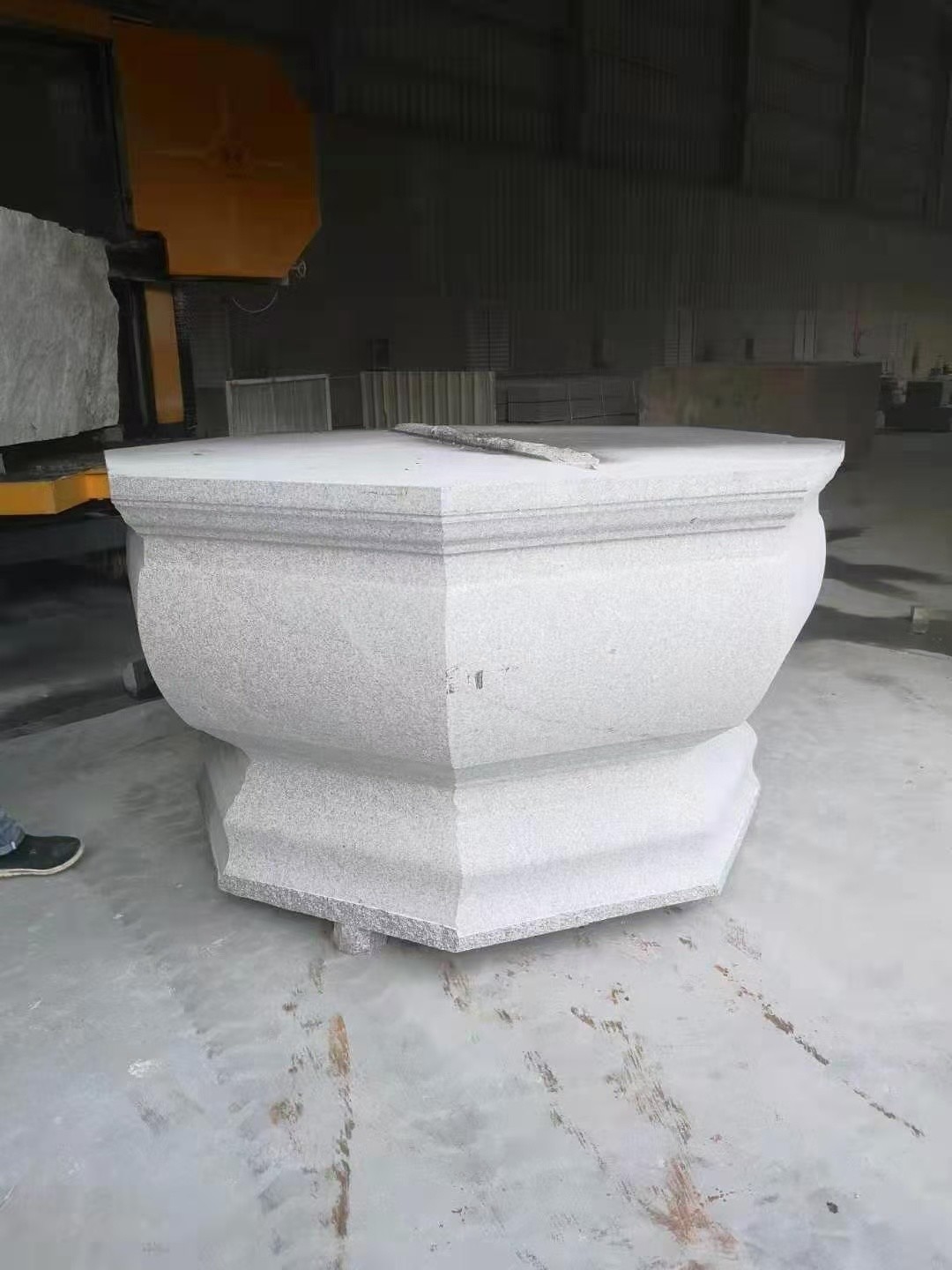

China UNIQUE marble granite stone block diamond wire saw edge cutting machine adopts Four-Axis linkage with stable cutting, used to trimming the six surfaces of the stone block, also can cut the block to slab, which is the ideal equipment for cutting the block, and trimming stone block.The special design for 360° worktable will fullfil your need, somemore this machine is able to compatitable with CNC system.Once changed, it will have multi-function with can process the column slab,pillar,roman column,numeral, letter, Chinese characters and other shapes for the stone.

Main Features

1) Simple structure in linear type ,easy in installation and maintation.

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3) High pressure double crank to control the die opening and closing.

4) Running in a high automatization and intellectualization,no pollution

5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .

Keywords: diamond wire saw machine, block cutting machine, stone trimming machine
Technical Parameter

Parameter	Unit	CNC-3500
Max processing size	mm	350035002100
Dimension of worktable	mm	2500*2000
Main motor	kw	11
Gross motor	kw	18
Outline dimension	mm	680089004700
Gross weight	kg	8000
Water consumption	m³/h	4

Our Service

We are a vigorous and creative team with great passion, we are always trying to provide better service for you, if you meet any problems about stone cutting machine, please contact us at any time suits you.

Other stone cutting machines we produce: diamond wire saw machine, bridge cutting machine, bridge saw and a series of stone machine for special shape processing.

FAQ

1. Manufacturer Profiles

We are the Top 10 stone cutting machine manufacturer with ISO & CE certificate since 1985.
We own 70% China market share at special shape stone cutting machine series.

We are a company which is specially for producing stone machines for exporting.

2. Quality Control

We have our own experienced QC.

Our machine will be strictly inspected.

We will provide a Testing Video for each machines before shipping out if required by customer.

3. Delivery time

Based on order quantity, normally three weeks against payment.

4. Warranty

All the machines have one year warranty.

5. After Services

Our marketing team will response for your question within 24 hours.
Technical support will be available in any time.
Free replacement will provide once the failure confirmed caused by our product quality.

6. Contact

Add: Anqi Road, Wuli Industrial Park, Jinjiang City, Fujian, China.
