Marble Block Dressing Diamond Wire, Stone Wire Saw Machine, Diamond Wire Saw Machine, Wire Saw Cutting

1set
MOQ
To Be Negotiated
Price
Marble Block Dressing Diamond Wire, Stone Wire Saw Machine, Diamond Wire Saw Machine, Wire Saw Cutting
Features Gallery Product Description Request A Quote
Features
Specifications
Model NO.: BWT-3500
Cutting Ability: High Speed
Control: PLC
Wire Length: 20.6m
Worktable Rotating(Optional): 360°
Max Processing Size: 3500X3500X2100mm
Dimension Of Worktable: 2500X2000mm
Water Consumption: 4m3/H
Main Motor: 15kw
Total Motor: 24kw
Weight: 8000kg
Condition: New
Specification: 9500*6800*4700mm
Trademark: UNIQUE
Origin: Fujian, China
HS Code: 8464109000
Supply Ability: 1000 Sets Per Year
Warranty: 12 Months
Type: Stone Block Trimming Machine
Usage: Granite
Application: Machinery & Hardware
Source Voltage: 380V
Automation: Automatic
Customization: Available | Customized Request
Max Processing Size: 3000*2500*1500mm
Wire Diameter: 0.6-1.8mm
Wire Length: 10m
Water Consumption: 6m3/H
Control Type: CNC
Cutting Length: 20-60m
Diameter: 8.5mm To 11.5mm
Cutting Precision: High
Spindle: 15KW
Trolley Size: 1400*2500mm
Adjustment Distance: 450mm
Gross Motor: 11kw
Control System: PLC SYSTEM
Rated Power: 2.2kw
Highlight:

Marble Block Dressing Diamond Wire

,

Wire Saw Cutting Diamond Wire

,

Stone Wire Saw Machine
Basic Infomation
Place of Origin: China
Brand Name: UNIQUE
Certification: ISO
Model Number: BWT-3500
Payment & Shipping Terms
Packaging Details: 9500*6800*4700mm
Supply Ability: 1000 Sets Per Year
Product Description
Marble Block Dressing Diamond Wire, Stone Wire Saw Machine, Diamond Wire Saw Machine, Wire Saw Cutting
Product Specifications
Attribute Value
Model NO. BWT-3500
Cutting Ability High Speed
Control PLC
Wire Length 20.6m
Worktable Rotating(Optional) 360°
Max Processing Size 3500X3500X2100mm
Dimension of Worktable 2500X2000mm
Water Consumption 4m3/H
Main Motor 15kw
Total Motor 24kw
Weight 8000kg
Condition New
Specification 9500*6800*4700mm
Trademark UNIQUE
Origin Fujian, China
HS Code 8464109000
Supply Ability 1000 Sets Per Year
Warranty 12 Months
Type Stone Block Trimming Machine
Usage Granite
Application Machinery & Hardware
Source Voltage 380V
Automation Automatic
Customization Available
Product Description
Marble Block Dressing Diamond Wire, Stone Wire Saw Machine, Diamond Wire Saw Machine, Wire Saw Cutting 0

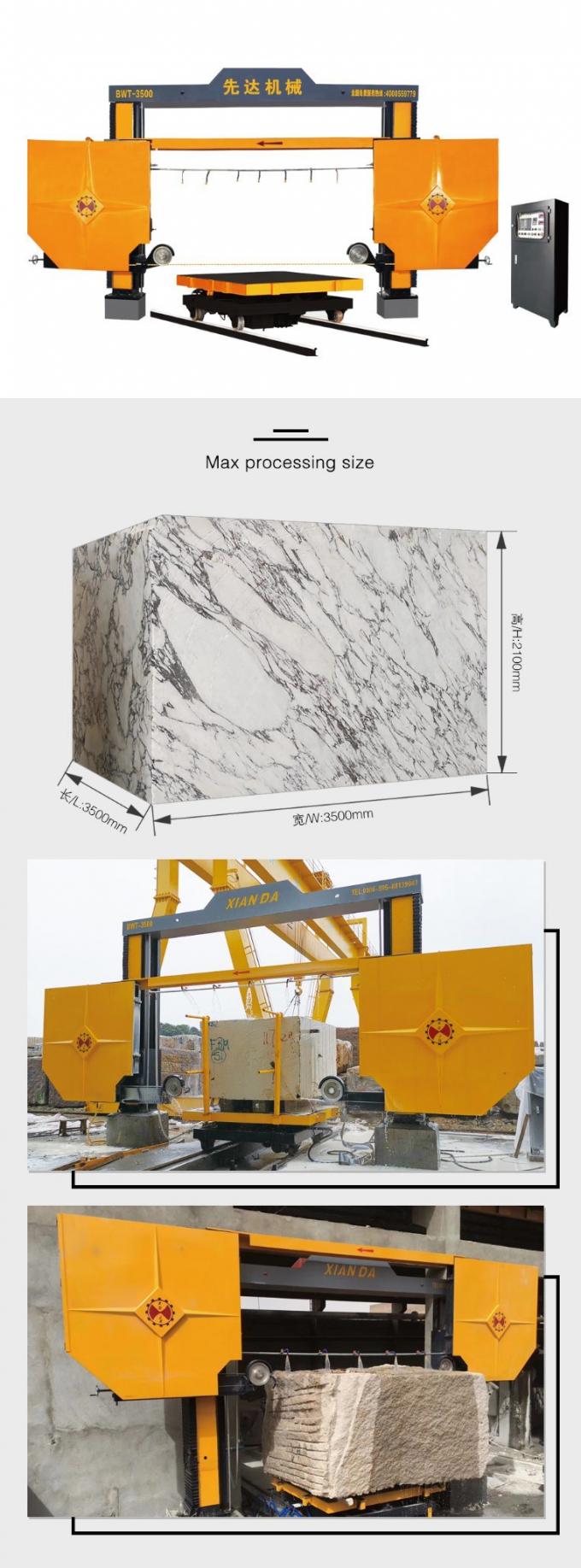

The BWT-3500 diamond wire-saw trimming machine adopts PLC control (CNC is also available). The special 360° worktable design fulfills your needs for trimming all four surfaces of the block, and can also cut blocks into slabs. This machine is the ideal equipment for cutting and trimming stone blocks.

Additionally, it is compatible with CNC systems, enabling processing of column slabs, pillars, roman columns, numerals, letters, Chinese characters, and other stone shapes.

Technical Parameters
Parameter Unit BWT-35000 CNC-3500
Max processing size mm 3500x3500x2100 3500x3500x2100
Dimension of worktable mm 2500x2000 2500x2000
Main motor kw 15 15
Gross motor kw 24 23
Outline dimension mm 9500x6800x4700 9500x6800x4700
Gross weight kg 8000 8000
Water consumption kw 4 4
Certifications
Marble Block Dressing Diamond Wire, Stone Wire Saw Machine, Diamond Wire Saw Machine, Wire Saw Cutting 1
Our Services
  • Machine testing videos available; all machines undergo strict inspection and testing before shipping
  • 32 years of manufacturing experience; holds over 70% of China's special shape stone cutting machine market
  • Top 5 stone cutting machine manufacturer with ISO & CE certification
  • Products exported to more than 20 countries with over 10 years of overseas experience
  • Competitive pricing and discounts available for large quantity orders
  • 24-hour online after-sales service with staff training programs
  • Professional technical support for machine installation, commissioning, and operator training
