Granite Marble Quarry Stone Diamond Wire Saw Machine 380V

1set
MOQ
US $18,500-20,500 / Set
Price
Granite Marble Quarry Stone Diamond Wire Saw Machine 380V
Features Gallery Product Description Request A Quote
Features
Specifications
Voltage: 380V
Weight: 2000KG
Use: Granite,Marble,block Cutter,granite And Marble,stone Granite Marble
Condition: New
Dimension(l*w*h): 2500*1100*1620mm
After-sales Service Provided: Online Support,Video Technical Support,Field Maintenance And Repair Service,Field Installation
Certification: CE,ISO,FDA,Patented,ISO9001
Type: Stone Cutting Machine
Warranty: One Year
Control System: PLC SYSTEM
Product Name: Stone Cutting Machine
Color: Customized,Yellow
Motor: AC Servo System
Application: Stone Industrial,Stone Engraving Or Cutting,concrete
Name: Stone Cutting Machine
Function: STONE CUTTING,Quarry Stone
Keyword: Stone Cutting Machine,stone Quarry Machine
Max Processing Size: 3000*2500*1500mm
Wire Diameter: 0.6-1.8mm
Automation: Automatic
Automation: Automatic
Wire Length: 10m
Water Consumption: 6m3/H
Control Type: CNC
Cutting Length: 20-60m
Diameter: 8.5mm To 11.5mm
Cutting Precision: High
Spindle: 15KW
Trolley Size: 1400*2500mm
Adjustment Distance: 450mm
Gross Motor: 11kw
Rated Power: 2.2kw
Highlight:

Quarry Stone Diamond Wire Saw Machine

,

Marble Wire Saw Cutting Machine

,

Diamond Wire Saw Machine 380V
Basic Infomation
Place of Origin: China
Brand Name: Unique
Certification: API, CCC, UL, SONCAP, GOST, ISO, CE, SGS;IAF
Model Number: YLW-75G-55G-45G-37G
Payment & Shipping Terms
Packaging Details: 2113*1361*1410mm; 2336*1536*1670mm
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000 Sets Per Year
Product Description

Granite Marble Quarry Stone Diamond Wire Saw Cutting Machine FC-75G-55G-45G-37G

Basic Info.

Model NO.
YLW-75G-55G-45G-37G
Automation
Automatic
Cutting Ability
High Speed
Control
PLC
Certification
API, CCC, UL, SONCAP, GOST, ISO, CE, SGS;IAF
Main Motor
37kw;45kw;55kw;75kw
Wire Speed
0~40m/S
Walking Speed
0~30m/H;0-160m/H
Adjustment Distance
450mm;500mm
Cutting Distance
1750mm;2030mm
Rotation Angle
360°
Outline Dimension
2113*1361*1410mm;2336*1536*1670mm
Max Wire Length
60m;80m;100m;120m
Gross Weight
2t;2.1t;3t;3.2t
Transport Package
Plastic Package, Suitable for Sea Transportation
Specification
2113*1361*1410mm; 2336*1536*1670mm
Trademark
UNIQUE
Origin
Fujian, China
HS Code
8464109000
Production Capacity
1000 Sets Per Year

Product Description

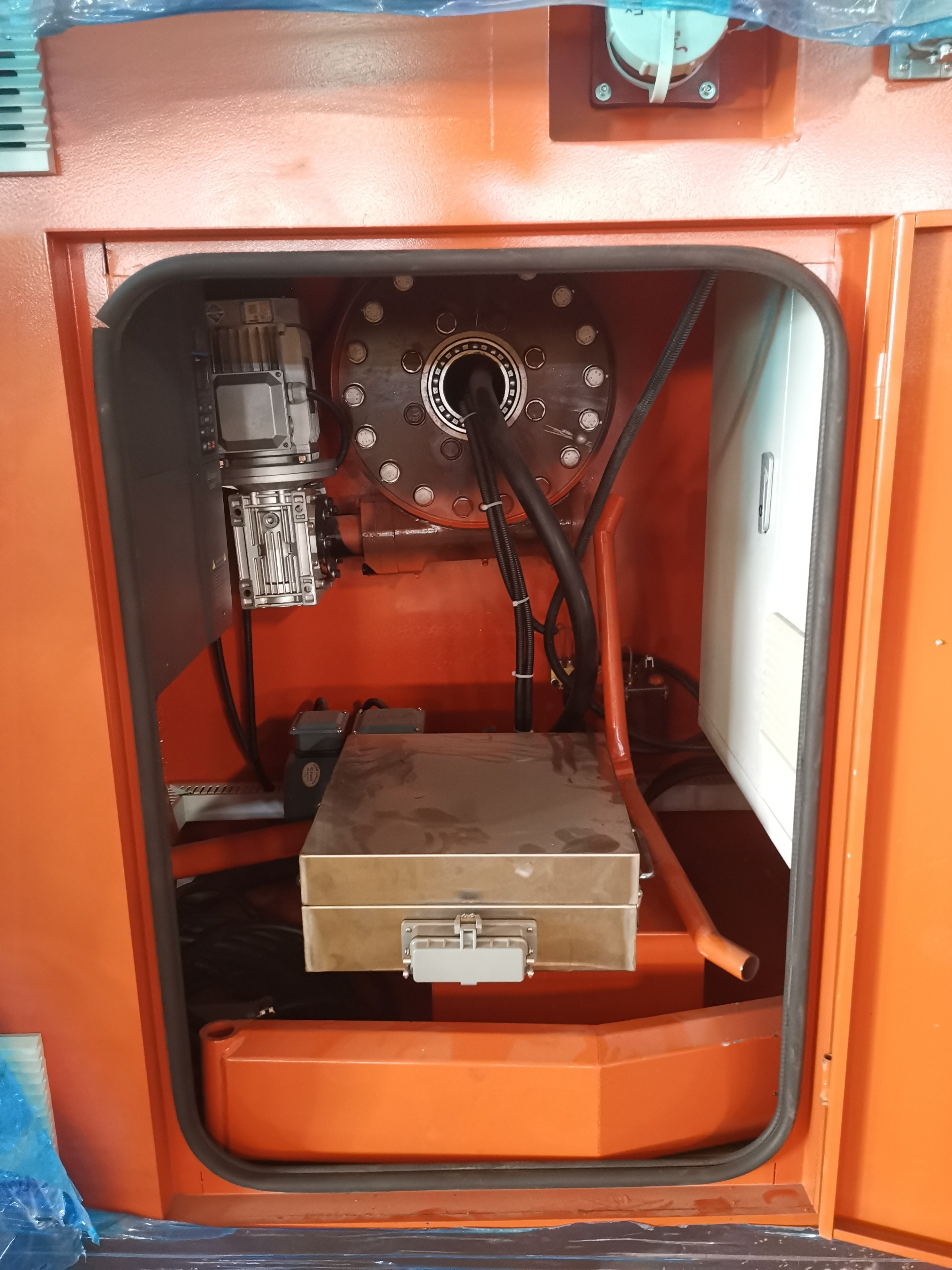

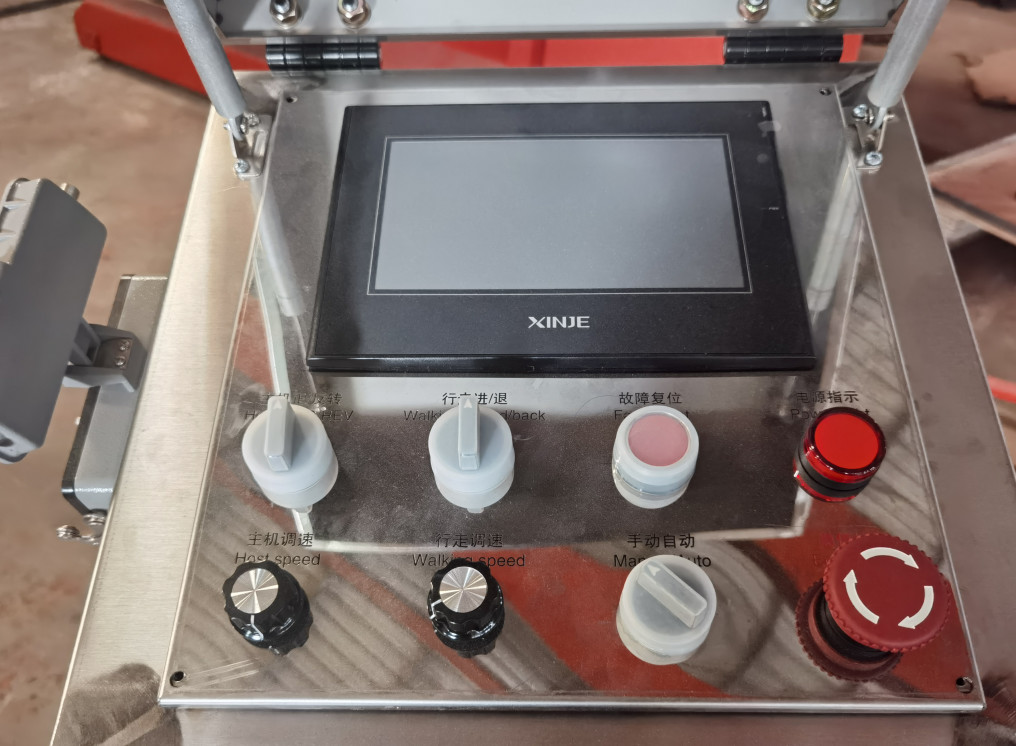

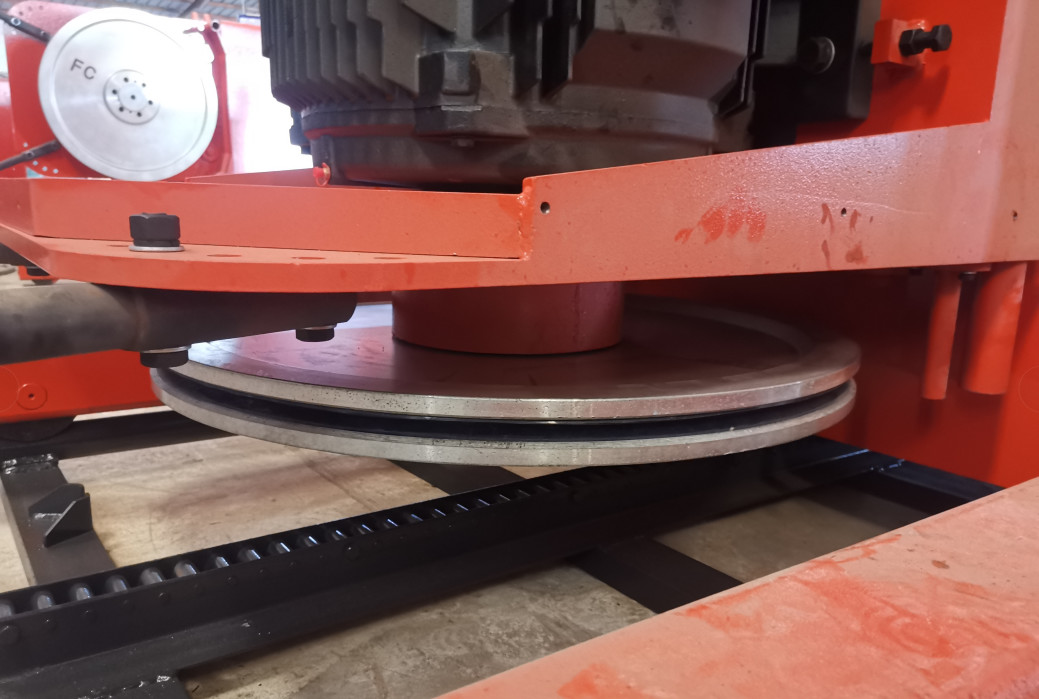

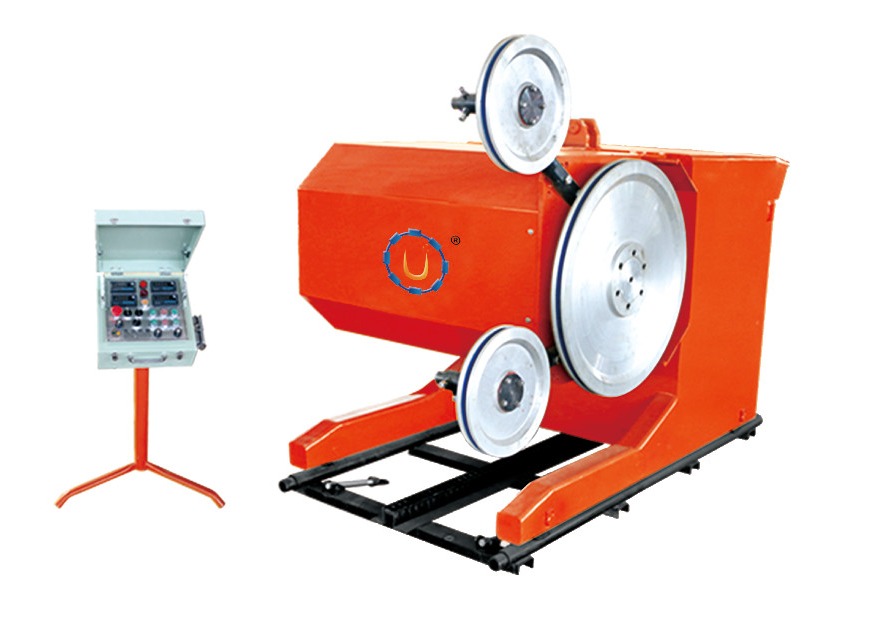

PLC Granite Marble Quarry Stone Diamond Wire Saw Cutting Machine YLW-75G-55G-45G-37G

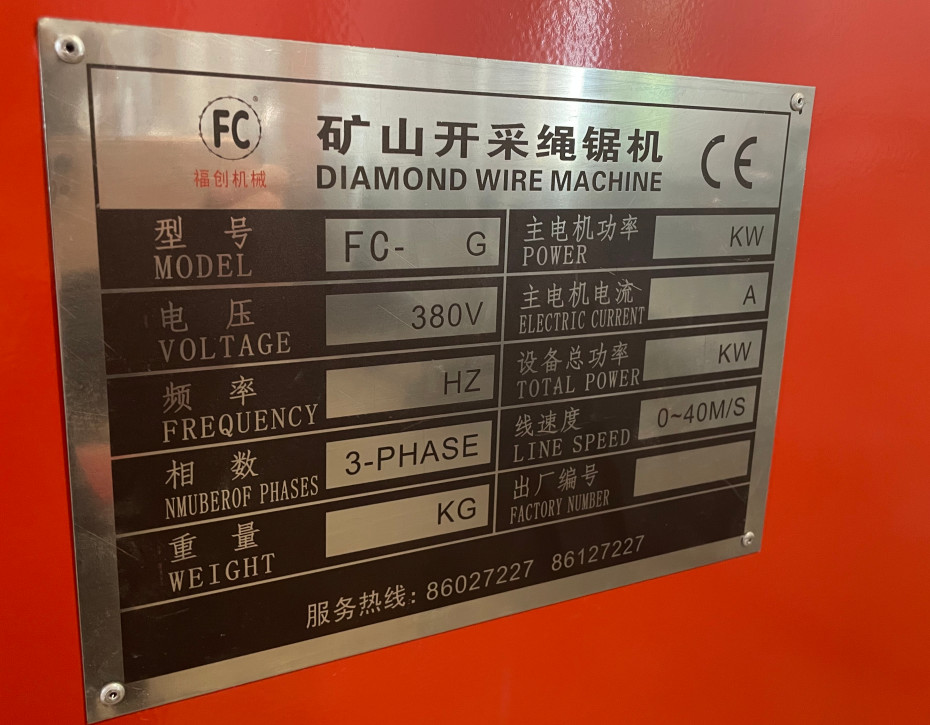

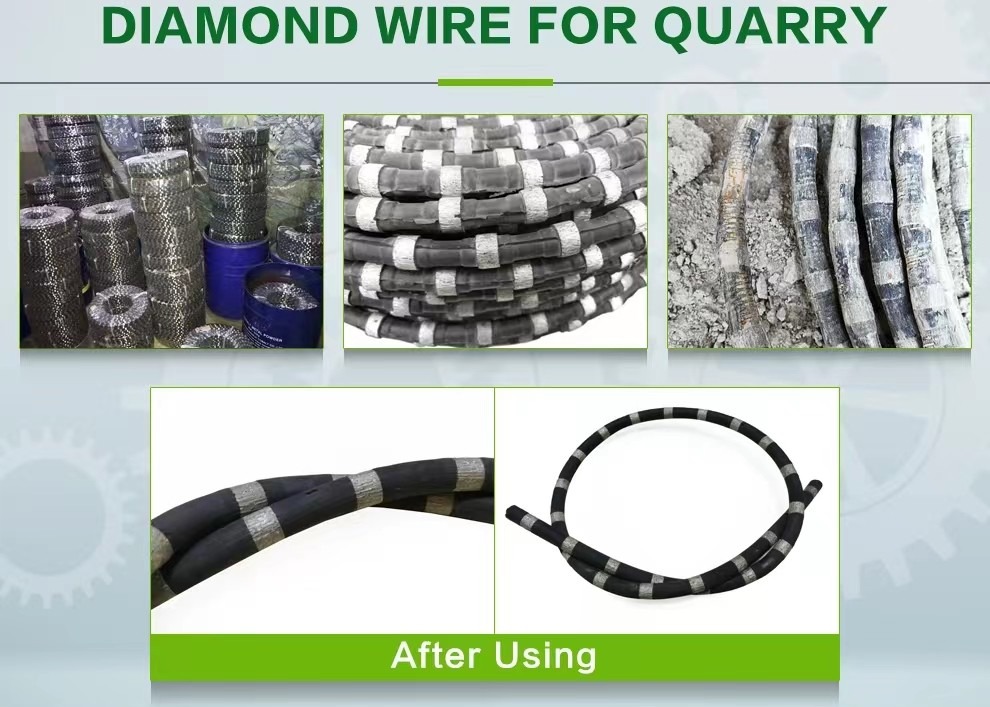

Granite Marble Quarry Stone Diamond Wire Saw Machine 380V 0   Granite Marble Quarry Stone Diamond Wire Saw Machine 380V 1

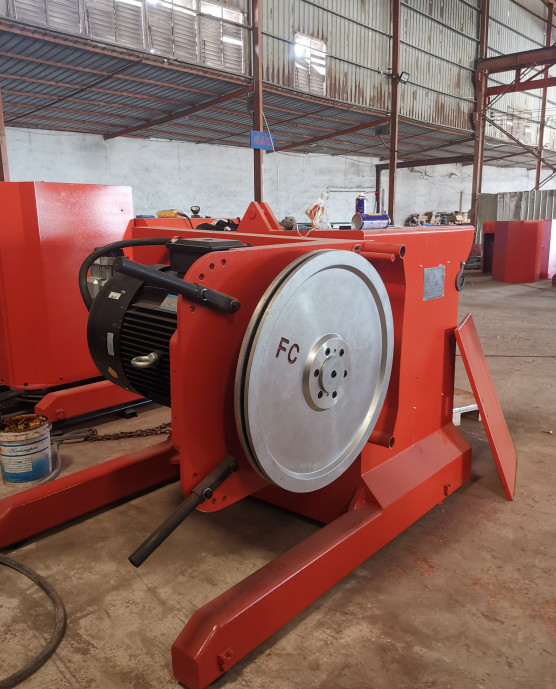

Granite Marble Quarry Stone Diamond Wire Saw Machine 380V 2   Granite Marble Quarry Stone Diamond Wire Saw Machine 380V 3

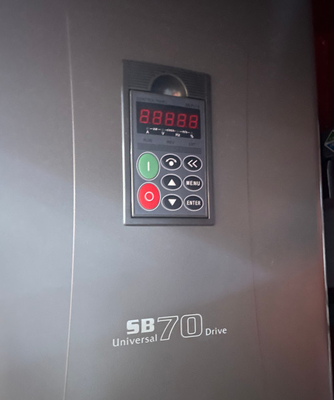

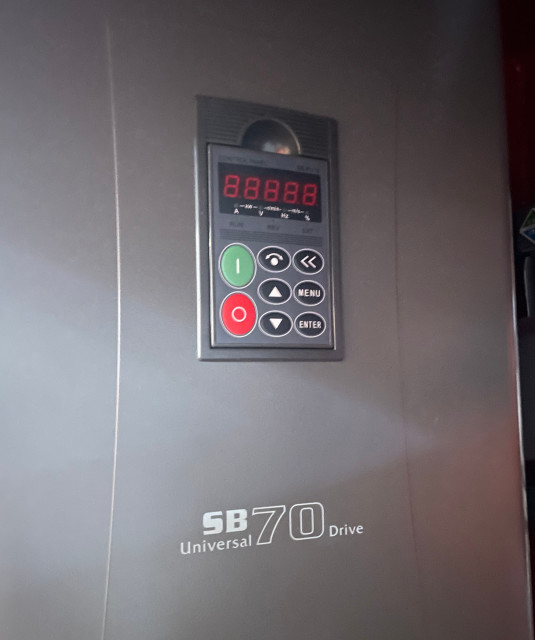

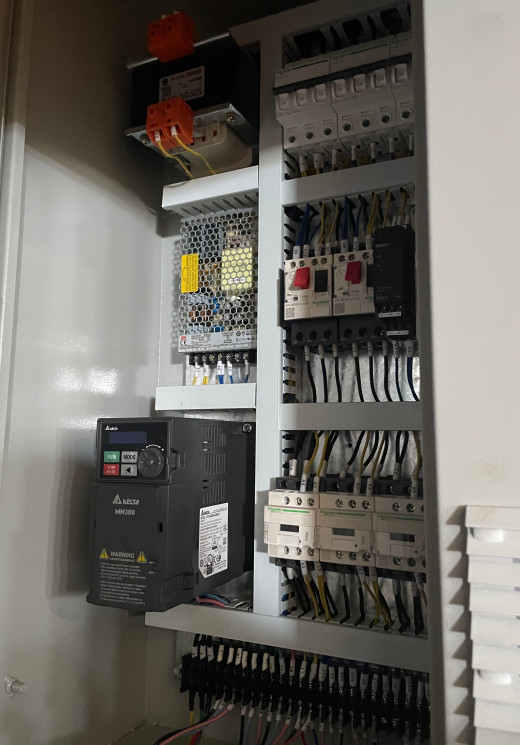

This machine adopts double inverter stepless speed regulation, while cutting, it can achieve constant tension wire cutting process and automatic control, automatic control system can be realized according to the speed of walking machine change science to adjust the load, which is always in the best working state of diamond wire.

Technical Parameter

Parameter Unit YLW-37G YLW-45G YLW-55G YLW-75G
Main Motor kw 37 45 55 75
Wire Speed m/s 0-40
Walking Speed m/h 0-30 0-160
Adjustment Dimension mm 450 500
Cutting Distance mm 1750 2030
Rotation Angle ° 360 (electric)
Outline Dimension mm 2113*1361*1410 2336*1536*1670
Max Wire Length m 60 80 100 120
Gross Weight t 2 2.1 3 3.2



Factory Overviews

Fujian UNIQUE Machinery Co.Ltd was established in 1985 and have been dedicated to the development and producing of a serious of column making machine,wire saw stone cutting machine,block trimming machine, bridge saw cutting machine, profiling stone cutting machine etc.
With the rapid development of company ,we have passed the ISO9001 verifing, CE, and won many honory tiles include International Gold Plant Quality Award etc. We keep " Advanced Tecnology and High Quality" as our aim. We have developed a range of 'UNIQUE' Brand special stone shape processing machines.

Certifications
Granite Marble Quarry Stone Diamond Wire Saw Machine 380V 4
Our Service

* We can provide Machine Testing Video and will be strict inspected and testing for every machines before shipping out.

* After-sales service 24 hour on line. We will service staff training, so that continuously improve the overall quality of service.

* We are responsible for receiving and processing customers on product quality and service quality complaints; We have professional and technical personnel to guide the installation and commissioning of your machine and operator training.

Shipping

Granite Marble Quarry Stone Diamond Wire Saw Machine 380V 5


FAQ
Q: How to place order to your company?
A: 1. Inquiry-Professional quotation.
2. Confirm the price, lead time, logo, payment term etc.
3. Xianda sales send the Proforma Invoice with seal.
4. Customers make the payment as a deposit and send us Bank receipt.
5. Sales confirm the receipt of down payment . After approval, we will arrange the production & inform the estimated time.

Q: How is After-sales Service Provided?
A: Engineer can dispatch for assembly machinery

Q: Are you Manufacture Factory?
A: Yes,that we are the stone machinery factory for over 30 years.
