5 Axis CNC diamond wire saw machine with 360° rotating worktable for 3D shapes

1 set
MOQ
to be Negotiable
Price
5 Axis CNC diamond wire saw machine with 360° rotating worktable for 3D shapes
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Diamond Wire Saw Machine
Application: Cutting,Marble,3D Shapes
Material: Casting
Usage: Marble Quarrying,Rock Cutting,Stone Carving,diamond Wire Saw
Product Name: 5 Axis CNC Diamond Wire Saw Machine
Advantage: High Efficiency Long Life Time,High Working Efficiency,high Quality,Fast Cutting,15 Years Experience
Wire Speed: 0-40m/s
Main Motor: 11kw
Business Type: Manufacturer,Manufacturer And Trading
Max Processing Size: 3000*2500*1500mm
Wire Diameter: 0.6-1.8mm
Automation: Automatic
Wire Length: 10m
Water Consumption: 6m3/H
Control Type: CNC
Cutting Length: 20-60m
Diameter: 8.5mm To 11.5mm
Cutting Precision: High
Spindle: 15KW
Trolley Size: 1400*2500mm
Adjustment Distance: 450mm
Gross Motor: 11kw
Control System: PLC SYSTEM
Rated Power: 2.2kw
Highlight:

11.5mm Marble Wire Saw

,

wire saw for stone 11.5mm

,

diamond wire for granite 11.5mm
Basic Infomation
Place of Origin: Jinjiang, Fujian, China
Brand Name: Xianda Machinery
Certification: CE
Model Number: Discovery 5
Payment & Shipping Terms
Packaging Details: plastic
Delivery Time: 30 days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 1000/year
Product Description
5 Axis CNC Diamond Wire Saw Machine with 360° Rotating Worktable for 3D Shapes
Product Attributes
Attribute Value
Type diamond wire saw machine
Application Cutting, Marble, 3D shapes
Material Casting
Usage Marble Quarrying, Rock cutting, Stone Carving, diamond wire saw
Product name 5 Axis CNC diamond wire saw machine
Advantage High Efficiency Long Life Time, High working efficiency, high quality, Fast Cutting, 15 years experience
Wire speed 0-40m/s
Main motor 11kw
Business type Manufacturer, Manufacturer and Trading
Max Processing Size 3000*2500*1500mm
Wire Diameter 0.6-1.8mm
Automation Automatic
Wire Length 10m
Water Consumption 6m3/H
Control Type CNC
Cutting Length 20-60m
Diameter 8.5mm to 11.5mm
Cutting Precision High
Spindle 15KW
Trolley Size 1400*2500mm
Adjustment Distance 450mm
Gross Motor 11kw
Control System PLC SYSTEM
Rated Power 2.2kw
Basic Information

Model NO.: 5 Axis Diamond Wire Saw For 3D Shapes

Service: Customized

Control System: CNC System

Business Type: Manufacturer

Keywords: CNC Diamond Wire Saw Machine/5 axis

Grade: a-Grade

Usage: Profiling shapes

Shipping: by Sea

Beads Type: Sintered, Electroplated, Brazed

Transport Package: Waterproof Plastic Packaging

Specification: D11.5mm

Trademark: Xianda Machinery

Origin: China

Production Capacity: 1000 sets/year

Product Description

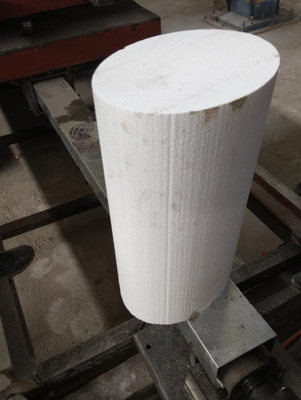

Discovery 5 adopts 5 axis CNC control system, it can process different size arc slabs, column, number, letter, Chinese words also different shapes of marble or granite.

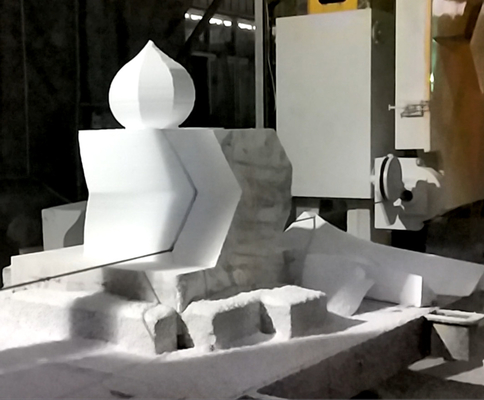

And it can also process 3D shapes. Main body with advanced and unique structure, makes its cutting with excellent precision, stability, efficiency etc advantages. It's the ideal equipment for processing the special shapes stone.

Parameter Unit Discovery 5
Max processing size mm 2600*3000*1500
Trolly size mm 1400*2000
Wire speed m/s 0-40
Main motor kw 11
Outline dimension mm 8000*7000*4250
Gross weight kg 8000
Water consumption m³/h 4
