5 Axis Bridge Cutting Machine With Precision Accuracy And Speed For Cutting And Milling Function
Product Description:

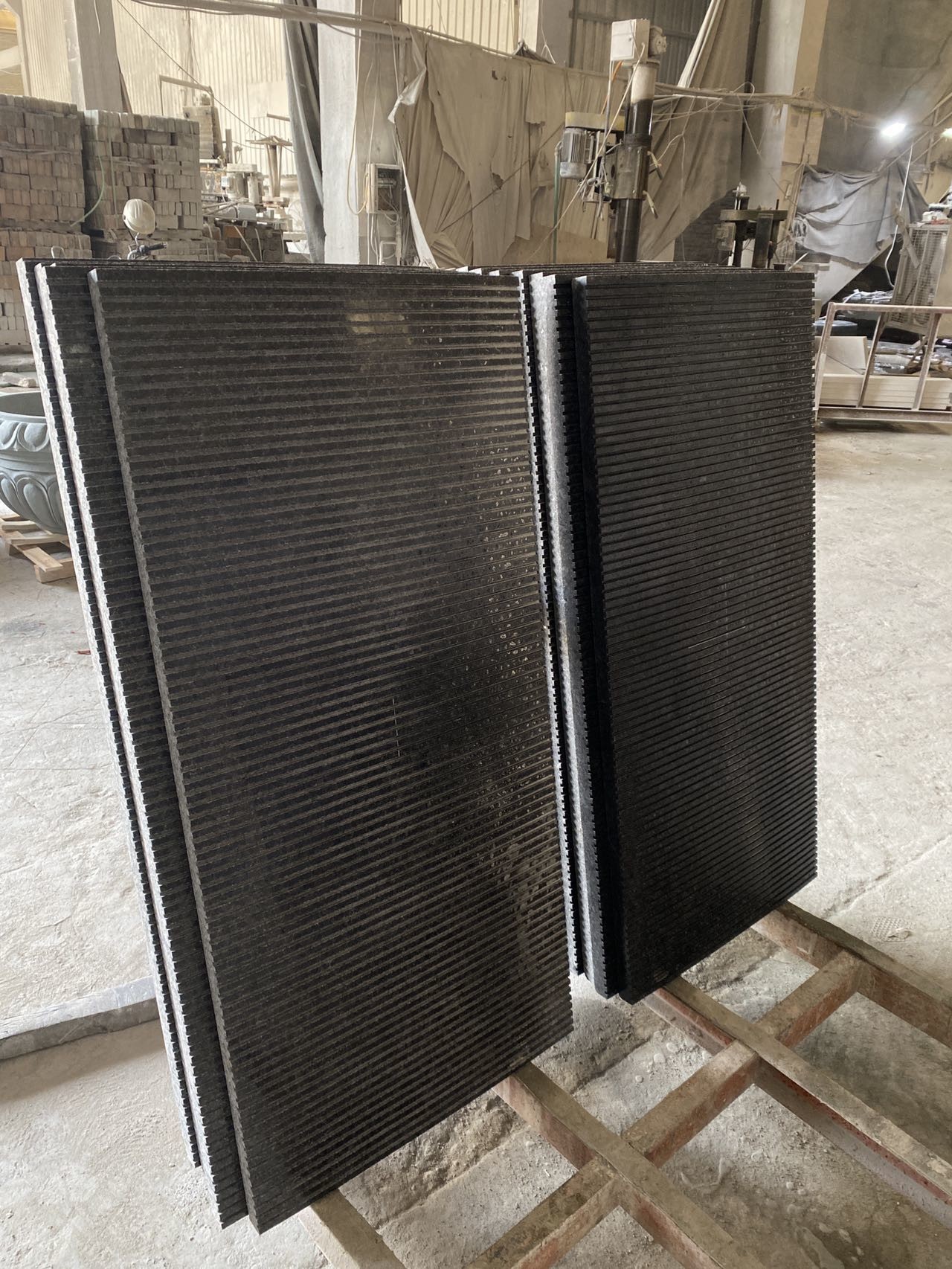

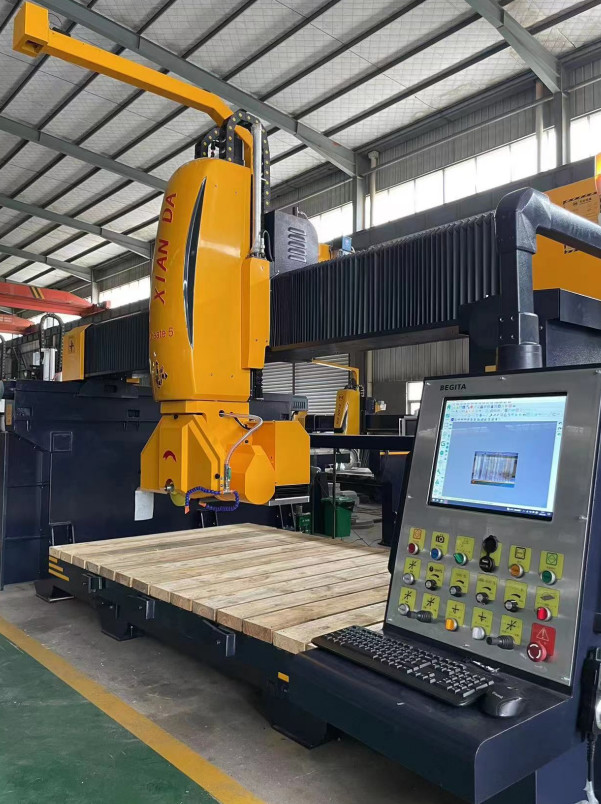

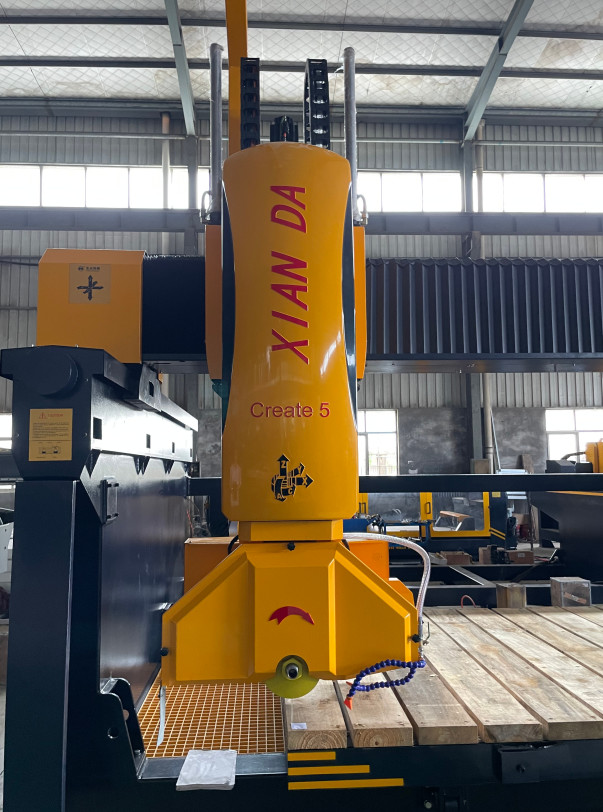

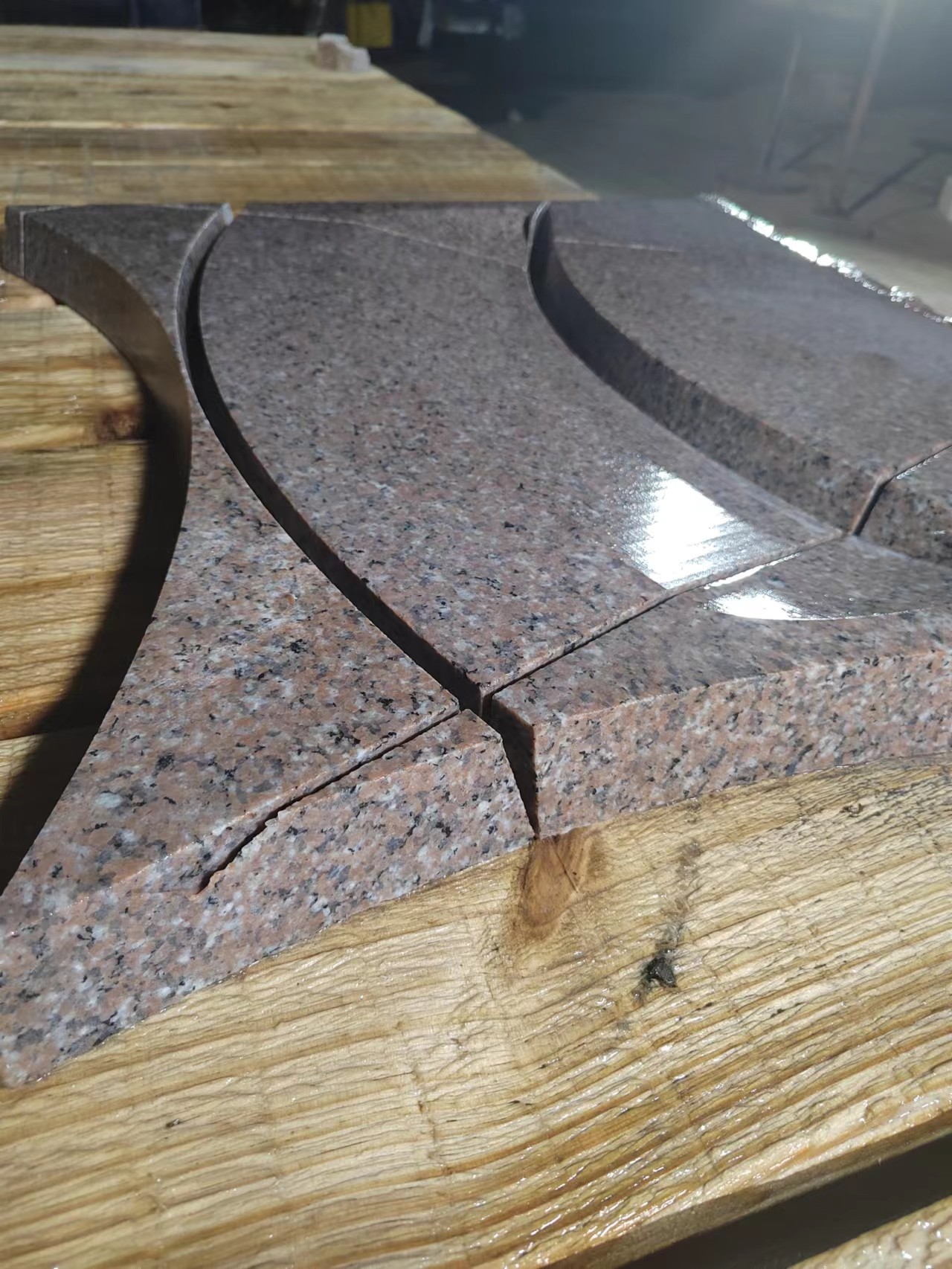

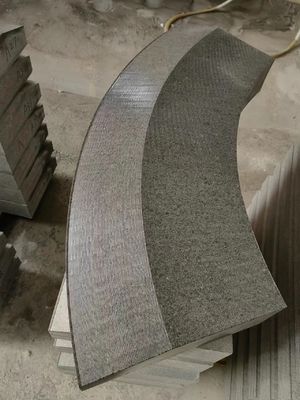

5 Axis Bridge cutting machine adopt 5 Axis linkage CNC System Control, Bus-based absolute value servo (with memory function for power off), high-precision linear guide rail, ball screw transmission, oil-immersed track structure, with multil-function, high precision, strong stabilitly and other advantages. Its processing functions include: arbitrary-shaped lines, fan-shaped plates, wash basin and special-shaped edge profiling, etc. The equipment has multiple processing functions, wide application small space, and simple operation, lt is a great equipment for stone processing.
Applications:
Its processing functions include: arbitrary-shaped lines, fan-shaped plates, wash basin and special-shaped edge profiling, etc. The equipment has multiple processing functions, wide application small space, and simple operation, lt is a great equipment for stone processing.
Support and Services:
- Installation and training services to ensure proper setup and use of the machine
- 24/7 technical support to assist with any issues or questions that may arise
- Regular maintenance and repair services to keep the machine operating at peak performance
- Upgrades and customization options to meet specific customer needs
Packing and Shipping:
Product Packaging:
The stone slab cutting machine will be securely packaged in a wooden crate to ensure safe transportation. The machine will be wrapped with foam and bubble wrap to prevent any damage during shipping.
Shipping:
Shipping of the stone slab cutting machine will be handled by a reputable freight carrier. The shipping cost will depend on the destination and will be calculated at checkout. Please allow 2-3 business days for processing and handling before the machine is shipped out.
| Parameter |
Unit |
Create 450 |
Create 600 |
| Blade diameter range |
mm |
350-450 |
350-600 |
| Max processing size |
mm |
3200*2000*120 |
3400*2000*180 |
| Lifting stroke |
mm |
300 |
500 |
| Worktable size |
mm |
3200*2000 |
3400*2000 |
| Table tilting degree |
° |
0-85° |
0-85° |
| Head rotating degree |
° |
0-360° |
0-360° |
| Head tilting degree |
° |
0-90° |
0-90° |
| Air speed |
m/min |
15 |
15 |
| Repeated accuracy of positioning |
mm |
0.1mm/1000 |
0.1mm/1000 |
| Main motor |
kw |
18.5(permanent magnetic synchronous motor) |
22(permanent magnetic synchronous motor) |
| Gross power |
kw |
26 |
30 |
| Water consumption |
m³/h |
3 |
3 |
| Outline dimension |
mm |
5600*3600*3500 |
5800*3650*3900 |
| Gross weight |
kg |
6000 |
7500 |
