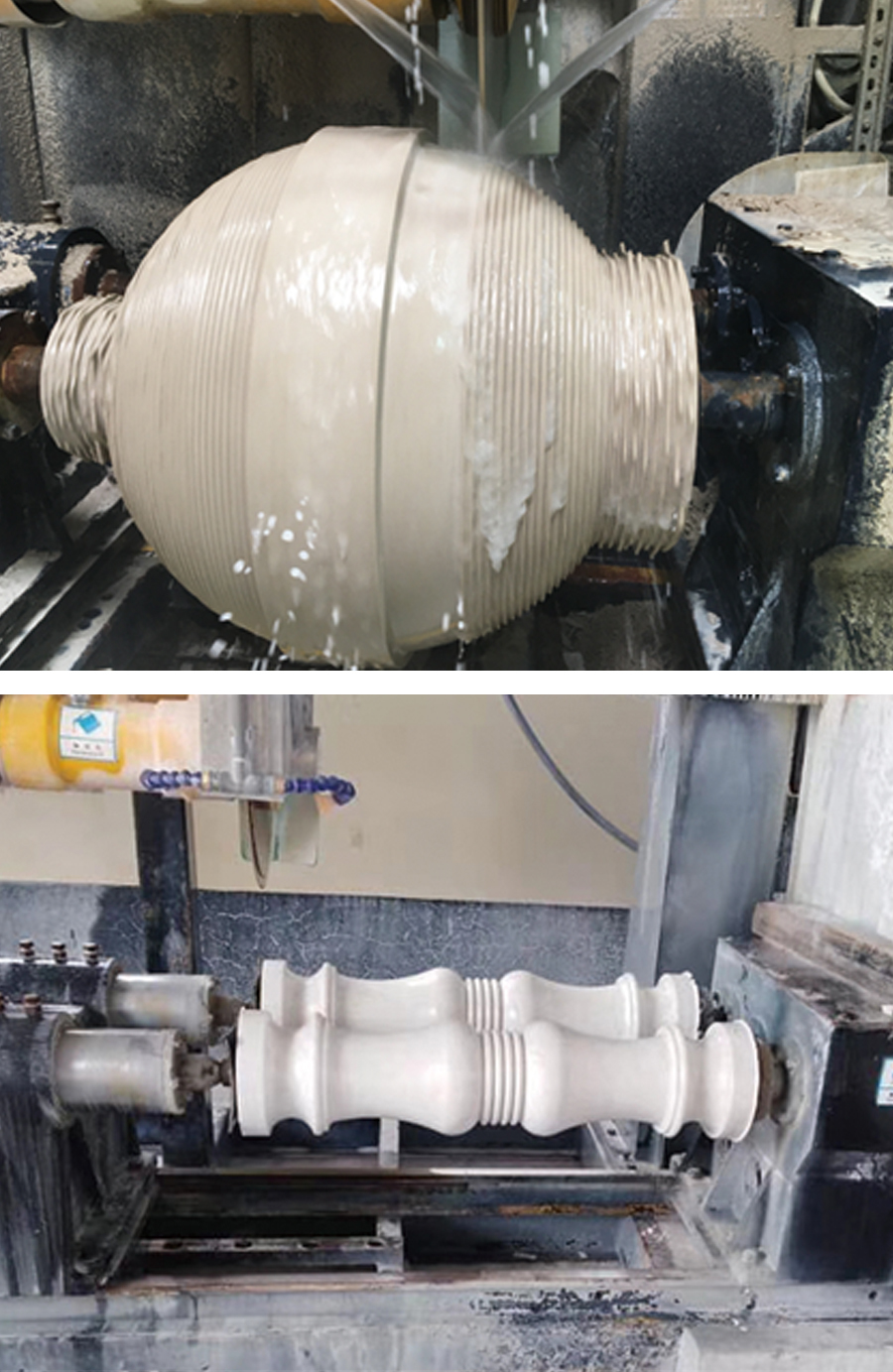

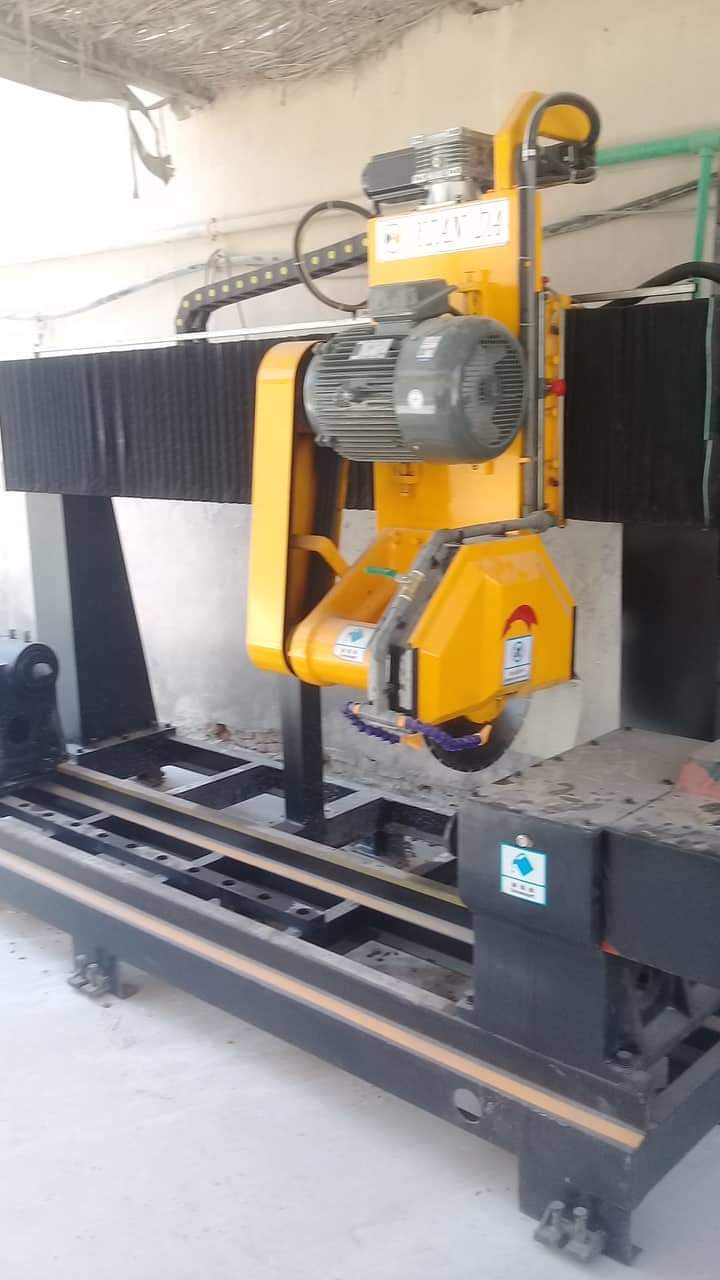

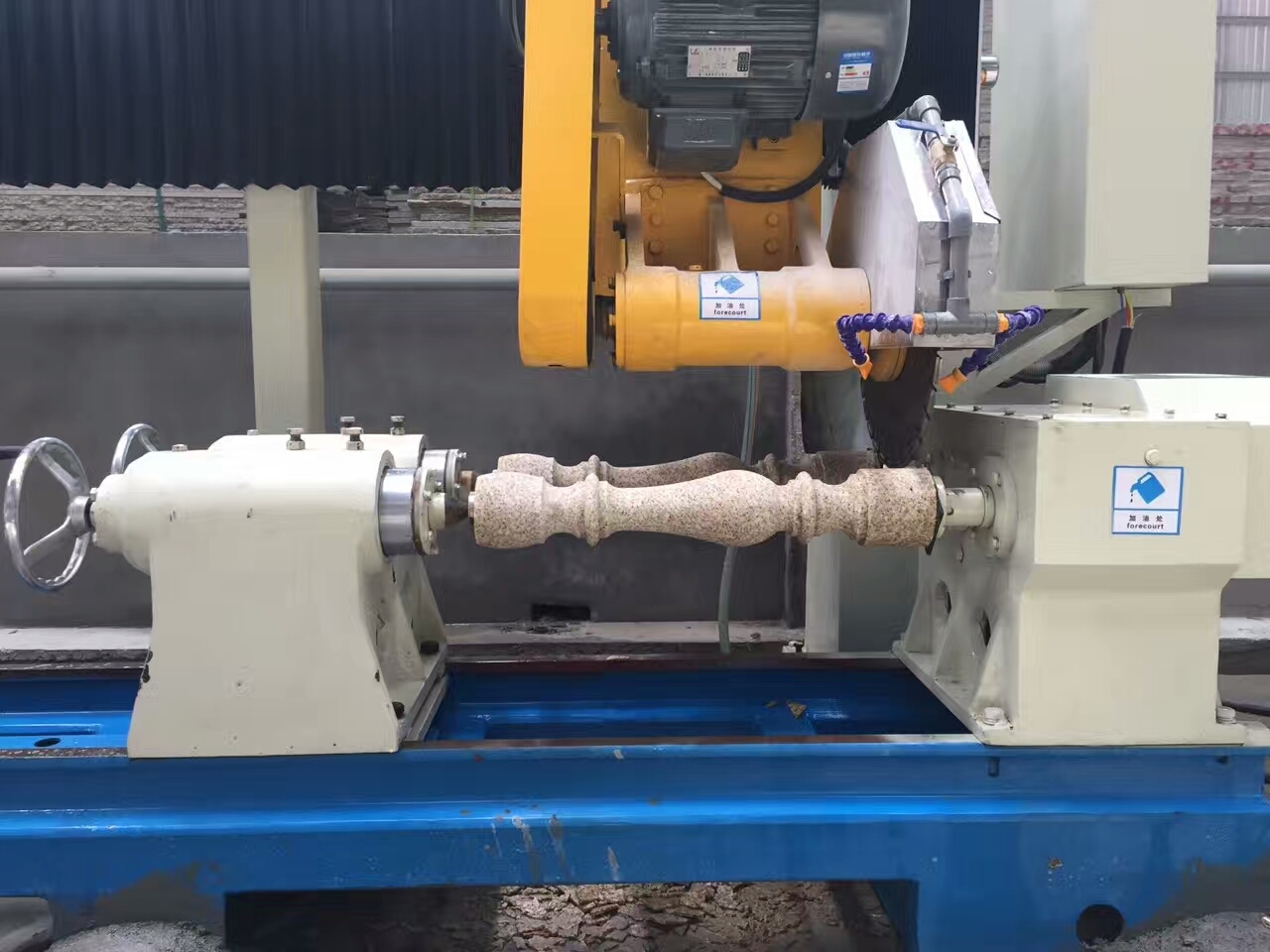

This machine adopts PLC/CNC control with three inverters, featuring a simple and practical structure with high efficiency. It is dedicated to processing balusters, pillars, column bases, column caps, roadblocks, benches, and other stone components.

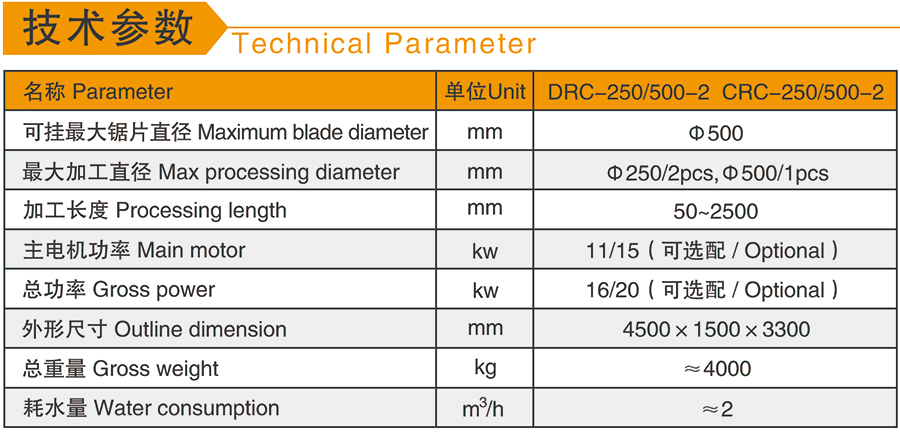

| Specification | Value |
|---|---|
| Max blade diameter | φ500mm |
| Max processing diameter | φ250/2pcs, φ500/1piece |
| Processing length | 50-2500mm |
| Main motor | 11kw/15kw (Optional) |
| Gross power | 16/20kw (Optional) |
| Outline dimension | 4500 x 1500 x 3300 |
| Gross weight | 4200kg |
| Water consumption | 2m³/h |
Engineer can be dispatched for machinery assembly and technical support.
Yes, we are the stone machinery factory established since 1985, with 41 years of manufacturing experience.
We provide one year parts warranty service.

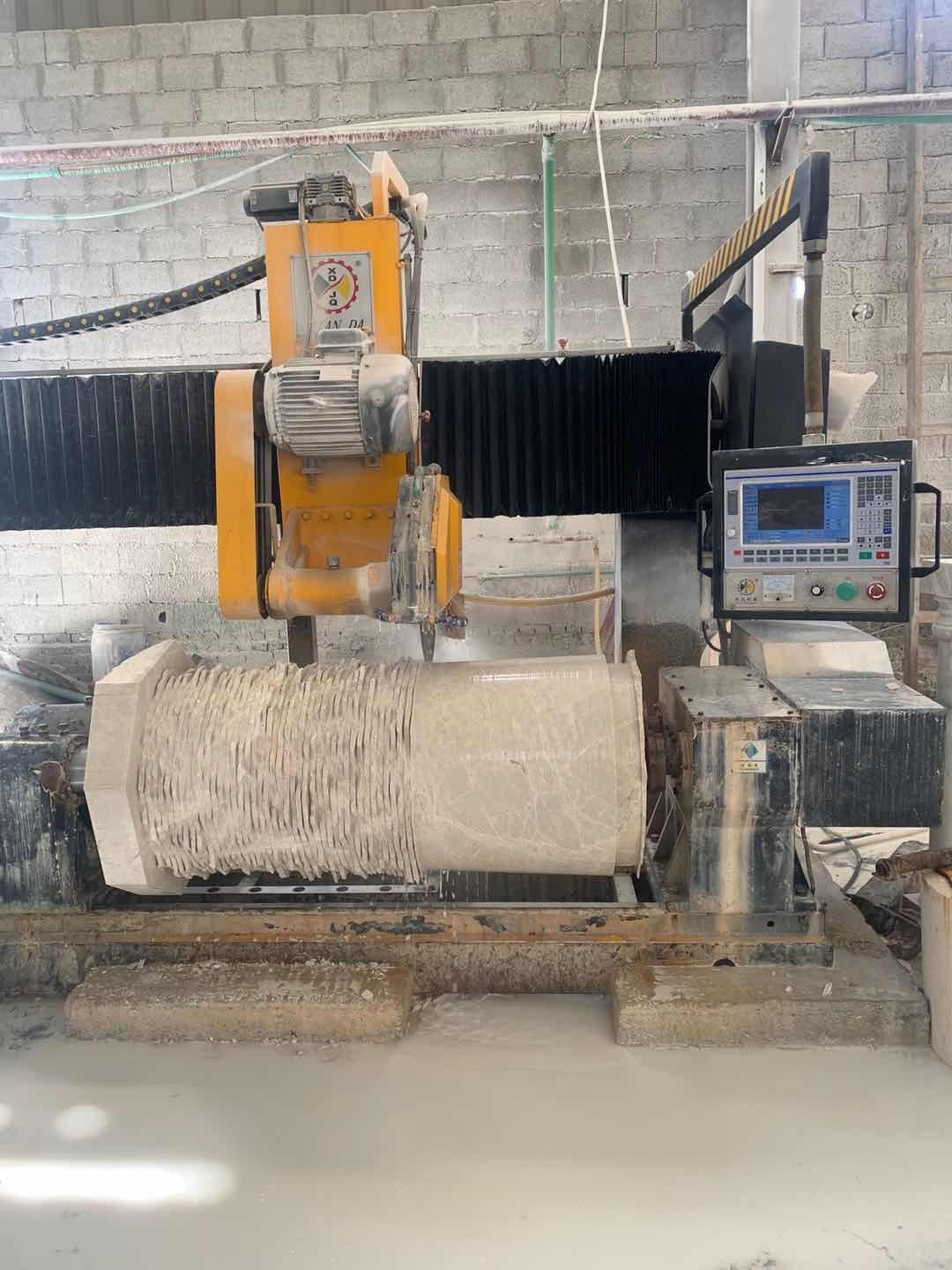

This machine is designed to cut lines on stone including columns, big arc shaped slabs, and special stone shapes.
