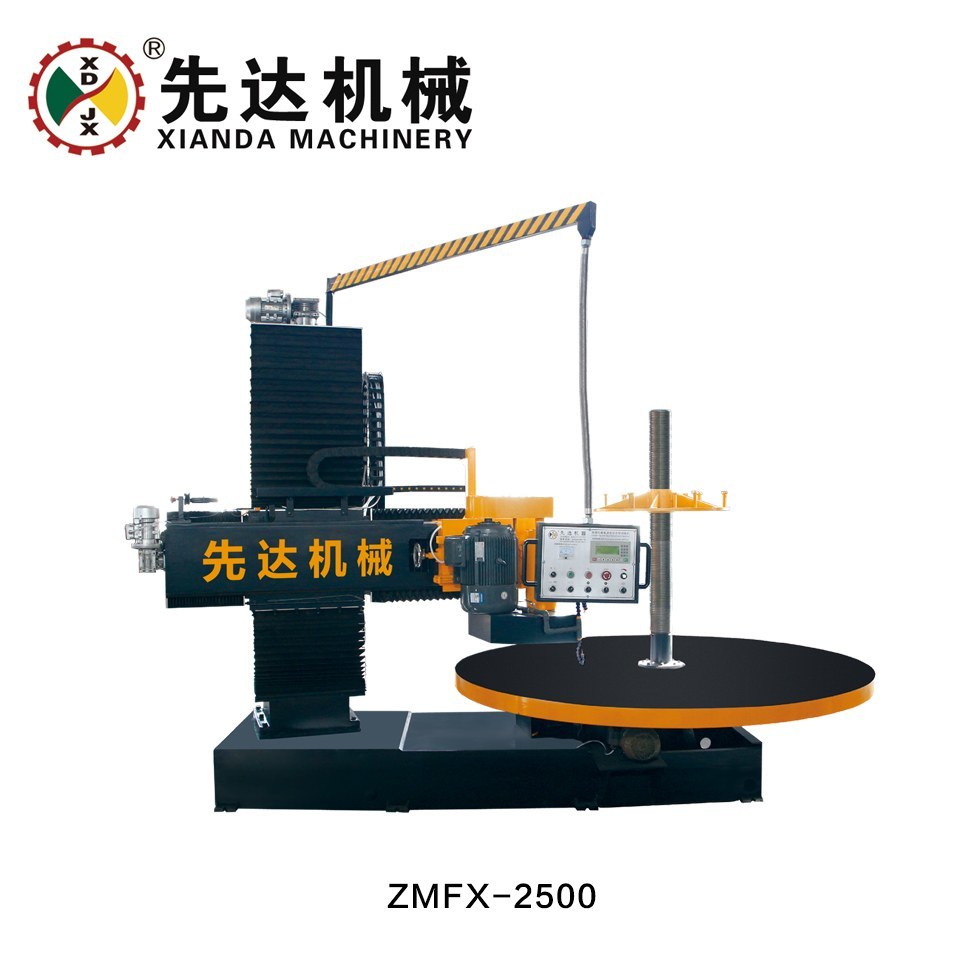

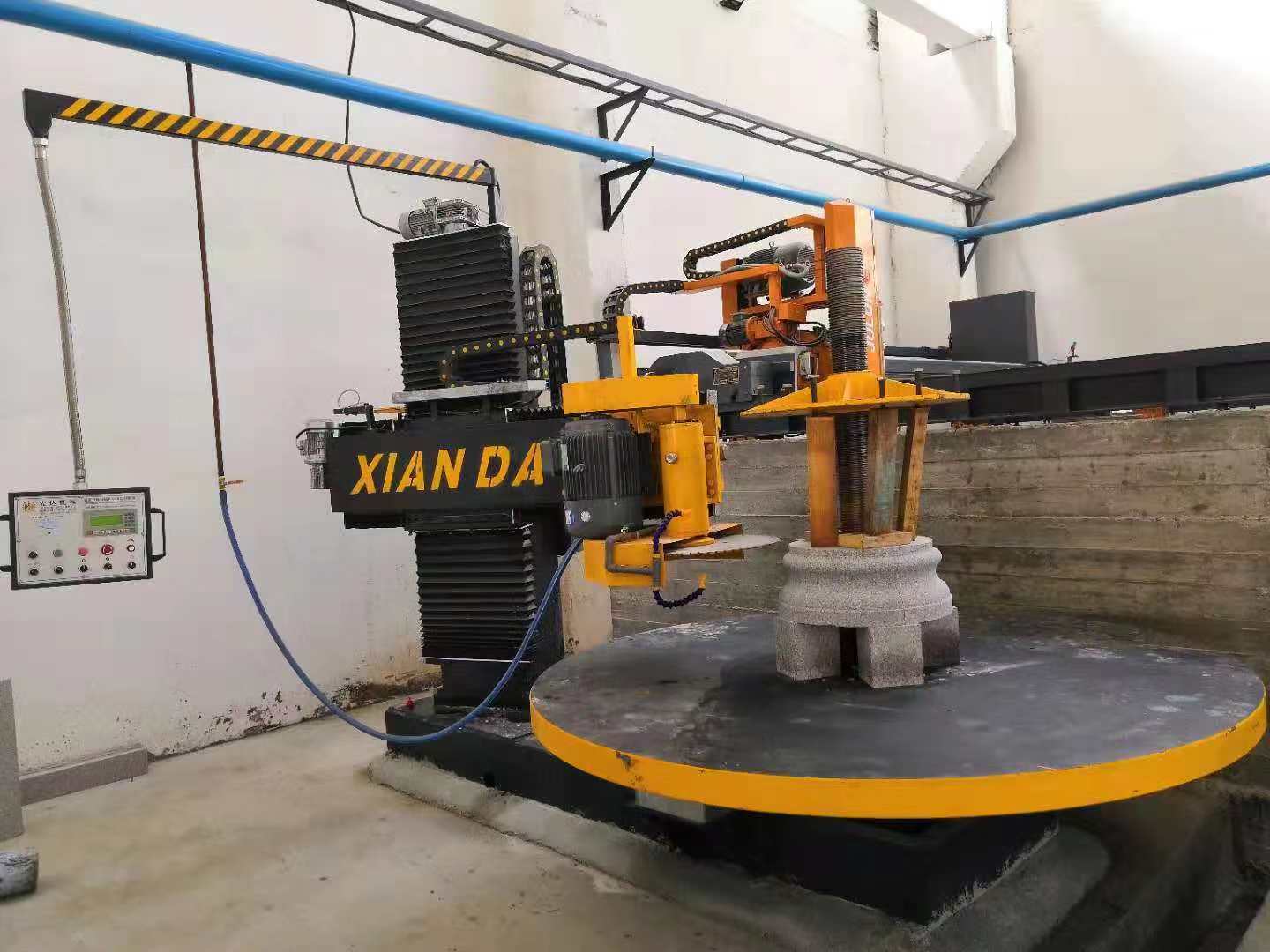

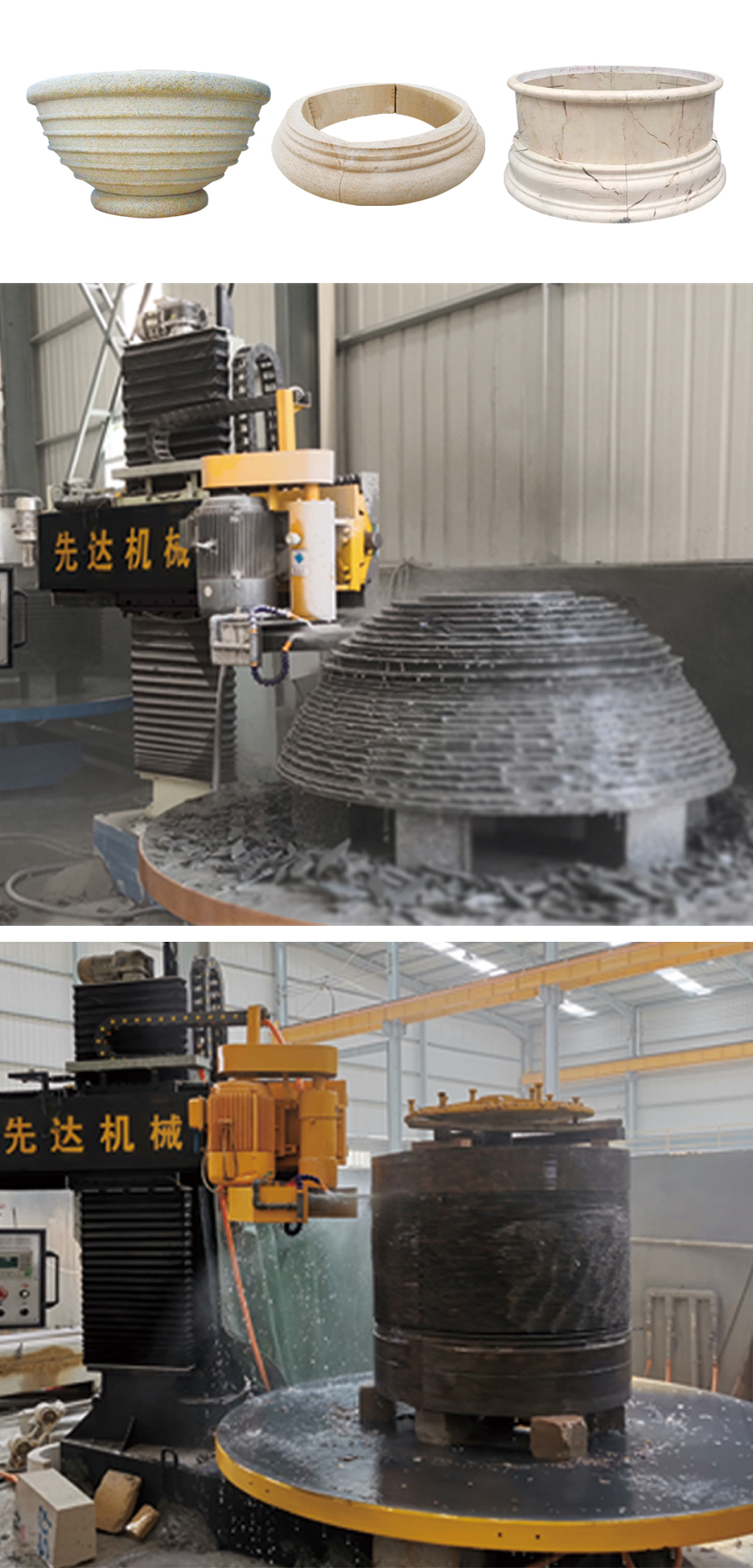

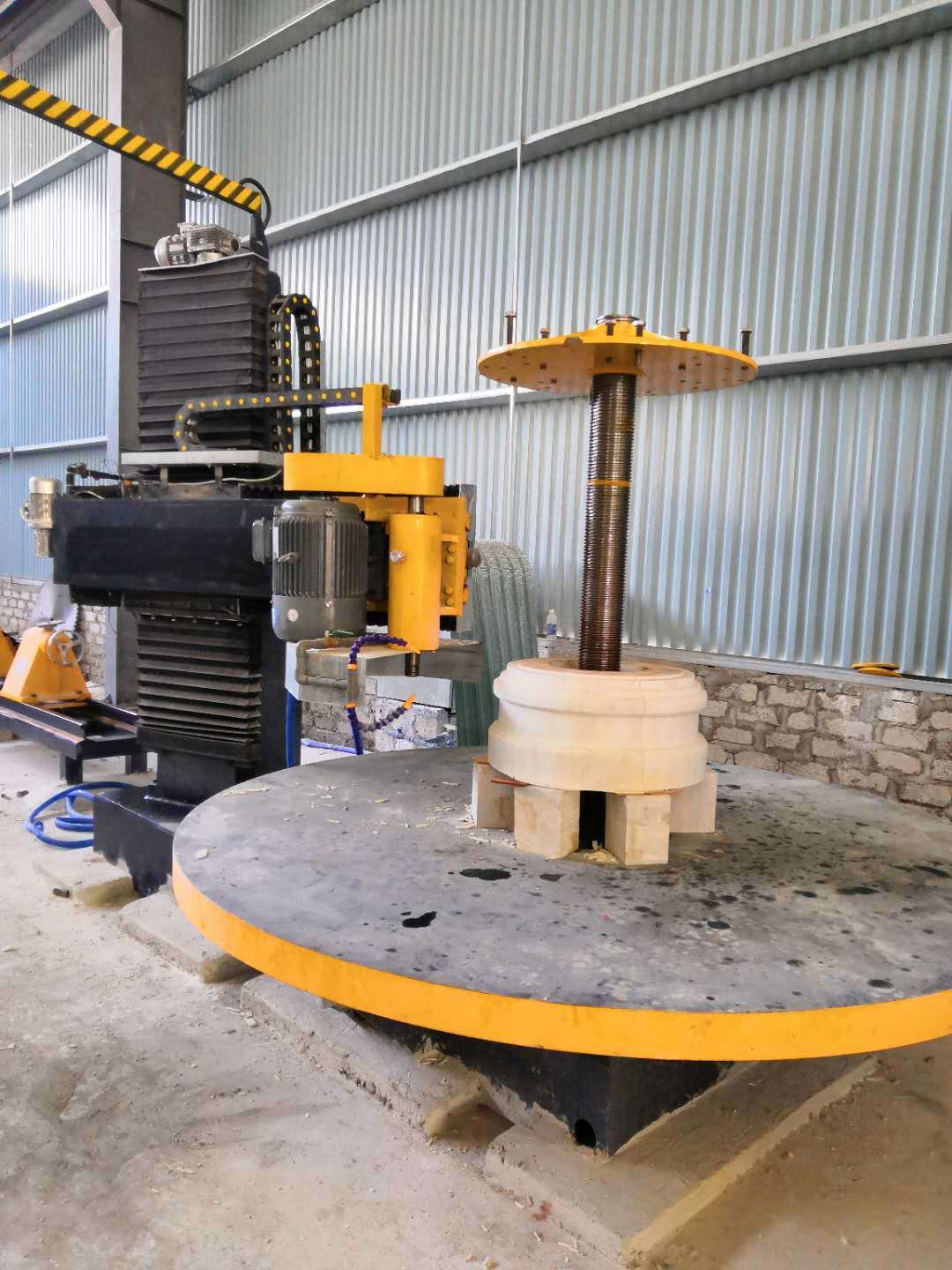

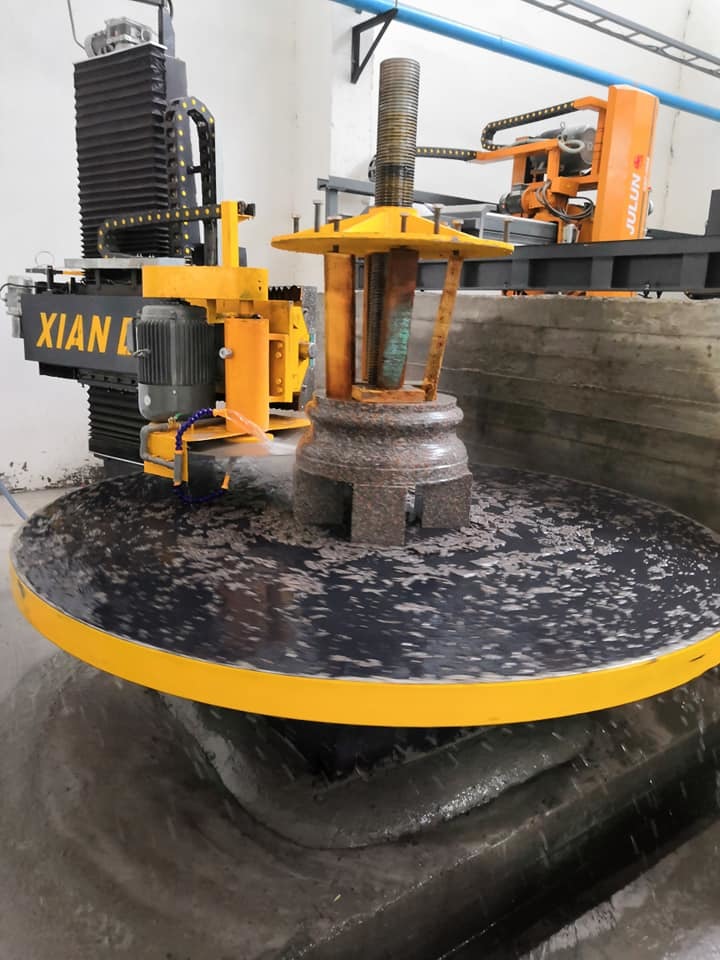

This column cap and base profiling machine adopts vertical lathe structure principles in its design. Featuring computer automatic profiling and lifting capabilities, it addresses the limitations of high consumption in hand-processing and poor precision. The advanced technology significantly reduces processing costs while improving efficiency.

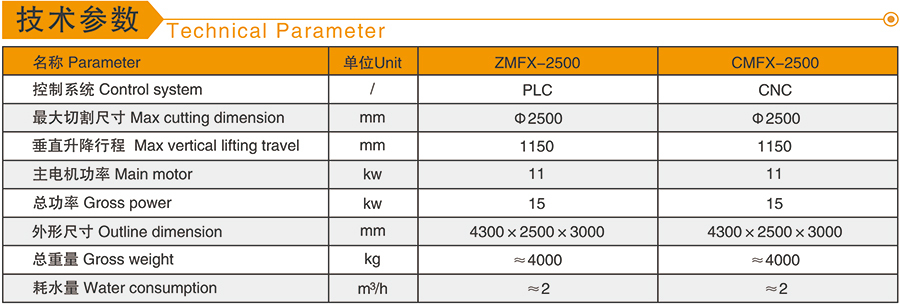

| Parameter | ZMFX-2500 | CMFX-2500 |
|---|---|---|
| Control System | PLC | CNC |
| Max cutting dimension | φ2500mm | φ2500mm |
| Max vertical lifting travel | 1150mm | 1150mm |
| Main motor | 11kw | 11kw |
| Gross power | 15kw | 15kw |
| Outline dimension | 4300 x 2500 x 3000mm | 4300 x 2500 x 3000mm |
| Gross weight | 4000kg | 4000kg |
| Water consumption | 2m³/h | 2m³/h |
