Name: 3 Axis CNC Linear Cutting and Milling Machine High Precision Stone and Kerbstone Profiling Machine
Brand: Fujian Xianda Machinery co.,ltd
SKU: BLMM-1800 BLMM-1800MAX-A/B BLMM-1800MAX-2D-A/B
Price: 11,016.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Name: Bridge Type Linear Cutting Ang Mililing Machine

Type: Stone Cutting Machine,CNC Router,Bridge Saw,Bridge Style 5 Axis Waterjet Cutting Machine,Waterjet Cutting Machine

Control: CNC

Condition: New

Motor: Normal System Or Servo Motor(Optional)

Voltage: 380V

Warranty: 1 Year

Application: Stone Industrial,Linear/Square Balusters,Special-Shaped Kerbstones,Architectural Moldings,Landscaping Features

Highlight:

3 axis CNC linear cutting machine

high precision stone profiling machine

kerbstone milling machine with warranty

Basic Infomation

Place of Origin: Jinjiang, Fujian, China

Brand Name: Xianda Machinery

Certification: API, CCC, SONCAP, GOST, ISO, CE, SGS;IAF

Model Number: BLMM-1800 BLMM-1800MAX-A/B BLMM-1800MAX-2D-A/B

Payment & Shipping Terms

Packaging Details: Plastic Package, Suitable For Sea Transportation

Delivery Time: 1 Month

Payment Terms: L/C， T/T， D/P， Western Union ，Paypal ，Money Gram， Others

Supply Ability: 1000 Sets/Year

Gallery

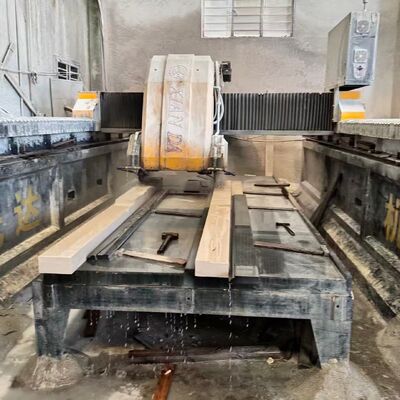

3 Axis CNC Linear Cutting and Milling Machine High Precision Stone and Kerbstone Profiling Machine

Product Description

3 Axis CNC Linear Cutting and Milling Machine High Precision Stone and Kerbstone Profiling Machine

Bridge Type Linear Cutting and Milling Machine

BLMM-1800 bridge type linear cutting and milling machine is a professional 3-axis CNC stone processing equipment developed by XIAN DA Machinery.

Equipped with a mature 3-axis CNC control system, the machine can complete rough cutting, fine cutting and finish milling in one workflow. Adopting rigid bridge frame structure, the cutting head lifts via guide pillar with copper bush. It combines the strong cutting power of profiling machines and the high precision of linear guide & ball screw transmission.

Core Equipment Features

3-Axis CNC Intelligent Control System: Supports automatic rough cutting, fine cutting and finish milling continuously. Easy programming, compatible with various 2D stone profiling files.
Stable Bridge-Type Structure: Integrated heavy bridge frame, overall stress relief treatment, long-time operation without deformation.
Guide Pillar Lifting with Copper Bush: The cutting frame moves vertically through guide pillars and copper bush assembly, low friction, stable lifting movement, long service life.
Combined Strength & Precision: Integrates powerful cutting capacity of profiling machines and high precision brought by linear guide and ball screw transmission, smooth finished surface.
Wide Processing Scope: Suitable for linear stone, square balusters, stone railings, special-shaped road kerbstones and architectural decorative stone profiles.
Optional Motor Configuration: Two options of main motor power (15kw /18.5kw) and total power (21kw /24.5kw) to match different stone hardness and production capacity demands.

Machine Images

Technical Specifications

Parameter	Unit	BLMM-1800	BLMM-1800MAX-A	BLMM-1800MAX-B	BLMM-1800MAX-2D-A	BLMM-1800MAX-2D-B
Blade diameter	mm	350-600	400-700	400-700	400-700	400-700
Max lifting travel of cutting frame	mm	450	600	600	600	600
Worktable Size	mm	1800*3500	1800*3500	1800*3500	180035002	180035002
Max processing length	mm	3500	3500	3500	3500	3500
Main motor	kw	15/18.5(Optional)	18.5/22(Optional)	18.5/22(Optional)	18.52/222(Optional)	18.52/222(Optional)
Gross motor	kw	21/24.5(Optional)	24/27.5(Optional)	24/27.5(Optional)	46/53	46.5/53.5
Outline dimension	mm	530039502550	650043503600	620041003600	650064503600	620062003600
Water Consumption	m³/h	6	6	6	12	12

Product Attributes

Name	Bridge Type Linear Cutting and Milling Machine
Type	Stone Cutting Machine, CNC Router, Bridge Saw, Bridge Style 5 Axis Waterjet Cutting Machine, Waterjet Cutting Machine
Control	CNC
Condition	New
Motor	Normal System or Servo Motor (Optional)
Voltage	380V
Warranty	1 Year
Application	Stone Industrial, Linear/Square Balusters, Special-Shaped Kerbstones, Architectural Moldings, Landscaping Features

Support and Services

Installation guidance and setup assistance for the machine
Troubleshooting support for any technical issues that may arise
Training sessions for operators on efficient machine operation
Regular maintenance services to ensure optimal performance and longevity

Packing and Shipping

Product Packaging: The machine is carefully packed to ensure safe transportation. It is securely fixed within the crate to prevent any damage during shipping.

Shipping: We ship worldwide using trusted shipping services. The machine is shipped in protective wooden crates to safeguard it during transit. Customers receive tracking information to monitor delivery status.
