6-Axis CNC Robot Stone Cutting Machine with Interpolated Control and BT40 Spindle for Large-Scale Carving up to 3100mm

1 set
MOQ
To Be Negotiable
Price
6-Axis CNC Robot Stone Cutting Machine with Interpolated Control and BT40 Spindle for Large-Scale Carving up to 3100mm
Features Gallery Product Description Request A Quote
Features
Specifications
Number Of Axes: 6-Axis Interpolated Control (Optional 7th Axis Rotary Table)
Max Working Radius: Reach Up To 2700mm - 3100mm (Customizable For Large-scale Sculptures)
Max Payload: 275kg
Rated Load: 210kg
Position Repeatability: ±0.05mm
Max Working Range: 2701mm
Spindle Type: BT40
Spindle Power: 15KW
Spindle Speed: 18000rpm
Protection Grade: IP65/IP67
Total Power: 35KW
Highlight:

6-Axis Interpolated Control CNC Stone Carving Machine

,

BT40 Spindle Stone Cutting Robot

,

3100mm Working Radius CNC Stone Carving Machine
Basic Infomation
Place of Origin: China
Brand Name: Xianda Machinery
Certification: API, CCC, SONCAP, GOST, ISO, CE, SGS;IAF
Model Number: KR210
Payment & Shipping Terms
Packaging Details: Plastic Package, Suitable For Sea Transportation
Delivery Time: 1 Month
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Supply Ability: 1000 Sets/Year
Product Description

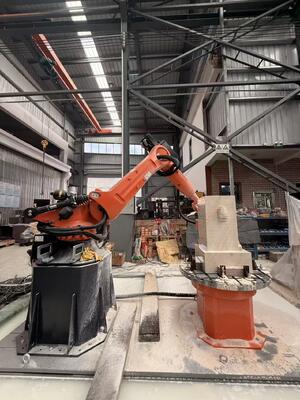

6-Axis CNC Robot Stone Cutting Machine
Advanced 6-axis CNC robot stone cutting system featuring interpolated control technology with optional 7th axis rotary table for enhanced precision carving capabilities up to 3100mm.
Key Specifications
• Maximum Carving Capacity: 3100mm
• Spindle Type: BT40 Industrial Spindle
• Control System: Advanced Interpolated Control
• Axes Configuration: 6-Axis Robotic Arm with Optional 7th Axis
Advanced Features
  • 6-axis robotic arm for complex stone carving applications
  • Advanced interpolated control system for smooth operation
  • Optional 7th axis rotary table for expanded capabilities
  • Precision carving and cutting of stone materials
  • Industrial-grade construction for manufacturing environments
Industrial Applications
  • Architectural stone work
  • Monument carving
  • Decorative stone elements
  • Precision stone fabrication requiring complex multi-axis cutting operations
