6-Axis CNC Robot Stone Cutting Machine with Interpolated Control and BT40 Spindle for Large-Scale Carving up to 3100mm

1 set
MOQ
To Be Negotiable
Price
6-Axis CNC Robot Stone Cutting Machine with Interpolated Control and BT40 Spindle for Large-Scale Carving up to 3100mm
Features Gallery Product Description Request A Quote
Features
Specifications
Number Of Axes: 6-Axis Interpolated Control (Optional 7th Axis Rotary Table)
Max Working Radius: Reach Up To 2700mm - 3100mm (Customizable For Large-scale Sculptures)
Max Payload: 275kg
Rated Load: 210kg
Position Repeatability: ±0.05mm
Max Working Range: 2701mm
Spindle Type: BT40
Spindle Power: 15KW
Spindle Speed: 18000rpm
Protection Grade: IP65/IP67
Total Power: 35KW
Highlight:

6-Axis Interpolated Control CNC Stone Cutting Machine

,

Optional 7th Axis Rotary Table Diamond Wire Saw Machine

,

Stone Carving 6-Axis CNC Robot
Basic Infomation
Place of Origin: China
Brand Name: Xianda Machinery
Certification: API, CCC, SONCAP, GOST, ISO, CE, SGS;IAF
Model Number: KR210
Payment & Shipping Terms
Packaging Details: Plastic Package, Suitable For Sea Transportation
Delivery Time: 1 Month
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Supply Ability: 1000 Sets/Year
Product Description

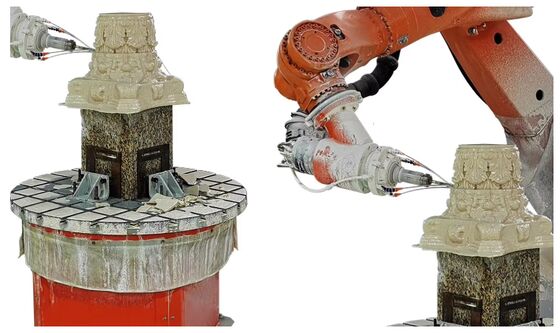

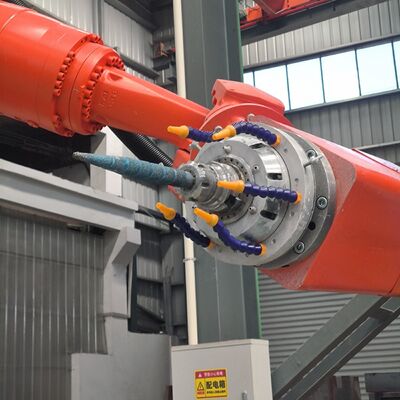

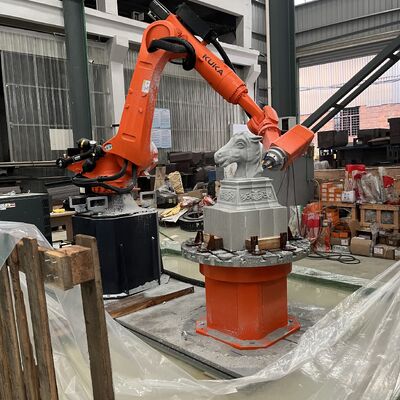

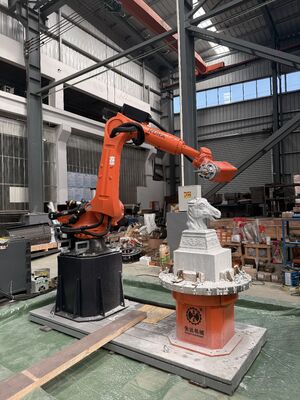

6-Axis CNC Robot Stone Cutting Machine for Carving
Advanced 6-axis CNC robot stone cutting system featuring interpolated control technology with optional 7th axis rotary table for enhanced precision carving capabilities.
Key Features
  • 6-axis robotic arm for complex stone carving applications
  • Advanced interpolated control system for smooth operation
  • Optional 7th axis rotary table for expanded capabilities
  • Precision carving and cutting of stone materials
  • Industrial-grade construction for manufacturing environments
Applications
Ideal for architectural stone work, monument carving, decorative stone elements, and precision stone fabrication requiring complex multi-axis cutting operations.
