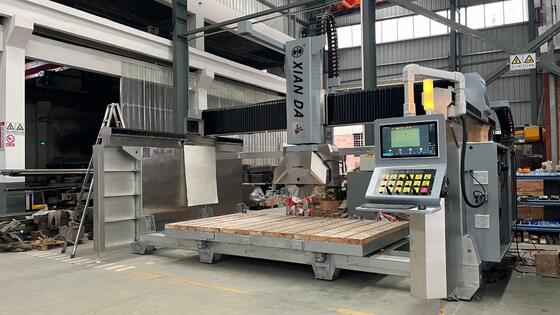

CE 5-Axis Bridge Stone Cutter Italian DDX System 900mm Saw Blade with Optional Protective Sliding Door
Xianda Machinery CNC Granite Marble Bridge Saw 5 Axis Stone Cutting Profiling Machine for Countertop

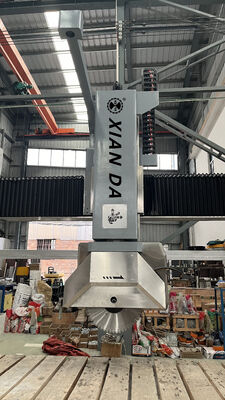

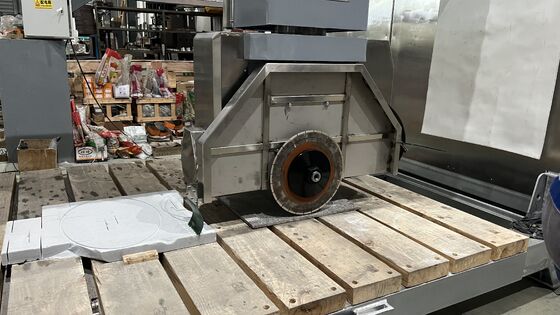

Detailed Product Photos
Advanced 5-Axis CNC Technology
This 5-Axis Bridge cutting machine features 5-Axis linkage CNC System Control with bus-based absolute value servo (with memory function for power off), high-precision linear guide rail, ball screw transmission, and oil-immersed track structure. The machine offers multi-function capabilities, high precision, and strong stability advantages. Processing functions include: arbitrary-shaped lines, fan-shaped plates, wash basin cutting, and special-shaped edge profiling. The equipment provides multiple processing functions, wide application range, compact footprint, and simple operation, making it an excellent choice for professional stone processing.
Technical Specifications
| Parameter |
Unit |
Create 900 |
| Blade Diameter |
mm |
φ400-φ900 |
| Worktable Size |
mm |
3500×2000 |
| Max Processing Size |
mm |
3500×2000×320 |
| Table Tilting Degree |
° |
0°-85° |
| Head Rotating Degree |
° |
0°-360° |
| Head Tilting Degree |
° |
0°-90° |
| Air Speed |
m/min |
30 |
| Repeated Accuracy of Positioning |
mm |
<0.1mm/1000 |
| Main Motor |
kw |
30 |
| Gross Power |
Kw |
40 |
| Water Consumption |
m³/h |
3 |
| Outline Dimension |
mm |
6200×4000×4350 |
| Gross Weight |
kg |
8200 |
Manufacturer Profile
Fujian Xianda Machinery Co., Ltd is a leading manufacturer of stone cutting machines and tools in China, established in 1985 and covering 20,000m³ area located in Jinjiang Wuli Industrial area. The company is situated near the world's longest and oldest stone bridge, "Wuli Bridge," and adjacent to the world's largest stone market in Shuitou.
With over 34 years of experience specializing in developing and producing diamond wire saw machines, column processing machines, bridge cutting machines, carving machines, profiling linear machines, and baluster machines, Xianda occupies approximately 80% of the Chinese market for column processing machines and serves users in over 30 countries worldwide.
Since its foundation in 1985, Xianda has maintained "Top Technology and Superior Quality" as its standard for all machines, earning CE certification, ISO Quality Gold Award, and recognition as "China Recommend Building Manufacture Enterprise" and "3A Enterprise Credit Evaluation." The company actively supports education and public welfare initiatives.
Xianda's mission is to "Create the highest value of your stone," and the company welcomes all inquiries and contacts.
After Sales Service
We provide machine testing videos and conduct strict inspections and testing for every machine before shipping. Our after-sales service is available 24 hours online. We provide staff training to continuously improve overall service quality.
We are responsible for receiving and processing customer complaints regarding product quality and service quality. Our professional technical personnel guide machine installation, commissioning, and provide operator training.
Frequently Asked Questions
Q: How to place order to your company?
A: 1. Inquiry - Professional quotation.
2. Confirm price, lead time, logo, payment terms, etc.
3. Xianda sales sends Proforma Invoice with seal.
4. Customer makes payment deposit and sends bank receipt.
5. Sales confirms receipt of down payment. After approval, we arrange production and provide estimated completion time.
Q: How is After-sales Service Provided?
A: Our engineers can be dispatched for machinery assembly and technical support.
Q: Are you Manufacturer?
A: Yes, we are the stone machinery factory with over 30 years of manufacturing experience.
