High-Performance Bridge Type Automatic Grinding Machine for Stone Processing

1
MOQ
To Be Negotiable
Price
High-Performance Bridge Type Automatic Grinding Machine for Stone Processing
Features Gallery Product Description Request A Quote
Features
Specifications
Structure: Bridge-Structure
Control: CNC
Material: Marble, Granite, And Natural Stone Surfaces
Main Motor: 15kw
Total Power: 19kw
Outline Dimension: 6000*4250*1550mm
Lifting Stroke: 250mm
Grinding Head Type: Six-claw Grinding Head
Air Compressor Support: 3 Kw
Extended Travel Range: 2200/4500mm
Water Consumption: 3m³/h
Number Of Grinding Head: 1 Pcs
Highlight:

bridge type stone grinding machine

,

automatic stone slab polisher

,

high-performance stone processing machine
Basic Infomation
Place of Origin: Jinjiang, Fujian, China
Brand Name: Xianda Machinery
Certification: API, CCC, SONCAP, GOST, ISO, CE, SGS;IAF
Model Number: ZDPM-3522/3545
Payment & Shipping Terms
Packaging Details: Plastic Package, Suitable For Sea Transportation
Delivery Time: 1 Month
Payment Terms: L/C， T/T， D/P， Western Union ，Paypal ，Money Gram， Others
Supply Ability: 1000 Sets/Year
Product Description
High-Performance Bridge Type Automatic Grinding Machine for Stone Processing
Our high-performance bridge type automatic grinding machines redefine precision and efficiency in stone processing. Available in two powerful models - ZDPM-3522 and ZDPM-3545 - each engineered to deliver top-notch performance.
Technical Specifications
Parameter Unit ZDPM-3522 ZDPM-3545
Front and back travel mm 2200 4500
Left and right travel mm 3500 3500
Lifting stroke mm 250 250
Main motor power kw 15 15
Total Power kw 19 19
Outline dimension mm 6000x4250x1550 6000x6450x1550
Water consumption m³/h 3 3
Grinding head type / Six-claw grinding head Six-claw grinding head
Number of grinding heads pcs 1 1
Air compressor power kw 3 (Optional) 3 (Optional)

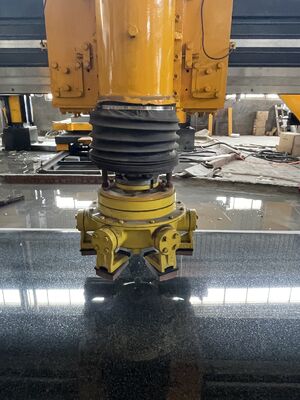

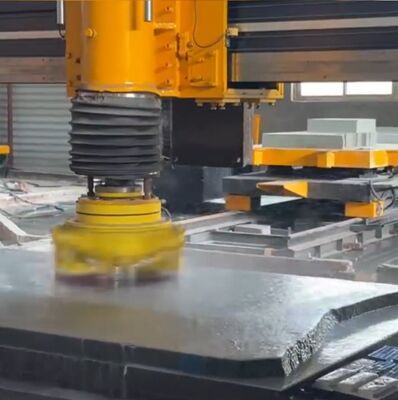

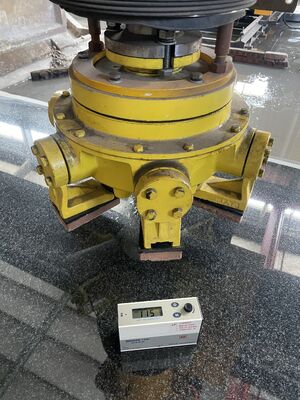

High-Performance Bridge Type Automatic Grinding Machine for Stone Processing 0 High-Performance Bridge Type Automatic Grinding Machine for Stone Processing 1 High-Performance Bridge Type Automatic Grinding Machine for Stone Processing 2 High-Performance Bridge Type Automatic Grinding Machine for Stone Processing 3
Key Features and Benefits
  • Bridge-Type Architecture: One-piece Meehanite® cast-iron bridge ensures micron-level accuracy (±0.05 mm planarity) across the entire table for consistent scratch depth and perfect flatness.
  • 15 kW Servo-Controlled Power: Vector-controlled main spindle delivers 300-3,000 rpm with real-time torque adjustment. Six-claw planetary grinding head removes stock 30% faster while using 20% fewer abrasives.
  • Advanced Automation: 15-inch HMI with recipe library, automatic thickness probing, and built-in OPC-UA & Modbus TCP for smart-factory integration.
  • Durable Construction: Linear roller guides rated for 50,000 km of maintenance-free travel with auto-lubrication every 8 hours. Centralized rinse station keeps downtime under 5 minutes per shift.
  • Proven ROI: Installations worldwide report 25% lower labor costs, 30% reduction in abrasive spend, and 20% increase in daily throughput.
Optional Upgrades (Field-Retrofittable)
  • 5-axis profiling head for ogee & bullnose edges
  • Laser slab mapper for automatic warp compensation
  • Closed-loop water recycling system (<50L fresh water per shift)
  • Remote production app for OEE monitoring from any smartphone
Warranty and Support
10-year warranty on frame and bridge with global network of certified engineers for same-day remote diagnostics.
Availability
ZDPM-3522 and ZDPM-3545 models are in stock for immediate dispatch. Contact our application engineers for a live demo or virtual Factory Acceptance Test.
