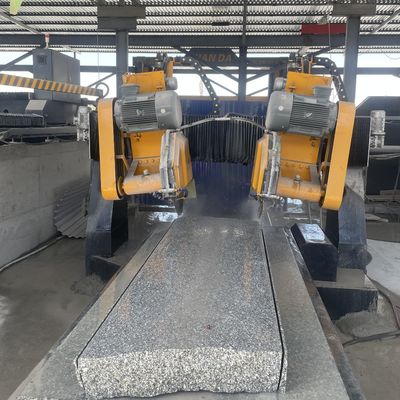

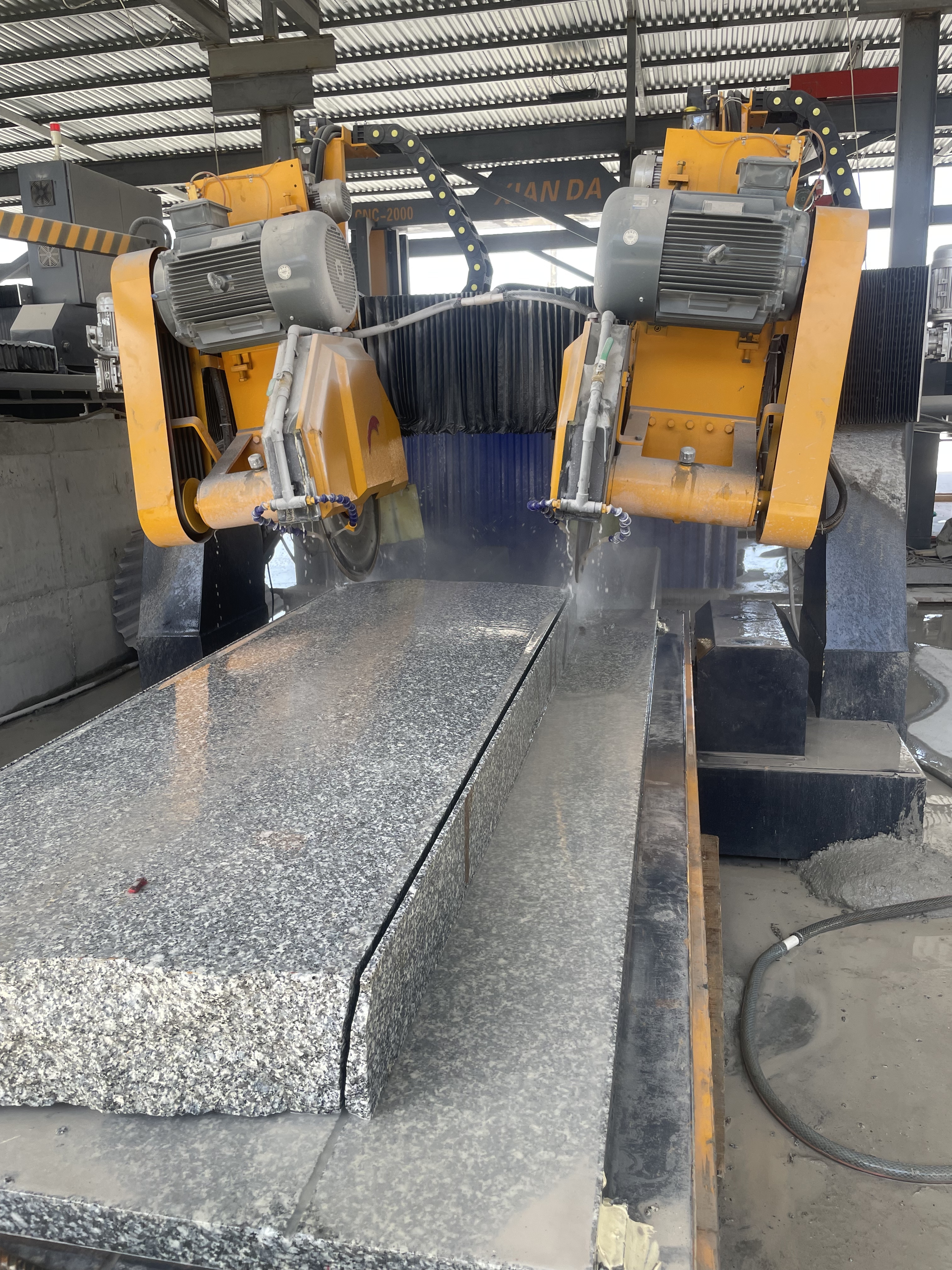

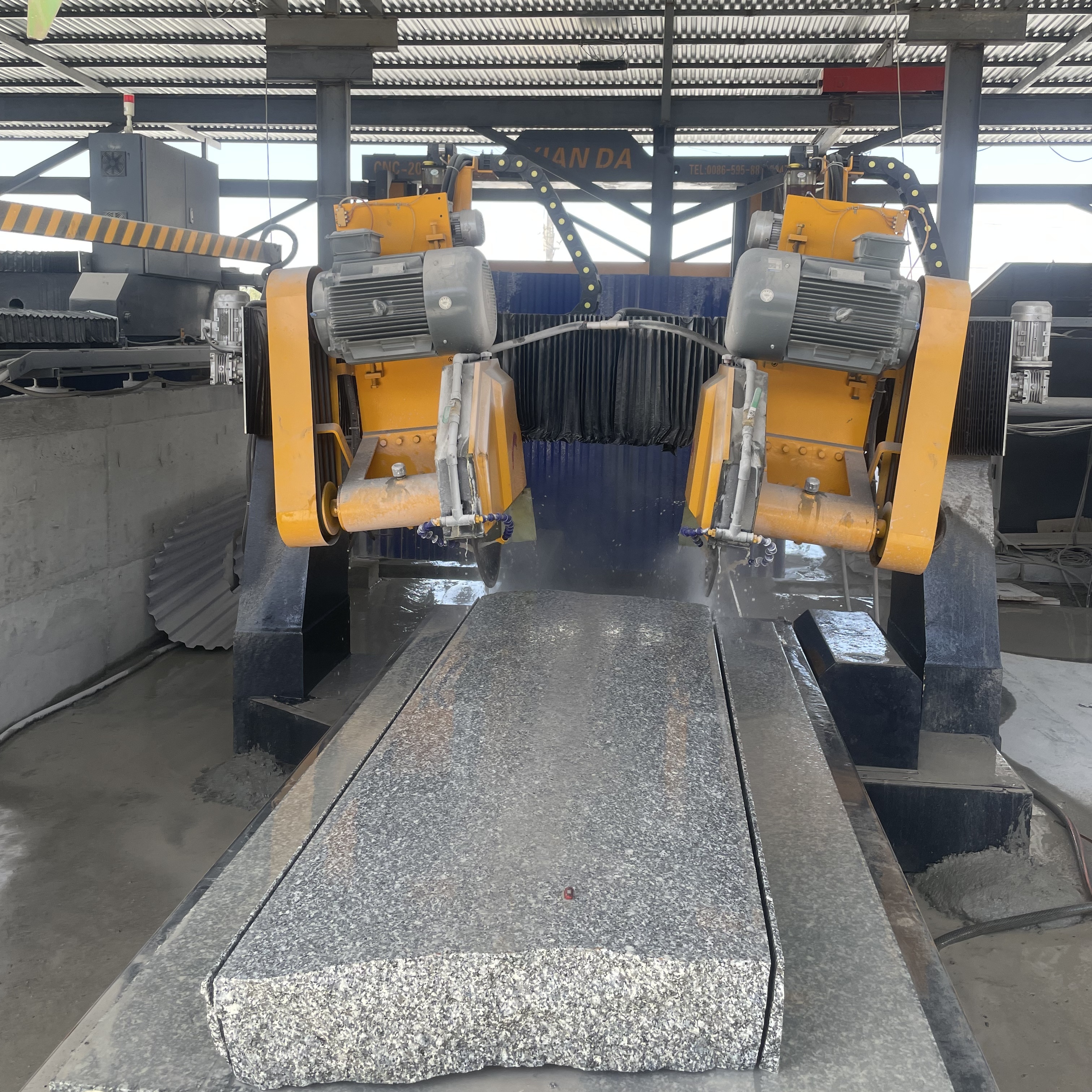

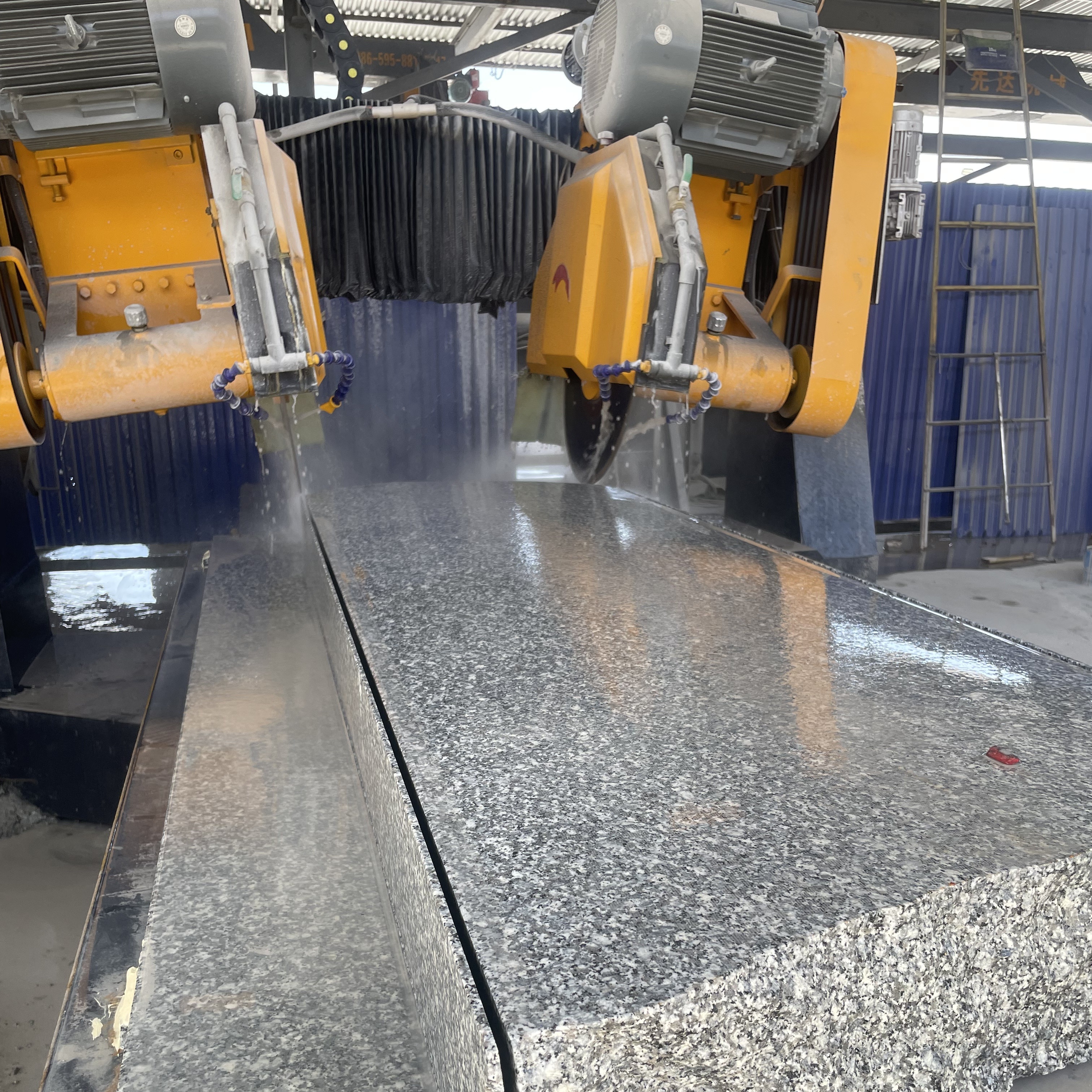

HKB-21500C Double-Blade Automatic Edge Trimming Machine

Product Overview

Key Equipment Features

1. Micro-Computer + Full-Electric Control

• The one-touch program stores edge length, chamfer angle and feed rate
• No hydraulics → cleaner workshop
• Remote diagnostic port for on-line support

2. Gantry-Fixed / Trolley-Moving Design

• 15 m effective travel (extendable) → single-pass trimming of long kerbs or tombstone borders
• The gantry frame absorbs vibration
• Open front & rear → forklift loading, automatic in-line connection to polishing line

3. Steel-Wire Rope Transmission

• The overload slip protects blades from jamming when hitting hard veins

4. Double-Blade Configuration

• Upper blade → edge trimming
• Lower blade → simultaneous chamfer (45° or 30° adjustable)
• Both blades servo-raise/lower independently → instant switch between full-edge or chamfer-only passes

5. High Efficiency & Flatness

• Feed speed: 0–6 m/min (inverter variable)
• Cutting flatness: ≤ 0.2 mm / m (wire-rope float compensation)
• Daily output: 300–450 lm of 150 mm granite kerb (8 h shift)
