3-axis CNC Bridge Type Linear Cutting and Milling Machine with 3500 mm Processing Length and Multi-Function Precision Blade Lifting

1
MOQ
To Be Negotiable
Price
3-axis CNC Bridge Type Linear Cutting and Milling Machine with 3500 mm Processing Length and Multi-Function Precision Blade Lifting
Features Gallery Product Description Request A Quote
Features
Specifications
Operation: Automatic
Function: Surface Milling/Edge Profiling/3D Contouring
Power Source: Electric
Main Power: 15/18.5(Optional)
Total Power: 21/24.5(Optional)
Cutting Material: Granite/Marble Etc.
Keywords: Stone Milling Machine/Stone Profiling Machine/Linear Cutting And Milling Machine
Training & Support: Operator Training And Ongoing Assistance
Highlight:

3-axis Bridge Type Milling Machine

,

Blade Lifting Milling Machine

,

CNC Linear Cutting and Milling Machine
Basic Infomation
Place of Origin: Jinjiang, Fujian, China
Brand Name: Xianda Machinery
Certification: API, CCC, SONCAP, GOST, ISO, CE, SGS;IAF
Model Number: BLMM-1800
Payment & Shipping Terms
Packaging Details: Wire rope lashing,Suitable for sea/air/land/rail transportation.
Delivery Time: 15 Days
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 1000 Sets/Year
Product Description

Product Overview

The BLMM-1800 Bridge Type Linear Cutting and Milling Machine represents the perfect fusion of profiling machine power and linear guide ball screw accuracy. Featuring advanced 3-axis CNC system control and robust bridge-type construction, this versatile machine excels in processing linear components, square balusters, and special shapes of kerbstone with exceptional efficiency, accuracy, and stability.
Technical Parameters
Parameter Unit BLMM-1800 BLMM-1800MAX-A BLMM-1800MAX-B BLMM-1800MAX-2D-A BLMM-1800MAX-2D-B
Blade diameter mm 350-600 400-700 400-700 400-700 400-700
Max lifting travel of cutting frame mm 450 600 600 600 600
Worktable Size mm 1800*3500 1800*3500 1800*3500 1800*3500*2 1800*3500*2
Max processing length mm 3500 3500 3500 3500 3500
Main motor kw 15/18.5(Optional) 18.5/22(Optional) 18.5/22(Optional) 18.5*2/22*2(Optional) 18.5*2/22*2(Optional)
Gross motor kw 21/24.5(Optional) 24/27.5(Optional) 24/27.5(Optional) 46/53 46.5/53.5
Outline dimension mm 5300*3950*2550 6500*4350*3600 6200*4100*3600 6500*6450*3600 6200*6200*3600
Water Consumption m³/h 6 6 6 12 12

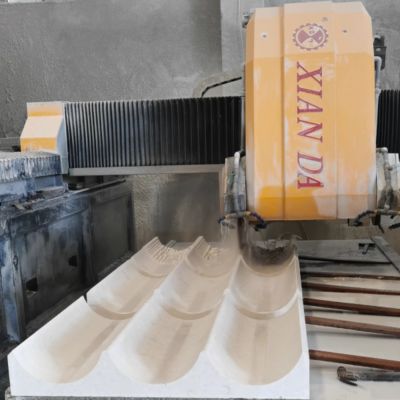

3-axis CNC Bridge Type Linear Cutting and Milling Machine with 3500 mm Processing Length and Multi-Function Precision Blade Lifting 0

3-axis CNC Bridge Type Linear Cutting and Milling Machine with 3500 mm Processing Length and Multi-Function Precision Blade Lifting 1

3-axis CNC Bridge Type Linear Cutting and Milling Machine with 3500 mm Processing Length and Multi-Function Precision Blade Lifting 2

3-axis CNC Bridge Type Linear Cutting and Milling Machine with 3500 mm Processing Length and Multi-Function Precision Blade Lifting 3

3-axis CNC Bridge Type Linear Cutting and Milling Machine with 3500 mm Processing Length and Multi-Function Precision Blade Lifting 4

3-axis CNC Bridge Type Linear Cutting and Milling Machine with 3500 mm Processing Length and Multi-Function Precision Blade Lifting 5

3-axis CNC Bridge Type Linear Cutting and Milling Machine with 3500 mm Processing Length and Multi-Function Precision Blade Lifting 6

3-axis CNC Bridge Type Linear Cutting and Milling Machine with 3500 mm Processing Length and Multi-Function Precision Blade Lifting 7

3-axis CNC Bridge Type Linear Cutting and Milling Machine with 3500 mm Processing Length and Multi-Function Precision Blade Lifting 8

3-axis CNC Bridge Type Linear Cutting and Milling Machine with 3500 mm Processing Length and Multi-Function Precision Blade Lifting 9

3-axis CNC Bridge Type Linear Cutting and Milling Machine with 3500 mm Processing Length and Multi-Function Precision Blade Lifting 10

3-axis CNC Bridge Type Linear Cutting and Milling Machine with 3500 mm Processing Length and Multi-Function Precision Blade Lifting 11

Equipment Features

Advanced 3-Axis CNC System Control

  • 3-Axis Precision Control: Simultaneous control of X, Y, and Z axes for complex cutting operations
  • Multi-Function Processing: Integrated rough cutting, fine cutting, and finish milling capabilities
  • Intelligent Programming: User-friendly CNC interface with multiple operation modes
  • Automated Operation: Reduces manual intervention and increases productivity
  • Real-Time Monitoring: Continuous system status feedback and error detection

Robust Bridge Type Structure

  • Bridge-Type Construction: Optimal rigidity and stability for heavy-duty operations
  • Heavy-Duty Frame: Built to handle large stone blocks and continuous operation
  • Vibration Dampening: Minimizes vibration for superior cutting accuracy

Precision Blade Lifting System

  • Guide Pillar Design: Precision-ground guide pillars for smooth vertical movement
  • Copper Bush Technology: Wear-resistant copper bushings for extended component life
  • Stable Lifting Motion: Minimized vibration during vertical positioning
  • High Precision Positioning: Accurate blade height control for consistent cutting

Perfect Power-Accuracy Combination

  • Profiling Machine Power: Robust cutting power for hard stone materials
  • Linear Guide Accuracy: Precision ball screw rod for accurate positioning
  • Hybrid Technology: Combines the best of both power and precision worlds

Multi-Function Processing Capabilities

Rough Cutting Function   Fine Cutting Function Finish Milling

Ordering Process

  1. Technical Consultation: Application assessment and machine selection
  2. Detailed Quotation: Comprehensive pricing within 24 hours
  3. Factory Acceptance: Machine testing and approval
  4. Shipping Coordination: Logistics arrangement and tracking
  5. Installation Support: On-site setup and commissioning
  6. Training & Support: Operator training and ongoing assistance

Customer Success Stories

⭐⭐⭐⭐⭐ "Perfect for our baluster production" "The BLMM-1800 has transformed our square baluster manufacturing. The precision and speed are exceptional, and we can now handle complex custom orders with ease." - European Stone Fabrication Company
⭐⭐⭐⭐⭐ "Excellent kerbstone processing solution" "This machine handles our special shaped kerbstone requirements perfectly. The multi-function capabilities have expanded our product range significantly." - North American Road Construction Supplier
⭐⭐⭐⭐⭐ "Outstanding value for money" "We achieved ROI in just 15 months. The machine's reliability and the support team's expertise have made this a game-changing investment for our business." - Asian Architectural Stone Processor
